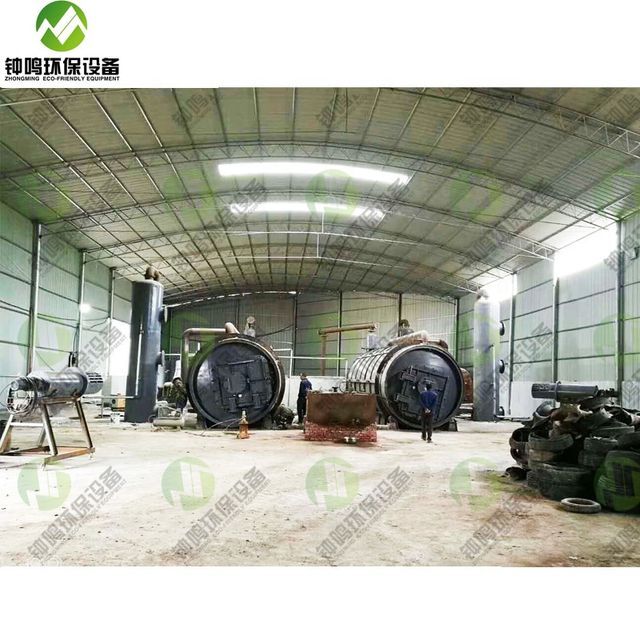

Scrap tires recycled to diesel plant

Product details
Final product:tire oil, carbon blackWarranty:24 months, 2 years
Reactor Life:5-8 yearscapacity:5~15 tons per day
Core Components Warranty:2 yearsReactor material:alloy steel
Applicable industries:Manufacturing plant, waste tire recyclingpayment terms:L/C,Western Union,D/P,T/T,MoneyGram,ESCROW
cooling method:water circulation coolingheating method:directly
brand:ZMMechanical test report:if
Showroom location:Turkey, Vietnam, Philippines, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Kenya, UAE, Bangladesh, Kazakhstan, Ukraine, Nigeria, Uzbekistan, Tajikistan, Japan, MalaysiaFunction:Convert solid waste to fuel oil
place of origin; place of origin:Henan, ChinaHeating fuel:Coal, diesel, wood, pyrolysis oil
Supply capacity:17 sets per monthMain selling point:High security level
Core components:Bearings, motors, gears, reactorsHealth status:new
Packaging Preview:Type of machine:Continuous, batch type
port:Qingdao Port, Lianyungang Port, Shanghai PortWeight (kg):38000 kg
Equipment capacity:5TPD, 6TPD, 8TPD, 10TPD, 12TPD, 15TPDVideo external inspection:if
Packaging Details:15TPD needs FCL loading, 1*40FR unpack + 2*40HQ containerMarketing Type:New Products 2021
about us
Company Name
Shangqiu Zhongming Environmental Protection Equipment Co., Ltd.
Covered area
28000 square meters
year established
Year 2008
Certification
ISO, CE, SGS, 8 national invention patents and utility model patents
main production
Waste tire/plastic/acrylic/sludge etc... Pyrolysis machine
Used engine oil/cracking oil/crude oil, other waste oil distillation machine
Engineer Services
4 R&D engineers and 19 technicians
international market
15% Europe, 14% Southeast Asia, 33% Mainland China, 5% Americas, 7% Africa, 8% Middle East, 3% East Asia, 11% South Asia, 4% Central Asia
Product Description
product name
tire pyrolysis machine
capacity
5TPD, 6TPD, 8TPD, 10TPD, 12TPD, 15TPD
Reactor material
Q345R, aAlloy steel, stainless steel
Reactor thickness
16.45mm, 18.45mm
gross weight
30-40 tons (varies by design and capacity)
Working power
15-30KW (varies by design and capacity)
labor force requirements
2-4 people per machine, more machines and less labor
processing time
Feed 2 hours, process 8-9 hours, and discharge carbon black and steel wire for 1.5 hours. (Take 12TPD capacity as an example)
Application materials
Waste tires, waste rubber, waste plastics, waste sludge, waste aluminum foil, waste cables, waste leather, waste acrylic (PMMA), etc...
heating fuel
Pyrolysis oil, natural gas, electricity, coal, firewood, etc...

1) The raw material can be used in the pyrolysis machine

2) Final production

Do not.
Name
output
usage


1

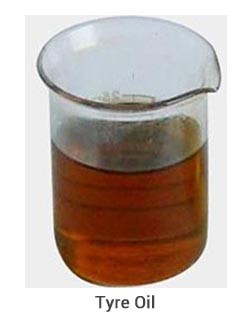

tire oil


40-45%
* Direct sale.
* Further refined by Zhongming Distillation Machine to obtain standard diesel and gasoline.
* Used as fuel for thermal crackers or distillation machines.

2

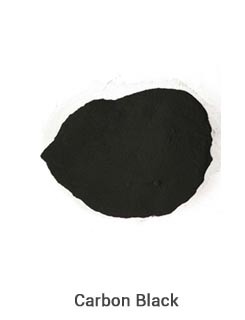

carbon black

35-40%
* Direct sale.
* Further refining of carbon by carbon black refiner.
* Make pellets by carbon pellet machine.
3

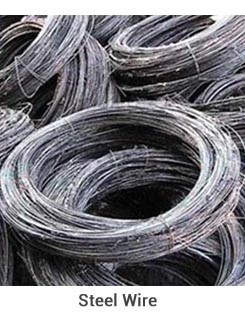

steel wire
15%
* Direct sale.
* The billet is manufactured by hydraulic baling.

4

syngas

6%
* Recovered as fuel by gas burner system (We provide gas burners for free).
* Additional gas can also be stored as fuel for other heating.

3) Layout diagram
