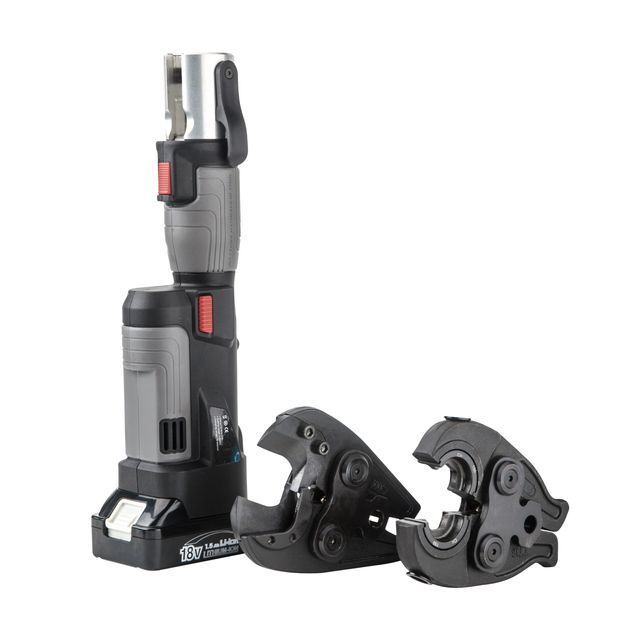

ZUPPER PZ-300C Mini 2-in-1 Cordless Scraping and Cutting Tool

Supplier: Taizhou Juli Tools Co., Ltd.
Region: Zhejiang, China
Contact: Ms Cathy Zhang
Price: $477.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

type:	Cable crimping and cutting tools	Supply capacity:	1000 pieces per month
Battery:	18V 2.5Ah	Crimping range:	16 - 300mm2
Crimping force:	19 kN	payment terms:	L/C,Western Union,T/T
place of origin; place of origin:	middle; philosophy	model:	PZ-300C
Cutting range:	Diameter 35mm	Packaging Details:	plastic box
Stroke:	30mm	Packaging Preview:
weight:	2KG	Charging time:	50 minutes
port:	Ningbo/Shanghai

Virtual Reality

Why choose us

Product Description

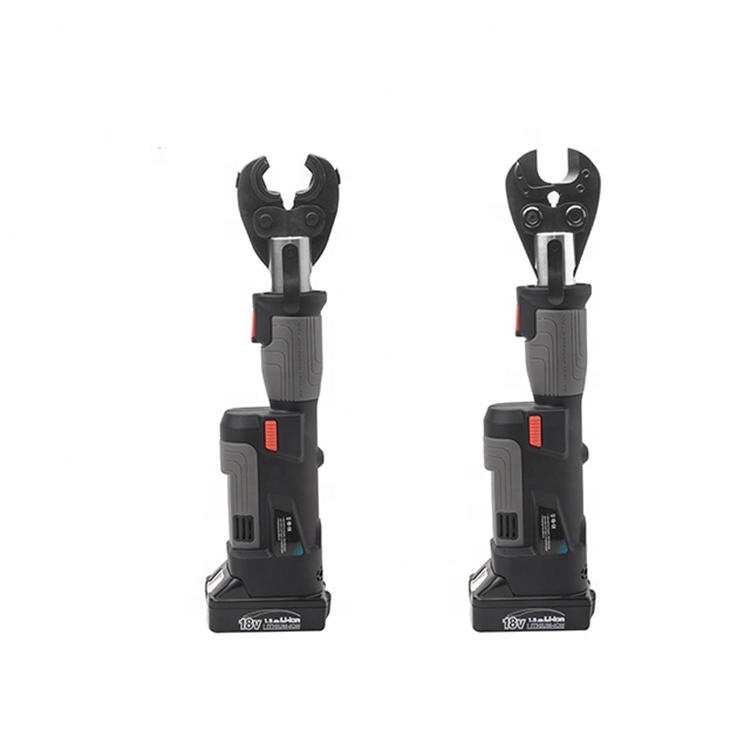

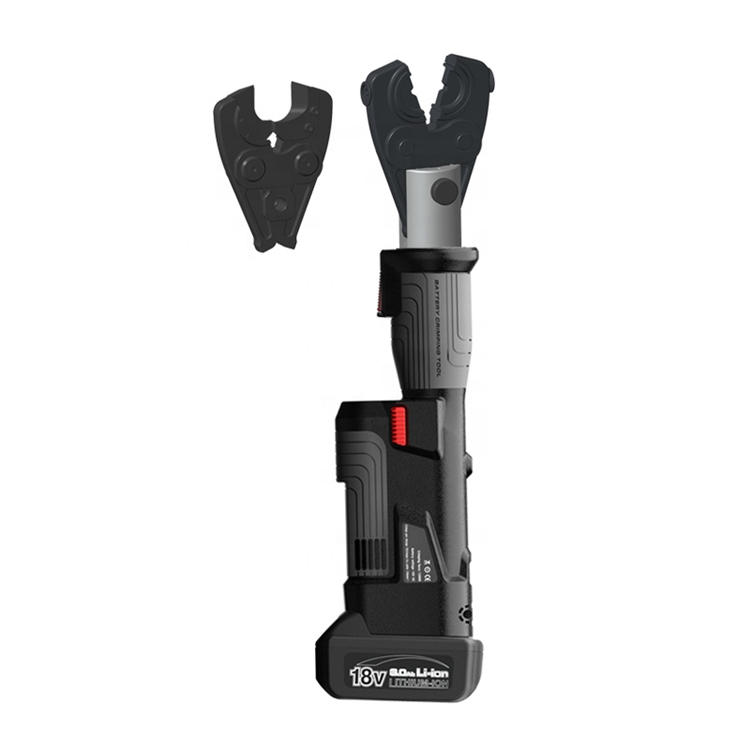

For operations that require different applications, ZUPPER offers a versatile tool for crimping and cutting in one tool. Small and lightweight, the ZUPPER PZ-300C produces high power and performance, it is the newest addition to the mini punch tool with inline gripper, weighing only 2kg, with a CRIMP cycle time of 2.5-5 seconds.

Technical data	PZ-300C
preset pressure	19KN
stroke	30mm
crimp range	Copper 300mm²/Aluminium 240mm²
Cutting range	φ30mm copper/aluminum cable
Voltage/Capacity	18V/2.5Ah
charging time	About. 50 minutes
change the voltage	AC 100-240V; 50-60Hz

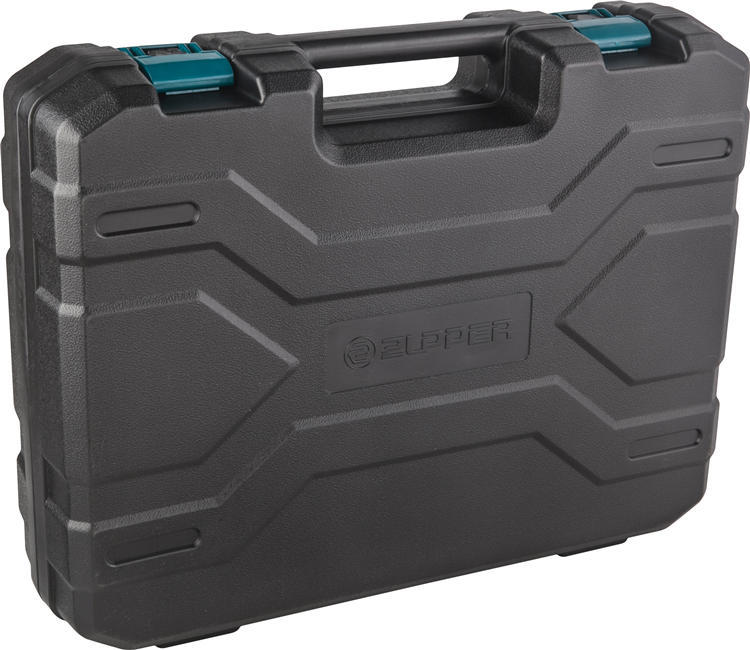

pack	plastic box
weight	2 kg (including battery)
weight		3.4kgs (including battery and jaw)
Tool size	363x119x75mm
Accessories
crimping die	16,25,35,50,70,95,120,150,185,240,300mm²
crimp	1 item
cutting head	1 item
Battery	2
charger	1 item
sealing ring	1 set
