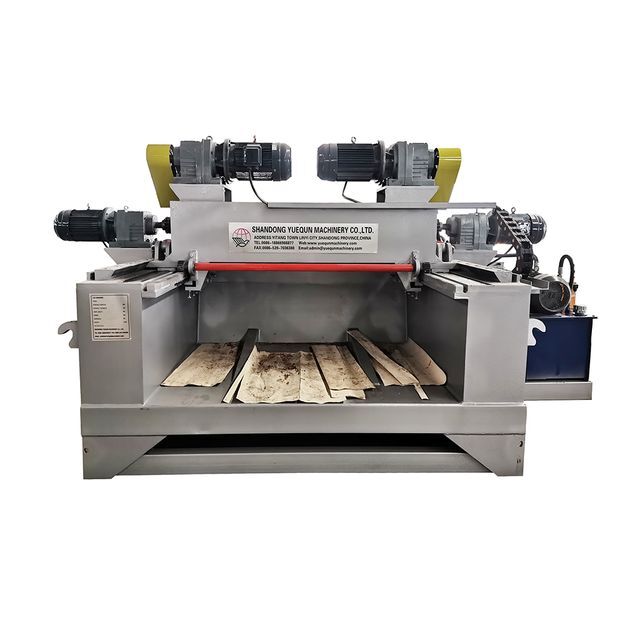

High quality 4ft/8ft log debarker veneer debarker
-
Supplier: Shandong Yuequn Machinery Co., Ltd. -
Region: Shandong, China -
Contact: Mr Alvin Hu -
Price: $3900.00 /set -
Min. Order: 1 set
Product details
| Timber loss rate: | less than 1% | Core Components Warranty: | 2 years |
| Log peeling machine name: | High quality log peeling machine plywood veneer peeling machine | Showroom location: | not any |
| Feed cylinder: | 80mm*2 | Packaging Details: | The body is nude and the accessories are in a plywood box, or according to your request. |
| Maximum cutting diameter: | 500mm | Video external inspection: | if |
| Packaging Preview: | Timber length range: | 1350--2650mm | |
| Warranty: | 2 years | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| After-sales service provided: | Engineers can repair machinery overseas | Line speed: | 40m-80m/min (adjustable) |
| Dimensions (L*W*H): | 2800x2000x1250 mm | Mechanical test report: | if |
| port: | Qingdao Port | Maximum cutting length: | 1500mm |
| Marketing Type: | New Products 2020 | Main selling point: | high accuracy |
| Health status: | new | strength: | 20.5Kw |
| Peel rate: | 100% | Weight (kg): | 4000 |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Trade Assurance Service | place of origin; place of origin: | Shandong China |
| Paper cutter: | 1500*18*16mm | Maximum working size: | 500*1400mm |
| Diameter and length of pressure rod: | 150/1500mm | Applicable industries: | manufacturing plant, plywood machinery |
| brand: | Yuequn | Supply capacity: | 20 sets per month |
| Voltage: | 380/415/440v |
4ft log debarker | ||
Model | YQLD1400 mm | |
Log dimension processing | 500*1400mm | |
Rotary knife specification | 1500*180*16mm | |
Drum diameter | 150 mm | |
Line speed | 50m/min | |
Reference output | 30 m3/day | |
Hydraulic system power | 7.5kW | |
Drive Roller Power | 5.5 kW*2 or 7.5 kW*2 | |
Roller power | 5.5 kW*2 or 7.5 kW*2 | |
Feed barrel diameter | 80mm*2 | |
Product Size | 4000*2200*1800mm | |
weight | 4000 kg | |
advantage:
1. Double roller drive, good stability, high peeling uniformity
2. Taiwan Shangyin linear guide rail, to ensure that the veneer is more flat and even
3. Japanese bearings ensure smooth and stable operation of the machine
4, T10 reducer - small vibration, smooth transmission, low noise.
5. Hydraulic tool rest saves manpower, simple operation and automation
6. Automatic knife adjustment and sewing--double convex rail design structure, more accurate, faster and more stable than the original single
The convex rail is adjusted without manual screw adjustment, saving manpower.
1. Double roller drive, good stability, high peeling uniformity
2. Taiwan Shangyin linear guide rail, to ensure that the veneer is more flat and even
3. Japanese bearings ensure smooth and stable operation of the machine
4, T10 reducer - small vibration, smooth transmission, low noise.
5. Hydraulic tool rest saves manpower, simple operation and automation
6. Automatic knife adjustment and sewing--double convex rail design structure, more accurate, faster and more stable than the original single
The convex rail is adjusted without manual screw adjustment, saving manpower.
