Hot selling batte high speed hydraulic automatic mesh belt filter continuous meltblown screen changer for plastic pvc pp extruder

Supplier: Zhengzhou Bate Melt Pumps Co., Ltd.
Region: Henan, China
Contact: Mr Cao Huang
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales service provided:	Online support	Supply capacity:	100 sets of mesh belt screen changers per month
Showroom location:	not any	Material:	personal computer
Spare Parts Type:	heater	product type:	Mesh belt changer
product name:	PP extruder screen changer	Health status:	new
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Hourly output range:	550-1500KG/H
Packaging Details:	The mesh belt screen changer is packed in a wooden case.	Main selling point:	easy to operate
brand:	Battery	Weight (kg):	100
Applicable industries:	manufacturing plant	Video external inspection:	if
Suitable for extruder screw type:	Single screw/twin screw/multi-screw	Applicable materials:	pp/PVC/PBT/PET/LDPE/PB/PTFE/PLA/PBAT/PPC etc.
Working pressure:	Less than 25MPA	Application areas:	Cast film/granule/sheet/nonwoven/monofilament
Marketing Type:	Hot Products of 2019	heating power:	10200/13000W
Warranty:	1 year	Mechanical test report:	if
port:	China's main ports	place of origin; place of origin:	Henan, China

Product Description

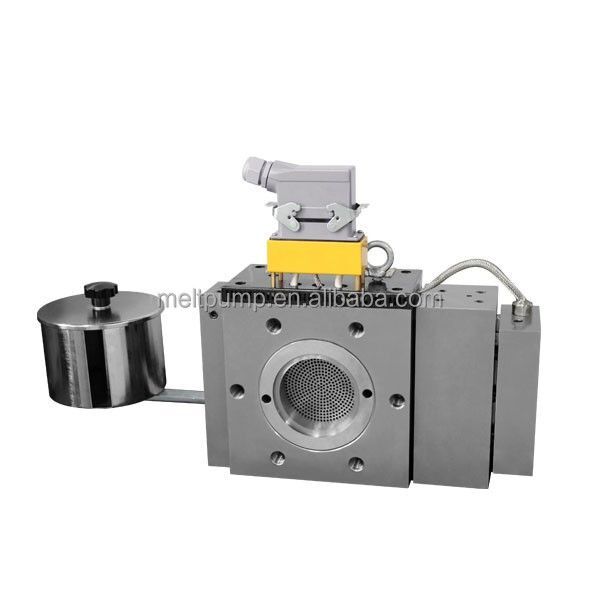

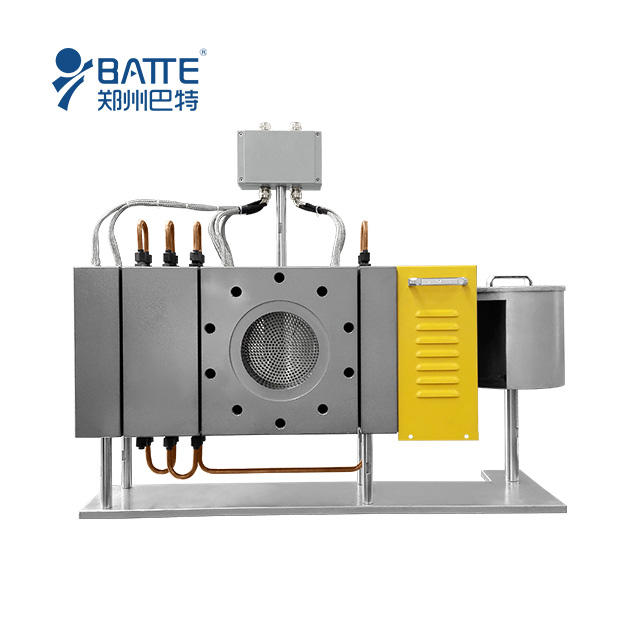

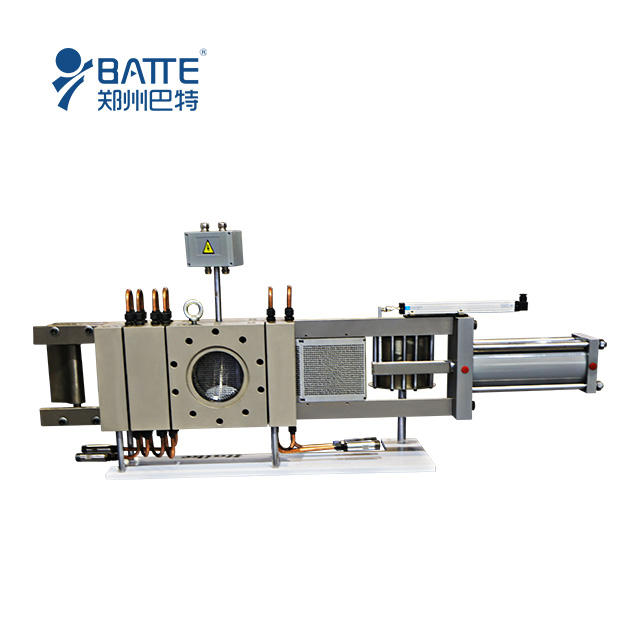

introduceAutomatic Belt Screen Changer:

BATTE belt screen changers are designed for blown and cast film extrusion, blow extrusion, sheet extrusion, film
Extrusion, compound extrusion, etc. The automatic belt screen changer is a fully automatic screen filter for the production line.

Features of automatic screen changer:
◆ Belt screen changer consists of screen changer body, heating/cooling system, electric control system and so on.
◆ The control system can automatically control the filtering time and speed.
◆ This series of screen changers are automatic continuous screen changers.
◆ Excellent output stability, the product is not deformed, and the quality is stable.
◆ The whole production process is waste-free and waste-free, and the material consumption is low.
◆ The length of the filter can be customized 10mm-20mm, which can be used continuously for 2-6 months.
◆ Suitable for PP, PE, ABS, PS and other plastic polymers.

Application of continuous belt screen changer:
◆ Blown film and cast film
◆ Table
◆ Compound interest
◆ Pipeline
◆ Oil pipe
◆ Introduction
◆ Multi-layer extrusion

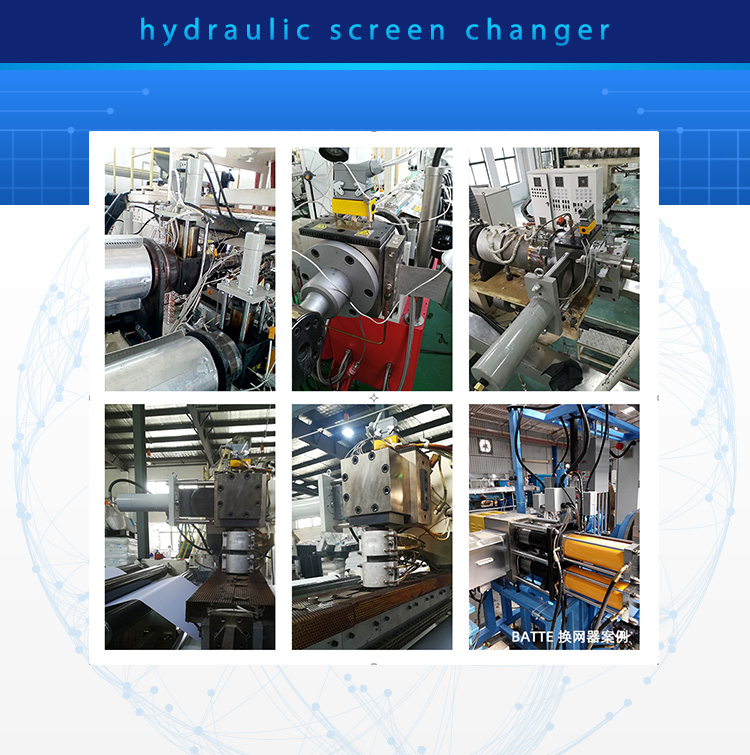

customer photo

What are the benefits of an extruder screen changer?1. Improve the quality of the final product 2. Greatly improve the plasticization of raw materials 3. Make the product structure more uniform and the product surface smooth 4. Protect downstream equipment such as Gmach melt pumps and extrusion diesWhat are the benefits of a melt pump on an extruder?1. Improve the stability of product particle size 2. Melting quality control 3. Increase output 4. Reduce raw material consumption 5. Improve the flexibility of the extruder 6. Protect the extrusion die and prolong the service life of the extruderWhat are the benefits of installing a screen changer with a melt gear pump?1. Improve melt plasticization 2. Improve product quality 3. Extend extruder service life 4. Greatly increase product output 5. Reduce labor interference 6. Reduce unqualified productsWhat do we need to pay attention to when using screen changers and melt pumps?1. Operate the screen changer and melt gear pump according to the safety manual to prevent electric shock 2. Prevent burns 3. Do not disassemble the screen changer and melt gear pump. If you have any questions, please contact the supplier.

Product parameters

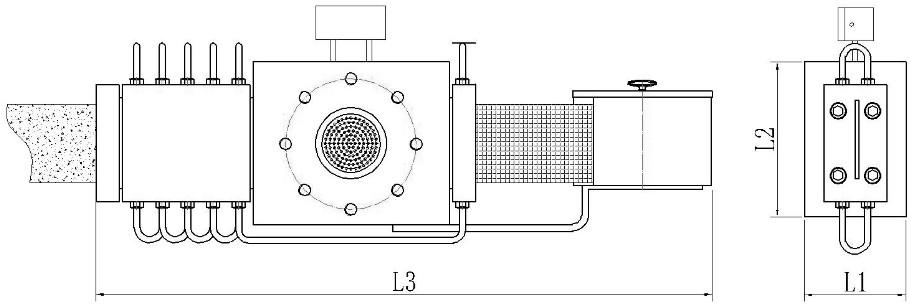

Structure of automatic continuous belt screen changer:

type	Capacity (kg/hour)	Dimensions (mm)					screen size			heater
type	Capacity (kg/hour)			L1	L2	L3	Diameter (mm)	Area (cm2)	Voltage (v)	Power (Watts)
ZB-ACB-50	30-85	150	165	540	50	20	230/400	5200
ZB-ACB-70	75-200	160	170	560	70	38	230/400	5400
ZB-ACB-90	100-290	170	185	580	90	64	230/400	5800
ZB-ACB-100	130-350	180	215	605	100	78	230/400	6200
ZB-ACB-120	190-500	185	230	645	120	113	230/400	6500
ZB-ACB-150	350-800	200	265	700	150	176	230/400	7200
ZB-ACB-180	450-1200	220	305	760	180	254	230/400	8200

Note: Capacity will be affected by the fluidity, filtration fineness and purity of the material.
