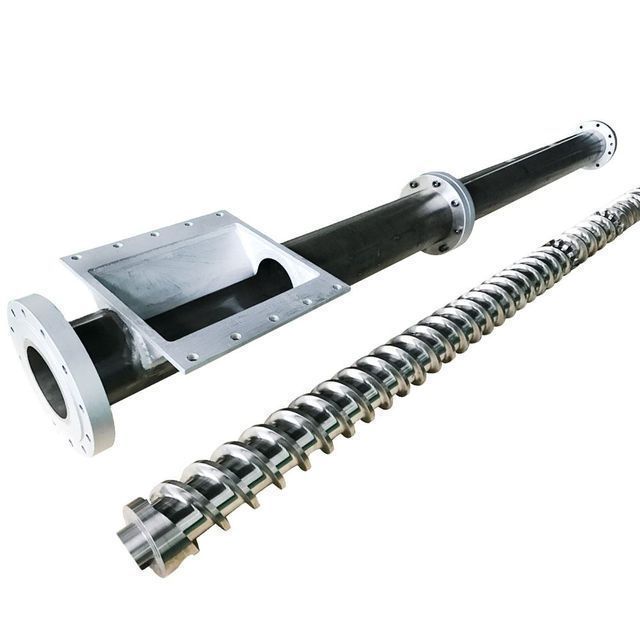

Pelletizing extruder hot sale single screw barrel

Supplier: Zhoushan Sanco Plastic Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms SAN CO
Price: $300.00 /set
Min. Order: 1 set

Click here to contact

Product details

Advantage:	competitive price	Packaging Details:	Recycling machine 1. Brush anti-corrosion oil on the recycling machine. 2. Packed with film. 3. Packed in wooden case.
Mechanical test report:	if	brand:	Yamashina
standard:	ISO9001	For what machine:	Extrusion Blister Machine
place of origin; place of origin:	Zhejiang, China	Spare Part Type:	extruder
Nitriding depth:	0.5~0.8mm	After warranty service:	Video technical support, online support
Local service location:	Germany, Vietnam, Peru, Russia, Thailand, Ukraine	Package preview:
product name:	Single screw barrel	After-sales service provided:	Online support, on-site installation, commissioning and training
port:	Ningbo or Shanghai single screw	Screw type:	Customer requirements
Video shipment inspection:	if	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Bimetallic layer:	Nickel base	Material:	38CrMoAlA SKD11 SKD61 stainless steel, 38CrMoAIA.42CrMo.SKD61
State of health:	new	Application machine:	recycling machine
Screw diameter:	180mm	Marketing Type:	normal product
Applicable industries:	Manufacturing plants, machinery repair shops, retail stores	Warranty:	1 year
Supply capacity:	2000 sets per month	Showroom location:	Vietnam
Main selling points:	competitive price

Why choose us

1. SANCO only supplies products with competitive advantages!
2. Full refund or free replacement if bad quality or late delivery!
3. SANCO focuses on solution services, not just screw and barrel accessories!
4. Quality is our culture, with us, your money is safe and your business is safe! ! !
5. SANCO is the most popular Alibaba gold supplier in 2019! ! !

6. SANCO is a gold supplier certified by TUV & ALIBABA!

Product Description

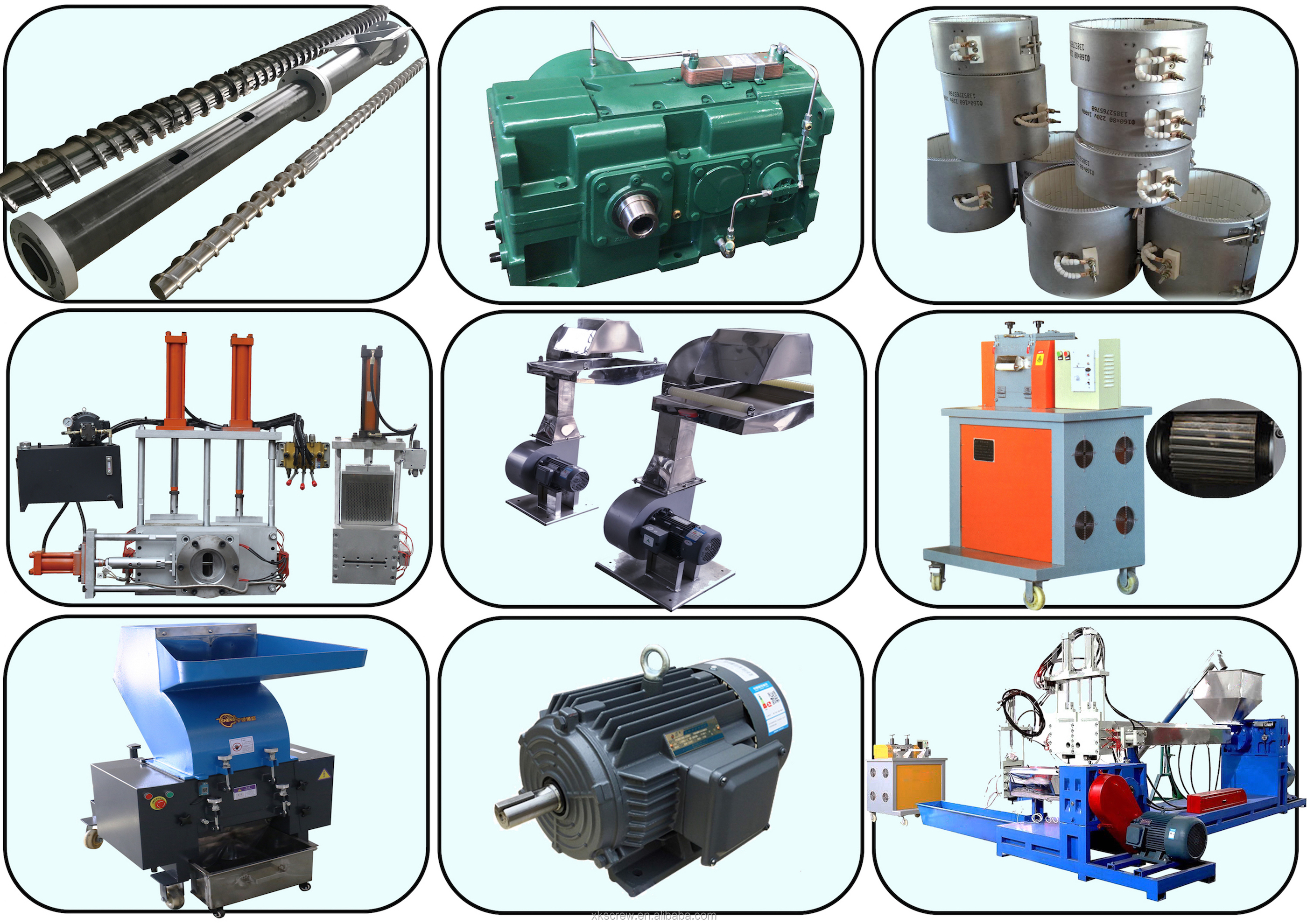

We not only sell recycling screw barrels, we can also provide you with suitable high quality recycling machine spare parts at competitive prices,We can provide you with one-stop service to save your time and money.

Plastic Recycling Screw Barrel Detail

_{Show details as}

_{plasticRecovery screw barrel}

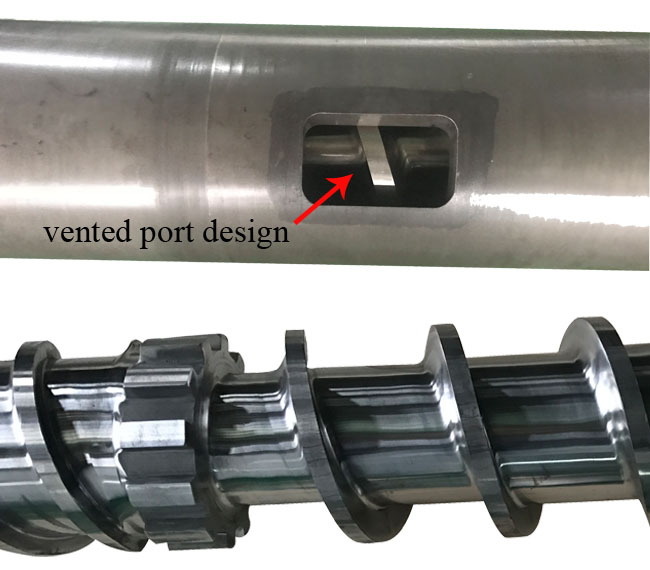

There is a recovery granulation screw barrel with one exhaust port and double exhaust port design, due to the material, these volatile components and moisture need to be discharged during processing to ensure the final quality of the product.

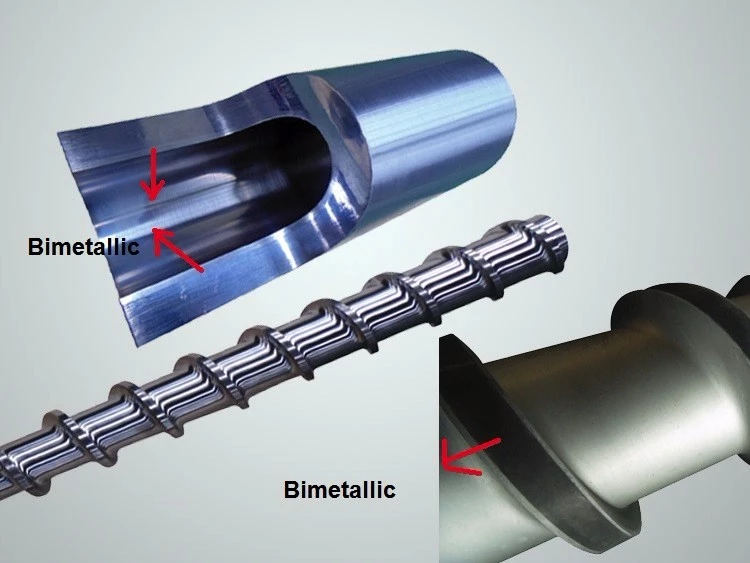

_{Bimetal recycling granulation screw barrel}

Since the granulator mostly uses recycled materials, the materials contain a lot of impurities and corrosive components, so
According to customer needs, we will recommend the use of bimetallic screw and bimetallic barrel to improve the service life of the screw barrel.

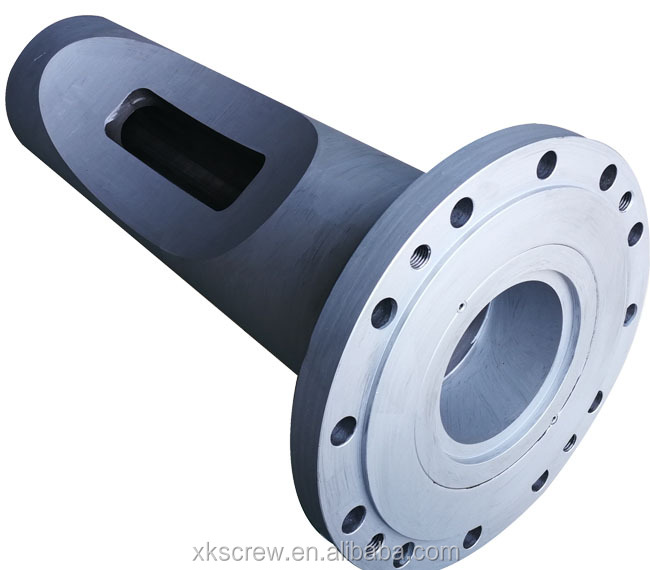

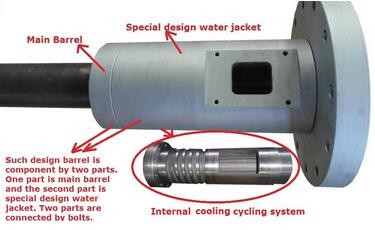

_{High-speed feeding barrel - independent water jacket}

This independent water-cooling jacket design does have excellent cooling performance and higher output capacity, a longer and deeper rectangular groove design, and a complex cooling circulation system inside.

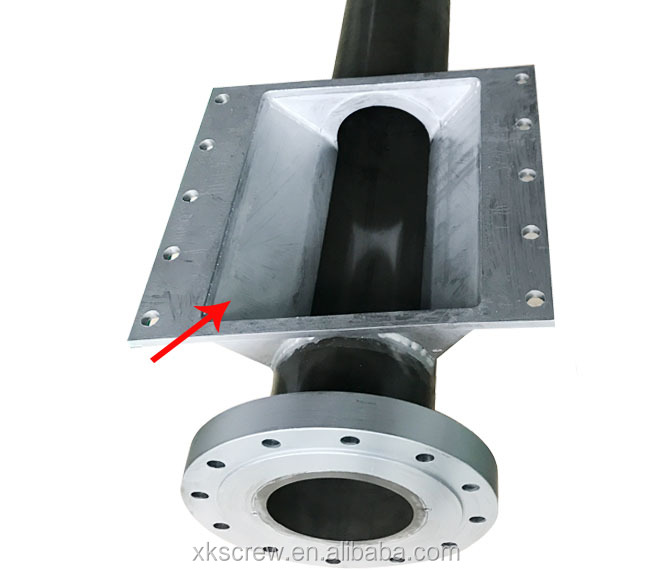

large feeding port

We have large feed inlet design to increase feed speed to increase output, especially for LDPE/HDPE, PPfilm raw material recovery.

Side feed connected to coalescer

When customers have briquette machine, its feeding is easy and faster than normal feeder.There are also chutes inside the feeder.

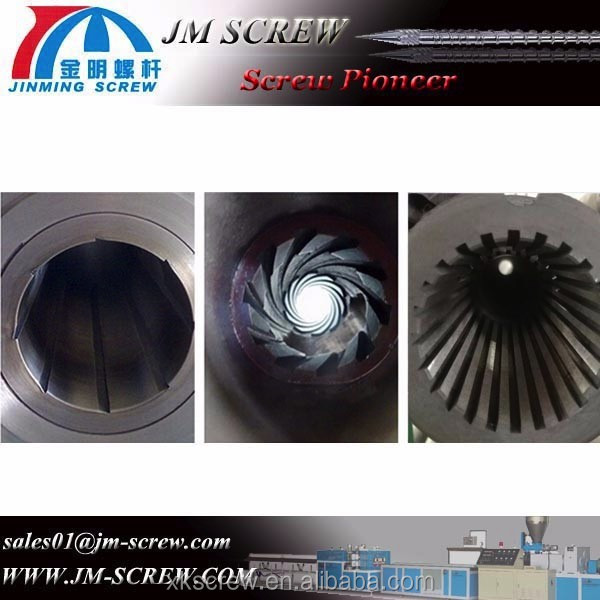

_{Straight Groove/Spiral Groove/Eccentric Groove}

_{Feeding design}

We make different feed trough shapes such as straight trough, chute, eccentric, etc. to increase the feeding speed, our
High-speed screw greatly increases the output of the extruder.

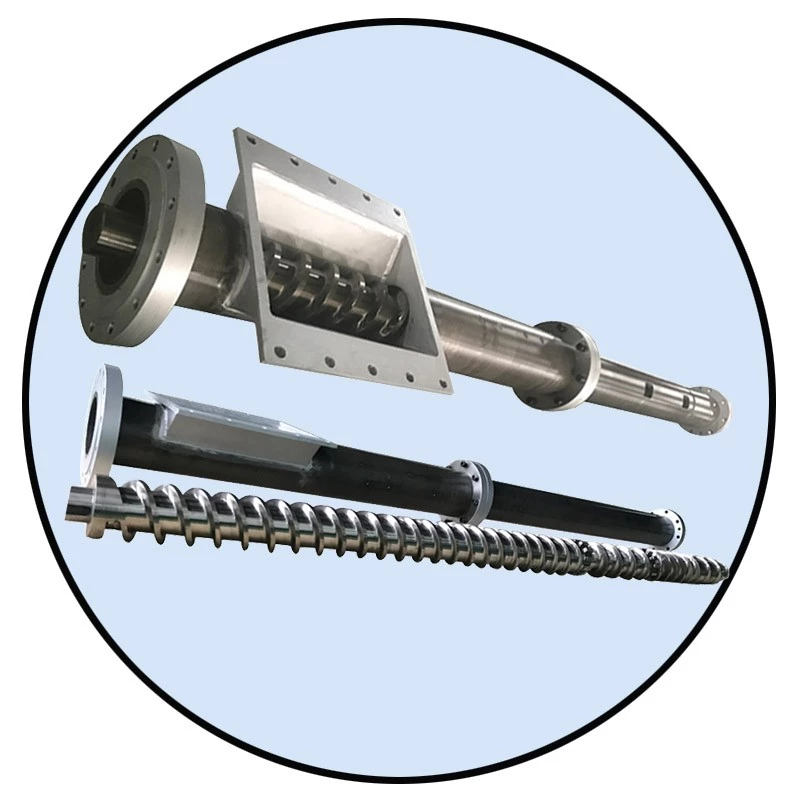

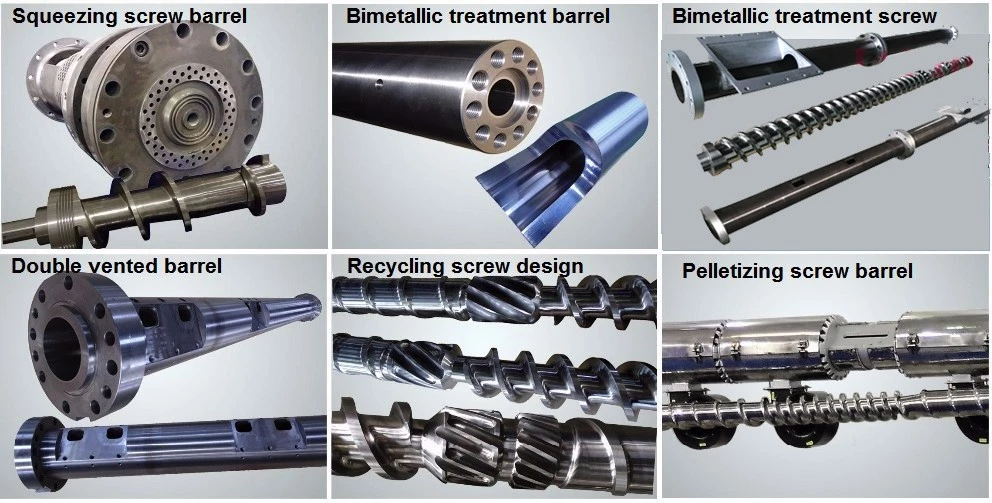

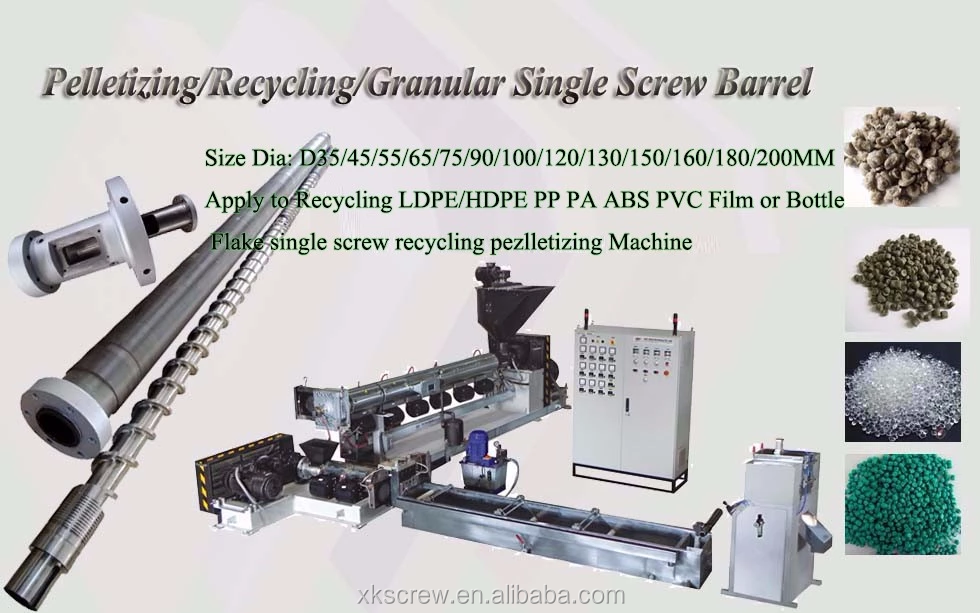

Our various recycling granulation screw barrels:

Detailed specifications

Substrate	1) 38CrMoAlA (JIS SACM645); 2) Cr12MOV (JIS SKD-11); 2) 4Cr5MoSiV1 (JIS SKD-61); 4) 42CrMo (AISI 4140)
bimetal alloy material	1) Iron-based alloy 2) Nickel-based alloy/Dro alloy 3) Cobalt-based alloy 4) Nickel-cobalt-based alloy 5) Tungsten carbide/tungsten carbide

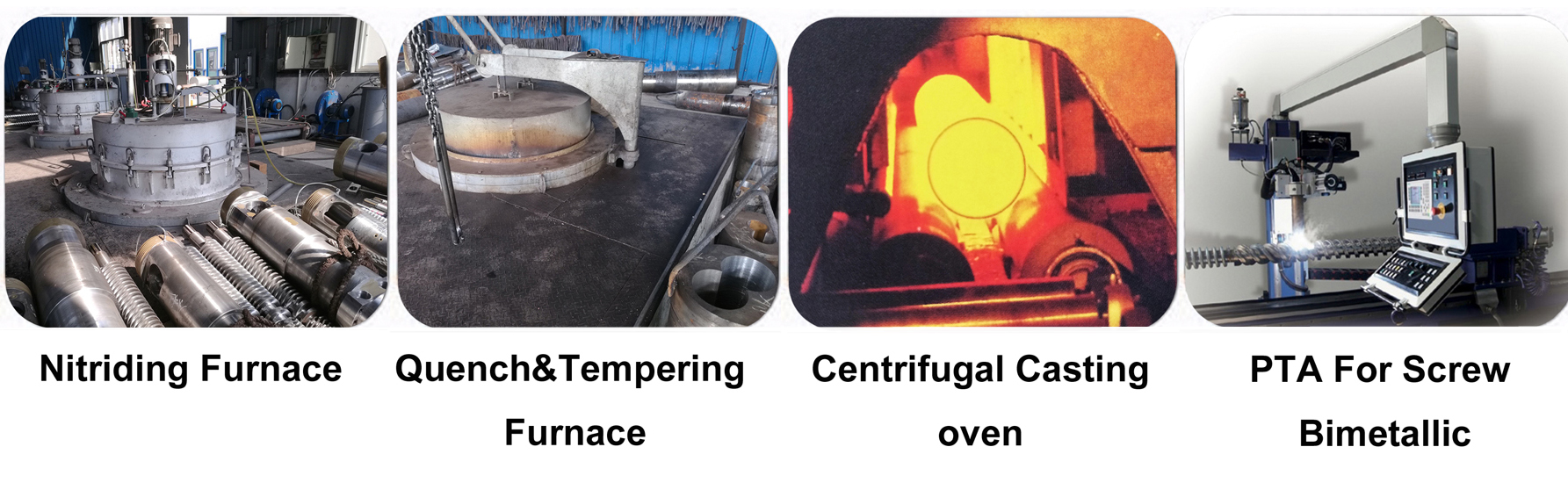

surface treatment	heat treatment high frequency processing Nitriding treatment (120 hours): Nitriding layer depth: 0.5-0.8mm Nitriding layer hardness: 900-1020Hv (HRC56°-65°) Hard chrome plating treatment: Thickness of hard chrome plating layer: 0.05-0.10mm Hard chromium plating layer hardness: ≥950HV Nickel alloy plating treatment: Bimetal Barrel/Cylinder: Centrifugal Casting (Mosaic Alloy) Bimetallic screw: plasma alloy coating spraying Double metal layer depth: >2mm Double metal layer hardness: HRC55°-72° Spray corrosion and wear-resistant bimetallic layer
Basic Information	Surface roughness: Ra0.4um Screw straightness: ≤0.015mm Linear axis limit: ≤0.02mm Hardness after conditioning: HB240-280 Nitration brittleness: ≤ level two
material application	1) General purpose plastic 2) ABS, PA, PC, PE, PET, PP, PS, EVA, PU, PVC, U-PVC, etc. 3) PA + GF (glass fiber) 4) Flame retardant reinforced plastic 5) Modified engineering plastics 6) Various mixed recycled materials (scrap or pellets), PVC + 30% CaCo3, etc.

our service

In today's competitive marketplace, producing PVC or other extruder products at the highest level of productivity and at the lowest possible cost is critical to growing your business, increasing profits and meeting your overall business goals.

For over a decade, SANCO has been a leading supplier of mechanical components to the plastics, food and rubber industries. FliteTechnology has earned a reputation as an innovator and industry leader in the manufacture of precision single and dual feed screws and barrels. Whether it's new construction, renovation, design or repair, you can trust our service, quality and performance to be unmatched.

We also offer very competitive prices. Offers pickup and delivery as well as reverse engineering of existing wear parts.

We focus on solution services, not just supplying screw barrels.
