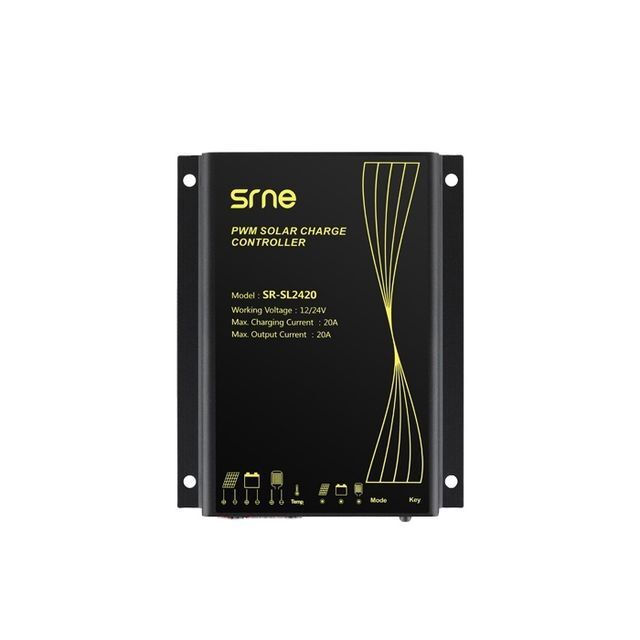

SRNE 20A pwm solar street light charge controller

Supplier: SRNE Solar Co., Ltd.
Region: Guangdong, China
Contact: Ms Maggie lee
Price: $22.00 / 1 - 29 pieces
$20.00 / 30 - 49 pieces
$18.00 / >=50 pieces
Min. Order: 1 piece

Click here to contact

Product details

weight:	140g/300g	brand:	SRNE
payment terms:	Wire Transfer, Western Union, Paypal	port:	Shenzhen
Temperature compensation:	-4.0mV/°C/2V	control method:	intelligent control
Supply capacity:	20000 pieces per month	Operating temperature:	-35°C~+65°C
product name:	Solar Street Light Charge Controller	model:	SL2420
Certificate:	Chief Executive	Payment method:	Sunlight
Working hours (hours):	long	Solar input voltage:	< 55 volts
Maximum photovoltaic power:	600w	Packaging Details:	Packaging: 42 pieces in one box Carton size: 335295240mm
Warranty:	1 year	application:	Charger Controller, Solar System Controller
Maximum PV Voltage:	55v	type:	PWM
Certification:	CE/RoHS/ISO9001	Protection class:	IP68
place of origin; place of origin:	Guangdong, China	System Voltage:	12 V/ 24 V automatic

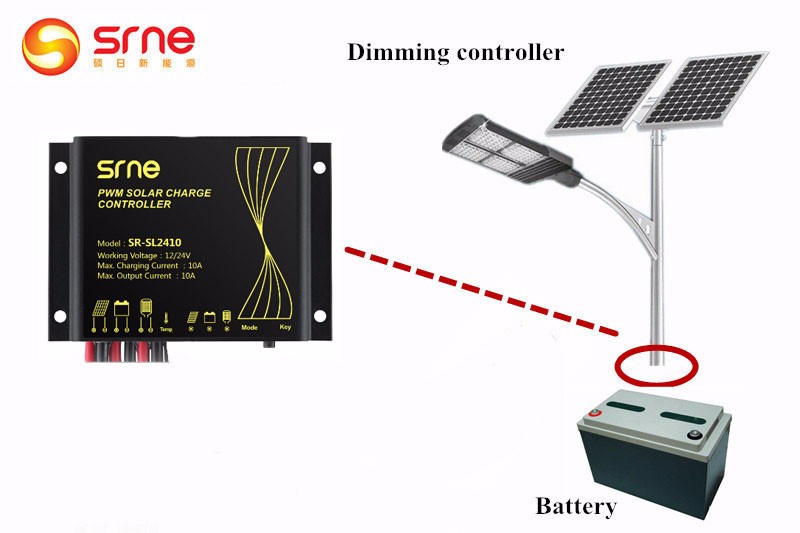

srne 20a pwm street light charge controller charge 4 kinds of batteries SL2420

Product Description

Features of SR-SL

1. IP68 waterproof grade and aluminum shell design, effectively prevent corrosion.
2.12 V/24 V system voltage.
3. LED digital display and waterproof keys are easy to use.
4. The upgraded 3-stage PWM charging algorithm performs balanced charging on the battery once a week, effectively preventing battery imbalance and vulcanization, and extending battery life.
5. Up to 5 load working modes, it is convenient for the product to be applied to different types of street lights and monitoring equipment.
6. Charging schemes for sealed, gel, submerged lead-acid batteries and ternary material lithium and lithium iron phosphate batteries are available.
7. External temperature sensor helps to provide high precision temperature compensation.
8. The parameter setting of the function is saved after power off, which avoids the trouble of repeated setting, and the operation is simple and convenient.

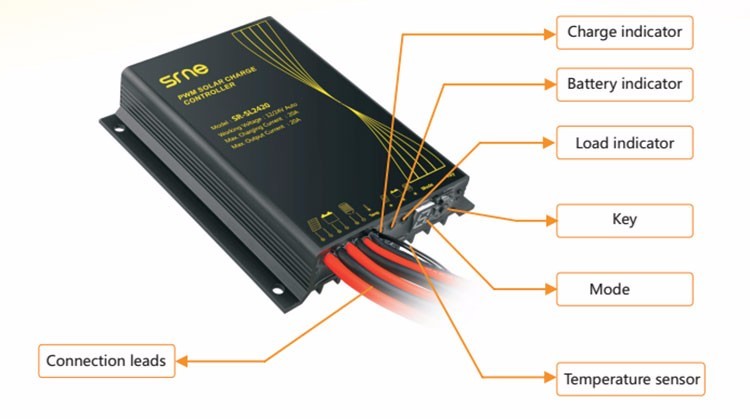

9. Various status indicators.
10. Overcharge, overdischarge, overload protection, as well as short circuit and reverse connection protection.
11.TVS lightning protection.

SR-SL parameters

Battery Type	seal	gel	flooded	Ternary material lithium	Lithium Iron Phosphate

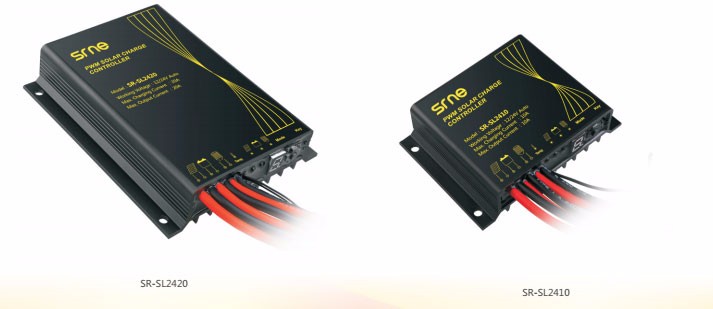

system current	10 amp; 20 amp
Load loss	10mA/12V; 13mA/24V
Solar input voltage	< 55 volts
system voltage	12 V/ 24 V automatic	12 V/ 24 V automatic	12 V/ 24 V automatic	3-string and 4-string: 12 V system 7 strings: 24 V system	4 strings: 12V system 8 strings: 24V system
Overvoltage protection	17.0V	17.0V	17.0V	4.2V * N + 2.0V	3.65V * N + 2.0V
Equalization charging voltage	14.6 volts	-	14.8 volts	-	-
boost charging voltage	14.4 volts	14.2 volts	14.6 volts	-	-
float charge voltage	13.8 volts	13.8 volts	13.8 volts	-	-
Overcharge voltage	-	-	-	4.2V*N	3.65V*N
Overcharge recovery	-	-	-	3.9V*N	3.4V*N
Boost charge recovery voltage	13.2 volts	13.2 volts	13.2 volts	-	-
Over discharge recovery voltage	12.5V	12.5V	12.5V	3.3V*N	3.0V*N
undervoltage	12.0V	12.0V	12.0V	3.2V*N	2.8 * N
Overdischarge voltage	11.0V	11.0V	11.0V	3.0V*N	2.5V*N
Temperature compensation	-4.0mv/°C/2V			-	-
Equalization charging time	1 hour	-	1 hour	-	-
Increase charge duration	4 hours	4 hours	4 hours	-	-
Photocontrol voltage	Light control on 5 V, light control off 6 V
Light control judgment time	1 minute
Overload and short circuit protection	1.25 times rated current: 30s; 1.5 times rated current: 5s overload protection; More than 3 times the rated current: short circuit protection.
Operating temperature	-35°C to +65°C;
Protection class	IP68
weight	140g (10A) 300g (20A)

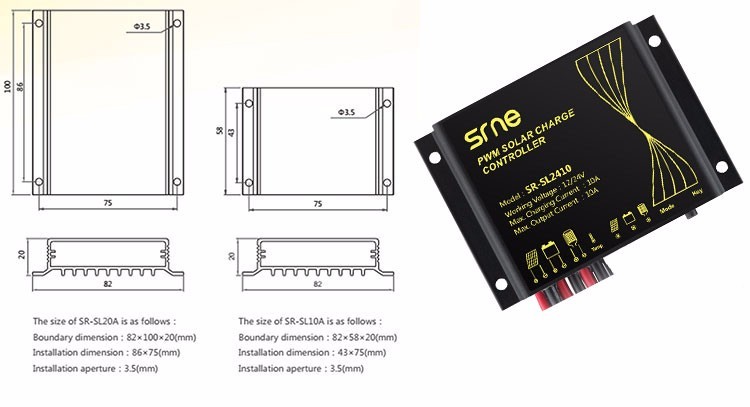

aspect	82×58×20(mm)/10A; 82×100×20(mm)/20A
