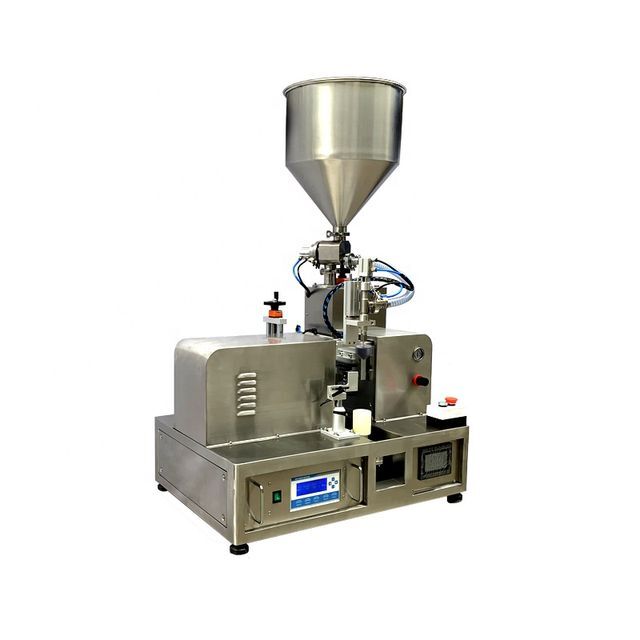

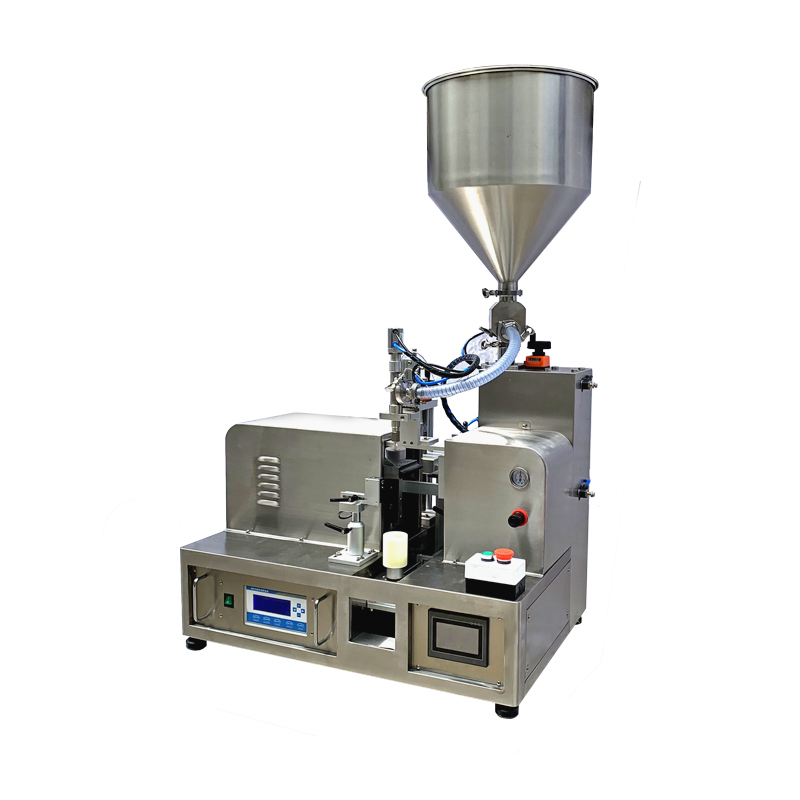

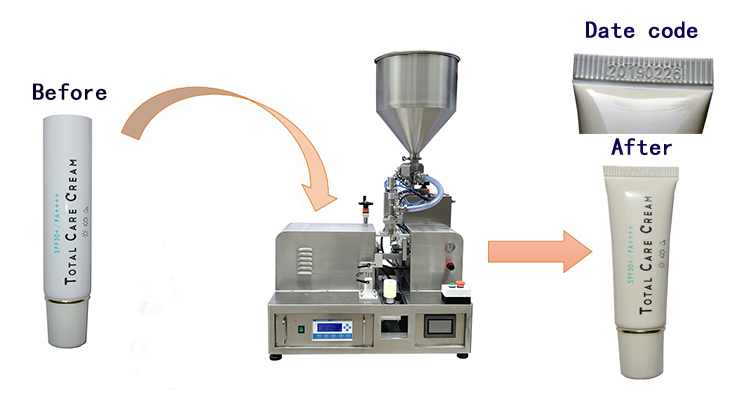

Liquid Cream Semi-Automatic Aluminum Plastic Tube Filling and Sealing Machine
-
Supplier: Guangzhou Looker Packaging Machinery Co., Ltd. -
Region: Guangdong, China -
Contact: Ms May Lin -
Price: $3800.00 / 1 - 2 sets
$3700.00 / 3 - 4 sets
$3500.00 / >=5 sets -
Min. Order: 1 set

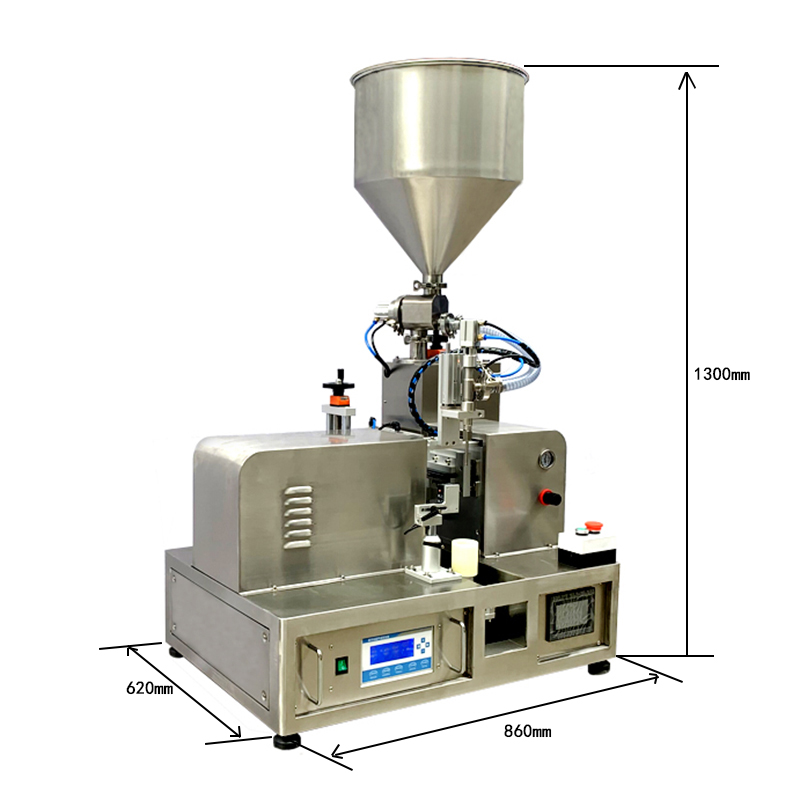

| Control panel: | programmable logic controller | Dimensions (L*W*H): | 860*620*1300mm |
| application: | Chemicals, daily necessities, food, medicine, cosmetics | Packaging Preview: | |
| Applicable industries: | Manufacturing plants, food and beverage plants, restaurants, home use, retail, food stores, cosmetics, pharmaceuticals, etc. | Voltage: | AC220V 50/60HZ |
| brand: | bystander | Pipe diameter: | 10~50mm |
| system: | Smart Frequency Tracking | Maximum speed: | 20/min |
| Body material: | 304 stainless steel | Auto grade: | semi-automatic |
| Showroom location: | United States, Russia, South Korea, Colombia | frequency: | 20KHZ |
| power supply: | 220V/50-60Hz 1 phase | Supply capacity: | 100 sets per month |
| port: | Guangzhou | Warranty: | 1 year |
| Marketing Type: | New Products 2020 | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| speed: | 10-20 tubes/min | Mechanical test report: | if |
| Core Components Warranty: | 1 year | Main selling point: | Sustainable |
| Packaging Details: | Inner packaging foam foam outer packaging sturdy plywood | type of packaging: | cans, bottles |
| Health status: | new | type: | Sealer |
| Materials used for packaging: | plastic | Drive Type: | pneumatic |
| Video external inspection: | if | Core components: | PLC, motor, pump |
| weight: | 95kg | Tube length: | 50~250mm |
| place of origin; place of origin: | Guangdong, China |
working principle
High-frequency vibration acts on the two surfaces of the plastic, and the heat generated by the vibration causes the two surfaces to be tightly welded together, and the strength of the welded area is the same as the other areas of the plastic. No adhesive or heating is required, replacing the traditional hot pressing or bonding process, with low cost, no pollution, and no damage to plastic pipes.
main application.

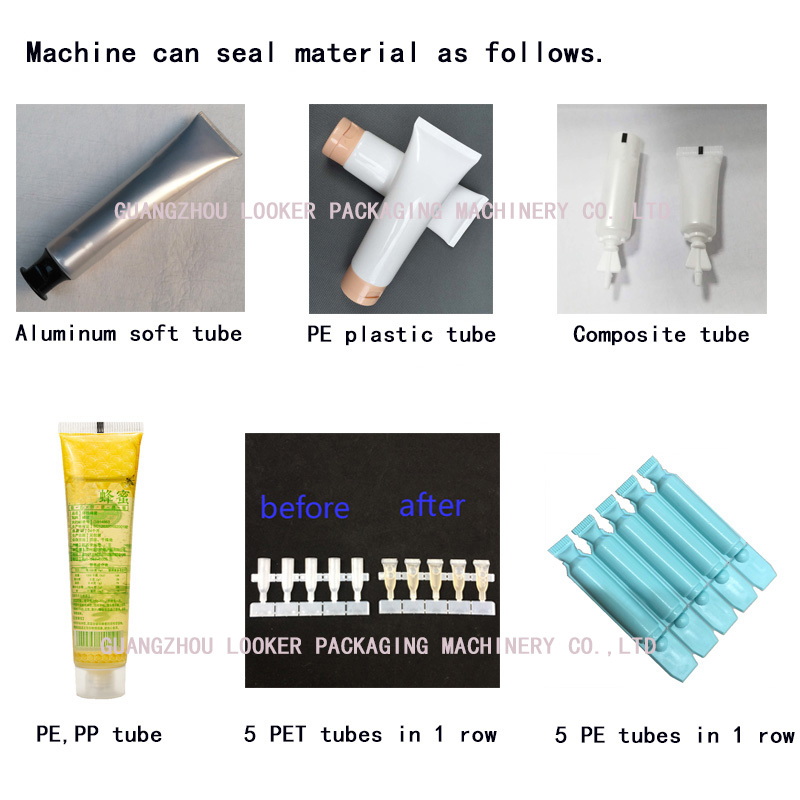

The pipe sealing machine is widely used in the sealing of aluminum-plastic pipes, composite pipes, PE/PP/PET pipes, etc. It is suitable for the welding of toothpaste, cosmetics, medicine, food, and industrial plastic pipe tails.

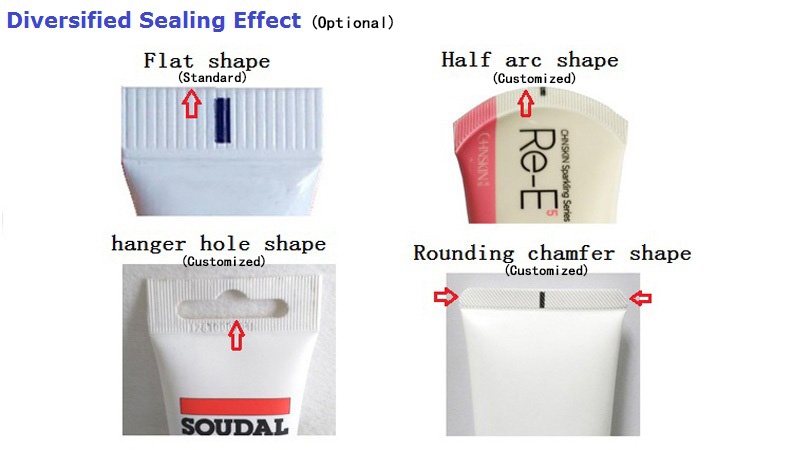

Multi-pipe tail effect.
After sealing, it can be trimmed into various tube tail shapes according to customer requirements, including flat shape, semi-circular arc shape, rounded corner shape, flat shape with hanging holes, etc.
Model | LK-2020TF |
power supply | AC220V 50/60Hz |
strength | 2000W |
frequency | 20KHZ |
tube length | 50~250mm |
Pipe diameter | 10~50mm |
speed | 10-20/min |
Machine size | 860*620*610mm |
net weight | 95KG |

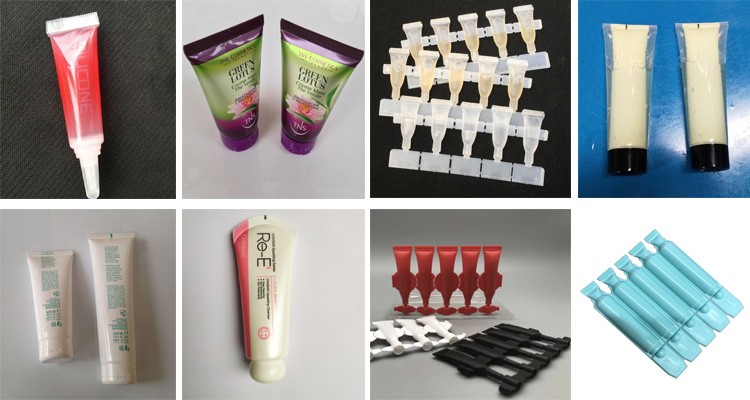

sample | ||||||
1. Alternative to traditional welding or bonding process, low cost, clean and pollution-free, and no damage to plastic pipes.
2. The intelligent automatic frequency tracking system can automatically identify the vibration frequency of the ultrasonic system and effectively protect the mold. Large output, low noise, stable performance and long life.

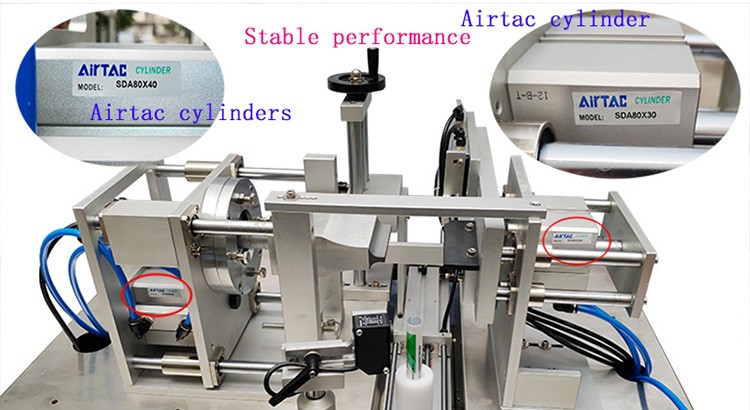

3. The machine is equipped with Airtac cylinder and Airtac solenoid valve with stable performance.

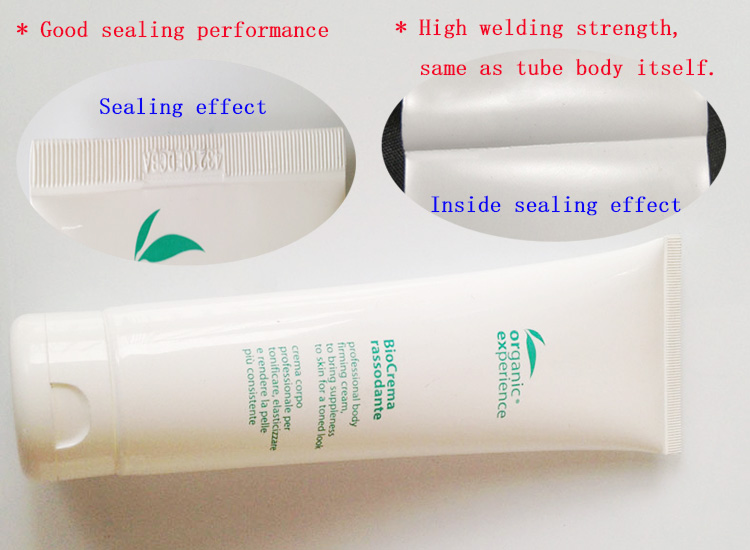

4. High welding strength and good sealing performance, the strength of the welding area is the same as other areas of the plastic.
5. The welding process is stable, the operation is simple, and the maintenance is convenient.
6. Precision IC control circuit, automatic overload protection system.

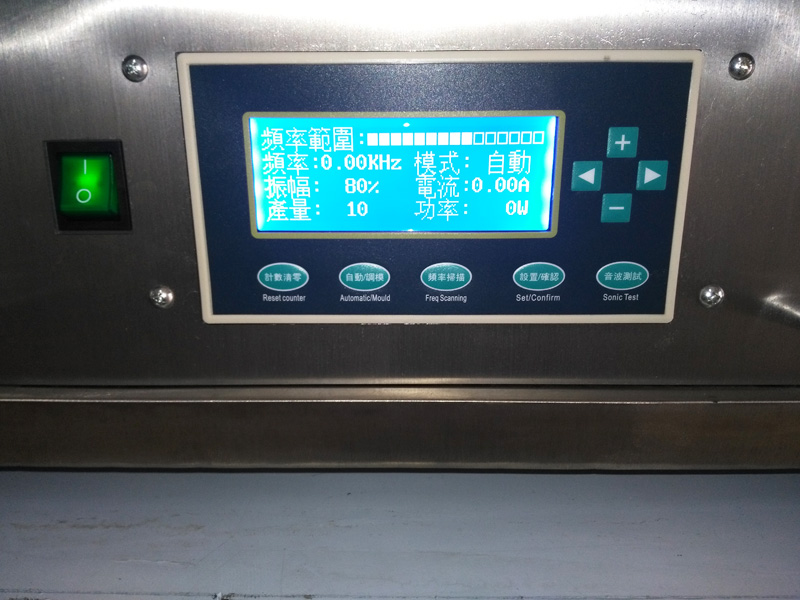

7. The PLC controller is adopted, which is easy to operate, and the automatic protection system can avoid damage caused by improper operation.
8. Four-point balance adjustment, the welding head is easy to adjust.
9. Aluminum/titanium radial rod, sonic wave, strong stability.
10. Using stepper motor for positioning, the speed is adjustable, and the accuracy is improved.
Mechanical Parts

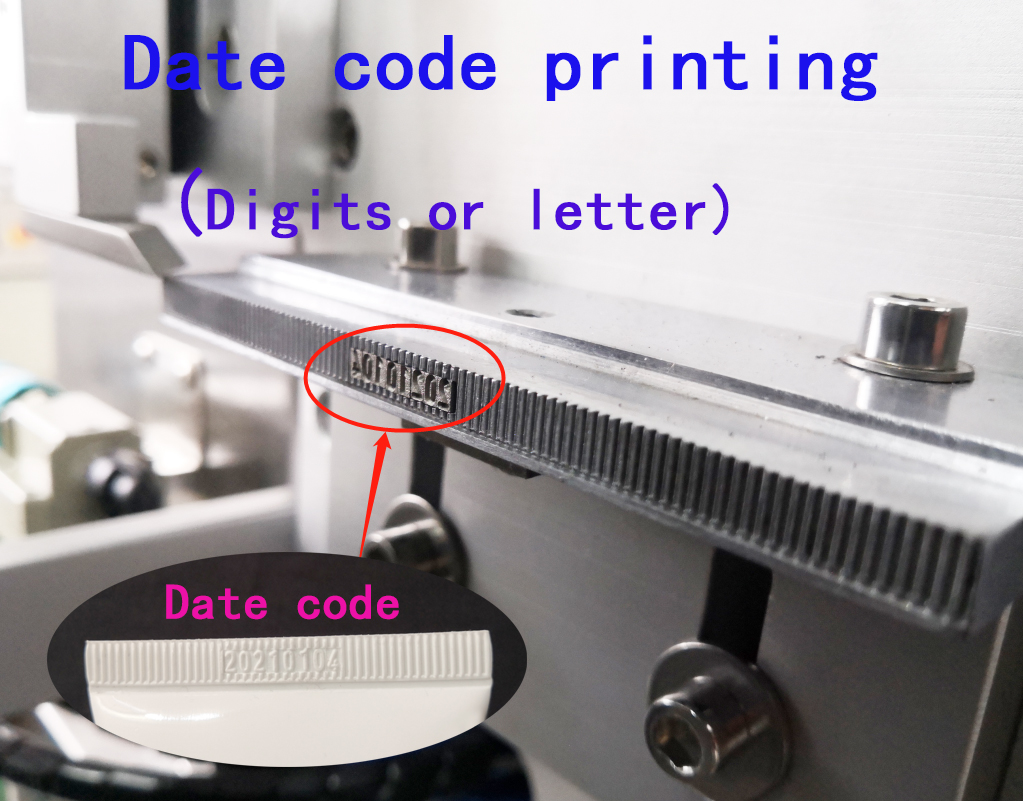

Name:Deat code or letter print
We can make date codes or letters on the tube and also easy to change the codes.
Mechanical Parts

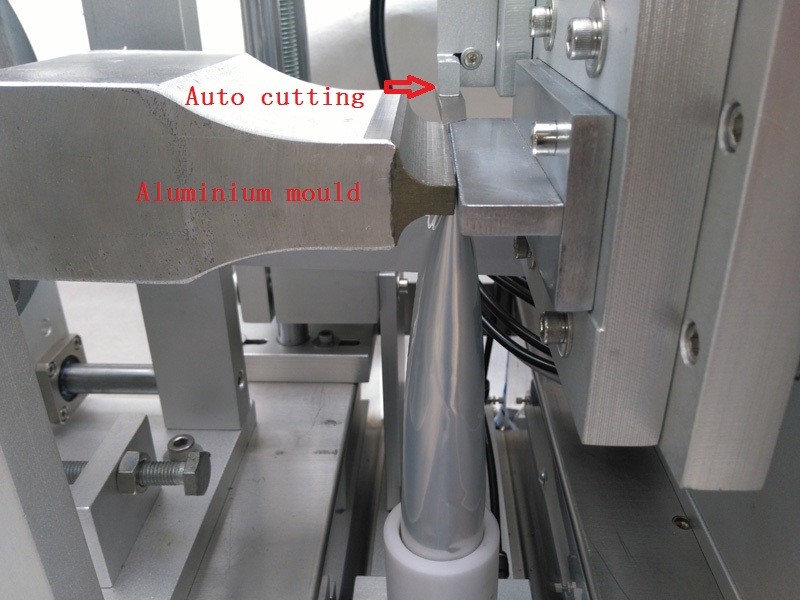

Name: Aluminum mold
The aluminum mold is chrome-plated, and the tube cannot stick to the mold. This ensures that it can last longer.
Mechanical Parts

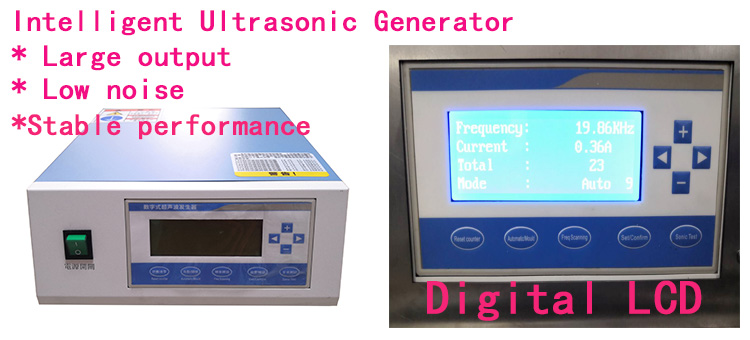

Name:Automatic Ultrasound System
Intelligent automatic frequency trackingSystem that automatically recognizes the vibration frequency of the ultrasonic system, so as to effectively protect the mold. Large output, low noise, stable performance and long life.

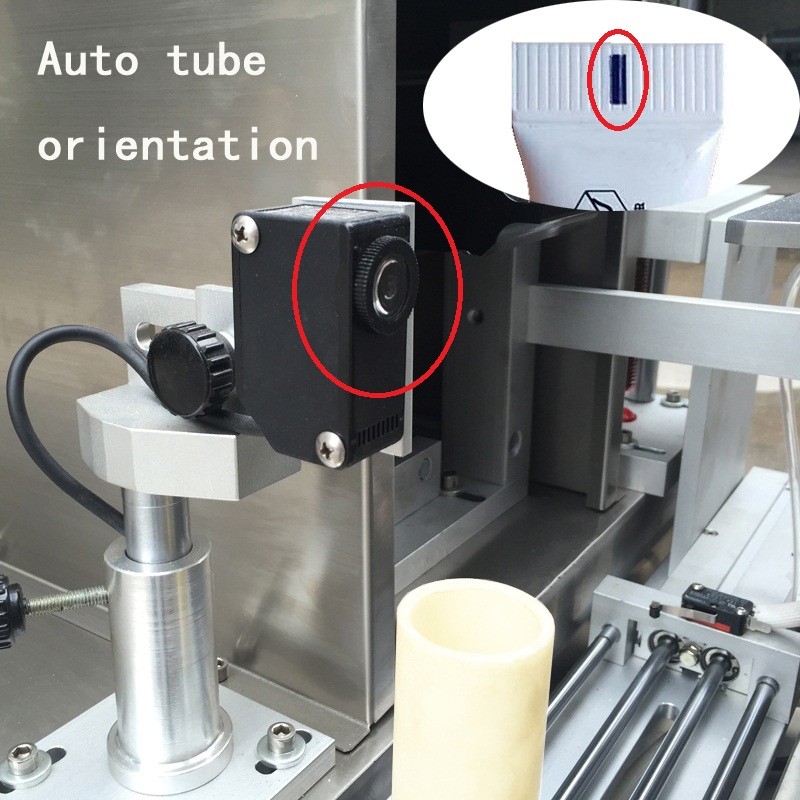

Automatic tube positioning
With a high sensitivity infrared orientation system, once the infrared eye detector detects the mark on the plastic tube, the plastic tube will stop at the correct position.
-
