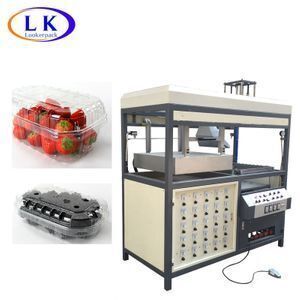

manual plastic vacuum forming machine for plastic blister

Supplier: Guangzhou Looker Packaging Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms May Lin
Price: $2950.00 /set
Min. Order: 1 set

Click here to contact

Product details

Machine size:	18001200 2000mm;	After-sales Service Provided:	Engineers available to service machinery overseas;
Brand Name:	LOOKER;	Selling Units:	Single item;
Thickness of material:	0.2~1.5mm;	Max.forming size:	560*610mm;
Certification:	CE Certificate;	After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Warranty:	1 year;	Delivery Detail:	0 days after payment;
Speed:	200~300moulds/H;	Dimension(LWH):	18001200 2000mm;
Warranty:	1 Year;	Voltage:	AC380V;
Single gross weight:	670 KG;	Max. forming height:	200mm;
Single package size:	1900X1160X2000 cm;	Condition:	New;
Usage:	Plastic Forming Machine;	Place of Origin:	Guangdong China (Mainland);
Package Type:	polywood case;	Weight:	650KGS;
Automatic Grade:	Automatic;	Oversea service:	Yes;

Product Description

Product Application

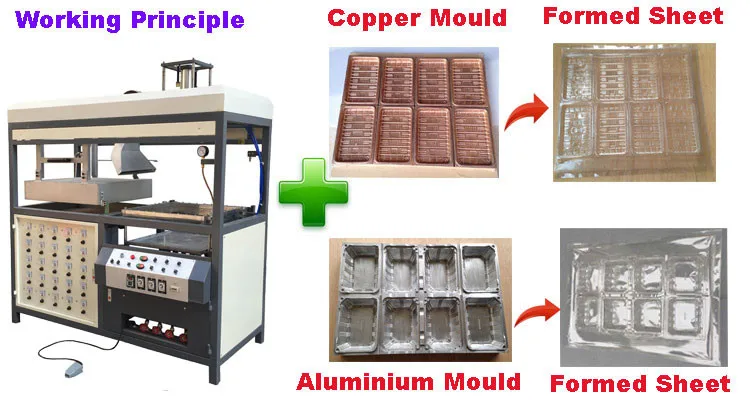

Suitable for PVC, PE, PET, PETG, PP, PC, PS, HIPS, APET etc, the machine furnace produce heat to soften the plastic sheet, then vacuum pump sucks the plastic sheet down to the forming mould area to finish the forming, different forming mould enable to have different forming shape. This machine is ideal for the sample making purpose and small quantity order production.

Model	LK-61
Power supply	AC380V
Power	12.5KW
Vacuum pump capacity	20m³/H
Max.forming size	560*610mm
Max. forming height	200mm
Speed	200~300moulds/H
Thickness of material	0.2~1.5mm
Machine size	18001200 2000mm
N. weight	600KG

Main Features

1.Fix with high quality vacuum pump and has stable performance and strong suction. independent temperature control system, simple operation and easy maintenance.
2.25pcs ceramic infrared heating boards which can be controlled separately, suit for different size or different thickness material.
3.25pcs Solid state voltage regulators, control heating boards simple and visualized.
4.Large-scale cooling fan which can cool the products quickly.
5.Water-spray cooling system which suit for thick material.(optional)
6.Manual style and Semi-auto style available.
7.Button or pedal control available, Improve production efficiency.

Machine & samples

Detailed Images

Main Features

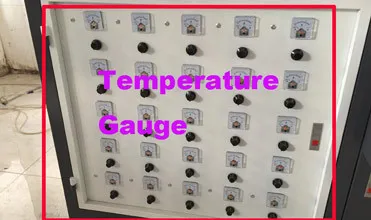

Name: Temperature Gauge
Brand: Looker
Original: China
Every gauge is connecting with the heater, if one heater breaks the gauge will show u, and then u can change the heater

accordingly.

Machine Parts

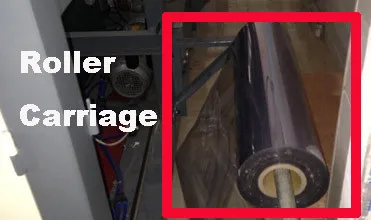

Name: Roller Carriage
Brand: Looker
Original: China

Machine Parts

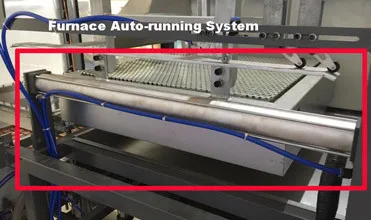

Name: Furnace Auto-running System
Brand: Looker
Original: China

Our Service

Packing & Delivery

Packaging
Size	1930 (L) * 1220 (W) * 1890 (D)
Weight	670kgs
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
