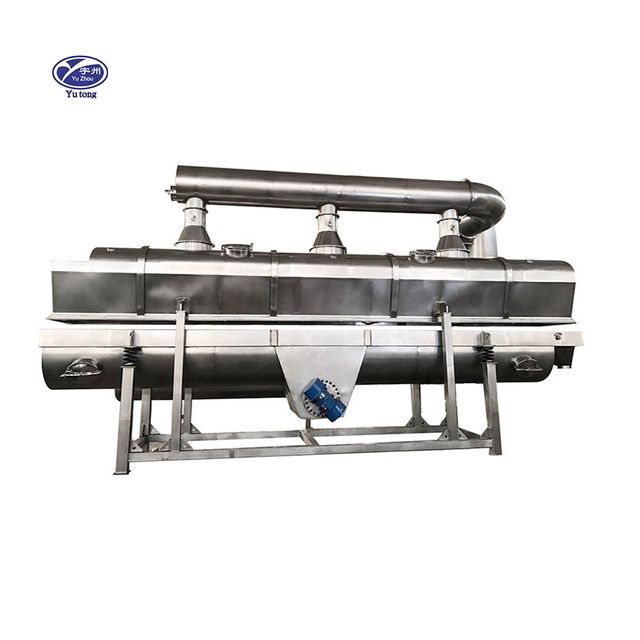

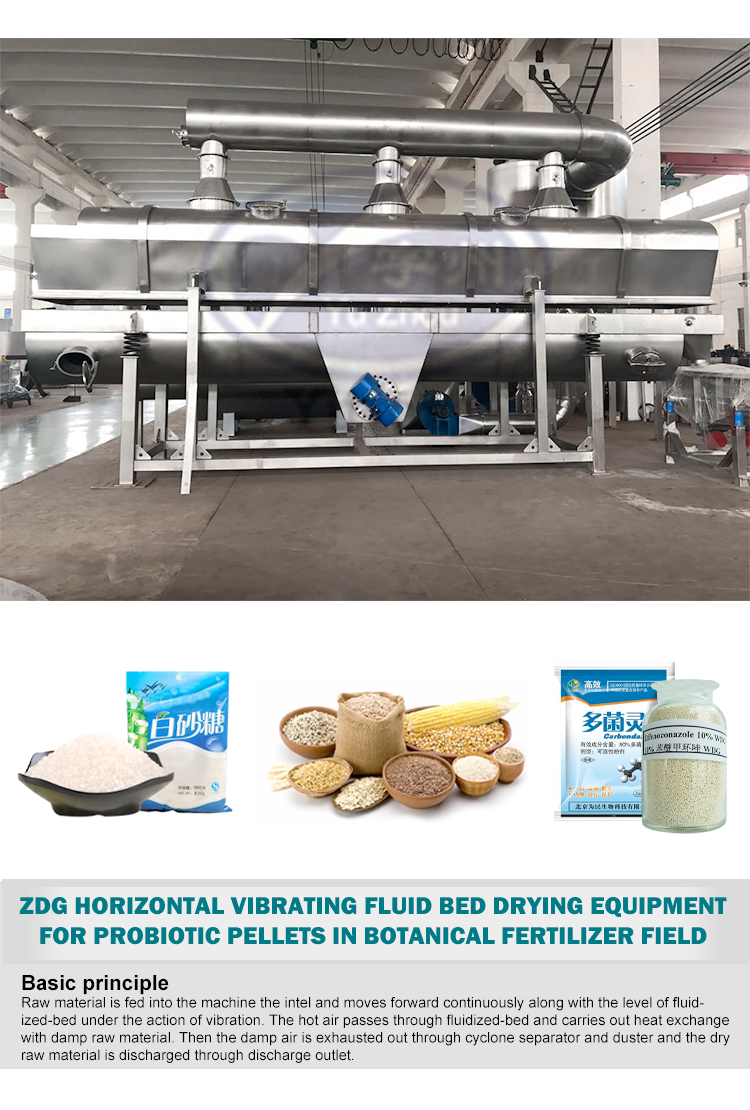

High quality vibrating fluid bed dryer for corn and cereals

Click here to contact
Product details
Marketing Type:Hot Products of 2021Supply capacity:12 high quality corn and grain vibrating fluid bed dryers per month
type:Fluidized bed drying equipmentpayment terms:letter of credit, wire transfer
Name:High quality vibrating fluid bed dryer for corn and grainport:Shanghai Port any port in China
Health status:newcapacity:custom made
Video external inspection:Not availabletemperature:According to your requirements
Core Components Warranty:1 yearweight:Changing
place of origin; place of origin:Jiangsu, ChinaWarranty:1 year
Main selling point:multifunctionalMaterial:SS304/SS316L,SUS304
After-sales service provided:Engineers can repair machinery overseasapplication:Food, pharmaceutical, chemical, pharmaceutical processing, chemical processing, plastic processing, food processing
Weight (kg):500Packaging Details:Wooden box, special fumigation-free wood. Or according to customer requirements.
Showroom location:not anybrand:Yuzhou
strength:ChangingHeat source:Steam + electric hot water, heat transfer oil
Mechanical test report:Not availableVoltage:custom made
Packaging Preview:Certification:ISO14001 ISO9001
Core components:Gears, Motors, GearboxesDimensions (L*W*H):Changing
Applicable industries:Building Materials Stores, Manufacturing Plants, Mechanical Repair Shops, Food and Beverage Plants, Farms, Retail, Energy and Mining, Food and Beverage Storesaccurate:high precision
Model
Fluidized bed area
(㎡)
Intake air temperature (P)
Outlet temperature (°C)
Steam moisture absorption capacity (kg/h)
vibration motor
Model
power kilowatt
ZDG3x0.30
0.9










70 to 140










40 to 70
20~35
YZS8-6
0.75x2
ZDG4.5x0.30
1.35
35～50
YZS10-6
0.75x2
ZDG4.5x0.45
2.025
50～70
YZS15-6
1.1x2
ZDG4.5x0.60
2.7
70～90
YZS15-6
1.1x2
ZDG6x0.45
2.7
80~100
YZS15-6
1.5x2
ZDG6x0.60
3.6
100 ~ 130
YZS20-6
1.5x2
ZDG6x0.75
4.5
70-140
40-70
120 ~ 170
YZS20-6
2.2x2
ZDG6x0.9
5.4
140 ~ 170
YZS30-6
2.2x2
ZDG7.5x0.6
4.5
130 ~ 150
YZS30-6
2.2x2
ZDG7.5x0.75
5.625
150 ~ 180
YZS40-6
3.0x2
ZDG7.5x0.9
6.75
160 ~ 210
YZS40-6
3.0x2
ZDG7.5x 1.2
9.0
200 ~ 280
YZS50-6
3.7x2
ZDG7.5x 1.5
11.25
230 ~ 330
YZS50-6
3.7x2
ZDG8x 1.8
14.4
290 ~ 420
YZS75-6
5.5x2

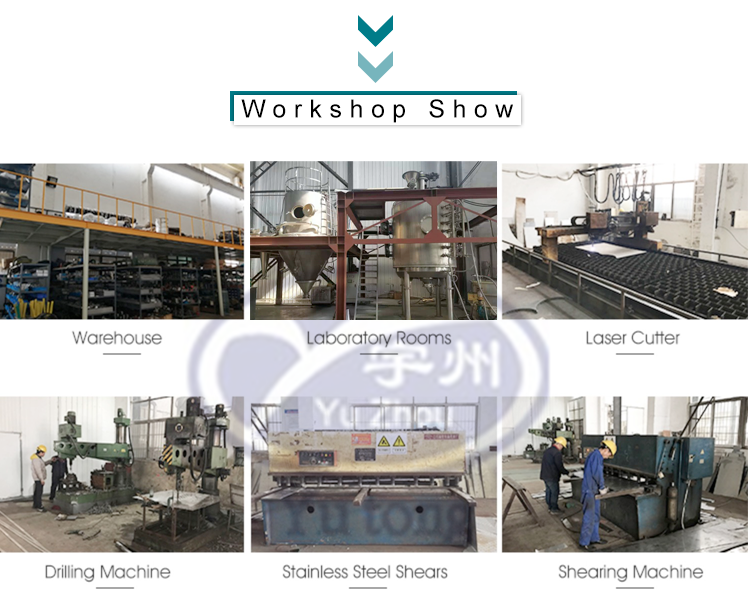

Jiangsu Yutong Drying Engineering Co., Ltd. is a famous enterprise located in Jiaoxi Town, a famous town in the south of the Yangtze River. This year we added a new factory size. Yutong specializes in drying, mixing, granulation, evaporation, concentration and separation equipment. We have undeniable engineers and over 100 machines. The annual production equipment is about 600 sets, and more than 30 kinds of models can be developed, which are exported to the whole country. Attaches great importance to scientific and technological innovation, and has successively cooperated with many well-known colleges and universities. The company has developed rapidly and accumulated a lot of capital and technical knowledge. The company has passed the lSO9001 international quality system certification, and the products have obtained the "Quality Recommendation Certificate" issued by the American International Quality Certification Commission and the "East China Excellent Technical Product Certificate" issued by the Jiangsu Association for Science and Technology. Created a brand, was rated as an "AAA" enterprise by Jiangsu International Qualification Certification Company, and was rated as a "contract-honoring and trustworthy" enterprise by the industry association. We have implemented a strict and complete quality system to ensure that every product meets the quality requirements of customers. Additionally, all of our products must be tested before shipping. Recently we exported machines to Germany USA, UK Cyprus, Russia Uzbekistan Poland, Australia, Serbia, Ukraine, Mexico, Argentina, Peru, Brazil, Paraguay, Malaysia, Vietnam, Thailand, Philippines, Singapore, Taiwan, Hong Kong, Turkey , Saudi Arabia, Oman Sudan, Kenya, Bangladesh...

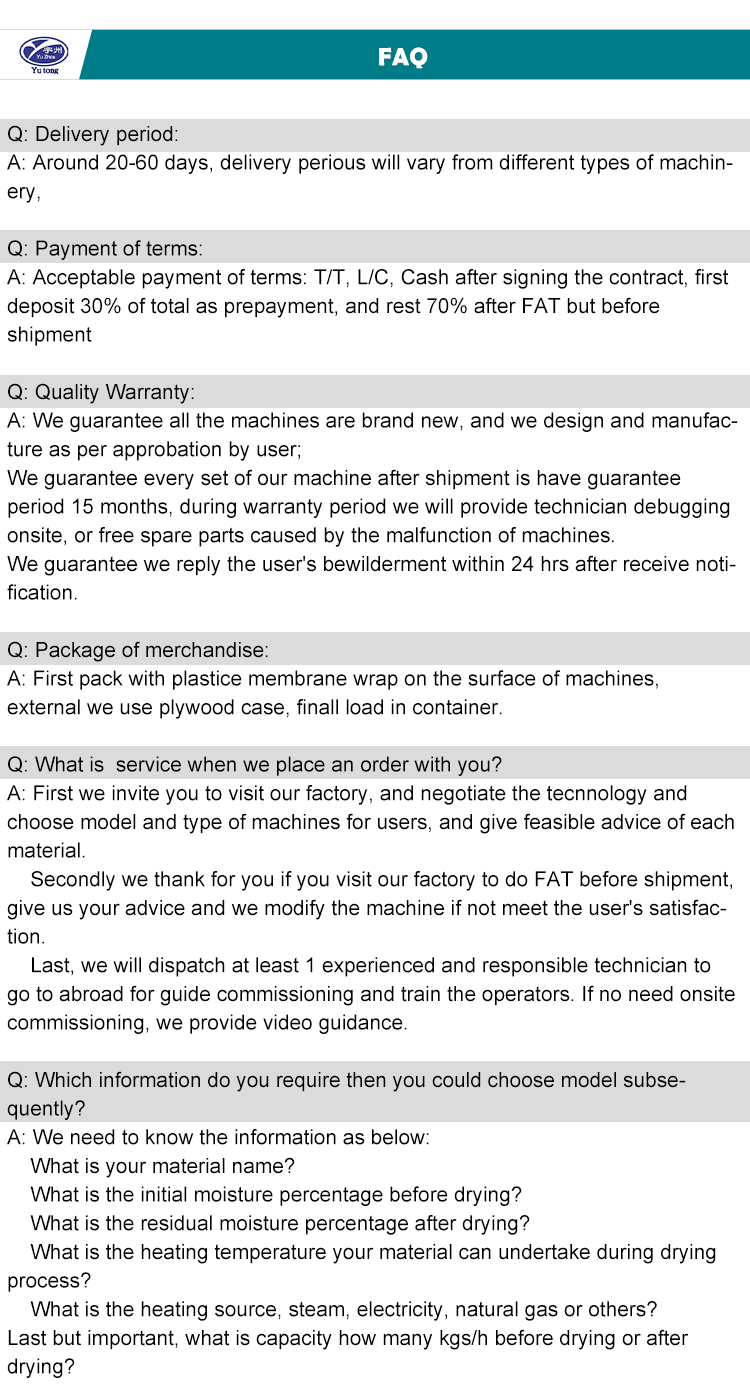

Q: Delivery time:A: About 20-60 days, the delivery time will vary for different types of machines,Q: Payment terms:A: Acceptable payment terms: T/T, L/C, Cash after signing the contract, first pay 30% of the total amount as prepayment, and the remaining 70% after FAT but before shipmentQ: Quality Assurance:A: We guarantee that all machines are brand new, and we design and manufacture according to the approval of users; we guarantee that each machine has a 15-month warranty period after delivery, during the warranty period we will provide technicians to debug Free spare parts due to machine failure. We promise to respond to user queries within 24 hours of being notified.Q: Product packaging:A: First wrap the machine surface with plastic film, outside we use plywood shell, and finally put it into the container.Q: What is the service when we place an order with you?A: First of all, we invite you to visit our factory, negotiate technology and choose the model and type of machine for users, and make feasible suggestions for each material. Secondly, if you come to our factory to do FAT before shipment, we thank you, give us your suggestion, if it can not satisfy the user's satisfaction, we will modify the machine. Finally, we will send at least 1 experienced and responsible technician to go abroad to guide debugging and train operators. If on-site commissioning is not required, we provide video guidance. Q: What information do you need to then choose a model? A: We need to know the following information: What is your material name? What is the initial moisture percentage before drying? What is the residual moisture percentage after drying? What heating temperature can your material withstand during drying? What is the heat source, steam, electricity, natural gas or other? Last but not least, what is the capacity in kg/hour before or after drying?
