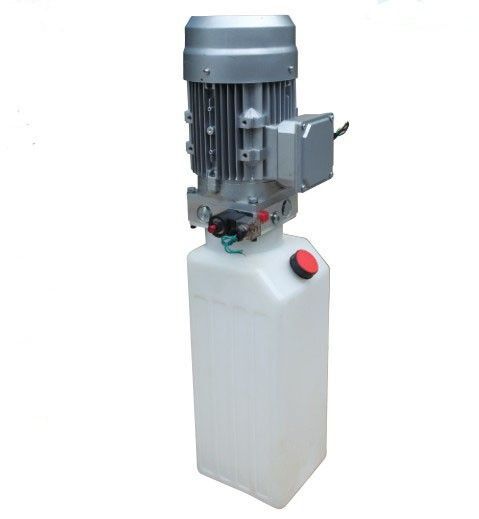

High quality mini hydraulic unit power distribution unit 220V 1.22 Products from Huaian Lift Hydraulic Co., Ltd.

Product Details

After Warranty Service:	Video technical support, online support, spare parts	Material:	plastic
Packaging Details:	220V High Quality Micro Hydraulic Power Unit Power Distribution Units come in carton packaging followed by pallets.	Certificate:	ISO9001 CE
Health status:	new	type:	hydraulic power unit
After-sales service provided:	Video technical support	Showroom location:	not any
Voltage:	220V, 380V	speed:	2850 rpm
pressure:	18Mpa	brand:	elevator
Warranty:	1 year	strength:	2.2kW
Name:	220V high quality miniature hydraulic power unit power distribution unit	place of origin; place of origin:	Jiangsu, China
Shift:	2.1cc/r	tank:	12L
color:	black and white	Local service location:	not any

Product Description

Applications

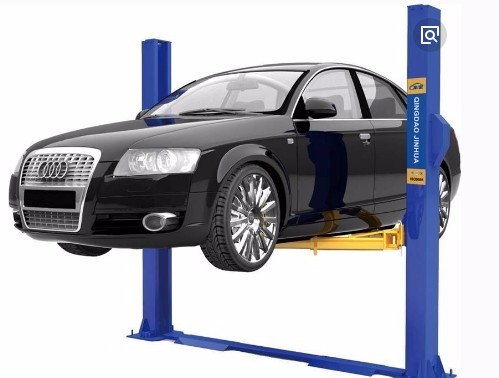

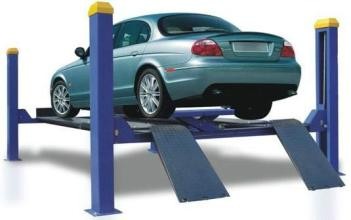

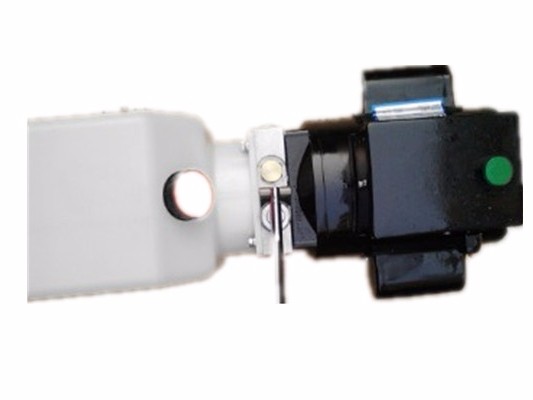

The 220V high-quality miniature hydraulic power unit power distribution unit is specially designed for truck cranes, with the functions of power-on and gravity drop. The product is available for different voltages and frequencies, and the lowering movement is controlled by a manual release valve. The power unit is also suitable for a variety of hydraulic forklifts and scissor lifts.

Specifications of 220V High Quality Micro Hydraulic Power Unit Power Distribution Unit
Model	Motor voltage	Motor Power	Rated speed	shift	System pressure	Fuel tank capacity
YD-AC3DESLDFH03DS3	380V	2.2KW	2850 rpm	2.1mL/r	18Mpa	12L
YD-AC2DESLPFH03DS3	220V	2.2KW	2850 rpm	2.1mL/r	18Mpa	12L

Special Note

1) If the hydraulic power unit is S3.IE, 30 seconds on and 270 seconds off work.

2) Before installing the power pack, clean all relevant hydraulic components.

3) The viscosity of the oil should be 15-68cst.

4) The power unit should be placed horizontally.

5) Check the oil level in the fuel tank after the power unit is started for the first time.

6) Change the oil after the first 100 hours of use of the power unit, and then change the oil every 3000 hours.

Certification

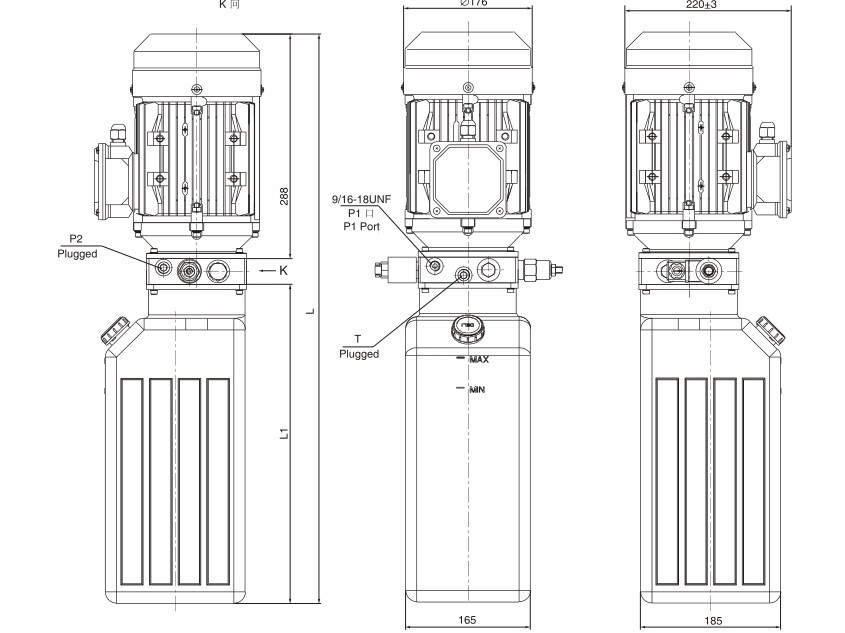

detailed image

Hydraulic Power Unit Parts

Name:motor

Card:elevator

The original:China

AC motor, international standard cast steel motor, CE and SA certified.

Center Manifold Features

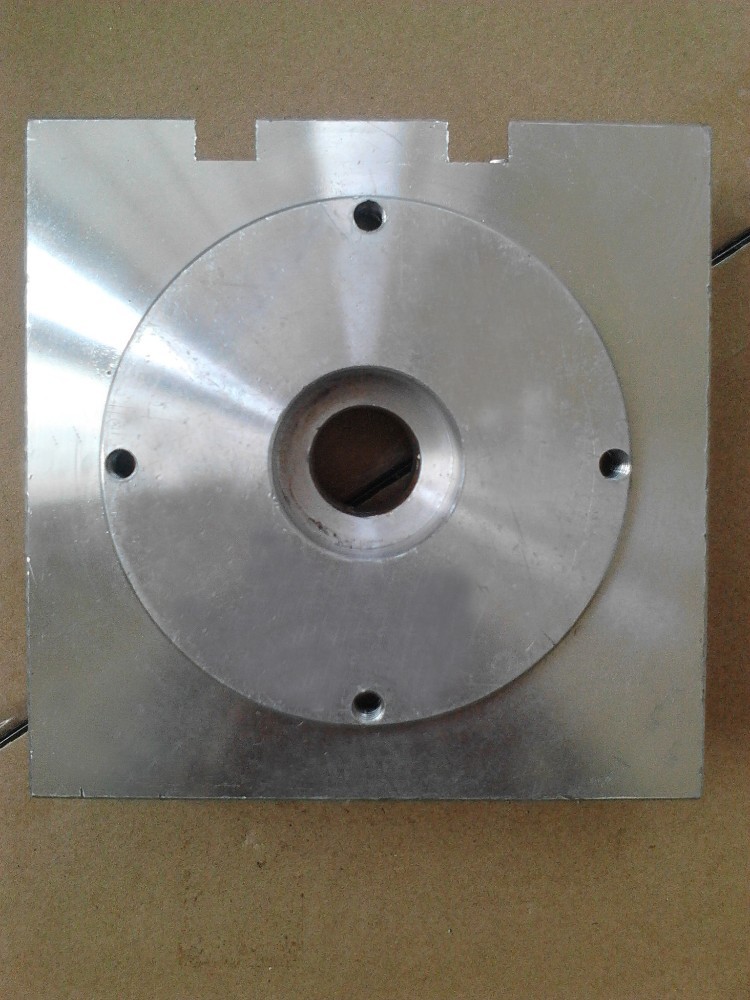

Name:center manifold
Card:elevator
The original:China
According to customer requirements, we design for use under different flow and installation conditions.

Hydraulic Power Unit Parts

Name:Parts
Card:Feel
The original:China

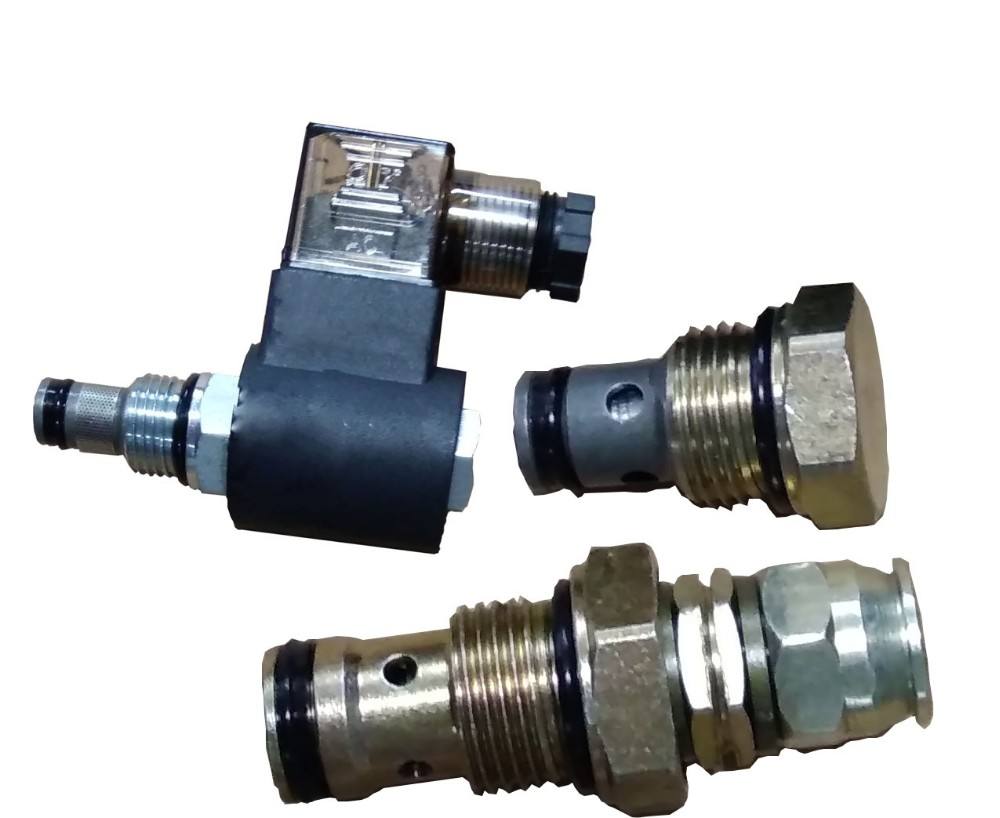

Solenoid valve: maximum pressure: 300bar

Maximum flow: 20L/min

Coil power: 18W

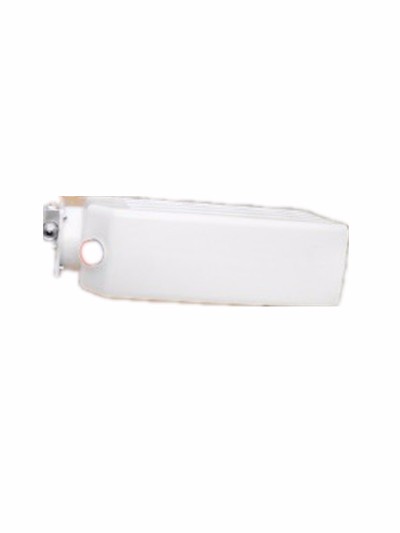

Main features of fuel tank

Name:tank
Card:elevator
The original:China

International standard plastic tank

color: White

"W" type: horizontal "L" type: vertical

our service

pre-sale service

* Inquiry and consultation support.

* Sample testing support.

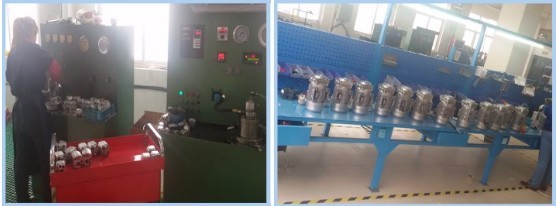

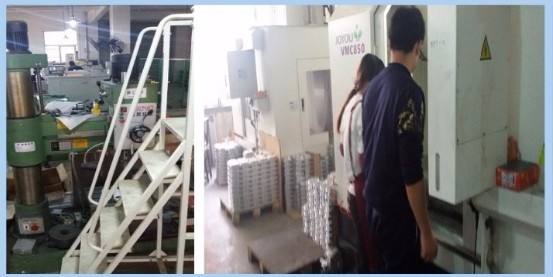

* View our factory.

After-sales service

* one year warranty

* Our experienced engineers will do their best to provide you with the best technical support

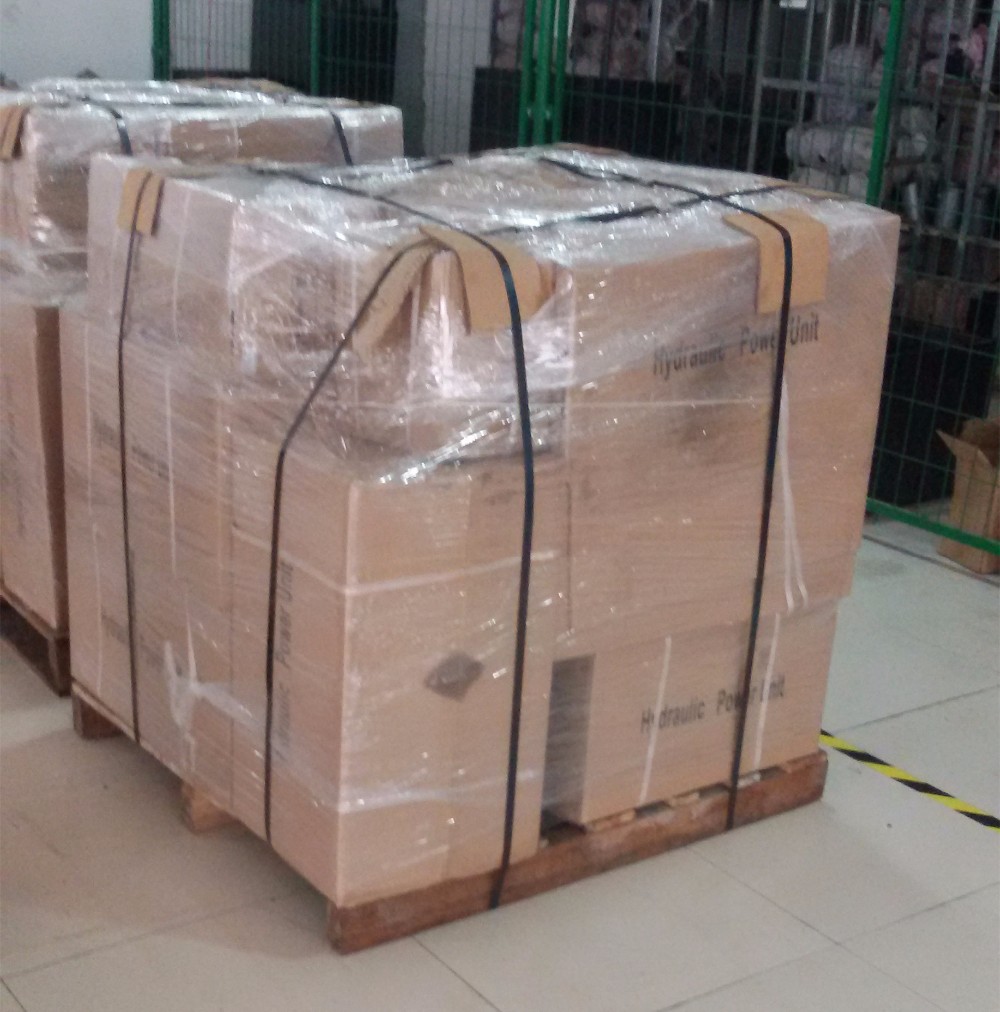

Packaging and Delivery

Bale
size	1100(L)1000(W)1200(D)mm
weight	1.2 tons
Packaging Details	The normal packing is pallet (size: 1100(L)*1000(W)mm).

product name with link

91.8%reaction speed

product name with link

91.8%reaction speed

product name with link

91.8% reaction speed

FAQ.

Q: Are you a trading company or a manufacturer?
A: We are a factory.

Q: How long is your delivery time?
A: If the goods are in stock, usually 5-10 days. Or 15-30 days if the goods are not in stock, depending on the quantity.

Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples for free, but do not pay for shipping.

Q: What are your payment terms?
A: Payment<=1000USD, 100% prepayment. Payment >=1000 USD, 30% T/T in advance, balance before shipment.
