solar cable tuv 100m roll 4mm twin core dc solar panel photovoltaic cable
- 0.30 >=100 meters
| Minimum order quantity: | 100 metres | Conductor material: | Tinned copper |
| model: | H1Z2Z2-K | color: | Black/Blue/Red, optional |
| payment terms: | L/C,Western Union,D/P,T/T | Warranty period: | 25 years |
| application: | Solar Power Station/Solar Power System | jacket: | XLPE |
| Insulation Materials: | Xlpe | brand: | Kuka |
| Operating temperature: | -40°C to +120°C | place of origin; place of origin: | China Shanghai |
| port: | Shanghai, Ningbo, Shenzhen | Rated voltage: | AC 1000V DC 1500V |
| Supply capacity: | 1,000,000 meters of solar photovoltaic cables per week | Number of cores: | single/double |
| product name: | solar panel cable | Certificate: | TUV EN 50618:2014 |
| Packaging Details: | 100m/200m/300m/500m/roll, wooden barrel or as required. | type: | low voltage |
Solar cables are interconnect cables used in photovoltaic power generation. Solar cables interconnect the solar panels and other electrical components of the photovoltaic system. Solar cables are designed to be UV and weather resistant. It can be used in a wide temperature range and is generally laid outdoors.

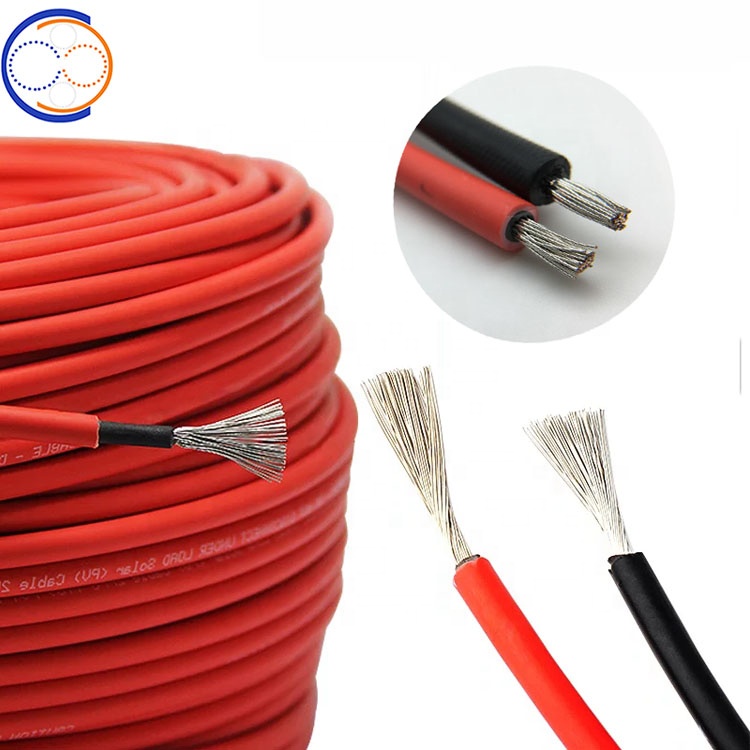

solar cable

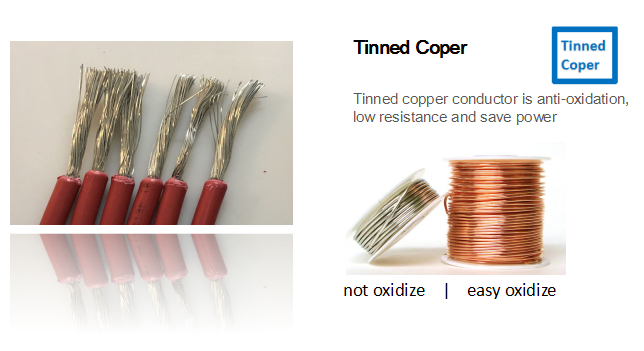

conductor:Tinned copper, electrical properties and construction conform to EN60228 class 5.

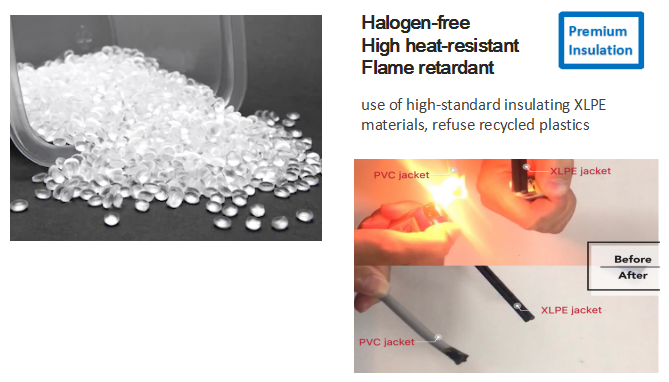

insulation:LSZH electron beam cross-linked polyolefin copolymer ROHS material.

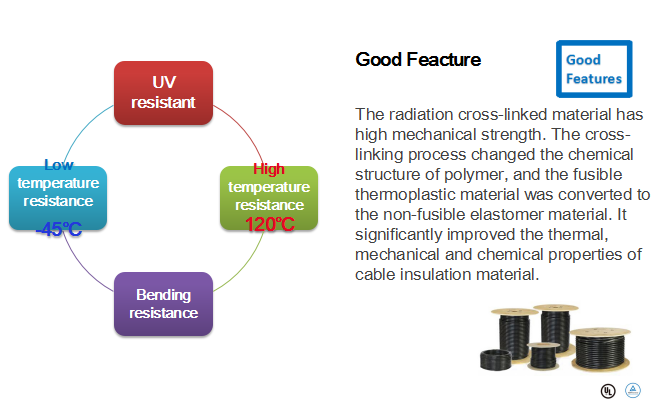

Outer Sheath:Low smoke halogen free and UV resistant electron beam cross-linked polyolefin copolymer ROHS material.
color:The previous color is black, or according to customer requirements. H1Z2Z2-K 35mm2 DC solar photovoltaic cable EN50618.
conductor | Tinned fine rhenium copper stranded wire in accordance with VDE0295/IEC60228. Level 5 |
insulation | Electron beam co-linking of polyolefin copolymers |
jacket | Electron beam co-linking of polyolefin copolymers |
standard | Uo/U=1000VAC, 1500VDC |
Test voltage | 6500V, 50Hz, 5 minutes |
Rated temperature | -40°C-120°C, over 25 years (EN 50618) |
Fire performance | IEC 60332-1 |
smoke emission | IEC61034, EN 50286-2 |
low fire load | DIN 51 900 |
Certification | EN 50618 standard |
Product parameters
Cross section (mm2) | Conductor structure | outside (mm) | resist maximum. | current load capacity |
1*1.5 | 30/0.25 | 4.90 | 13.30 | 30 |
1*2.5 | 50/0.25 | 5.45 | 7.89 | 41 |
1*4 | 56/0.3 | 6.10 | 4.75 | 50 |
1*6 | 84/0.3 | 7.20 | 3.39 | 70 |
1*10 | 142/0.3 | 9.00 | 1.95 | 98 |
1*16 | 228/0.3 | 10.20 | 1.24 | 132 |
1*25 | 361/0.3 | 12.00 | 0.795 | 176 |
1*35 | 525/0.3 | 13.8 | 0.565 | 218 |
1*50 | 720/0.3 | 14.8 | 0.393 | 280 |
1*70 | 988/0.3 | 16.9 | 0.277 | 350 |
1*95 | 1349/0.3 | 18.7 | 0.21 | 410 |
1*120 | 1691/0.3 | 20.7 | 0.164 | 480 |
Cross section (mm2) | Conductor structure | outside (mm) | resist maximum. | current load capacity |
2×1.5 | 30/0.25 | 8.3±0.2 | 13.30 | 30 |
2×2.5 | 50/0.25 | 9.2±0.2 | 7.98 | 41 |
2×4 | 56/0.3 | 12.0±0.2 | 4.75 | 50 |
2×6 | 84/0.3 | 13.5±0.2 | 3.39 | 70 |
2×10 | 142/0.3 | 17.6±0.2 | 1.95 | 98 |
2×16 | 228/0.3 | 19.8±0.2 | 1.24 | 132 |

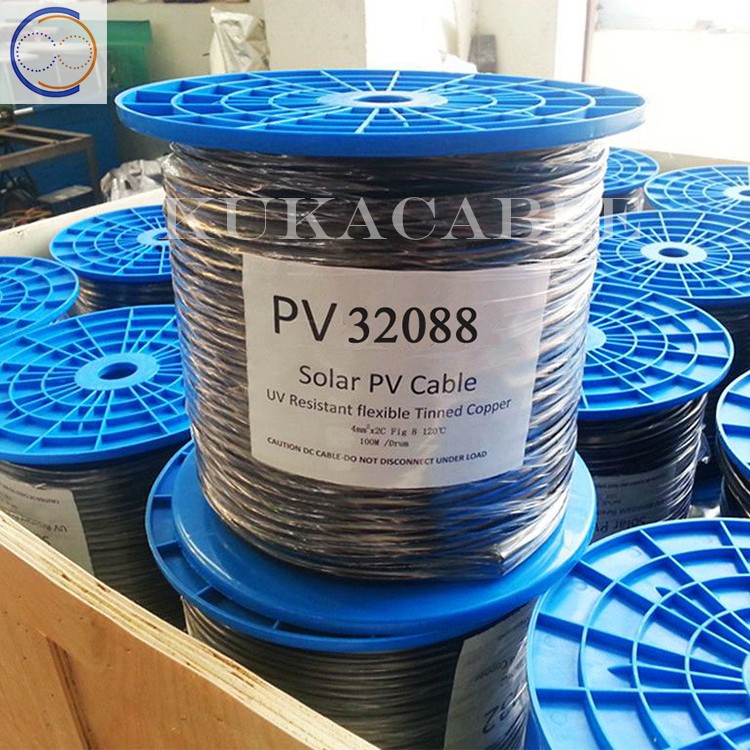

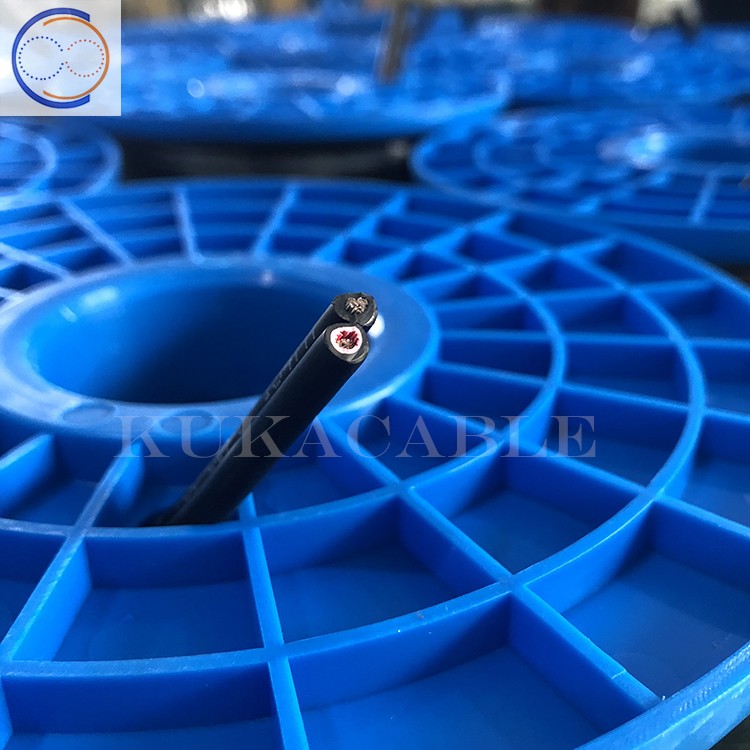

solar cable tuv 100m roll 4mm

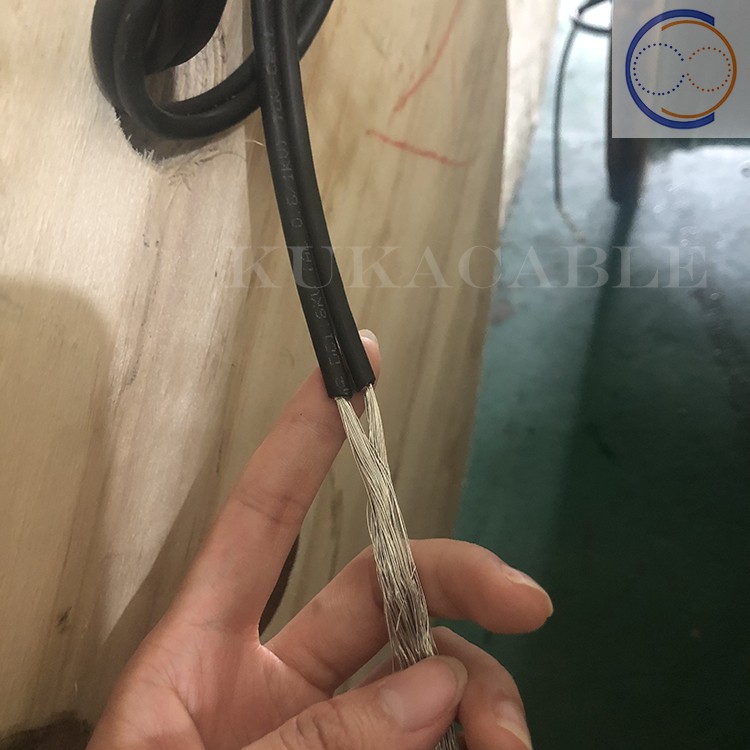

Dual Core DC Solar Panel Photovoltaic Cable

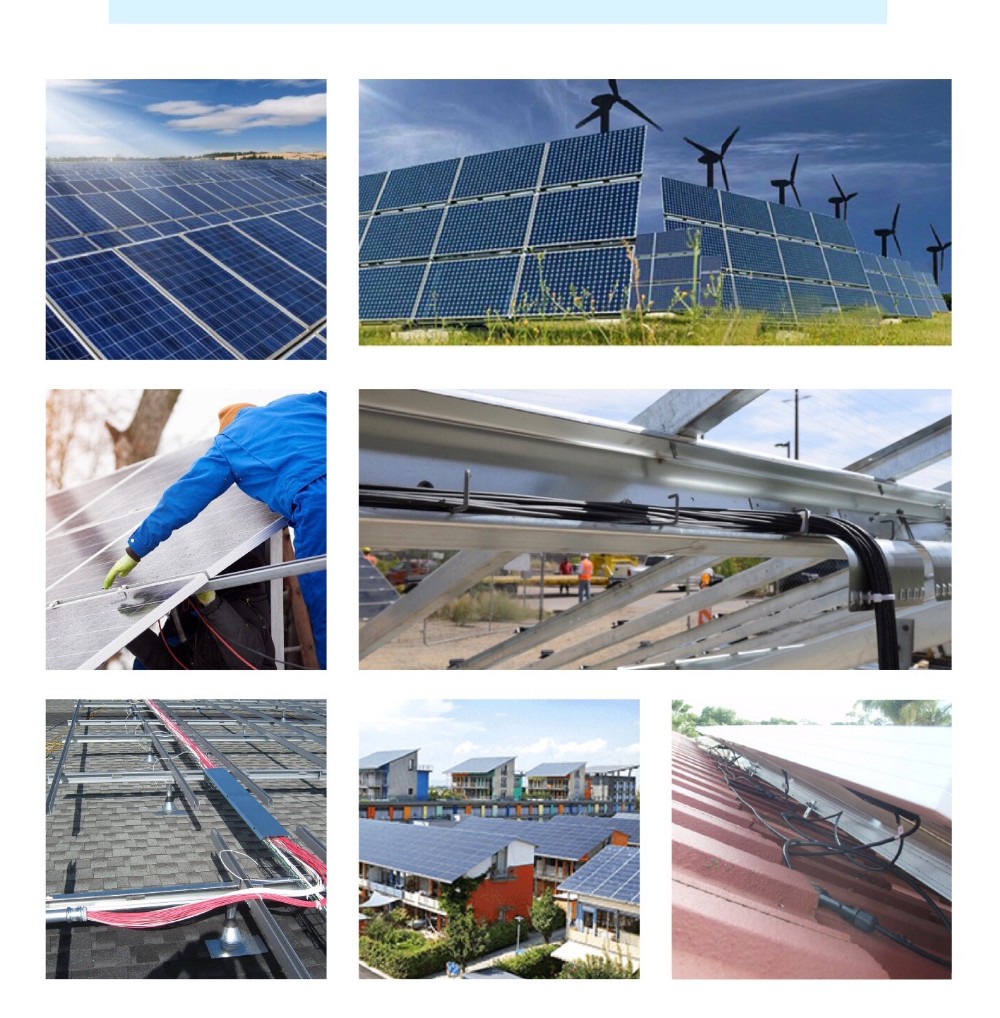

application
Feel free to contact us anytime.We will provide you with an accurate price within 10 hours.
If you don't find the model you needd.We accept customization.
So, contactFlora High!
Contact as below:
