3-in-1 Busbar Processing Machine HB-150W Pump Operated Hydraulic Busbar Hole Bending Cutting Punching

Supplier: Hailin Industrial & Development (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Coco Jin
Price: $900.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Shanghai, China (Mainland;	Packaging Detail:	Wood Carton;
Weight:	170kg;	Supply Ability:	1000 Perch/Perches per Month;
Port:	shanghai;	Type:	Hydraulic Cutting Bending Punching tool;
size:	9006601220mm;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Model Number:	HB-150W;	Package:	Wood Carton;

Dear Friends:

Welcome to browse our product:

Haicable easy-operated Hydraulic bus bar processing machine in a competitive price.

Product Description

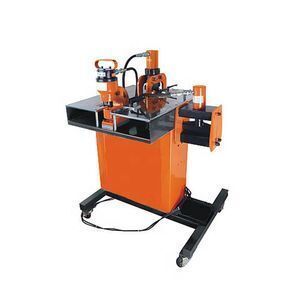

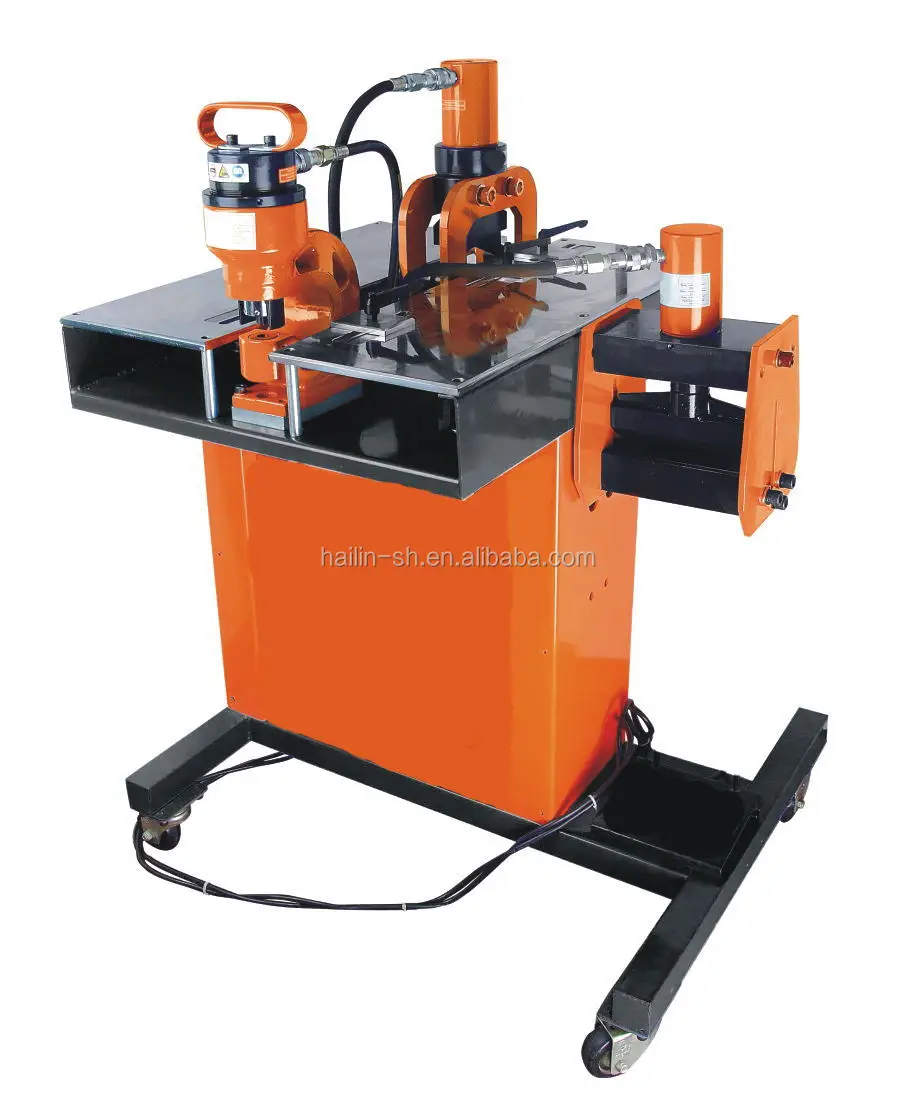

3 in 1 Hydraulic Bus Bar Tool HB-150W

Feature:

• Single action

*3 in 1 Cutting Bending Punching Bus bar

* Robust and stiff frame, strong structure

*High quality cutting, bending and punching, fast cycle time

*High operating safety with built-in safety-system

* With the help of hydraulic power, easy and quick operation can be achieved.

*Include: CB-150D, CH-60, CWC-150 and EHP-63A

Parameters:

Model	HB-150W
Max Cutting Capacity	150*10mm
Max Punching Capacity	Ø11.1mm-Ø20.6mm Thickness 10mm
Max Bending Capacity	150*10mm
Power	220V/50HZ
Rated Pressure	700kg/cm²(10000psi)
Punching Dies	Ø11.1mm Ø14.3mm Ø17.5mm Ø20.6mm (Round Dies)
Size	9006601220mm
Weight	170kg

Application:

The bus bar main work for switch board, distribution box and electrical working, State Grid construction, underground cable construction, Building construction etc.
