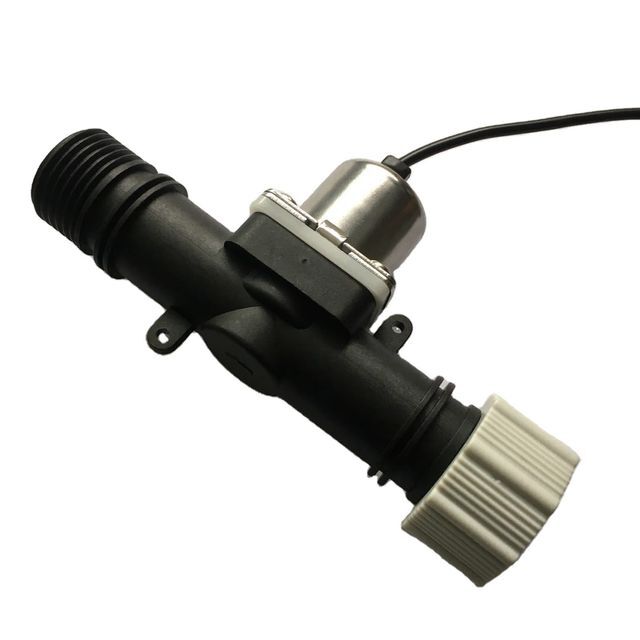

Wifi Water Solenoid Valve G3/4 NH3/4 Inch 3V 6V 9V 12V Self-Locking Solenoid Valve for Irrigation Timing Controller System

Supplier: Hubei Chuangsinuo Electrical Technology Corp.
Region: Hubei, China
Contact: Mr Peter Chen
Price: $4.70 / 5 - 499 units
$4.60 / 500 - 4999 units
$4.50 / >=5000 units
Min. Order: 5 units

Click here to contact

Product details

Life (times):	500000	Pulse width (ms):	25
Sales unit:	single product	Single package size:	4X7X9 cm
product name:	Solenoid Solenoid Valve	model:	MFZ2727MB-180-3V
type:	Solenoid Valve, Faucet Valve, Irrigation Valve	Packaging Details:	Standard Outlet Carton for Wifi Water Solenoid Valve G3/4 NH3/4 Inch 3V 6V 9V 12V Irrigation Self-locking Solenoid Valve for Timer Controller System
Packaging Preview:		Port size:	3/4" thread
Voltage (V):	DC 3V 6V & 12V & 24V;	standard:	CE Roche
media:	according to	Medium temperature:	1-75
Standard or non-standard:	standard	Resistance (resistance):	10±0.5
Custom Support:	OEM, ODM, OBM	application:	Toilet flash valve system, general
structure:	control	Gross weight per piece:	0.200 kg
place of origin; place of origin:	Hubei, China	brand:	translate
Medium temperature:	Medium temperature, normal temperature	strength:	electromagnet
Working pressure (Mpa):	0.02-0.8

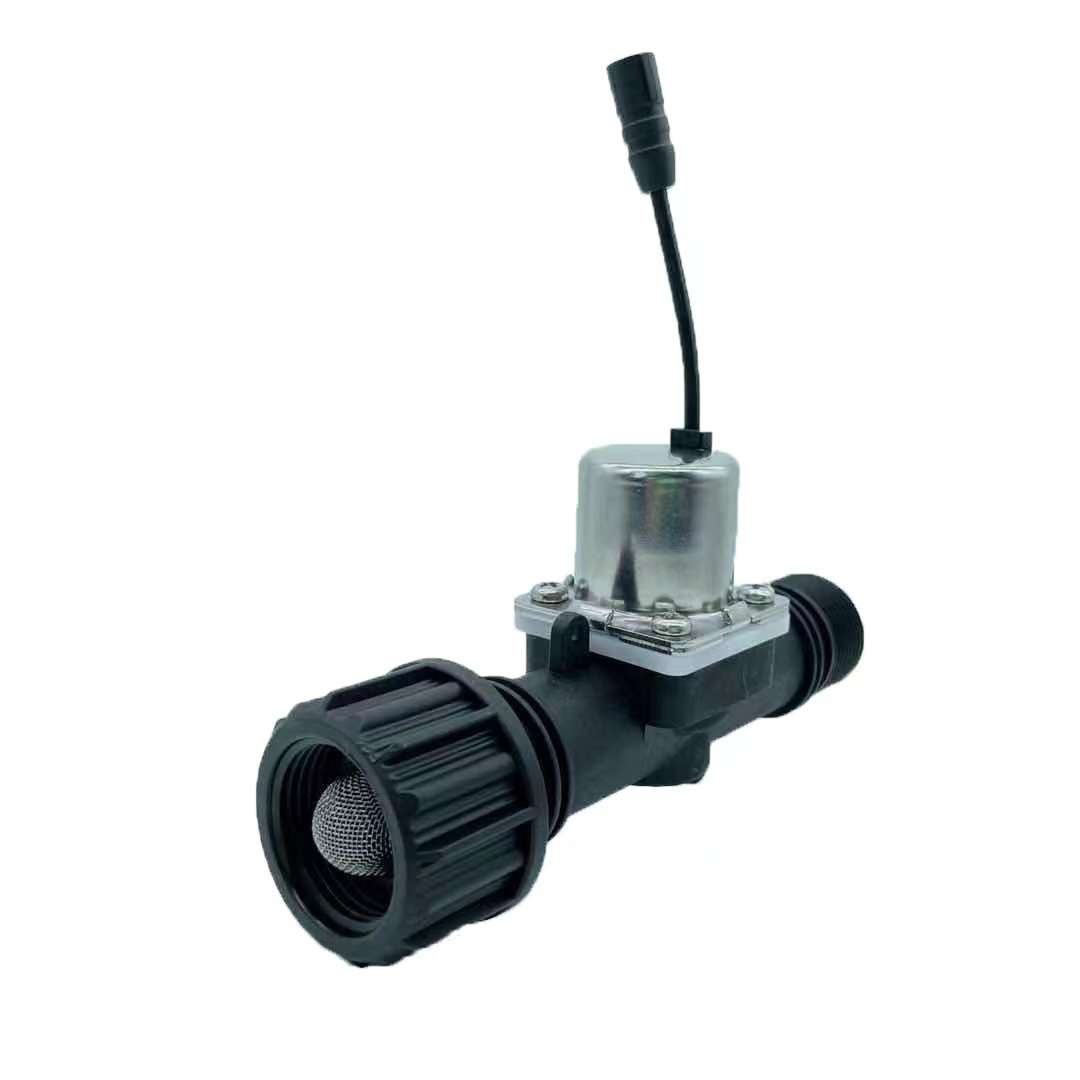

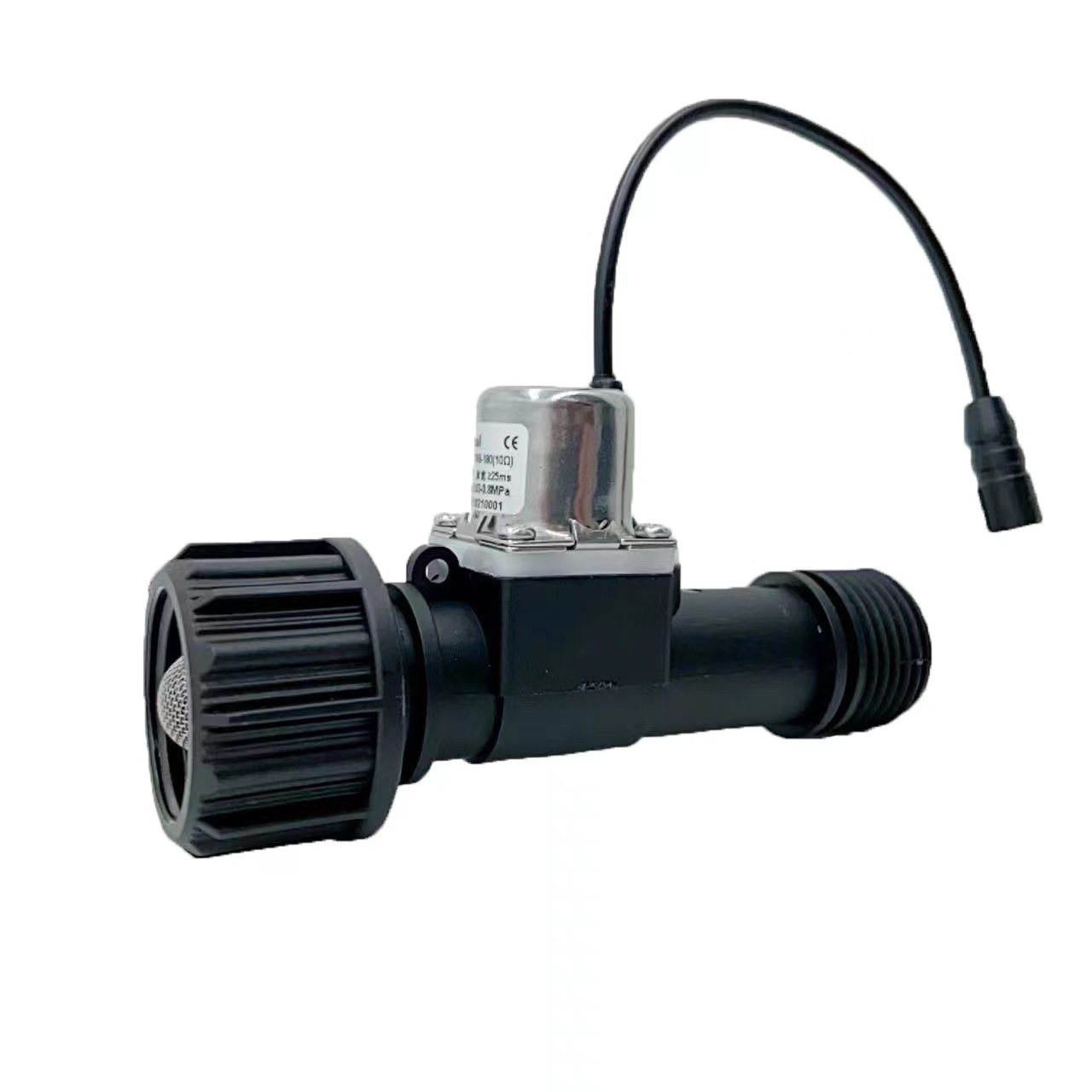

Wifi Water Solenoid Valve G3/4 NH3/4 Inch 3V 6V 9V 12V Self-Locking Solenoid Valve for Irrigation Timing Controller System

Solenoid valve name:

Garden Irrigation Solenoid 6V DC Self-locking Solenoid Valve

Solenoid Solenoid Valve

DC self-locking solenoid valve

12v DC solenoid valve

Electromagnetic brake water valve
Electric water solenoid valve
6V, 3W ,0.02-0.8Mpa,
Solenoid switch valve

Solenoid lock valve

Solenoid clutch valve

Solenoid Actuated Valve

Solenoid Valve Description

Garden Irrigation Solenoid 12V DC Self-locking Solenoid Valvedescribe:

Solenoid Solenoid Valvepowered by aelectromagnet,this is used as an automatic componentcontrol the direction of the water,belongActuator; Commonly used in machine controls and industrial valves. ThisElectromagnetic brake water valveControl the direction of the water to open and close the valve.

ThisSolenoid Solenoid ValveMade of StainessMale thread (1/8", 3/4", 1/2"Available sizes), the POM Forged Junction section andElectromagnetic coil. has the following options2 ways,3 waysConnection ports are available. Exquisite craftsmanship maintainedThe electromagnetic valveStable performance and long service life.we can produce Solenoid Solenoid ValveWithin the voltage range:DC24V,12V, 6Vand aC 220Vas requested.

The DC self-locking solenoid valve has the advantages of small size, strong magnetism, convenient installation and operation, etc.Solenoid Solenoid ValveWidely used in bathroomflush valve,Vegetable irrigation valveand many more.

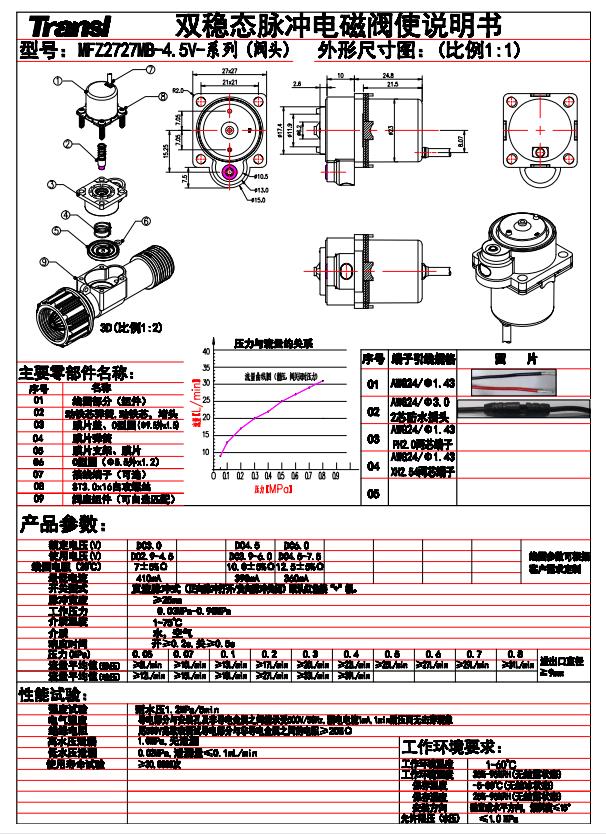

Solenoid Valve Specifications

Garden Irrigation Solenoid 12V DC Self-locking Solenoid ValveSpecification:

product name:	Garden Irrigation Solenoid 12V DC Self-locking Solenoid Valve
model:	MFZ series
Rated voltage (V):	6 DC &12V & 24V,
Pulse width (ms):	25
Power (Watts)	3W
Working pressure (Mpa)	0.02-0.8

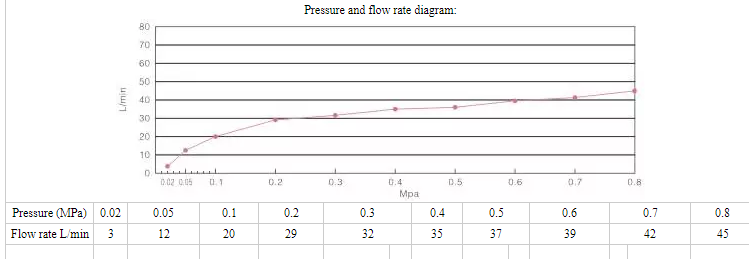

Flow characteristics	0.02Mpa≥3L/min 0.1MPa≥16L/min 0.8MPa≥40L/min
Medium temperature (°C):	1-75
media:	water
Resistance (Ω):	12±0.5
Life (times):	≥ 500 000
application:	bathroomflush valve, Vegable irrigation valveand many more.
Material:	Stainless Steel Threaded, POM and Brass Solenoid Valves
standard:	CE and Rohs
