2U 19 '' Installation + Solutions for structured network cable UTP Cat 5e 48 Porta Patch Panel

Supplier: Ningbo Hi-Tech Zone Webit Telecommunication Equipments Co., Ltd.
Region: Zhejiang, China
Contact: Mr Wulfric Li
Price: $30.00 / 1 - 49 pieces
$26.50 / >=50 pieces
Min. Order: 1 piece

Click here to contact

Product details

Gross weight per piece:	2.500 kg	product name:	Cat 5e 48 port patch panel
Sales unit:	single product	Material:	Cold rolled steel+ABS
type:	UTP Cat5e	color:	Black
Certificate:	ISO9001/CE/ROHS/REACH	application:	network wiring system
Single package size:	52X10X8 cm	place of origin; place of origin:	Zhejiang, China
port:	48 ports	category:	Category 5e
Packaging Details:	Standard export carton for Cat 5e 48 port patch panel	brand:	WebiTelecomms Patch Panel
model:	WB-PP-2548 48-port patch panel	size:	19 inches 2U

Product Description

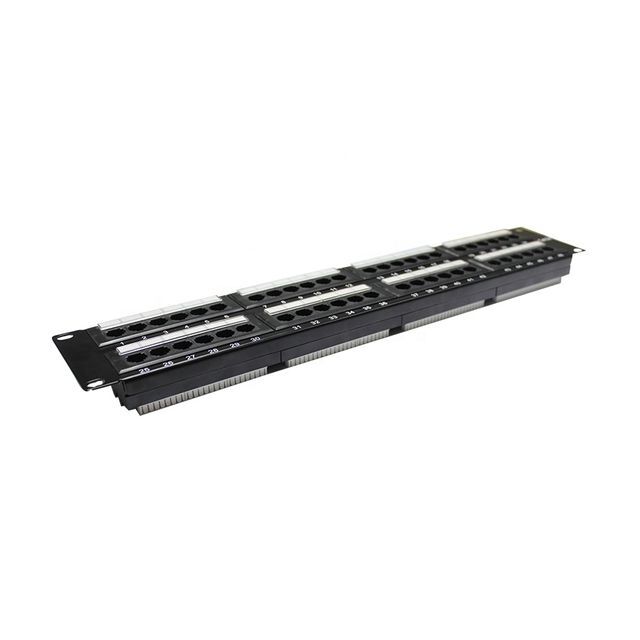

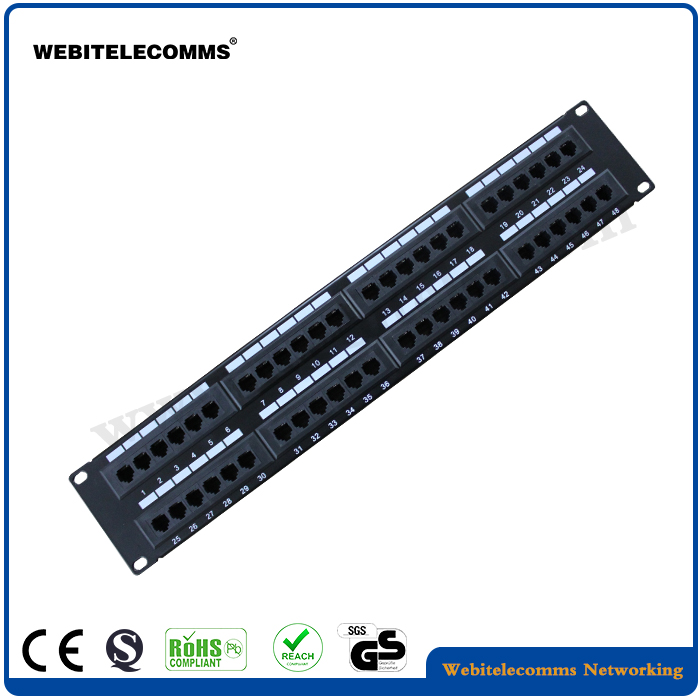

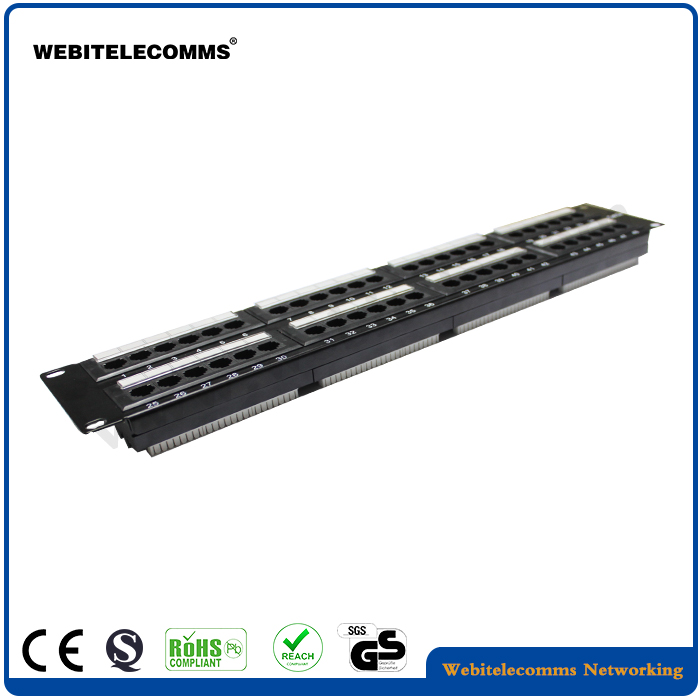

2U 19''+Steel+Network Cabling Solution UTP Cat 5e 48 Port Patch Panel

Specification

1 48-port modular/single-chip, UTP/FTP patch panel
2. Cat5e TIA/EIA 568-B.2-1 (AT&T Standard)
3. rj45 2U load
4. Modular installation is convenient
5. High quality, we produce by ourselves, with competitive price

feature:

1) Compliant with ISO/IEC 11801, TIA/EIA 568-B.2-1

2) Installation density and compactness

3) Not only for shielded modules, but also for unshielded modules. it all depends on

client needs

4) Header clip: Phosphor bronze, gold plated, thickness is 3-50U”(inch), we produce according to customer requirements. Insertion time is more than 1000 times
5) IDC: Phosphor Bronze, Nickel Plated, 50U”(inch) Thickness, Insertion Time 250 tims min
6) Accept 22-26 AWG solid, copper core diameter 0.4-0.6mm
7) Contact resistance: 7 mΩ (standard: < 20 mΩ)
Insulation resistance: min. 7800 mΩ (standard: >100 mΩ)
8) Wired communication products have passed the inspection by the Quality Supervision and Inspection Center of the Ministry of Information

Name	patch panel

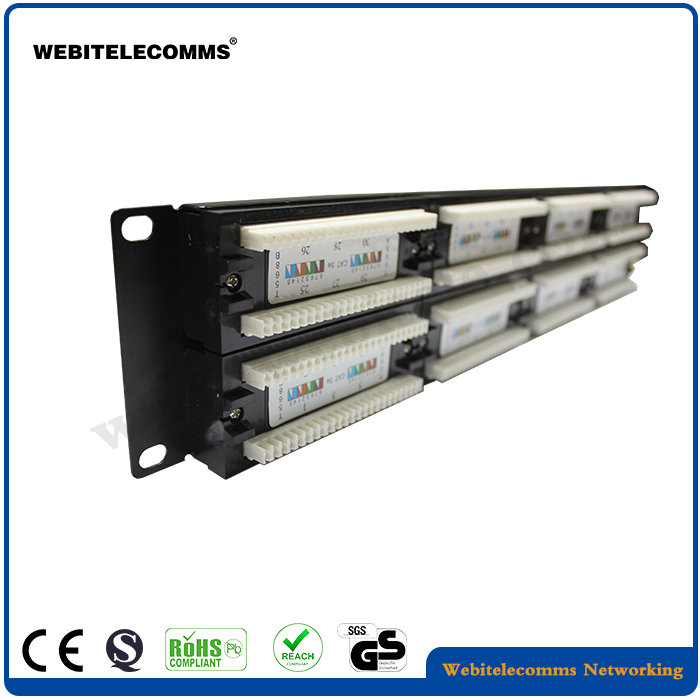

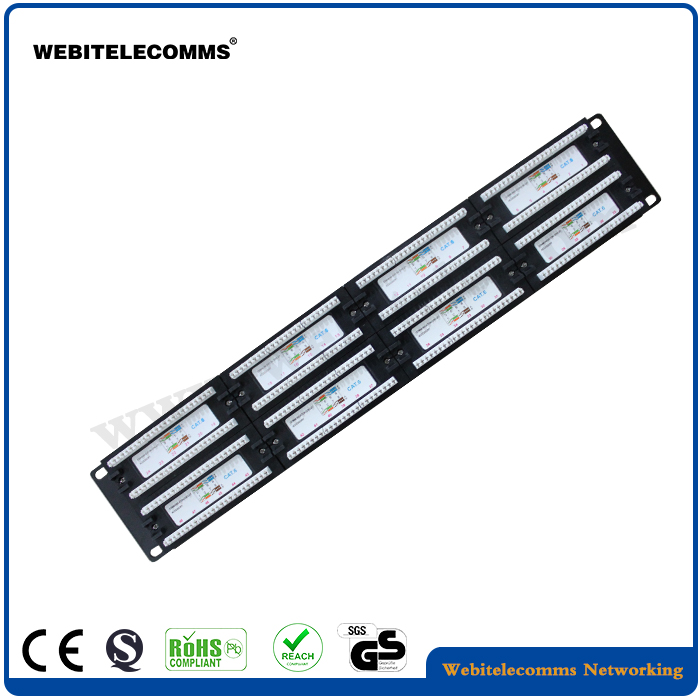

type	UTP Cat.5e Patch Panel, 48 Ports, Krone&110 Dual IDC, 19"
Delivery dates	10-15 days
Certificate	CE, ROSH, REACH, ISO9001:2015
unit package	Bubble wrap and boxes
color	black and white
application	Network Cabling
Accessories	Screws/Ties/Instructions (optional)
Quality Control	Fluke Test
OEM/ODM	Yes
