Factory Direct Supply Rack Mount OEM 18 Ports Cat5e Rj45 Patch Panel 24 Ports Cat6 Cat5e Patch Panel 8 24 1 Pcs /box 1piece

Supplier: Dongguan Kecheng Communication Co., Ltd.
Region: Guangdong, China
Contact: Ms Sue xiang
Price: $3.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

place of origin; place of origin:	Guangdong, China, Guangdong, China	model:	Patch panel, kc-04
application:	communicate	port:	Shenzhen Yantian
payment terms:	wire transfer	Used for:	Category 5 Category 6
Minimum order quantity:	1	Certification:	CE/ROHS/ISO/TLC
Label Color Code:	T568A/B	Packaging Preview:
port:	8 24	Packaging Details:	Bags and Cartons
type:	Patch panel t568a/b	Package:	1/box
brand:	kc	Supply capacity:	5000 pieces per day

Factory direct supply rack type OEM 18 port cat5e rj45 patch panel 24 port cat6 cat5e patch panel

Specification

thing	value
place of origin; place of origin	Guangdong, China
brand	kc
model	kc-04
place of origin; place of origin	Guangdong, China
model	patch panel
port	8 24
used for	cat5e cat6 cat6a

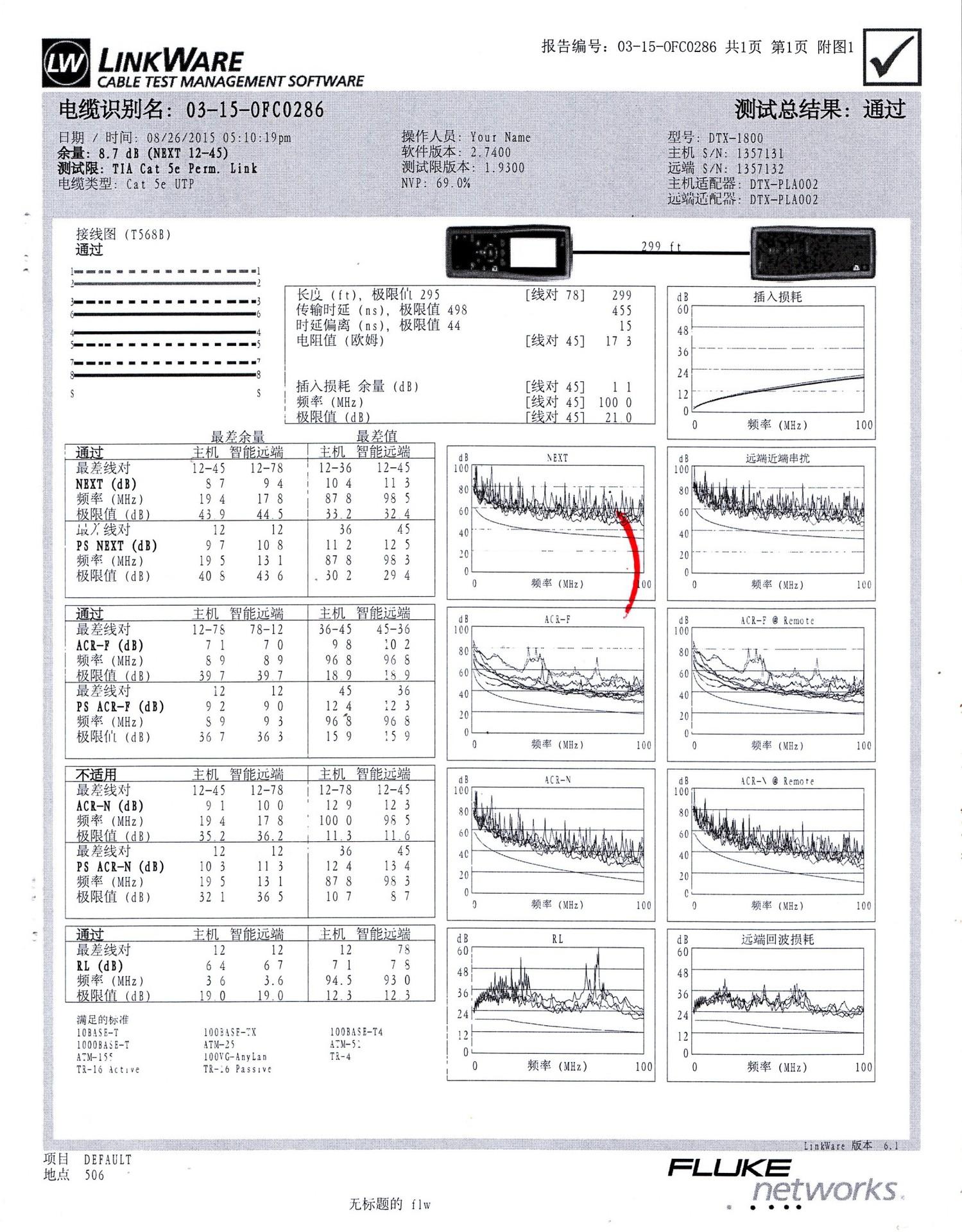

Certification	Fluke/CE/ROHS/ISO/TLC
Label color code	T568A/B
application	communicate
type	Patch panel t568a/b

Product Description

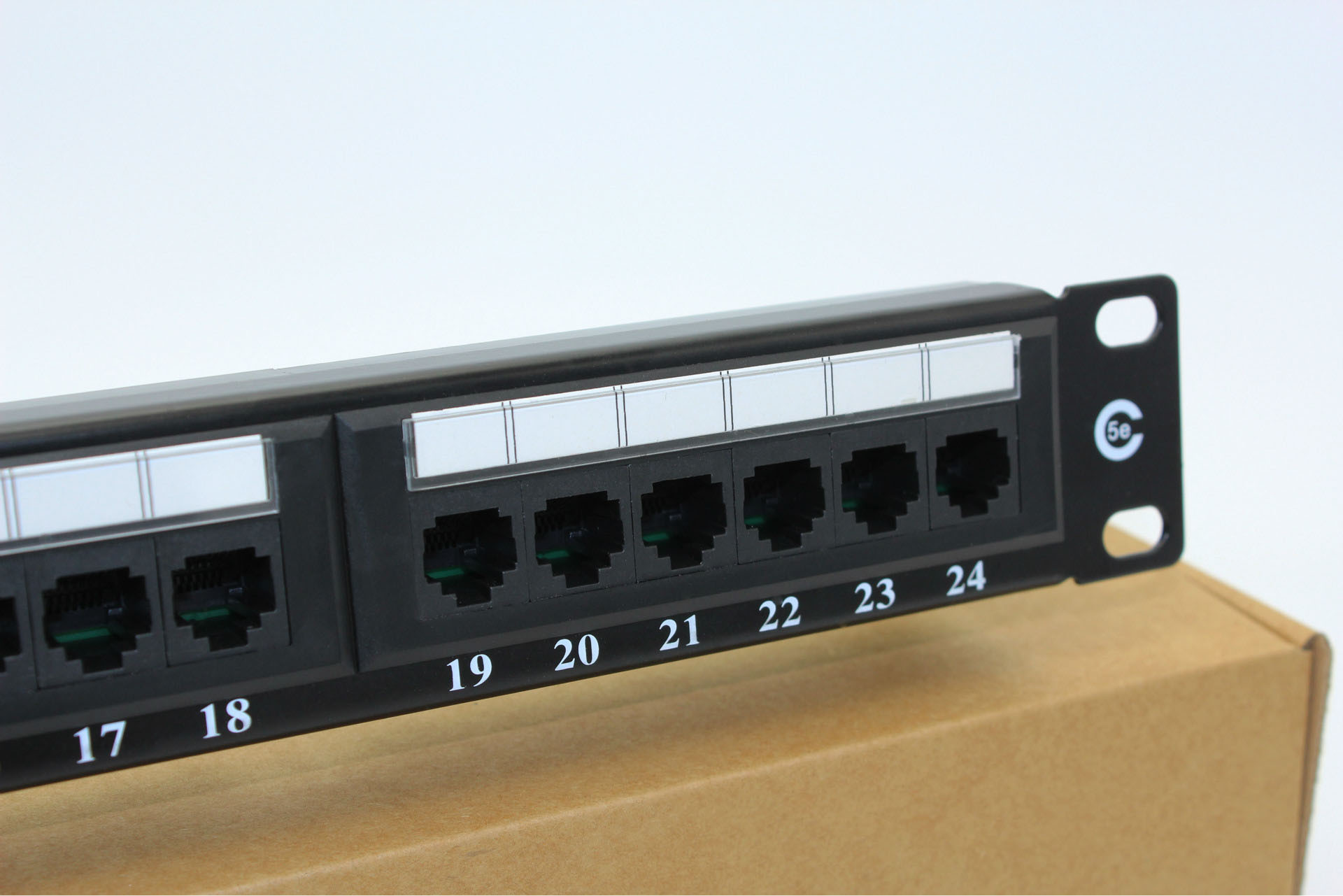

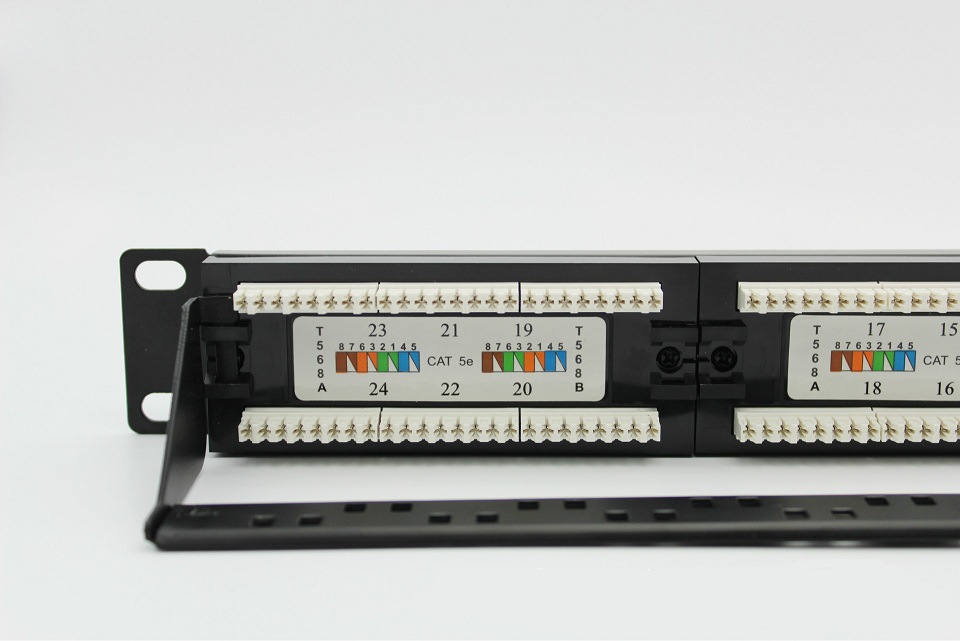

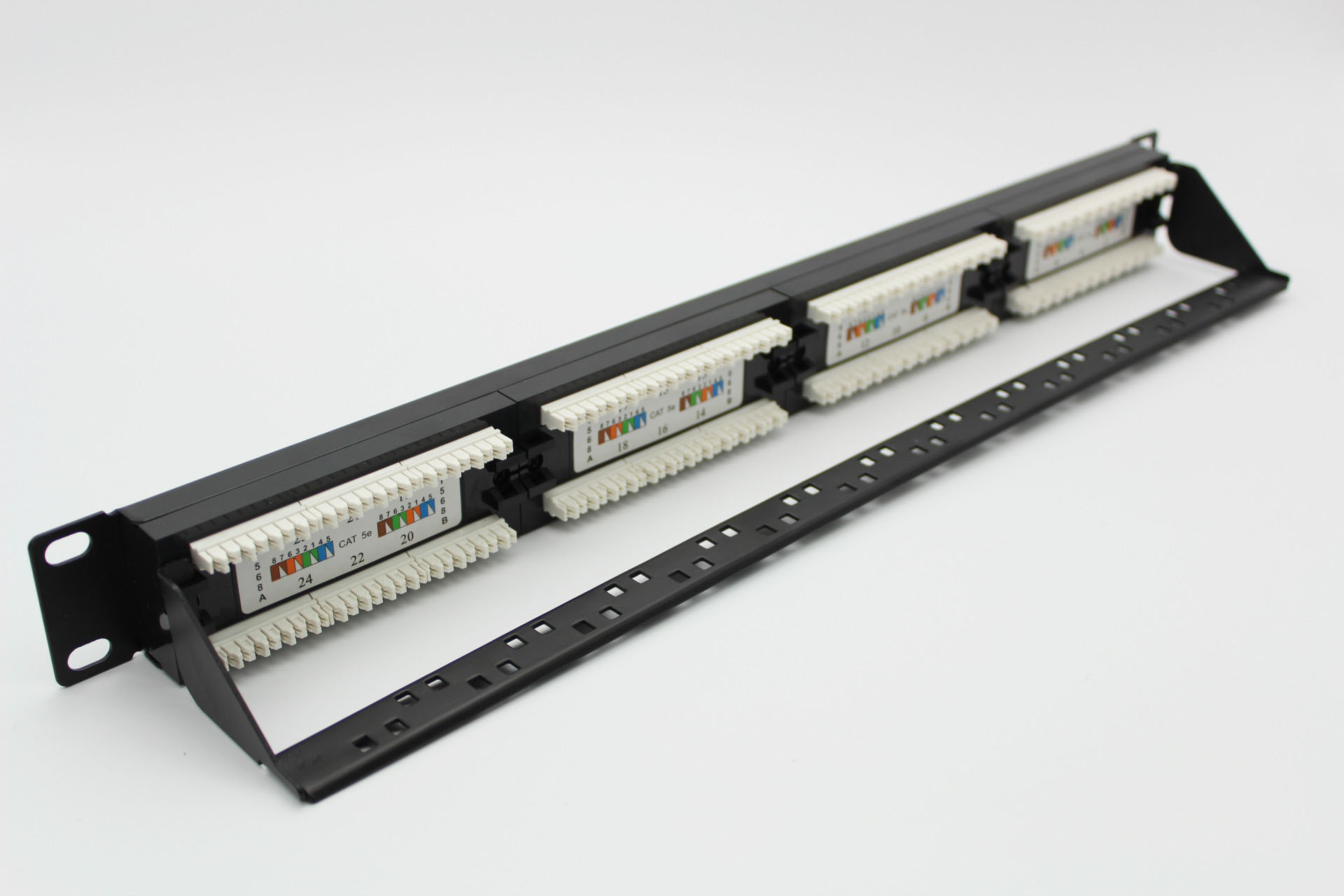

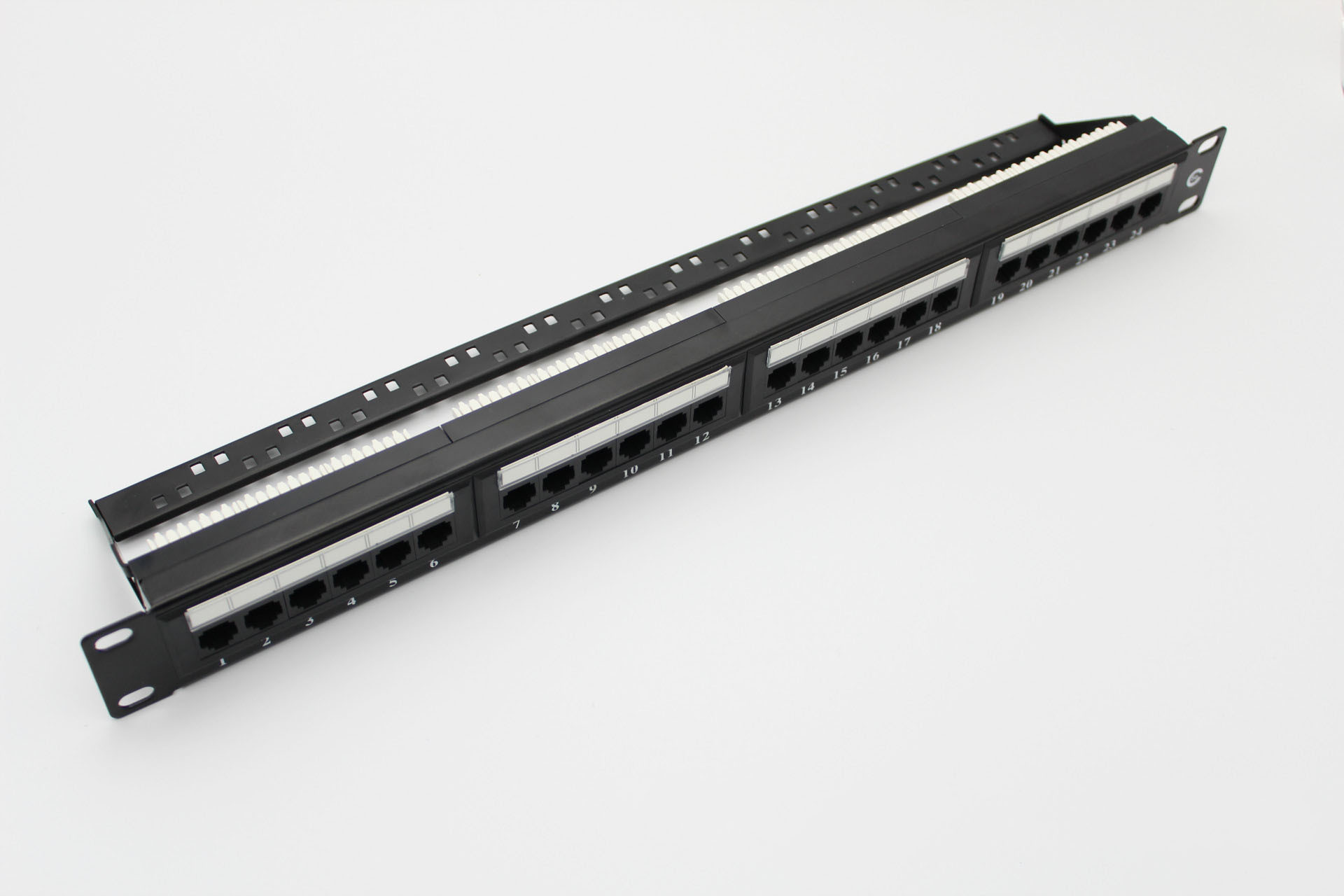

◆Product name: patch panel ◆Product type: Super V-class 24-port patch panel, unshielded ◆Specification: 19″ installation size, modular design ◆Material: high-quality cold-rolled steel plate, phosphor bronze, PC injection molding ◆Color :black

◆ Main technical parameters*IDC: Phosphor bronze, nickel-plated (20~50uilzh), applicable cables are 22, 24, 26awg (0.64, 0.5, 0.4mm), and the service life is not less than 250 times. *8-wire pin: Phosphor bronze, gold-plated (20~50uilzh), plug and socket can be plugged and unplugged no less than 750 times *Flame retardant: PPO+PC injection molding, in line with international standards *Contact resistance: no more than 2.5m Ω under normal pressure (excluding bulk resistance) *Insulation resistance: not less than 1000mΩ under normal pressure *Electrical strength: DC 1000V (AC, 700V) without breakdown and arc within 1 minute *Standard: according to international standard ISO/iec11801; TIA/eia568 design manufacture
