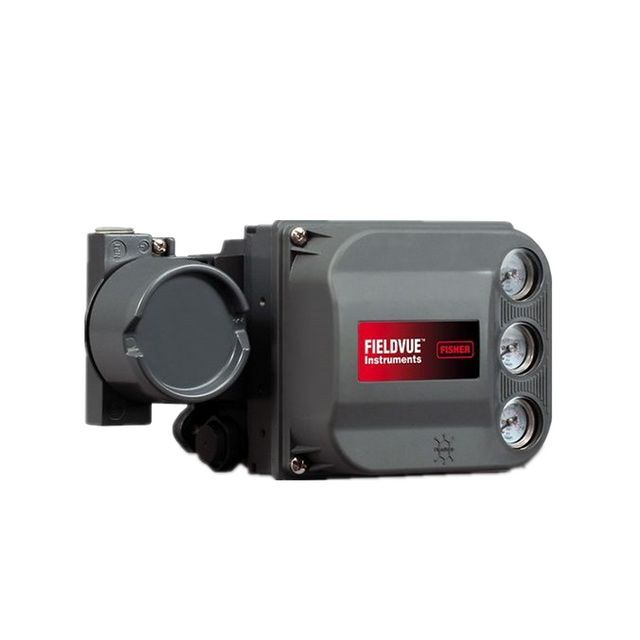

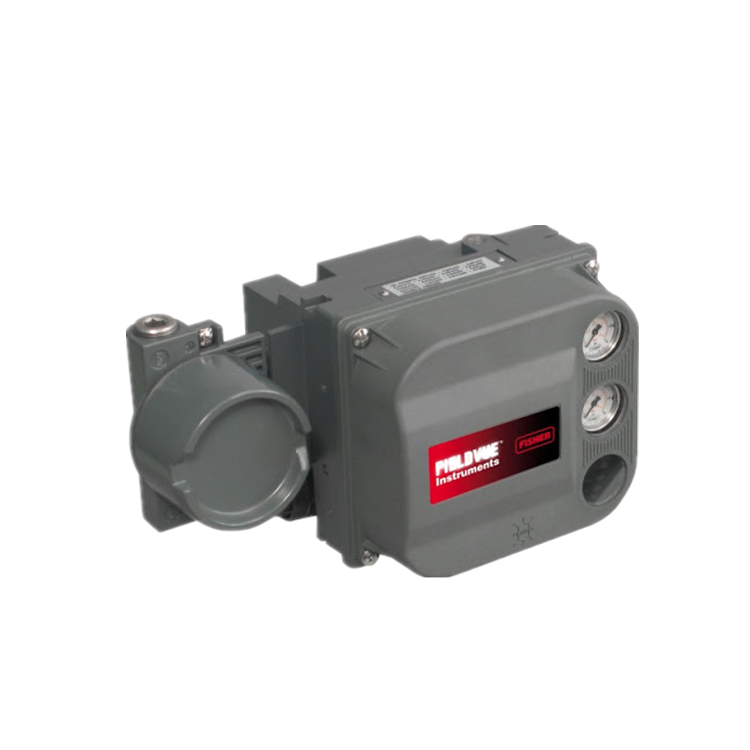

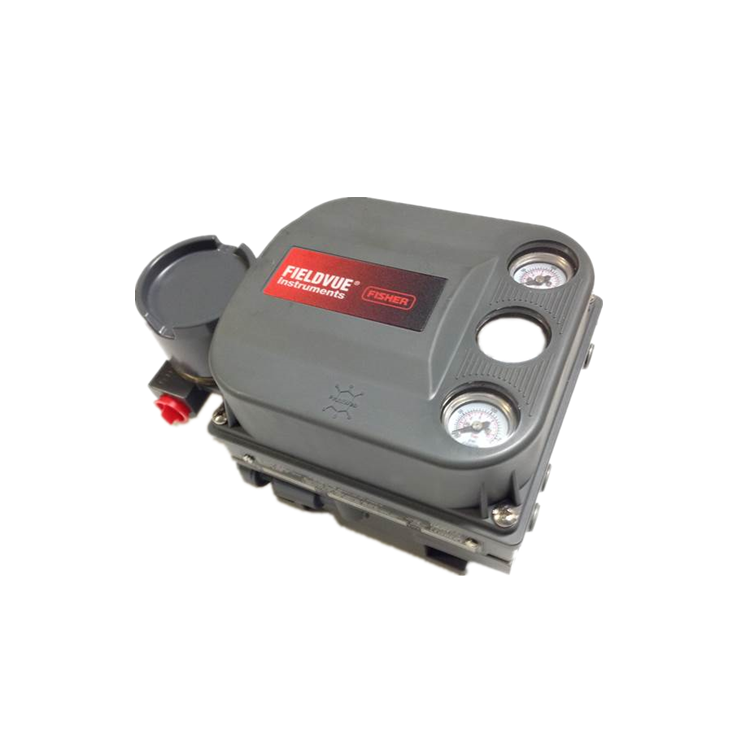

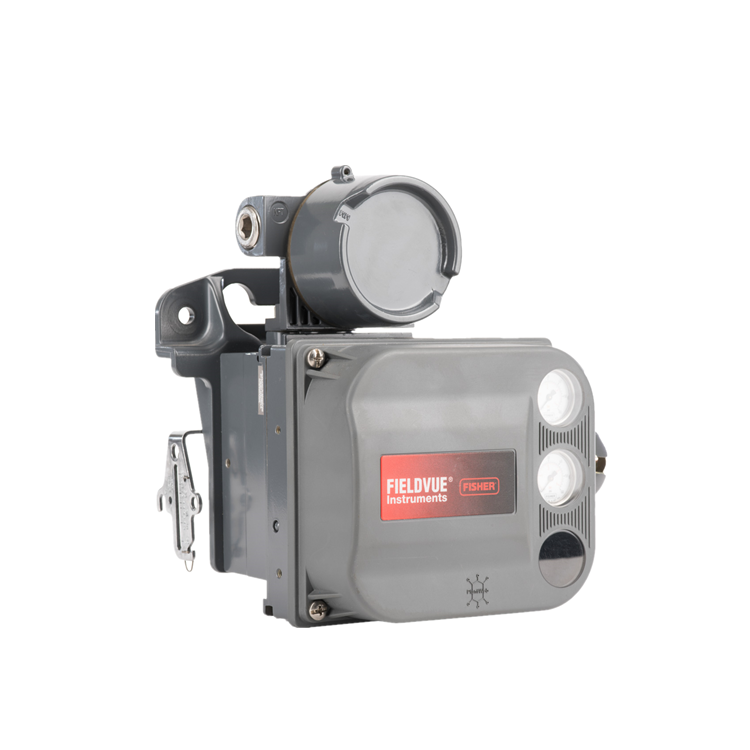

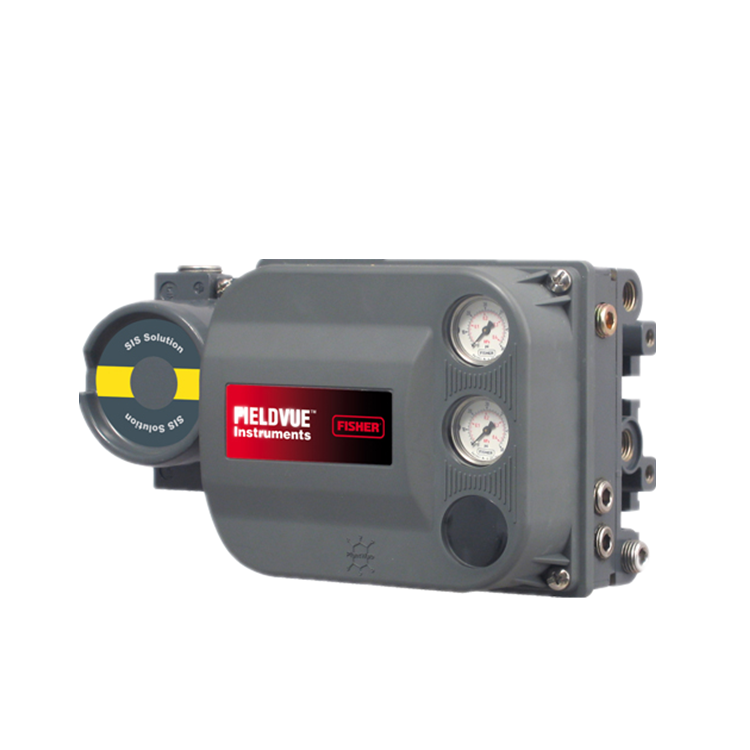

DVC6200 valve positioner price and digital intelligent Fisher valve positioner

Click here to contact

Product details

Name:	DVC6200 Valve Positioner Price and Smart Fisher Valve Positioner	Supply Media:	Air, Natural Gas, Nitrogen
Packaging Details:	A set of DVC6200 valve positioner price and digital smart Fisher valve positioner per brown box, WG: 4.5Kg Size: 30cm30cm30cm	model:	DVC6200
Data interface:	wired	Supply capacity:	10 sets per month
Protocol:	Fieldbus	Maximum outlet pressure:	145 psi
place of origin; place of origin:	China Shanghai	Installation type:	One-piece installation
Packaging Preview:		port:	Shanghai
brand:	Fisher	diagnosis:	Yes
payment terms:	L/C,Western Union,T/T,MoneyGram	Position Control:	Throttling control, on/off
input signal:	electrical	Certification:	FM, ATEX, IECEx, CUTR, etc.

Specification

product name	DVC6200 valve positioner price and digital intelligent Fisher valve positioner
Model	DVC6200
application	Valve Positioner Price; Digital Fisher Valve Positioner; Smart Fisher Valve Positioner

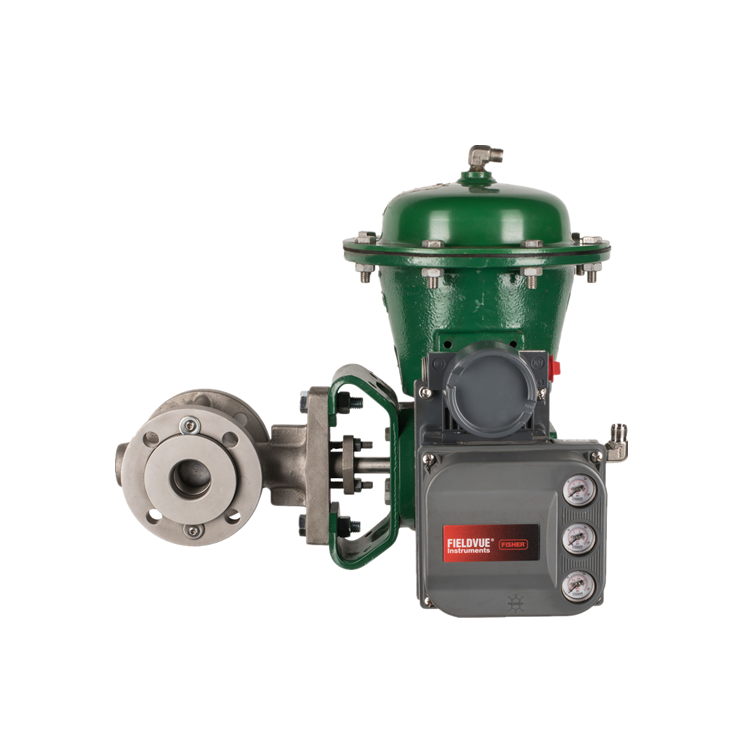

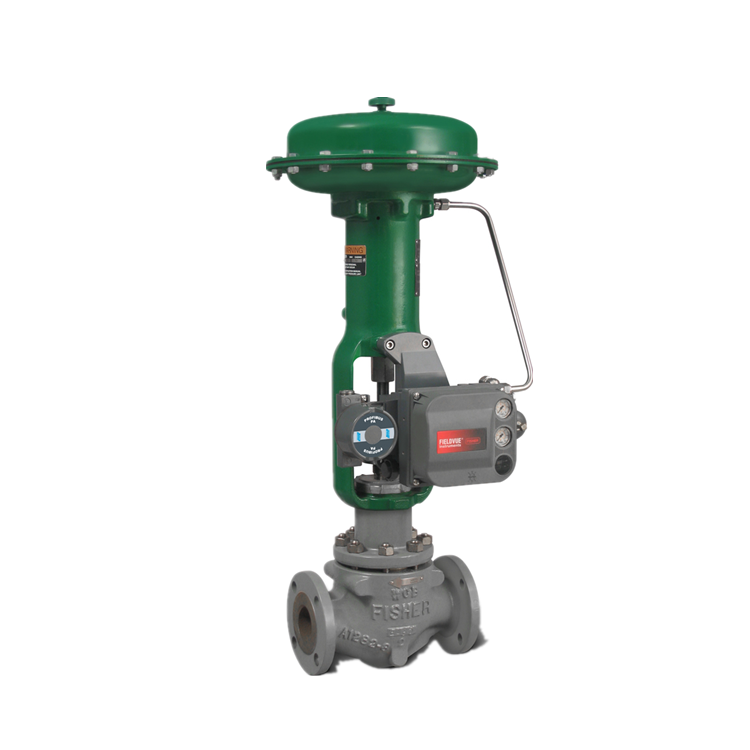

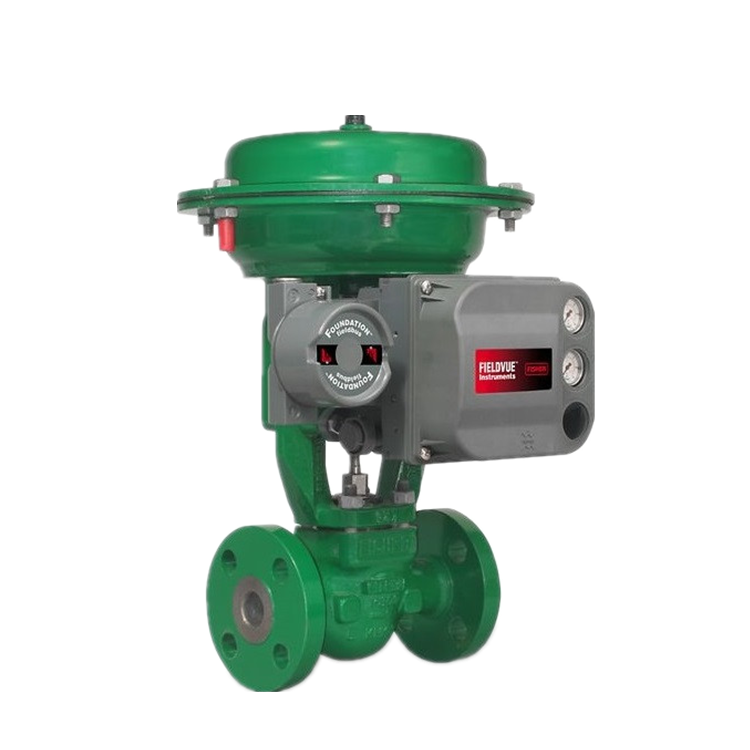

available installation	On Fisher 657/667 or GX actuators; on Fisher rotary actuators
Function Block Kit	AO,PID,ISEL,OS,AI,MAI,DO,CSEL and DI function blocks
supply pressure	0.3 to 10.0 bar
supply medium	air or natural gas
steady state air consumption	0.38 to 1.3 m3/h
Maximum output capacity	10.0 to 29.5 m3/h
weight	Aluminum: 3.5kg; Stainless Steel: 8.6kg
block execution time	15ms-20ms
electrical input	Voltage Rating: 9 to 32 Volts; Maximum Current: 19 mA
digital communication protocol	121 and 511
Fieldbus device functionality	Backup LAS (Link Active Scheduler)
output signal	Pneumatic signal, dual; single forward or reverse
Working ambient temperature limit	(-52°-85°)
Electromagnetic Compatibility	Complies with EN 61326-1 and EN 61326-1 standards
Vibration test method	Tested according to ANSI/ISA-S75.13.01 Section 5.3.5.
Humidity Test Method	Tested according to IEC 61514-2
Actuator Compatibility	Stem stroke (6.35-606mm); shaft rotation (45°-90°)
building materials	Low copper aluminum alloy + stainless steel + thermoplastic polyester elastomer
