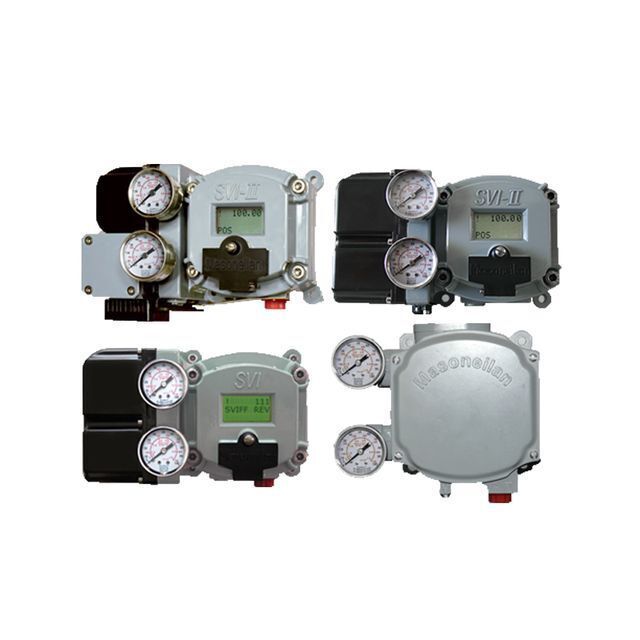

SVI2-21123121 Masoneilan Digital Valve Positioner for 21000 41005 control valve 78-80 transfer valve and 78-40 filter regulator

Click here to contact

Product details

Brand Name:	Ma-soneilan;	Max Outlet Pressure:	145 psig;
Data Interface:	Wired;	Communication Protocol:	HART;
Mounting Type:	Integral Mounted;	Certifications:	FM, ATEX, IECEx, CUTR, etc.;
Supply Ability:	500 Sets per Month;	Model Number:	SVI II AP Digital Valve Positioner;
Place of Origin:	Colorado, United States;	Name:	SVI II AP Digital Valve Positioner;
Supply Media:	Air, Natural Gas, Nitrogen;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Packaging Detail:	SVI2-21123121 Digital Valve Positioner Box size: 150100100 (mm) WG:5 Kg;	Diagnostics:	Yes;
Port:	Shanghai;	Input Signal:	Electric;
Position Control:	Throttling Control, On/Off;

SVI2-21123121 Masoneilan Digital Valve Positioner for 21000 41005 control valve 78-80 transfer valve and 78-40 filter regulator

with many stocks and online after sales-service

SVI2-21113121, SVI2-21123121, SVI2-21113111, SVI2-21123111,

SVI2-22113121,SVI2-22113111, SVI2-22123121, SVI2-22123111

Specification

Product Name	SVI2-21113121 Digital Valve Positioner for control valve
Model	SVI2-21113121,SVI2-21123121,SVI2-21113111,SVI2-21123111
Application	Control valve with positioner
Available Mounting	on Fisher rotary actuators
Function Block Suites	AO,PID,ISEL,OS,AI,MAI,DO,CSEL and DI function blocks
Supply Pressure	0.3 to 10.3 bar
Supply Medium	Air or Natural Gas
Steady-State Air Consumption	0.49 to 0.93 m3/hr
Maximum Output Capacity	4.48 to 9.06 m3/hr
Weight	5 kg;
Block Execution Times	15ms-20ms
Electrical Input	Voltage Level: 9 to 32 volts; Maximum Current:19 mA
Digital Communication Protocol	121 and 511
Fieldbus Device Capabilities	Backup LAS (Link Active Scheduler)
Output Signal	Pneumatic signal,Double;Single Direct orReverse
Operating Ambient Temperature Limits	(-52°-85°)
Electromagnetic Compatibility	Meets EN 61326-1 and EN 61326-1 standard
Vibration Testing Method	Tested per ANSI/ISA-S75.13.01 Section 5.3.5.
Humidity Testing Method	Tested per IEC 61514-2
Actuator Compatibility	Stem Travel(6.35-606mm);Shaft Rotation(45°-90°)
Construction Materials	low copper aluminum alloy+Stainless Steel+Thermoplastic polyester Elastomers
