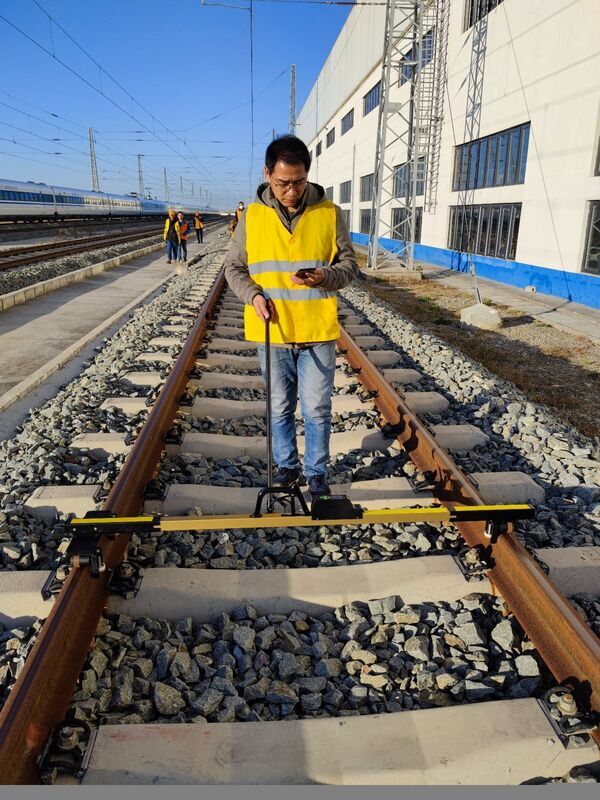

Digital Track Geometry Trolley for Track Gauge and Level Measurement

It's mainly used for measuring track gauge and superelevation, avoid bending over and over.

BT transmission function, data upload to computer, the system can analyze and download diesease report.

Product Paramenters

Model(1435mm)	GJC-TJG0
Track gauge(mm)	1384-1470
Gauge rail check gauge(mm)	1364-1450
Guard rail face gauge(mm)	1344-1430
Superelevation measuring range	-200~+200
Flangeway Clearance	20-107
Superelevation division value	0.05
Track gauge division value	0.1
Track gauge max indication error	±0.25
Superelevation error	±0.3
Application rail line	railway speed less than 350km/h
1000mm,1067mm,1600mm,1676mm portable rolling track gauge can be customize
