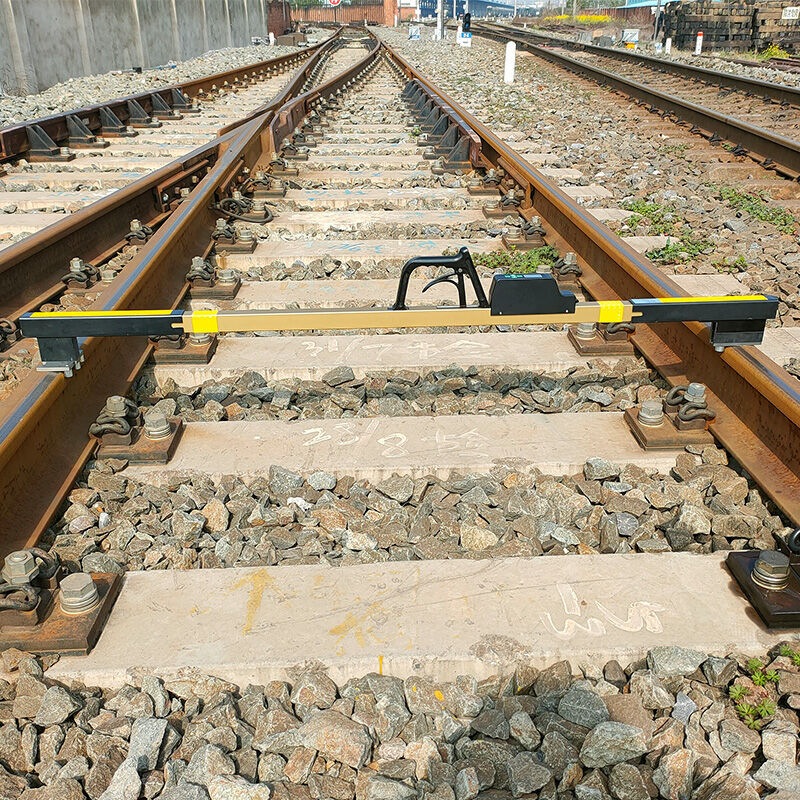

Digital track gauge for railway switch level and cant measurement

Supplier: Xiangyang Lianjie Mechanical&Electrical Co.,Ltd
Region: China
Contact: Mr freya fei
Price: $650.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Digital track gauge can directly read the measurement values of railway track gauge, super elevation ,check rail gauge and back to back distance through microelectronics, embedded and sensor technologies and OLED display screen.

Product Paramenters

Model(1435mm)	GJC-TJG0	GJC-TJG1
Track gauge(mm)	1384-1470	1384-1470
Gauge rail check gauge(mm)	1364-1450	1364-1450
Guard rail face gauge(mm)	1344-1430	1344-1430
Superelevation measuring range	-200~+200	-200~+200
Flangeway Clearance	20-107	20-107
Superelevation division value	0.05	0.10
Track gauge division value	0.1	0.1
Track gauge max indication error	±0.25	±0.25
Superelevation error	±0.3	±0.45
Application rail line	railway speed less than 350km/h	railway speed less than 250km/h

Digital track gauge for railway switch level and cant measurement
