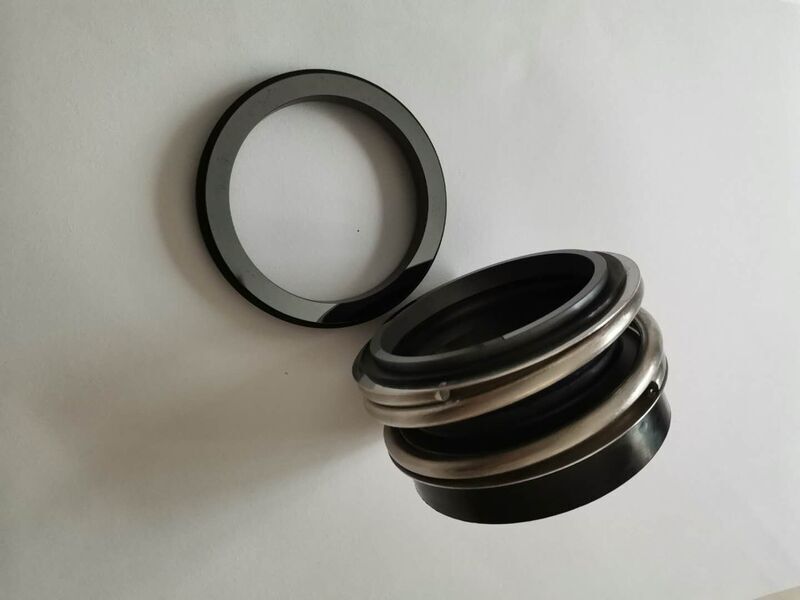

Mechanical seal China mechanical seals wholesale rubber bellow seals 2100/2100K/2100M

mechanical seals 2100 Operating Limits:
Pressure: ≤1.7MPa
Speed: ≤25m/s
Temperature: -20℃~+200℃
Rotary Ring:Carbon/Sic/TC
Stationary Ring:99% Ceramic/Sic/TC
Secondary Seal:VIT/NBR/EPDM
Spring and Other Parts:SUS304/SUS316

mechanical seals 2100 specs:
Rotary ring: silicon carbide,carbon,
Secondary seal: NBR,EPDM,FKM,PTFE
Variant with PTFE secondary seals for high chemical resistance
Spring and parts: SS304,316
Easy to install and uninstall

mechanical seals 2100 application range:

Pressure in the seal chamber: 0-1.2MPa
Temperature in the seal chamber: -30ºC------180ºC
Linear Velocity: ≤ 10m/s
Medium: water,oil and minor corrosive liquid
The direction of rolling: looking from the stationary face,if the pivot be rolled in clockwise direction,spring should be in right direction rolling.

Chemical industry
Pulp and paper industry
Water and waste water technology
Sugar industry
Low solids content media
Cooling water pump
Basic sterile application
