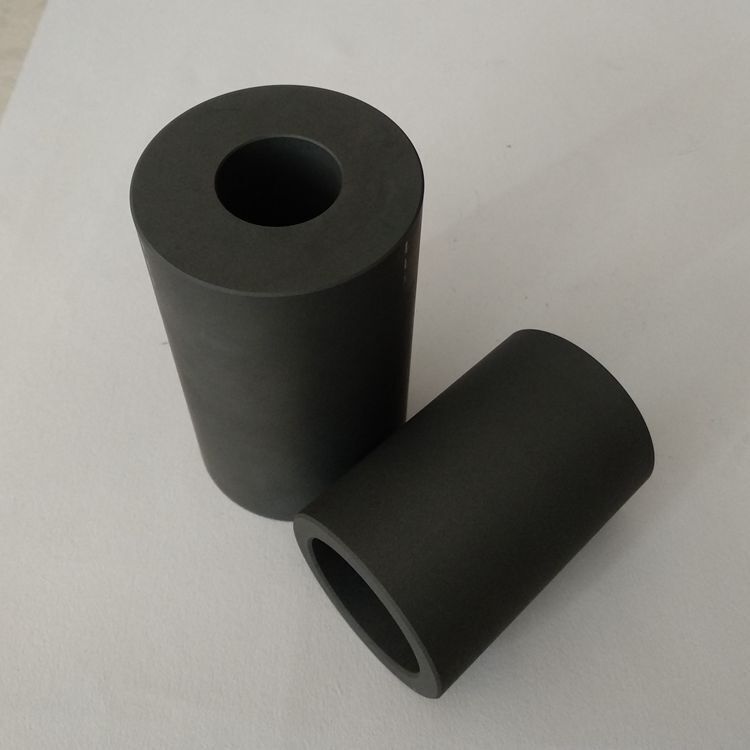

Made to order resin impregnated carbon graphite seal rings Graphite carbon bushing

Made to order resin impregnated carbon graphite seal rings Graphite carbon bushing

carbon graphite sealing ring has the good property of good resistant-corrosion, high thermal conductivity and lower friction, good self-lubrication, the smaller expansion. They can be made into the seal faces, bearings and so on. It is ideal to choose the graphite rings as the frictional mating rings.

Our product range including mechanical seals equivalent with John Crane, Eagle Burgmann, Aesseal, Flygt,Grundf, and US Seal,etc, Silicon Carbide Products,O-ring,Wave Springs. Stationary ring: ceramic,silicon carbide,TC

carbon graphite bushing specs

Imperegnated material：Furane Resin
Shaw Hardness: ≥80HS
Indicated Parosity: ≤1.5%
Volume Density: ≥1.70 g/cm³
Compressive Strength: ≥180Mpa
Flexural Strength：≥60Mpa
Coefficient Of Heat Expansion：6.5 10 -6●1/℃
Using Temperature：≤200℃
