Double arm stand 7X-45X zoom mobile phone microscope stereo

Supplier: Guangzhou KSL Electronic Equipment Co., Ltd.
Region: Guangdong, China
Contact: Mr Electronic KSL
Price: $195.00 /set
Min. Order: 1 set

Click here to contact

Product details

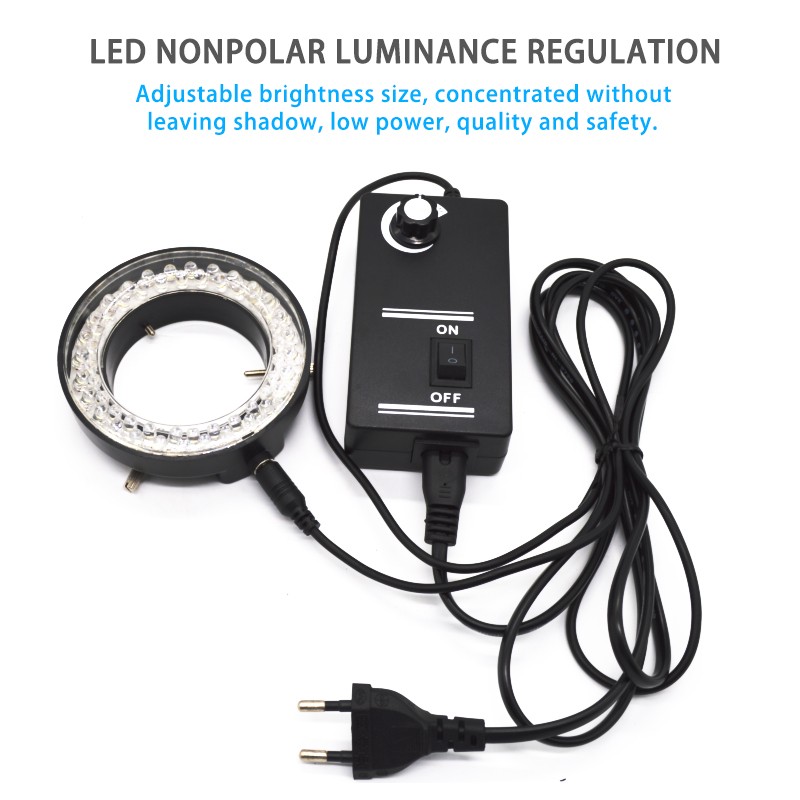

Objective lens:	Standard configuration 0.7X-4.5X	light source:	220 V / 8W circular fluorescent or LED light
model:	KSL-10hw	Pull the tube:	three eyes
brand:	Kellyville	theory:	Stereo microscope
Package dimensions:	51X52X32cm /27KG	place of origin; place of origin:	Guangdong, China
Packaging Details:	Double arm stand 7X-45X zoom mobile phone microscope stereo standard package	Working distance:	100mm
Material:	metal/glass	payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Suitable for:	PCB observation, welding, engraving, etc.	port:	Guangzhou
feature:	HD, Digital, Portable, Handheld	Name:	Double arm stand 7X-45X zoom mobile phone microscope stereo
Supply capacity:	5000 sets per month	type:	Optical Stereo Zoom Microscope

Product Description

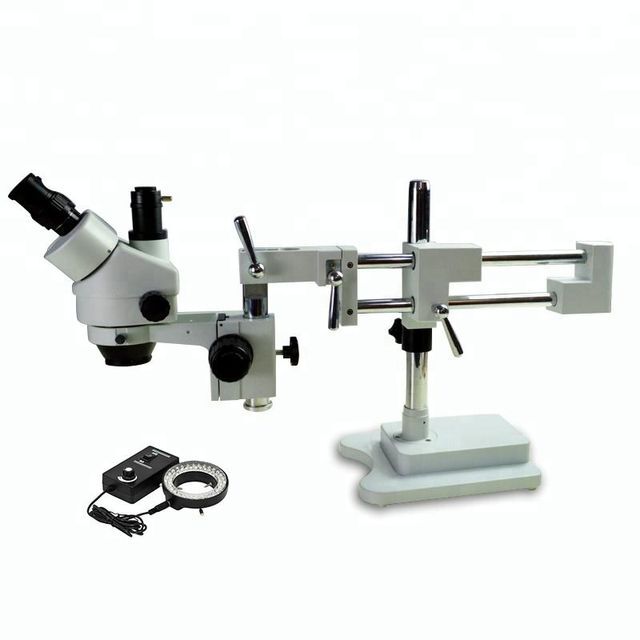

Double arm stand 7X-45X zoom mobile phone microscope stereo

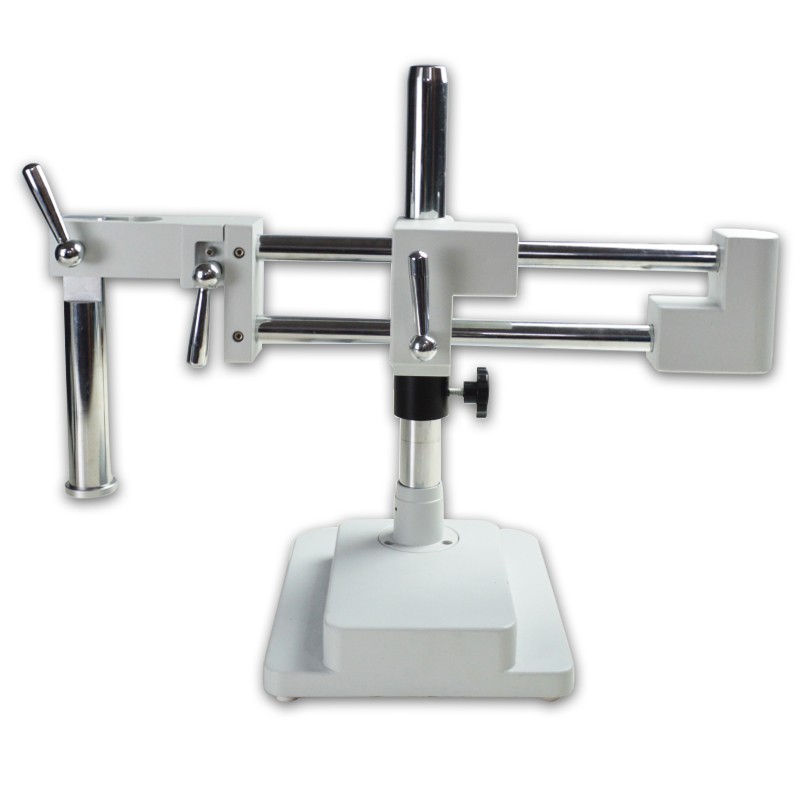

The 45-degree tilt, 360-degree rotating trinocular lens and high eye point design ensure easy viewing, especially for glasses wearers.Get sharply focused images simultaneously on your PC or video screen and through microscope eyepieces; no need to refocus microscope after each "switch"; dual-arm cantilever stand with multifunctional ball-bearing design allows users to level with finger touch Adjustment.

Specification:

1) Head: 45° tilted 360° rotatable trinocular; 2) Eyepiece: wide-angle WF10X/20;
3) Zoom range: 6.5:1 4) Objective lens zoom: 0.7x-4.5X;
5) Total magnification: 3.5x~90x; 6) Both eyepiece tubes have diopter adjustment ±5dp;
7) Interpupillary distance: 2-3/16″~2-15/16″(55~75mm); 8) Working distance: 100mm;
9) Focusing stroke: 2-3/8″(50mm); 10) White/black plastic platen: 3-3/4″(95mm) in diameter.

detailed image
