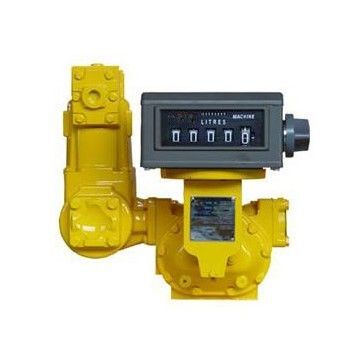

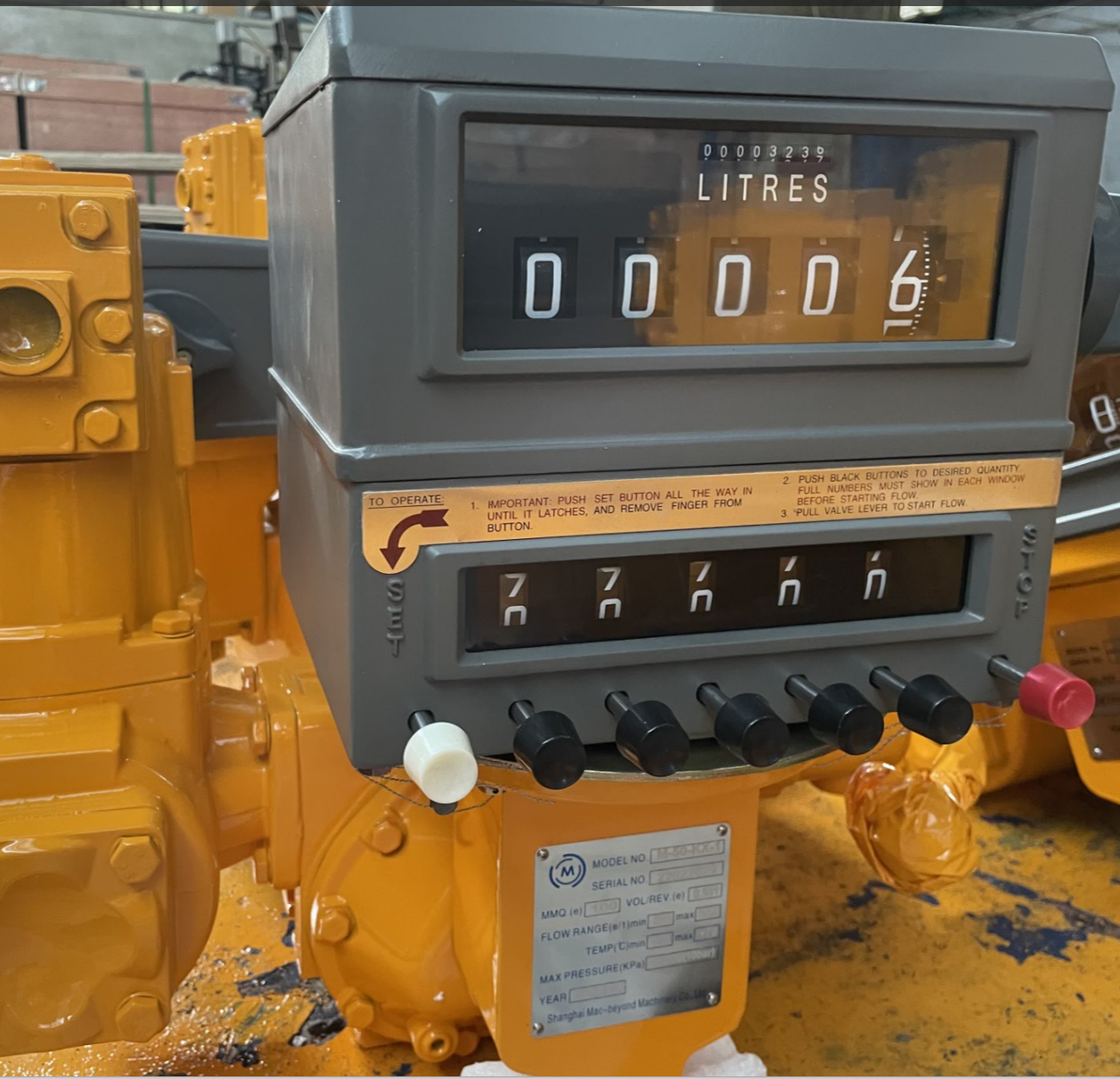

Diesel fuel station flow meter M5 M7 M10 M15

feature

• Excellent stepless adjustment mechanism allows fine-tuning of the meter
• High accuracy and repeatability over the widest flow range; excellent accuracy at constant flow
• Low maintenance costs, no metal contact in the measuring chamber, and long service life
• Low pressure loss, true gravimeter
•Accuracy is not affected by pressure fluctuations, temperature changes, viscosity
• Choice of aluminum, cast iron and stainless steel construction materials

industry

• car;
• Adhesives;
• Agriculture;
• Asphalt;
• Aviation refueling;
• animal feed; beverages;
• cosmetic;
• chemical processing;
• Concrete addition mix;
• dairy products; liquid fertilizers;
• food processing ;
• fuel delivery;
• General industry;
• Hydrocarbon processing;
• Liquefied gases;
• Lubricants; marine;
• paints and varnishes;
• Petroleum marketing;
• oil production;
• Pharmaceuticals;
• Printing ink;
• Pulp and paper;
• Refining commercial solvents;
• recycling railways;
• Textiles.

application

• Refined petroleum products;
• Aviation gasoline and jet fuel;
• Wide variety of products such as: liquid sugar, corn syrup, corn
Sweeteners, glucose, fructose, sucrose, maltose, lactose, corn oil,
soybean oil, cottonseed oil, coconut oil;
• treated water (deionized, demineralized and drinking water);
• Metering of chlorinated solvents and general solvents;
• Acid pH liquids;
• Liquefied Petroleum Gas (LPG);
• Crude oil, also used for heating and/or viscous liquids;
• Oil- or water-based latex products, polyester resins,
and binders (neutral pH), also for metering herbicides and
nitrogen fertilizer solution;
• herbicides;
• Sodium hydroxide (caustic) solution, high sulfur crude oil (LACT
and NOD) and other alkaline pH liquids;
• Abrasive liquids.

V & VS Series Piston Valves

The V-Series Mechanically Actuated Piston Valves are designed to be mounted on the gauge outlet for easy operation in any pressure system, completely shutting off liquid flow. The valve can be manually operated or connected to a preset counter on the meter via a mechanical linkage for single-stage shutoff or two-stage shutoff to eliminate hydraulic shock. The valve can be indexed 90 degrees for upper and lower or side outlet. 2", 3", 4" are available.

V-80 Piston Valve

K series pneumatic differential check valve

The K-Series Pneumatic Differential Check Valve is installed at the outlet of the meter and is designed to stop liquid flow in the presence of air to ensure accurate measurements.

K-80 Check Valve

V-50-LPG Differential Valve

The differential pressure valve is installed at the outlet of the instrument, connected to the steam eliminator, and has the function of cutting off the flow of liquid when steam occurs in the piping system. The valve maintains sufficient pressure to ensure that high vapor pressure products such as LPG and anhydrous ammonia (NH3) remain liquid at all times. The valve is spring loaded and will fail if closed.

V-50-LPG Differential Valve
