Low price 13m outdoor mobile stage trailer for concert

Click here to contact

Product details

After-sales service provided:	On-site installation, video technical support, online support	Health status:	new
place of origin; place of origin:	Henan, China	Gross vehicle weight:	13000
Tire number:	8+1	Axle number:	2
Emission Standards:	5 euros	Function:	Shipping 20ft 40ft container
pause:	exhaust brake	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
color:	Black	Transmission type:	manual
Type of gasoline:	diesel engine	usage:	event stage performance
King Needle:	50#/90#	brand:	Huayuan
Packaging Preview:		Supply capacity:	30 mobile stage carts for concerts per month
product name:	Concert Mobile Stage Cart	Packaging Details:	Packing Details 1. Shipping Period: Whole vehicle or part, container or bulk, standard seaworthy wooden box can be provided. 2, Delivery time: 30-45 days after deposit. 3. Delivery time: EXW, FOB, CFR, CIF and other ports Qingdao/Ningbo/Shanghai
axis:	13 tons Fuhua Bridge	fetal:	10.00R20
port:	Qingdao/Ningbo/Shanghai	Dimensions (L x W x H) (mm):	1219025004000

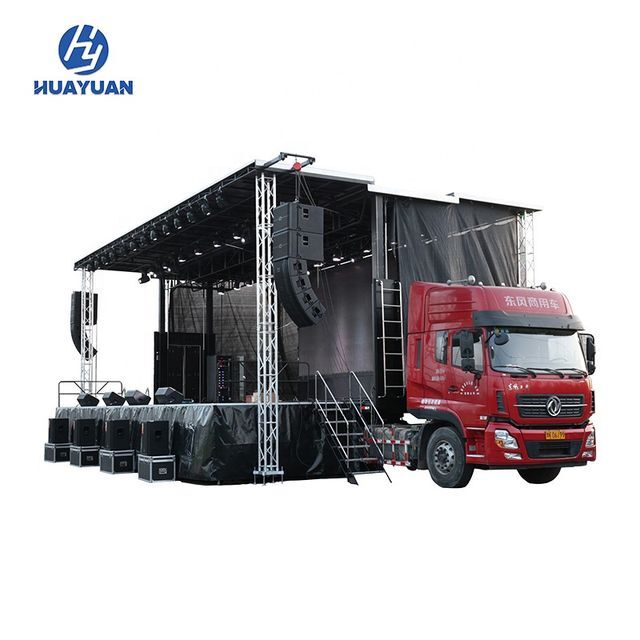

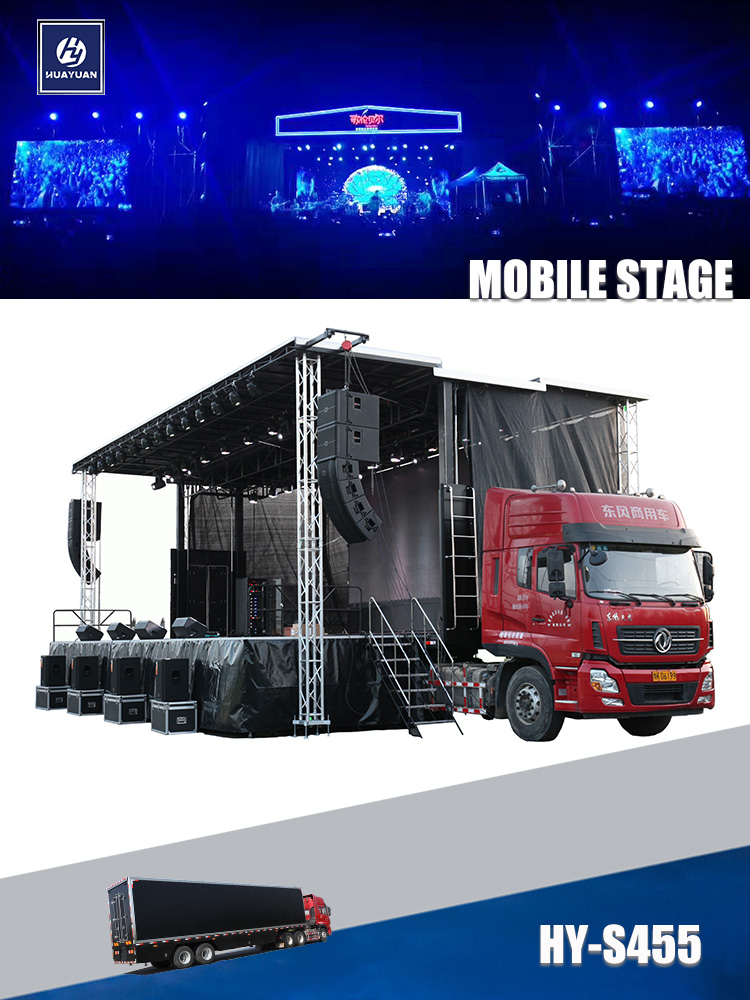

Concert Mobile Stage Cart

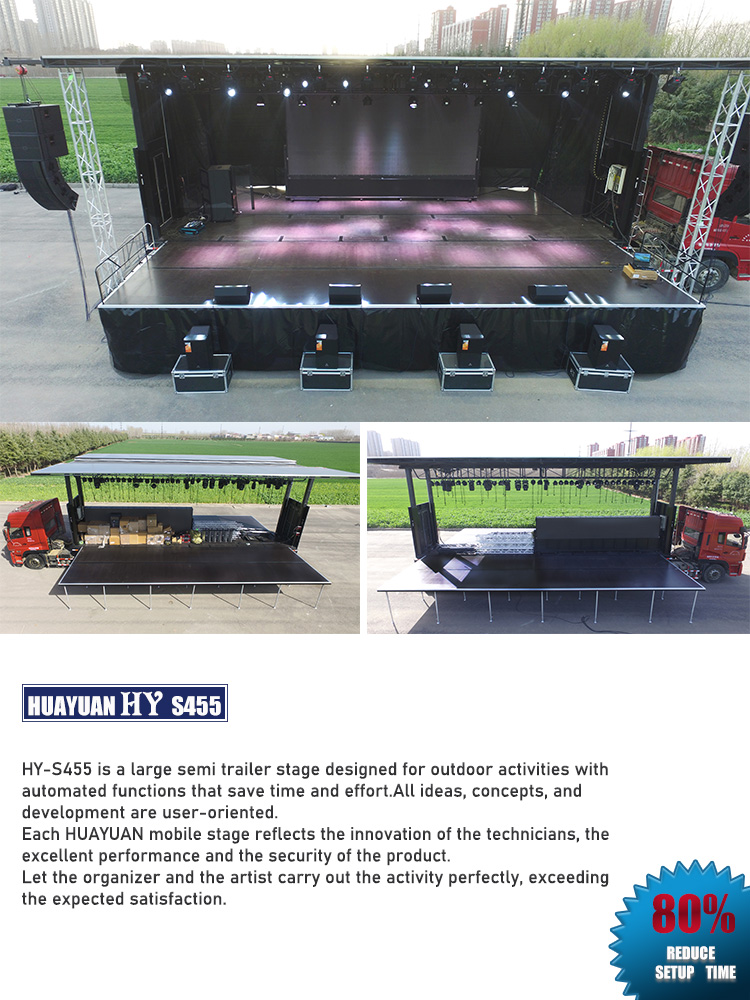

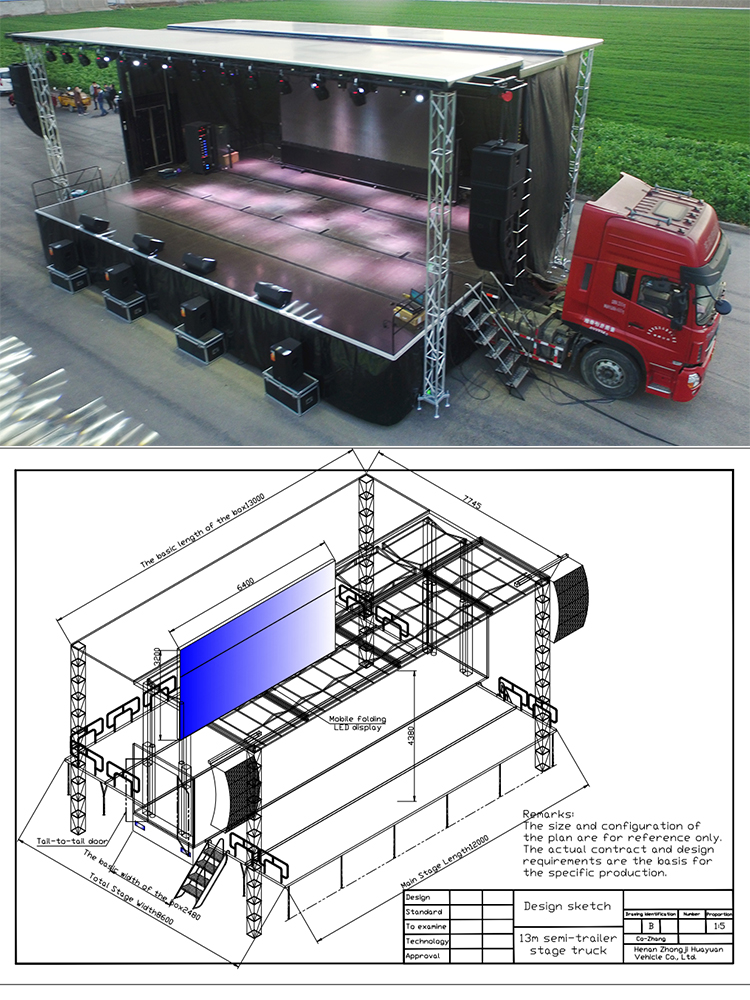

Product View

Concert Mobile Stage Cart

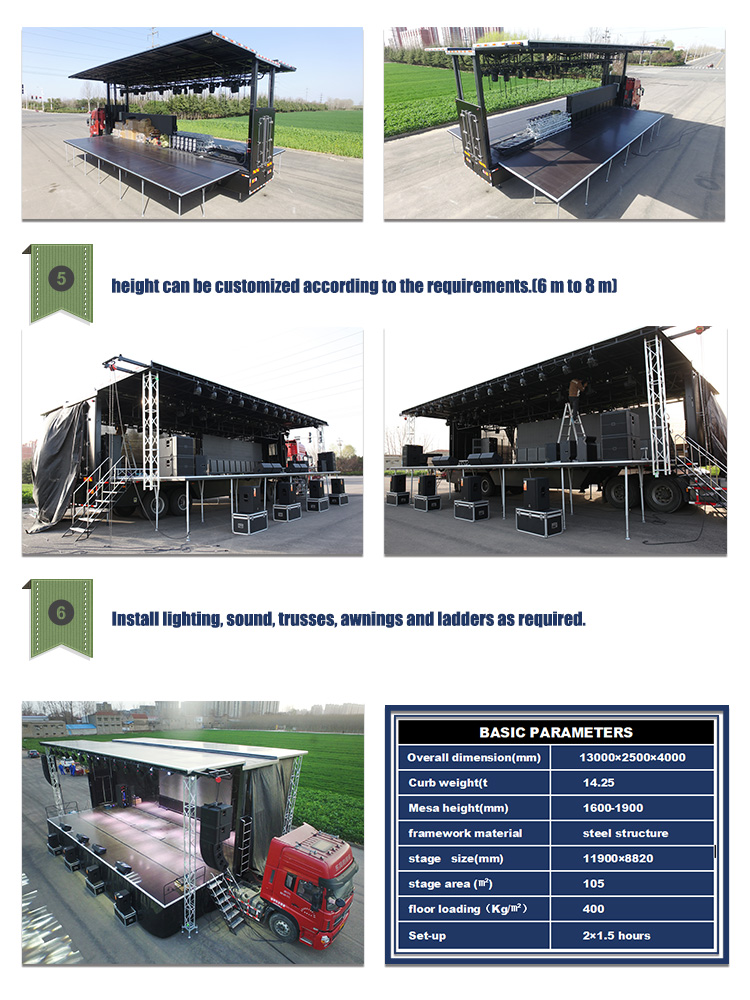

Vehicle Structural Parameters
Model	HY-S455		Card		Huayuan
product name	mobile stage music cart		Dimensions (mm)		13000×2500×4000
Stage size (mm)	11900×8820		Curb weight (tons)		14.25
Stage area (square meters)	105		Table height (mm)		1600-1900
Outer plate material	Honeycomb composite panel		floor material		Laminate Flooring
frame material	steel structure		Floor load-bearing (Kg/m2)		400
Lighting Truss	Horizontal 7 Vertical 4		Light truss load-bearing kg/1		450
set up	2 x 1.5 hours		Rigging		10 tons

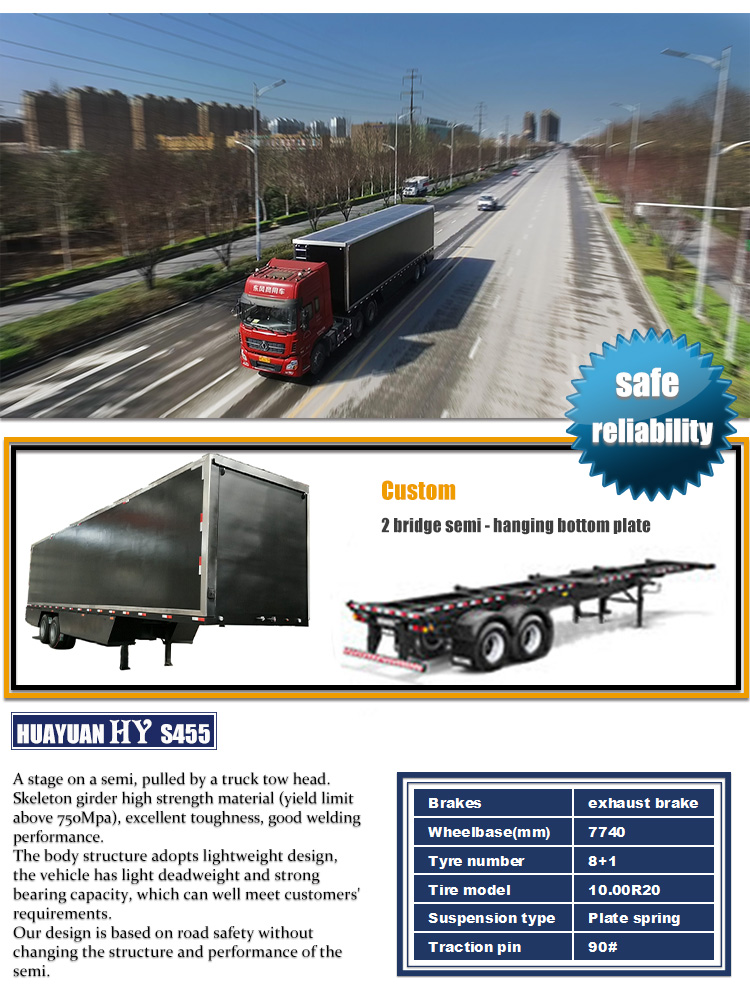

Semi-trailer parameters
axis number	2		axis		13 tons Fuhua Bridge
brake	exhaust brake		tow pin		50#
tire number	8+1		tire model		10.00R20
Wheelbase(mm)	7740		Suspension Type		leaf spring
LED screen parameters
Specification	P4	P5		P6	P8	P10
Dimensions (mm)	6400×3200	6400×3200		6528×3264	6400×3200	6400×3200
Area (square meters)	20.48	20.48		21.3	20.48	20.48
Module size (mm)	320*160	320*160		192*192	320*160	320*160
Screen brightness (cd/m2)	≥6000	≥6000		≥5000	≥5000	≥5000
Working voltage (V)	5	5		5	5	5
Refresh rate (Hz)	≥1920	≥1920		≥1920	≥1920	≥1920
Service life (hours)	≥50000	≥50000		≥10000	≥50000	≥50000
