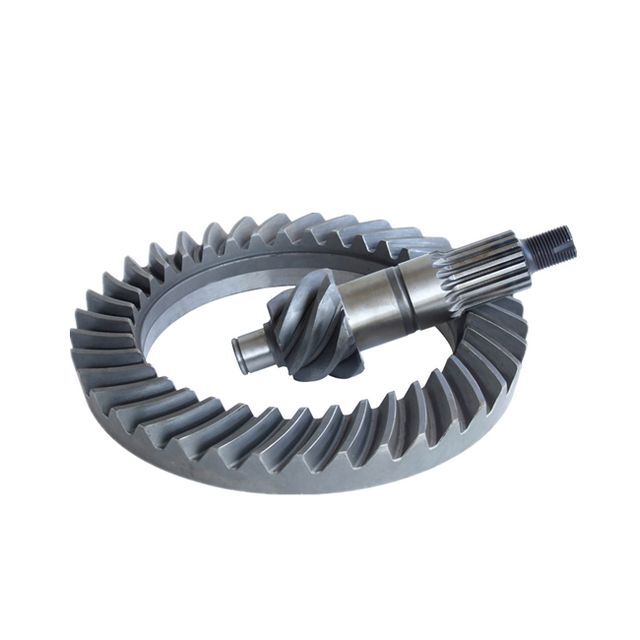

Modern design manufacturer of splined crown and pinion bevel gears

Click here to contact
Product details
Packaging Preview:brand:SMM
Processing:millingSupply capacity:100000 pieces/month
direction:left handAfter Warranty Service:Online support
Outer diameter:Maximum diameter 700mmCore components:gear
Warranty:6 monthspayment terms:letter of credit, wire transfer
place of origin; place of origin:China ShanghaiVideo external inspection:if
Packaging Details:Standard export packing or customizedWeight (kg):3.3
Health status:newHelix angle:35
Standard or non-standard:Non-standardShowroom location:not any
shape:bevelCore Components Warranty:6 months
Applicable industries:Energy & Mining, Transmission, TransmissionInstallation distance:custom made
Mechanical test report:ifproduct name:Modern design crown and pinion bevel gears with splines
port:Shanghai or NingboHeat treatment:Carburizing + Quenching
grade:5-10Material:steel, steel
Marketing Type:Hot Products of 2019Tooth profile:bevel
pressure angle:20,20 degrees






⬅ Click to watch playback
SMM's support and services will accompany you throughout the entire cycle of product design, production and after-sales. With our package of professional knowledge and experience, SMM will provide you with fast and high-quality service guarantee.
Product Description
Specification
Precision
ISO 1328 Class 8
pressure angle
20°
Material
SCM415, 15CrMo, 9310, 8620
heat treatment
carburization
tooth hardness
59±2HRC
surface treatment
light oil

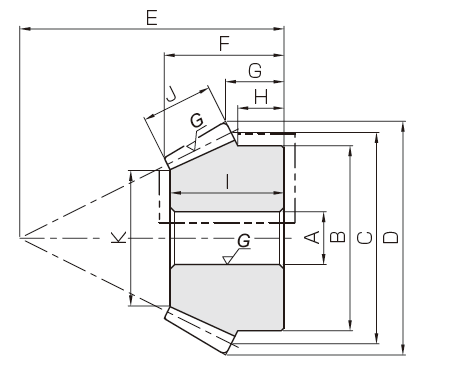

module
number of teeth
Spiral direction
hole (aH7)
Pitch Diameter (C)
outside the diameter. (Four)
Face width (J)
Installation distance (E)
Overall length (F)
2
40
correct
15
80
81.1
14
45
31.78
2
20
remain
12
40
44.1
14
55
28.16
2.5
40
correct
16
100
101.29
17
50
33.35
2.5
20
remain
12
50
55.12
17
65
31.01
3
40
correct
20
120
121.57
20
60
39.81
3
20
remain
16
60
66.03
20
80
38.9
4
40
correct
25
160
162.06
27
75
48.27
4
20
remain
20
80
88.46
27
100
45.38
Thank you for contacting us with your custom gear requirements. Our engineering team will review your request and will contact you within 24 hours. - SMM Team | Sales(@)shsmm.com
