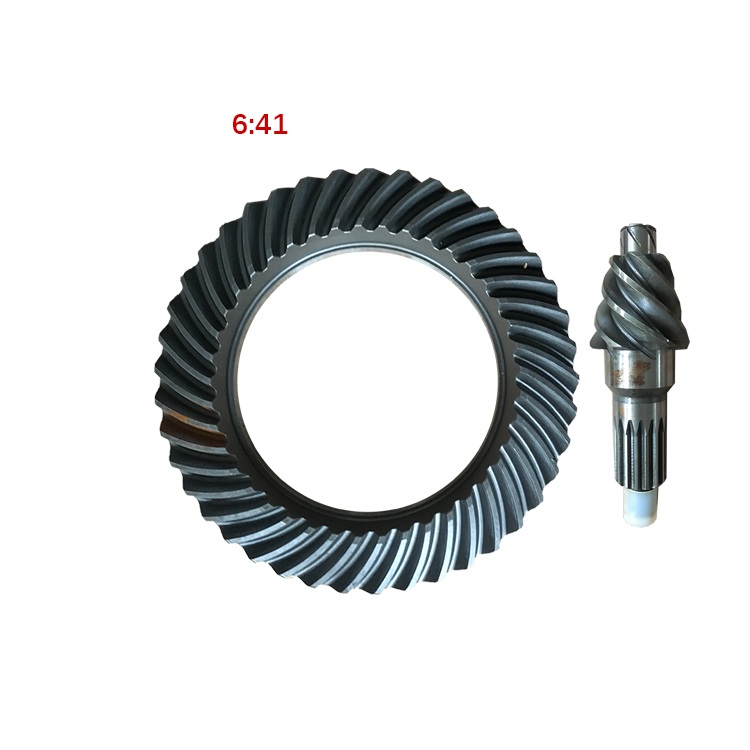

Custom 6:41 Differential Crown and Pinion

Supplier: Shanghai Michigan Mechanical Co., Ltd.
Region: Shanghai, China
Contact: Ms penny Peng
Price: $24.72 / 3 - 99 pieces
$16.48 / >=100 pieces
Min. Order: 3 pieces

Click here to contact

Product details

usage:	auto industry	Supply capacity:	30000 pieces per month
Helix angle:	35	pressure angle:	20,20 degrees
ratio:	6:41	port:	Shanghai or Ningbo
Core Components Warranty:	1 year	Showroom location:	not any
Health status:	new	Processing:	ASTM/AGMA/ANSI/DIN/JIS/ISO/GB, hobbing
Accuracy class:	5-10	Video external inspection:	if
Warranty:	1.5 years	Material:	steel
After Warranty Service:	Online support	Packaging Preview:
payment terms:	letter of credit, wire transfer	Packaging Details:	Standard export packing or customized
direction:	right hand	Core components:	gear
shape:	bevel	Applicable industries:	Energy & Mining, Others, Gearbox Drives, Gearboxes, Retarders
Surface treatment:	carbonization	Tooth profile:	Bevel gear
Marketing Type:	Hot Products of 2019	Weight (kg):	2.3

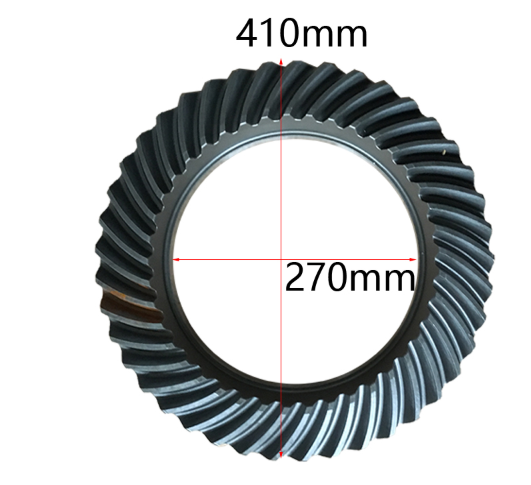

Outer diameter:	410 mm	product name:	Custom 6:41 Differential Crown and Pinion
Standard or non-standard:	Non-standard	place of origin; place of origin:	China Shanghai
Serve:	OEM ODM customization	Mechanical test report:	if
brand:	SMM

Product Description

a crown gear(or contrast gear) is a gear with teeth that protrude at right angles to the wheel surface. In particular, the crown gear is a bevel gear in which the pitch angle is 90 degrees.

module	number of teeth	Spiral direction	hole (a_H7)	Pitch Diameter (C)	outside the diameter. (Four)	Face width (J)	Installation distance (E)	Overall length (F)
2	40	correct	15	80	81.1	14	45	31.78
2	20	remain	12	40	44.1	14	55	28.16
2.5	40	correct	16	100	101.29	17	50	33.35
2.5	20	remain	12	50	55.12	17	65	31.01
3	40	correct	20	120	121.57	20	60	39.81
3	20	remain	16	60	66.03	20	80	38.9
4	40	correct	25	160	162.06	27	75	48.27
4	20	remain	20	80	88.46	27	100	45.38

Thank you for contacting us with your custom gear requirements. Our engineering team will review your request and will contact you within 24 hours. - SMM team
