Conveyor belt with spiral wire mesh with chain 304 of food grade

Supplier: Anping County Comesh Filter Co., Ltd.
Region: Hebei, China
Contact: Ms Helen Hou
Price: $25.00 / 10 - 99 meters
$20.00 / 100 - 999 meters
$10.00 / >=1000 meters
Min. Order: 10 meters

Click here to contact

Product details

product name:	304 stainless steel chain ring mesh conveyor belt	Voltage:	380V
application:	Baking ovens, food equipment, belt conveyors	Support rod diameter:	4 to 12 mm
Applicable industries:	Manufacturing plants, food and beverage plants, farms, restaurants	Width or diameter:	300mm
port:	Tianjin	Wire diameter:	1mm to 3mm
After Warranty Service:	Online support	Supply capacity:	10000 square meters/month 304 stainless steel chain link mesh conveyor belt
Video external inspection:	if	place of origin; place of origin:	Hebei china
width:	0.2-4.0m	Local service location:	not any
Packaging Preview:		After-sales service provided:	Online support
brand:	COMESH	Dimensions (LWH):	custom size
Warranty:	3 years	Marketing Type:	normal product
Material properties:	heat resistant	strength:	0.75KW
Showroom location:	not any	payment terms:	L/C,T/T,Western Union,MoneyGram,Paypal
Surface treatment:	Hot dip galvanized, blackened, polished	structure:	chain conveyor
Material:	Iron steel Q195 or 235; ss 201, 304, 316L, 430, stainless steel	Core components:	bearing
Core Components Warranty:	3 months	Health status:	new
length:	custom made	Certification:	International Organization for Standardization
Pole distance:	5 to 30 mm	Mechanical test report:	Not available
Packaging Details:	304 Stainless Steel Chain Link Mesh Conveyor Belt: Waterproof paper inside, then woven bag or bubble, and finally wooden box. or as your request.	Chain pitch:	19.05mm, 25.4mm, 31.75mm, 38.1mm, 50.8mm, 76.2mm or customized

Product Description

Food Grade 304 Stainless Steel Chain Link Spiral Wire Mesh Conveyor Belt

304 Stainless Steel Chain Ring Mesh Conveyor Belt/Stainless Steel Spiral Wire Mesh Conveyor Belt/Food Grade Stainless Steel Wire Mesh Conveyor Belt

describe:

The 304 stainless steel link mesh conveyor belt is driven by crossbars that connect the strands by passing through or through a wire mesh fabric. The density of the wire mesh fabric is selected according to the size of the product being conveyed on the conveyor belt.

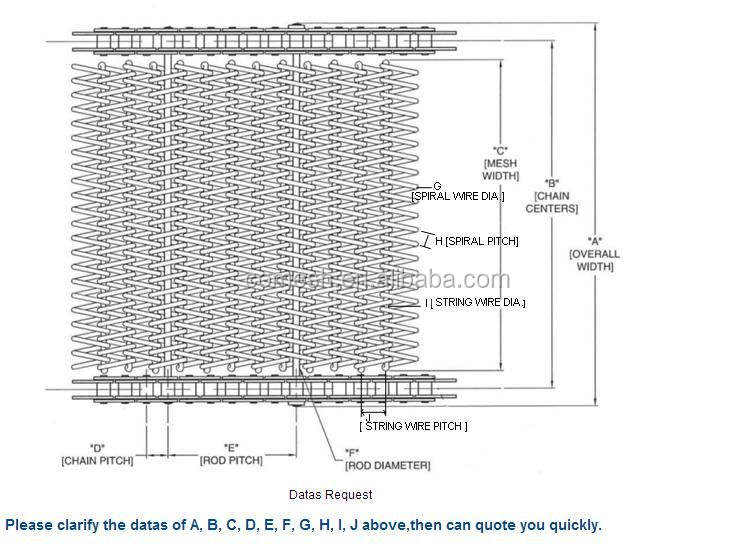

Please advise the data in the chart below before giving our best offer.

Specification:
Material	Carbon steel, SUS 201 304 316
wire diameter	1 to 3 mm
Rod diameter	4 to 12 mm
helix pitch	3 to 20 mm
chain pitch	19.05mm 25.4mm 31.75mm 38.1mm 50.8mm 76.2mm or customized
width	0.2m to 4m
Pitch	5 to 30 mm

advantage:
1. It can be used for the conveying of granular materials or the conveying of imported items.
2. Suitable for small and high-density transportation.
3. Smooth movement and stress
4. Easy installation and replacement, high cost and long service life.

application:
1. Quick freezer, roaster, plane conveyor, screw conveyor.
2. Cleaning, sterilization, drying, cooking and cooling of food machinery.
3. Drop bottle annealing, baking flowers, etc. of the glass machine.
4. Various pipeline transportation.
5. Metal processing: powder metallurgy, heat treatment, quenching, sintering, brazing, roasting, bright, blackening, bearing, high temperature carburizing.
6. Washing machine, winding machine, dryer, etc.

detailed image
