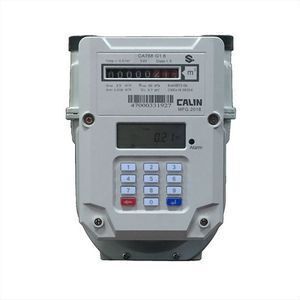

LPG Domestic STS Prepaid Gas Meter

Supplier: Shenzhen Calinmeter Co., Ltd.
Region: Guangdong, China
Contact: Mr Ivan Qin
Price: $38.00 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Port:	Shenzhen;	Type:	Wireless prepaid Gas Meter;
Communication:	Lora/GPRS on request;	Protection:	IP67;
Working pressure:	<= 50 KPa;	Gas Type:	natural gas, town gas, liquefied petroleum gas;
Brand Name:	Calin;	Supply Ability:	500000 Piece/Pieces per Year LPG Prepaid Gas Meter;
Model Number:	CA768;	Software:	vending software + AMR system;
Valve:	Bakelite Phenolic;	Place of Origin:	Guangdong China (Mainland);
Product name:	LPG Domestic STS Prepaid Gas Meter;	Delivery Detail:	6 weeks;
Color:	White Grey;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Packaging Detail:	Standard Packing LPG Prepaid Gas Meter;	Material:	Aluminum and steel case on request;

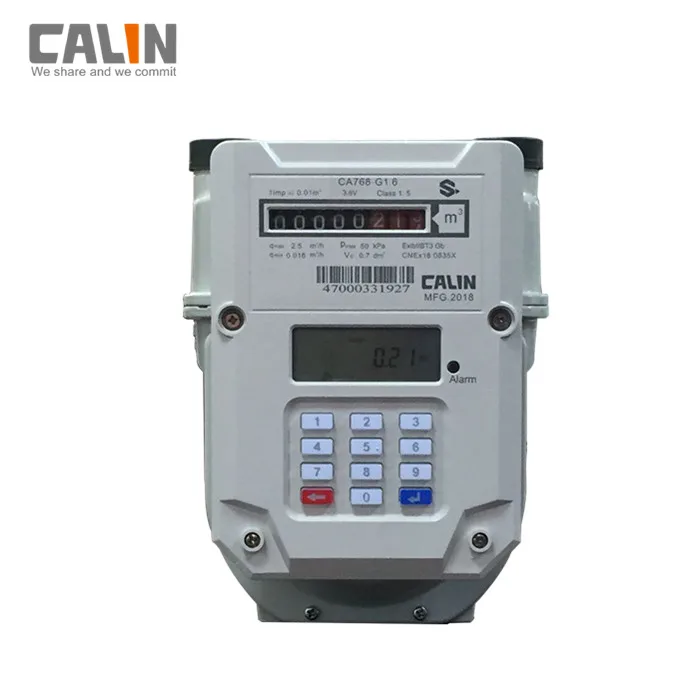

STS Electronic Pepaid Gas Meter G1.6/G2.5/G4

Calinmeter is a leader in STS smart prepayment metering in China. As number 47th STSA member, Calin has more than 10 years experience in STS metering. The CA768 is a successful migitation from STS electric to gas meter. The base body meter is designed to accurately measure volumes of natural gas, town gas liquefied petroleum gas etc. STS compliant electronic control unit is added as perfect revenue protection facility at the same time. Calin STS gas meter are being supplied to Iraq, Pakistan, Indonesia, Mexico, Kenya, Tanzania, and many other countries and regions.

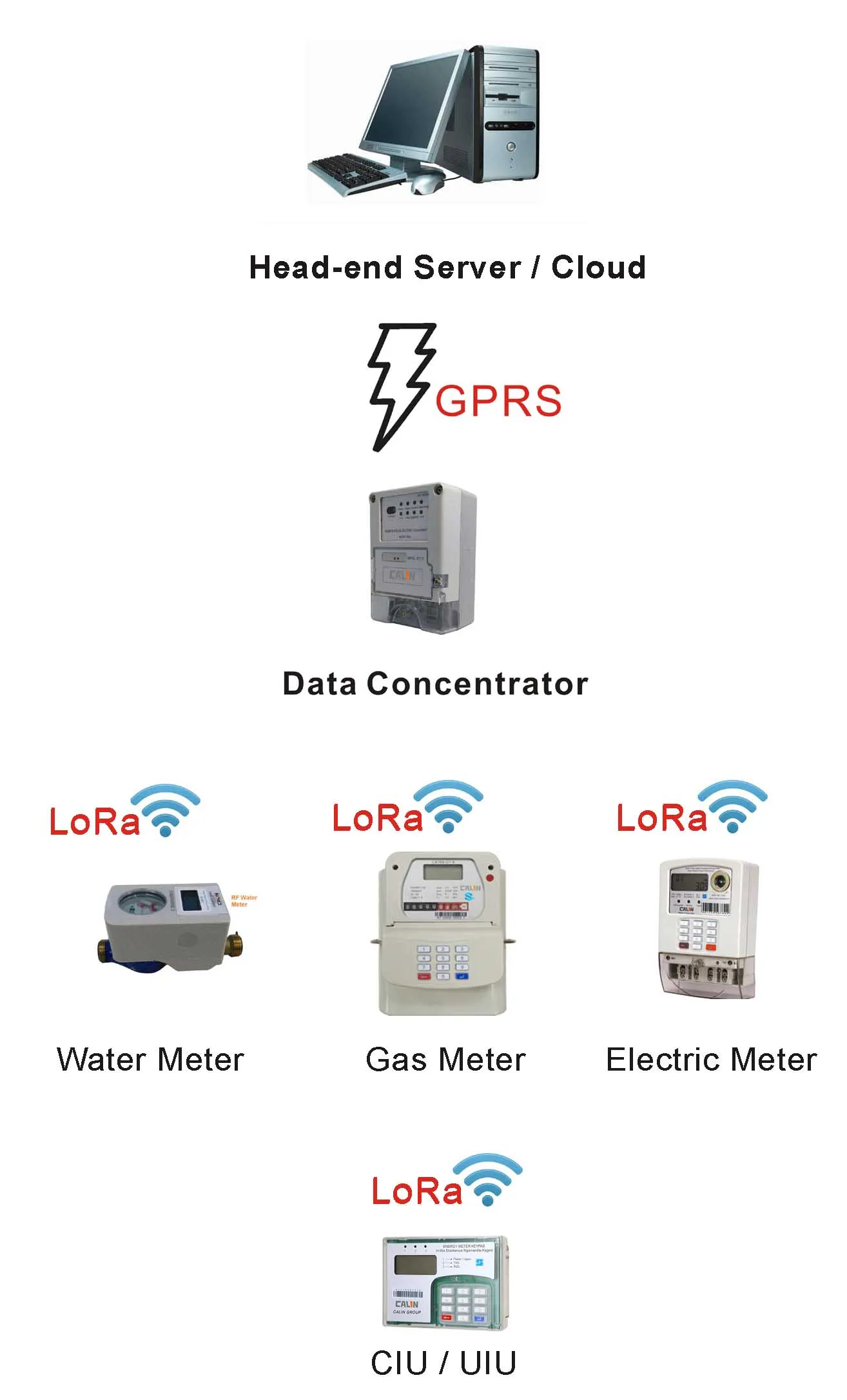

Calin gas meter can work with a customer interface unit keypad (CIU) via wireless connection. CIU is installed within customer's premise when the meter is installed and locked away. Customer use CIU to check for balance, and topup history, and most importantly remotely enter recharge token code.

Main Features

Full coverage of G1.6, G2.5 and G4

Die-cast steel case ( alumium case availabe on request)
Topup with 20 digits TOKEN to be entered on keypad
Can be used in either Prepaid or post-paid mode
Up to 7 years' battery life
Anti tamper valve shut-off
Gas leakage detection ( sensors required / optional)
LoRa TM sementech prepared for AMR/AMI smart metering setup

Parameters

Type	G1.6	G2.5	G4
Nominal Flow Rate m?/h	1.6	2.5	4
Maximum Flow Rate m?/h	2.5	4	6
Minimum Flow Rate m?/h	0.016	0.025	0.040
Maximum Work Preesure	50kPa / 7 psi
Basic Error %	Qmin<Q<0.1Qmax: ±3; 0.1Qmax<Q<Qmax: ±1.5;
Leak-Provenance kPa	No leakage below 15kPa
Pressure Loss kPa	<250
Maximum Reading m?	99999.9
Minimum Reading m?	0.2
Weight(kg)	2 kg
