Active 48V circuit breaker of 8 port network for IP cameras Hikviision daahua

Click here to contact

Product details

model:	DJA-1010B	brand:	DJA/neutral
Sales unit:	single product	Certification:	FCC, CE, CCC, CE
place of origin; place of origin:	Guangdong, China	Packaging Preview:
Single package size:	20X14X4.5cm	Gross weight per piece:	1.000 kg
port:	≤ 8	product status:	in stock

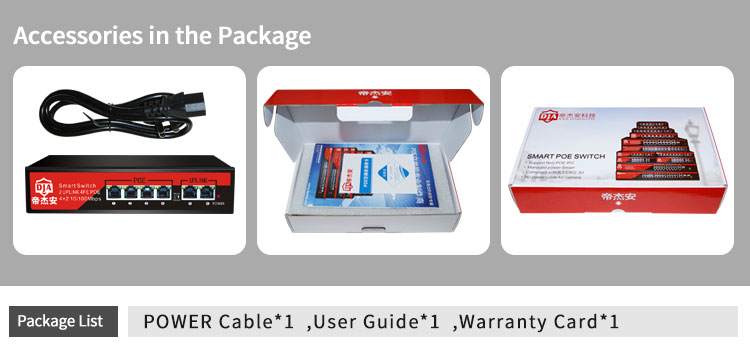

Packaging Details:	One anti-static bag and one color box per set	Switching capacity:	2.0Gpbs
Transmission rate:	10/100Mbps	communication method:	full duplex
Function:	POE, VLAN support

Product Description

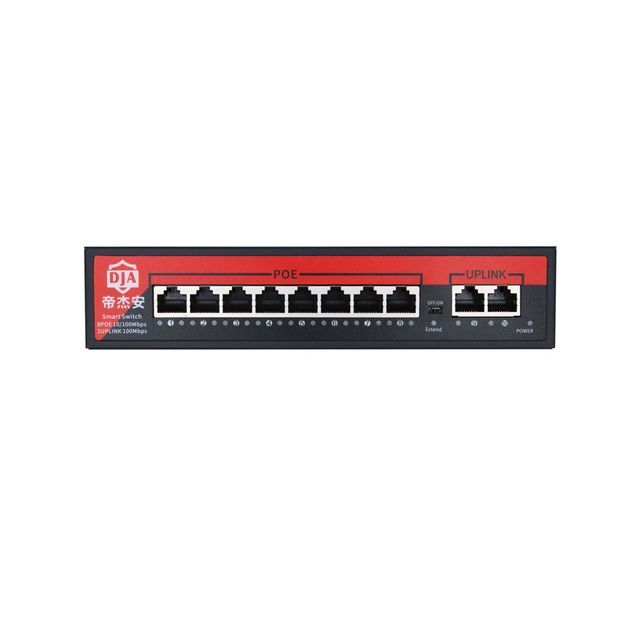

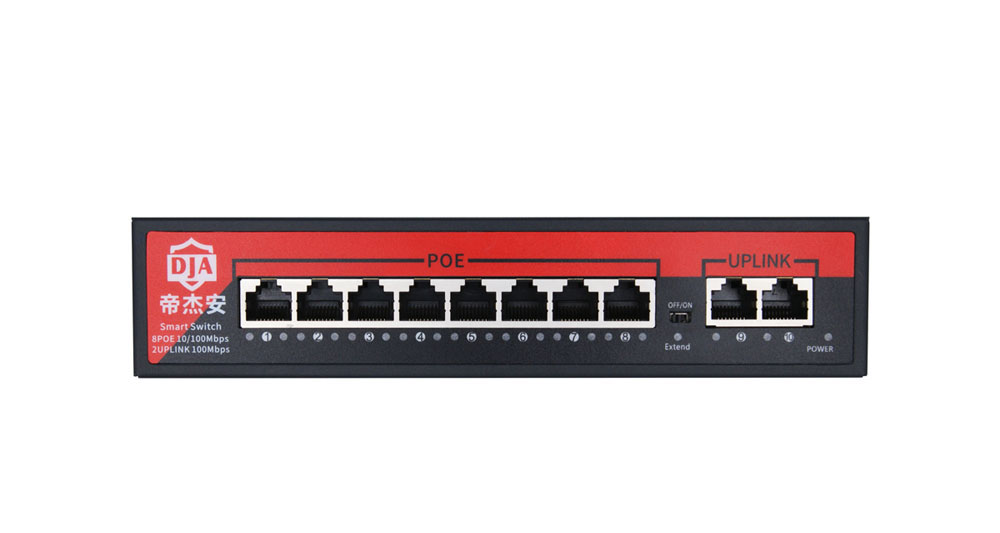

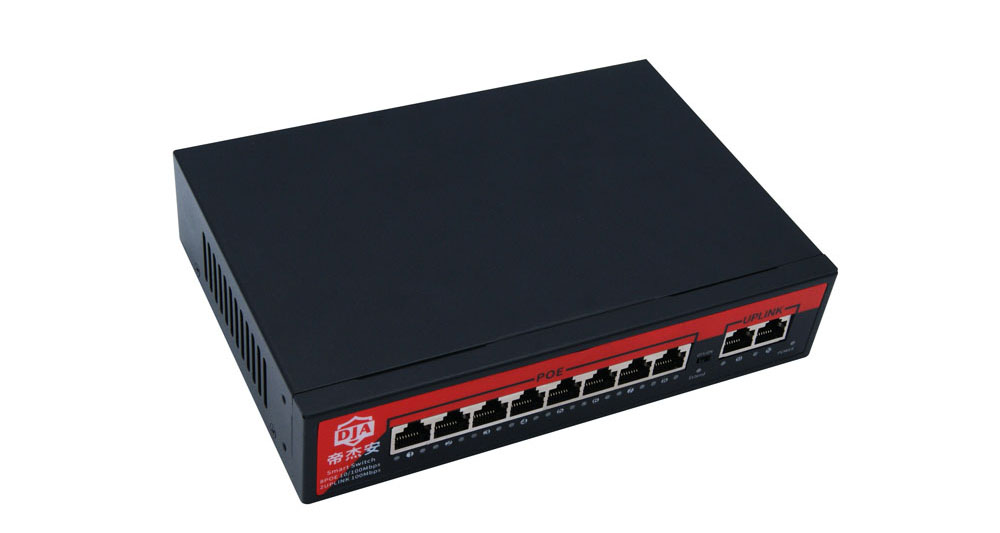

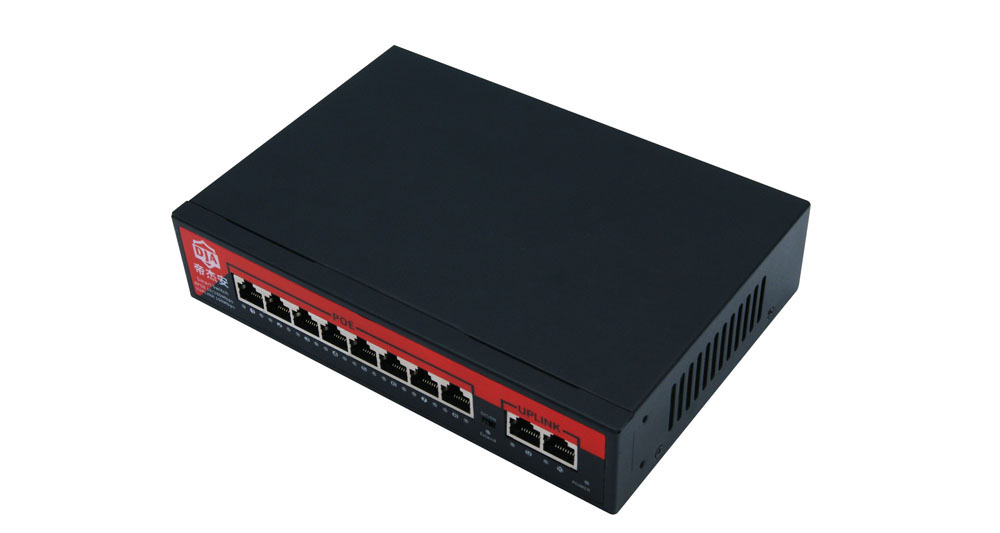

New 8-port network 48V active poe switch for Hikvision Dahua IP cameras

Features:

²8*10/100mbps POE port, 2*10/100mbps UP-Link port

² 100m transmission distance, 250M extended function after use

² Compatible with IEEE802.3AF/AT

² Overall power: 120W (52V 2.3A)

² All ports supported by MDI/MDIX auto-flip and auto-negotiation

² Provide 8 10/100Mpbs adaptive high-speed forwarding data packet lossless ports.

² Supports IEEE802.3x flow control in full-duplex mode and back pressure in half-duplex mode.

² The maximum power supply of each port reaches 30W.

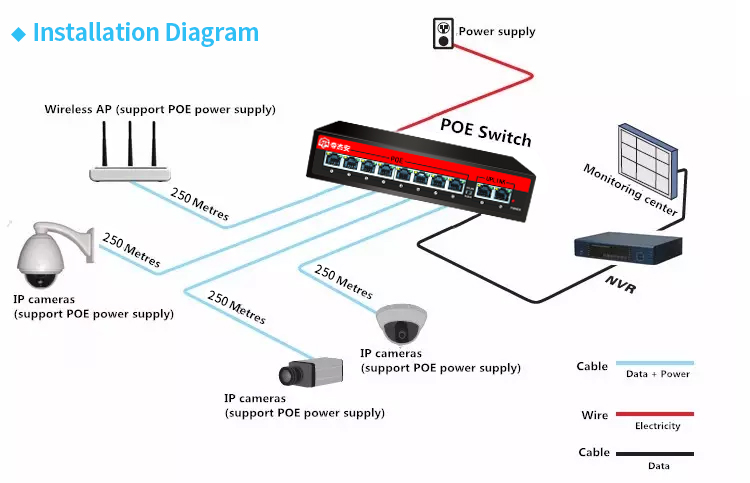

application:

² Wireless access point

² IP camera

² Internet phone

² Computer network

technical parameter:

product	10 (8+2) port 10/100M POE switch	model.	DJA-1010B
power supply	Built-in and external optional	Output Power	15.4W/30W
POE port	1 to 8 supports IEEE802.3AF/AT	power pin	1/2+, 3/6- and 4/5+7/8-
POE type	end span	full power	≤120W (52V 2.8A)
Internet media	10/100BASE-TX: Class 5 and above unshielded twisted pair	power distance	≤250m
switch capacity	2Gbps	data distance	≤250m
forwarding mode	store and forward	forwarding rate	10BASE-T: 14880PPS/port 100BASE-tx: 14800pps/port
MAC address	MAC Address Table 1K	port function	Power priority mechanism, fast forwarding, MAC automatic learning aging Mode and backpressure for IEEE802.3X full-duplex and half-duplex modes

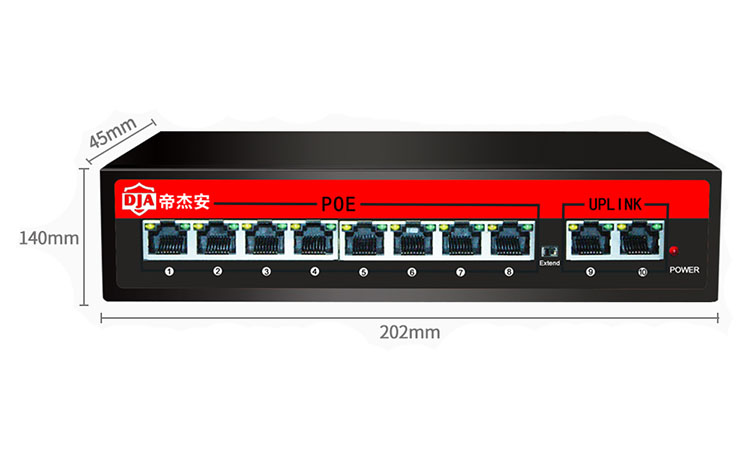

LED indicator	LINK/ACT.100Mbps; POE status indicator; Power indicator; Extender	size	202mm140mm45mm(LWH)
Warranty	2 years	pack	DJA Color Box &neutral box
