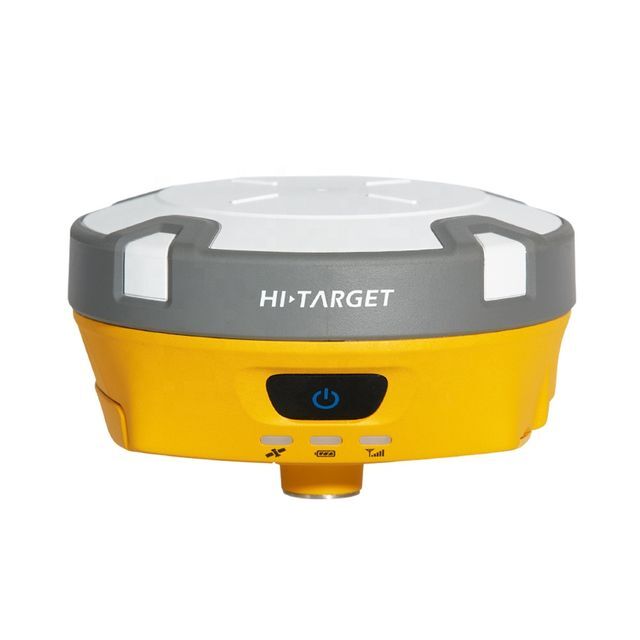

Premium Surveying Instrument Hi-Target V90 GPS Rtk GNSS Price Products from Jiangsu Bangjie Trading Co., Ltd.

Product Details

Initialize reliability:	Usually > 99.9%	place of origin; place of origin:	Guangdong, China
data storage:	16G internal storage	waterproof:	IP68
port:	Shanghai	Operating temperature:	-45°C to +75°C
channel:	220	strength:	4.2W
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	model:	V90
Packaging Details:	Standard packaging including suitcase and carton	Dimensions (W*H):	159mm*77.5mm
Warranty:	One year warranty, 1 year	weight:	≤1.2kg (including battery)
brand:	high goals	Supply capacity:	100 sets per month

Product Description

V90 Performance Specifications
Statellite Signals for Synchronous Tracking
channel	220 channels
Global Positioning System	Simultaneous L1C/A, L2C, L2E, L5
glonas	Simultaneously L1C/A, L1P, L2C/A, (GLONASS M only), L2P
SBAS	Simultaneous L1C/A, L5
Galileo	Simultaneous L1 BOC, E5A, E5B, E5AltBOC1
Beidou system	B1, B2
QZSS	L1C/A, L1 SAIF, L2C, L5
Positioning performance 2
Static and fast static GNSS surveys
horizontal	2.5mm+0.5ppm RMS
vertical	5mm+0.5ppm RMS
Post-processed kinematics (PPK / Stop & Go ) GNSS measurements
horizontal	1mm+1ppm RMS
vertical	2.5mm+1ppm RMS
initialization time	Typically 10 minutes at base, 5 minutes at rover
Initialize reliability	Usually > 99.9%
Real Time Kinematics (RTK) Measurements
single baseline
horizontal	8mm+1ppm RMS
vertical	15mm+1ppm RMS
Network RTK
horizontal	8mm+1ppm RMS
vertical	15mm+1ppm RMS
initialization time	Typically < 8 seconds
Initialize reliability	Usually > 99.9%
Coded Differential GNSS Positioning
horizontal	25cm+1ppm RMS
vertical	50cm+1ppm RMS
SBAS	Horizontal 0.50m, Vertical 0.85m
communicate
Network communication
Fully integrated, fully sealed internal WCDMA, compatible with GPRS, GSM
Wifi frequency 2.4G, support 802.11b/g/n protocol
Network RTK (via CORS) range 20-50km
HI-TARGET built-in UHF radio (standard)
frequency	450~470MHz 116 channels
transmit power	1W, 2W, 5W adjustable
transfer speed	9.6Kbps, 19.2Kbps
The scope of work	5km typical, 8~10km best
HI-TARGET External UHF Radio (Standard)
frequency	460MHZ 116 channels
transmit power	5W, 10W, 20W, 30W adjustable
transfer speed	Up to 19.2Kbps
The scope of work	8~10km typical, 15~20km best
hardware
physical
Size (width x height)	153mm×83mm(6.02inch×3.27inch)
weight	950g (2.09(b) without built-in battery
Operating temperature	-40°C to +65°C (-40°F to +149°F)
Storage temperature	-55°C to +85°C (-67°F to +185°F)
humidity	100%, consider
Waterproof and dustproof	IP67 dustproof against temporary immersion to a depth of 1m (3.28ft)
shock and vibration	Designed to withstand a natural drop of 3 m (9.84 ft) onto concrete
electric
Power 6V to 28V DC external power input
Power consumption≤3.5W
Automatic switching between internal power supply and external power supply
Rechargeable, removable 7.4V, 5000mAh Li-ion battery with built-in battery compartment
Internal battery life
static for more than 10 hours
RTK rover (UHF/GPRS/3G) 6-10 hours
RTK basic 6 hours or more
Input and output interface
Bluetooth, NFC	×1
Standard USB2.0 port	×1
TNC Antenna Connector	×1
RS232 serial port	×1
DC power input (5-pin)	×1
MicroSD card port	×1
