IEC 3.6KV 7.2KV 12KV 24KV 36KV

Supplier: Yueqing Aidun Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr Bruce Lee
Price: $5.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Breaking capacity:	50kA, high	Rated current:	6.3A-25A, 31.5A, 40A, 50A, 63A, 71A, 80A, 100A, 125A, 160A
URL:	www.aidunelectric.com	payment terms:	L/C,Western Union,T/T,MoneyGram
port:	Ningbo/Shanghai	e-mail:	Sale #aidunelectric.com
usage:	high pressure	Supply capacity:	100,000 pieces per week
model:	XRNT 3.6KV	Certificate:	CE ISO CCC
safety standard:	IEC60282, DIN 43625, VDE 0670	Rated voltage:	3.6KV
place of origin; place of origin:	Zhejiang, China	brand:	Thorasson
color:	white or brown	Packaging Details:	carton

IEC 3.6KV 7.2KV 12KV 24KV 36KV

Product Description

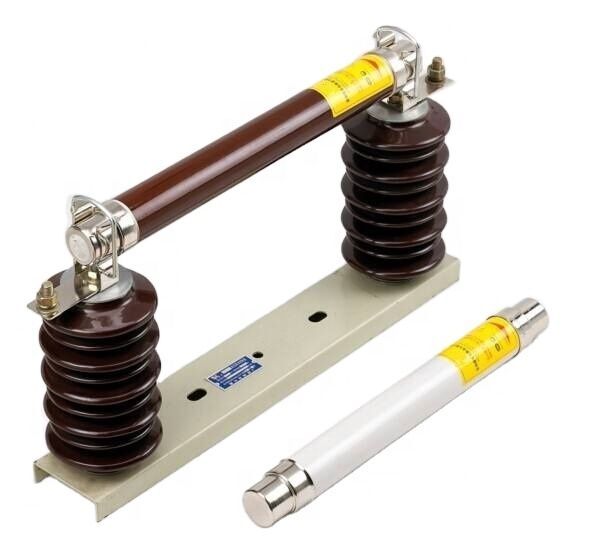

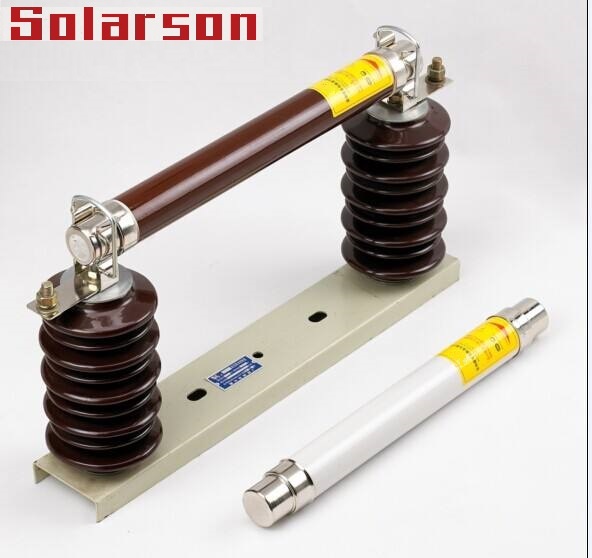

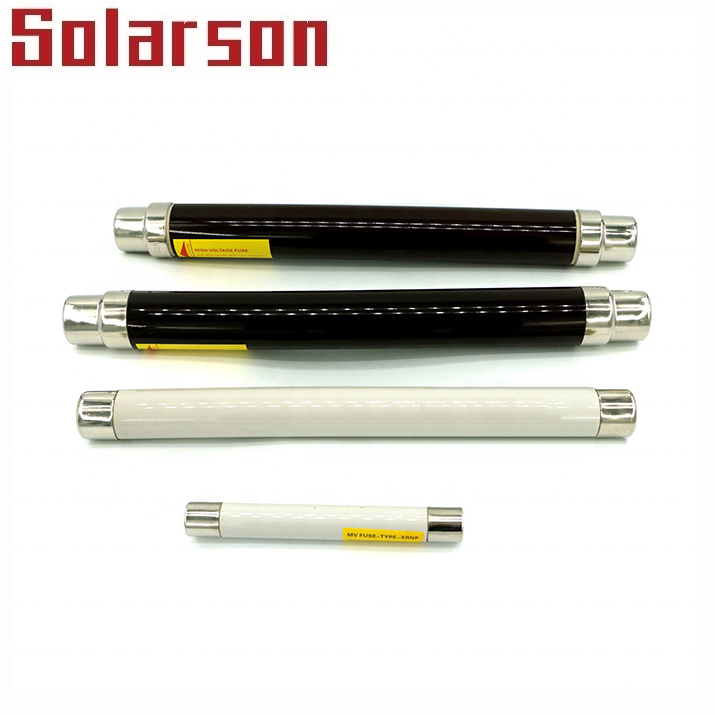

Aidon Electric, a Chinese fuse manufacturer, produces "Solarson" brand high voltage HRC fuses for transformer protection with striker pins, suitable for transformer protection. Fuses can be used even without secondary low voltage protection, provided they are used with an installed fuse switch with instantaneous forward tripping.

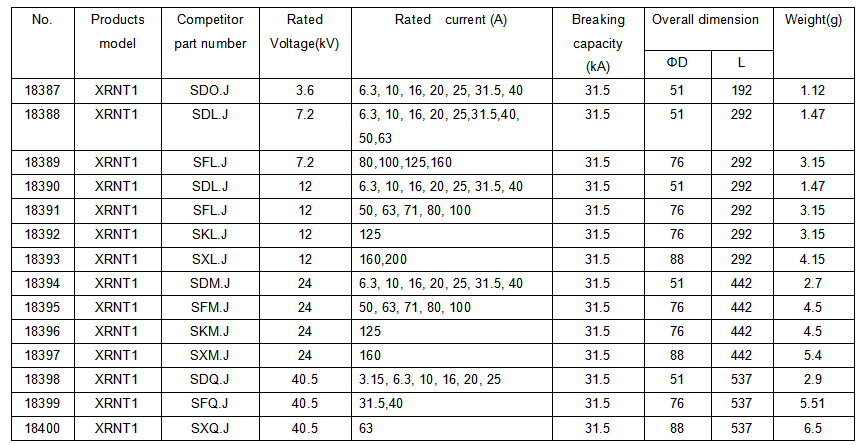

Rated voltage: 3.6KV, 7.2KV, 12KV, 24KV, 36KV, 40KV

Rated current: 3.15A 6.3A, 10A, 16A, 20A, 25A, 31.5A, 40A, 50A, 63A, 80A, 100A, 125A,, 150A,

160A, 200A, 250A

Breaking capacity: 50kA

Standards: IEC60282, DIN 43625, VDE 0670
