Product Details

On-board charger AC input (three-phase):	360VAC-440VAC	product name:	11kw OBC+2.5kw DCDC+PDU
DCDC output power:	2.5kW	Car charger AC input (single phase):	200VAC-260VAC
On-board charger output voltage range:	310VDC-400VDC	Car charger output power:	11kW max
Packaging Preview:		weight:	25KG
port:	Shanghai Ningbo	place of origin; place of origin:	China Shanghai
Supply capacity:	10000 sets per month	Packaging Details:	Plastic bag/bulk carton/wooden case
Car charger input frequency range:	45-65 Hz	aspect:	400mm255mm168mm (without connector)
model:	VAILD62208	payment terms:	L/C,Western Union,T/T,MoneyGram
brand:	Brogan

Brogen Hot Sale 11KW OBC +2.5KW DCDC+PDU Integrated Car Charger

Product Description

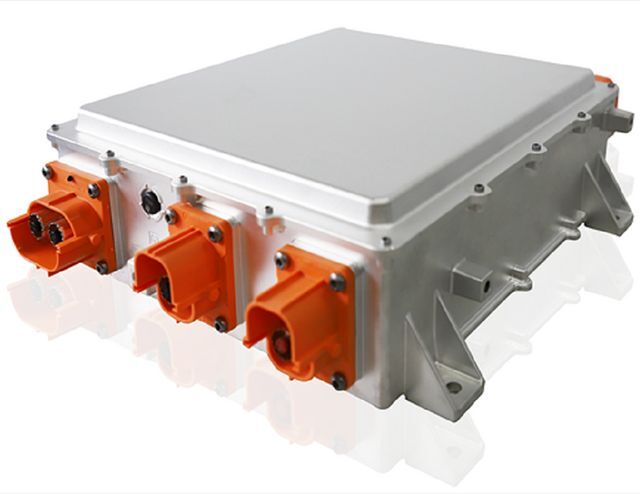

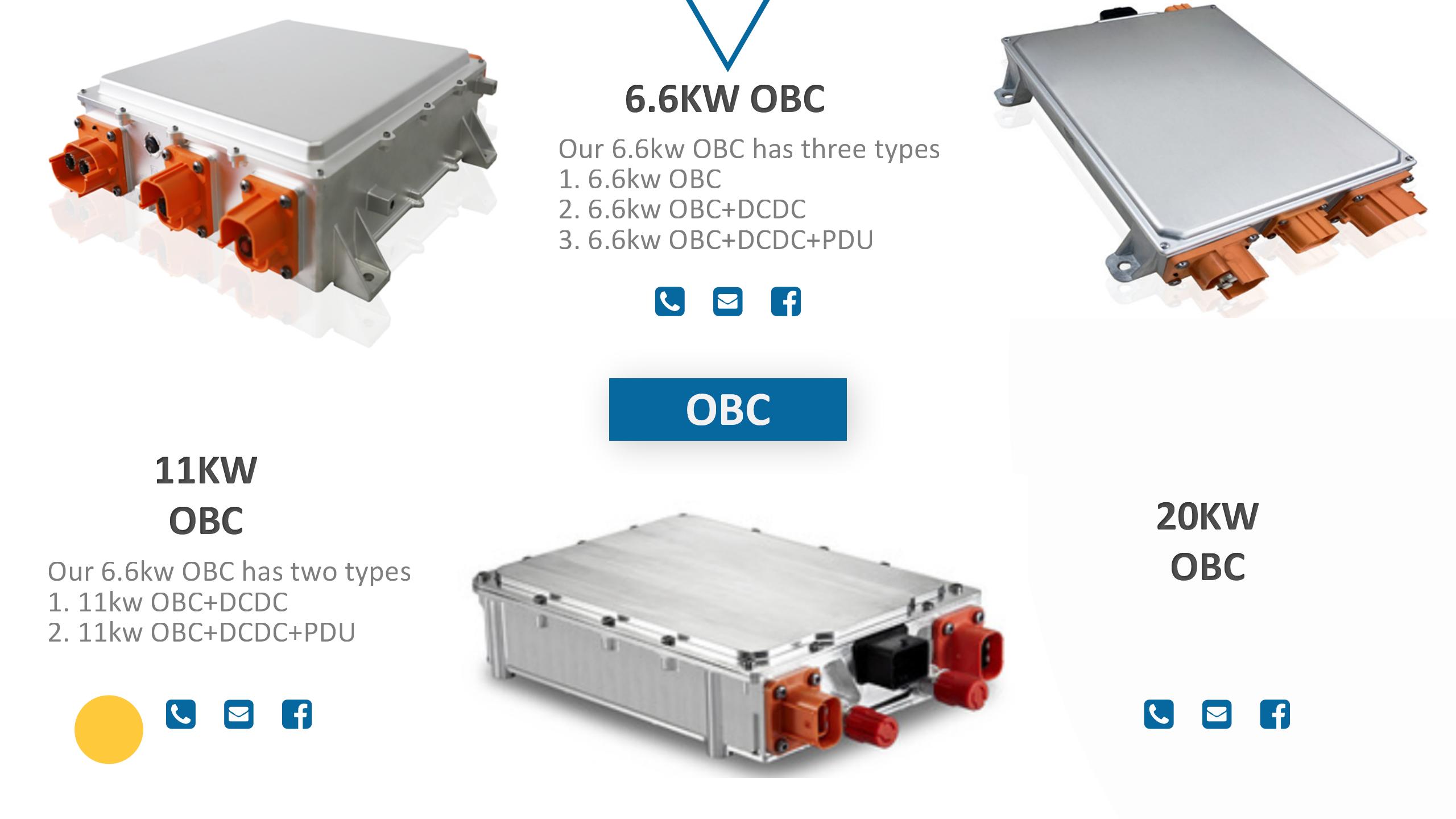

11KW OBC +2.5KW DCDC+PDU integrated car charger

OBC
Structural dimensions and weight	Dimensions: 400mm×255mm×168mm (without connectors) Weight: 25KG
AC input			High voltage output
Input voltage range (single phase)	200VAC-260VAC	Output voltage range	310VDC-400VDC
Input voltage range (three-phase)	360VAC-440VAC	Maximum output current	30A
Input frequency range	45-65 Hz	Output Power	up to 11 kW
data center
High voltage input			Low voltage output
Input voltage range	310-400Vdc	Output voltage range	13.8Vdc
Rated input voltage	360Vdc	Output rated voltage	13.8±1%Vdc
Maximum input current	8.1A	Output Power	2.5kW

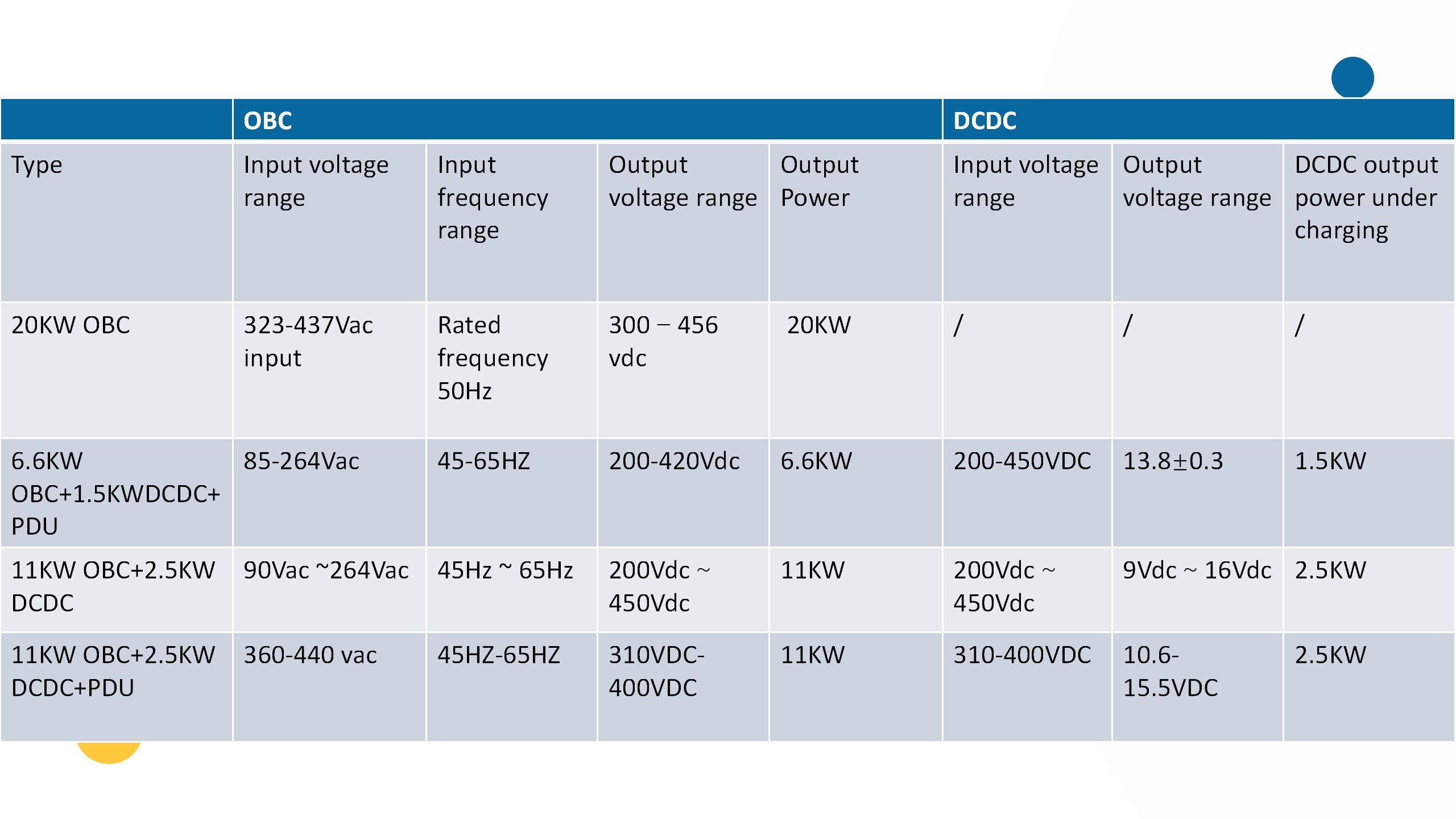

type

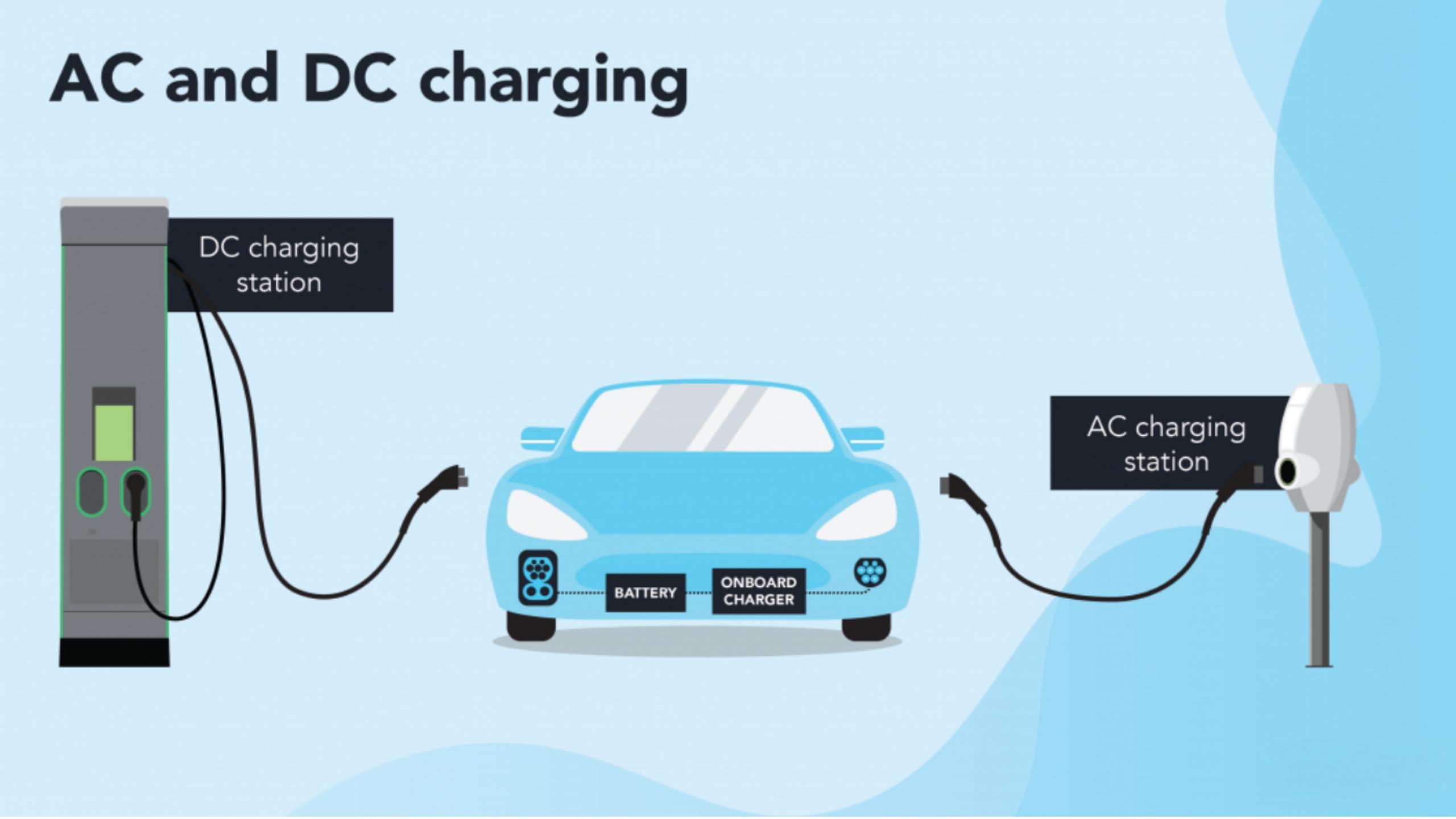

application

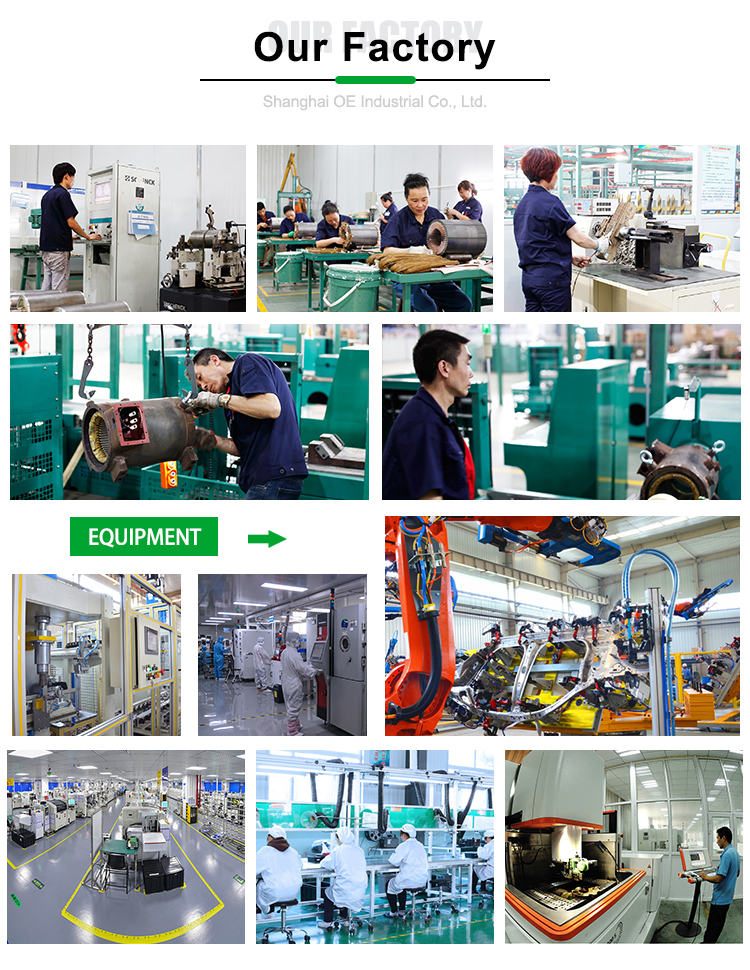

Company Profile

1. Committed to the new energy industry The company is mainly engaged in new energy vehicle motors, marine motors, industrial motors and system assemblies, vehicle chargers, etc. It is a high-tech enterprise integrating independent development, design, production, sales and service. Provide modular system solutions for the new energy field and industrial equipment manufacturing industry. 2. Complete production line layout It has 5 production lines of power motor system assembly for passenger car, logistics, SUV, ship, machinery and other industries. 3. Advanced Technology Permanent magnet high-efficiency motors, in-wheel motors, in-wheel motors, extended-range generators, high-torque motors without reels, mining truck motors, industrial motors, marine motors, slate motors, auxiliary motors, etc.
