High quality mobile sewage suction truck vacuum tank mud sludge sewer sewage suction truck for sale

Supplier: Sinotruk Hubei Huawin Imp. & Exp. Co., Ltd.
Region: Hubei, China
Contact: Ms Alina Gao
Price: $35000.00 / 1 - 1 units
$15000.00 / >=2 units
Min. Order: 1 unit

Click here to contact

Product details

Wheelbase:	5200mm	Chassis brand:	HOWO
Transmission type:	manual	Supply capacity:	100000 units/year
Warranty:	12 months	Total volume (cubic meters):	8 cubic meters
horsepower:	160 hp	After-sales service provided:	Video technical support, free spare parts
Gearbox:	6 Forwarding	Health status:	new
Body size:	8000x2470x3000	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Emission Standards:	Euro 2	Type of gasoline:	diesel engine
Fuel tank capacity:	8000L	Capacity (load):	1-10T
Gross vehicle weight:	7000	engine:	Yuchai
Packaging Details:	Naked packages delivered by ro-ro	color:	customer request
horsepower:	160HP	port:	any port in China
application:	sewage truck	Type of driving:	Left/right hand drive
place of origin; place of origin:	Hubei, China	brand:	Sinotruk

product description

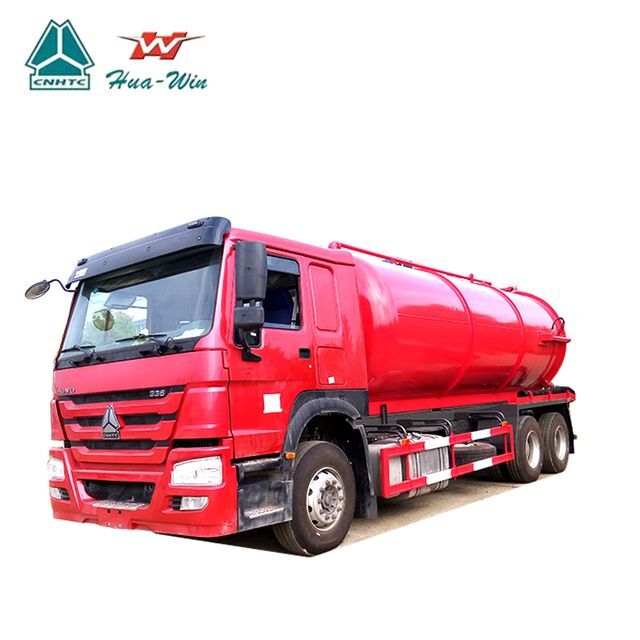

Sinotruk Howo sewage suction truck

Truck introduction:

It is mainly used to transport harmful industrial waste liquid, polluted urban liquid and construction sludge. It can self-priming and self-discharging. It has the characteristics of fast working speed, large capacity and convenient transportation. It is especially suitable for suction, loading and unloading of sewage sludge. The product has advanced design, reasonable structure and convenient operation.

feature:
The vacuum pump adopts hydraulic transmission, the system works stably, with high reliability, high transmission efficiency and low failure rate. The tank body is lifted by 0-40 degrees, which is convenient for material inclination; the back cover is opened by 0-55 degrees, which is convenient for material inclination and convenient for personnel to enter and exit for cleaning. The vacuum pump can be equipped with an exhaust muffler for lower noise. Safety protection system: The water separator at the top of the tank cooperates with the lower part to prevent liquid from entering the vacuum pump and air intake system. Tank liquid level display, timely confirmation of tank liquid level. The tank is equipped with an electro-audible alarm system to alert the operator of the vehicle status.

Function list

Specification:

333

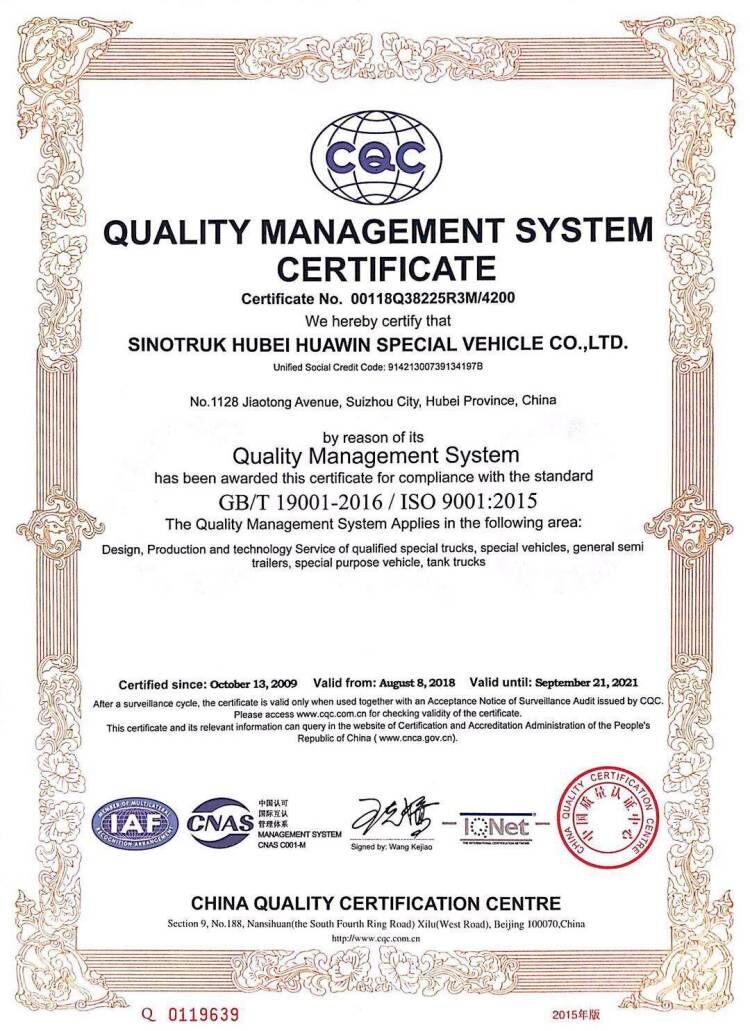

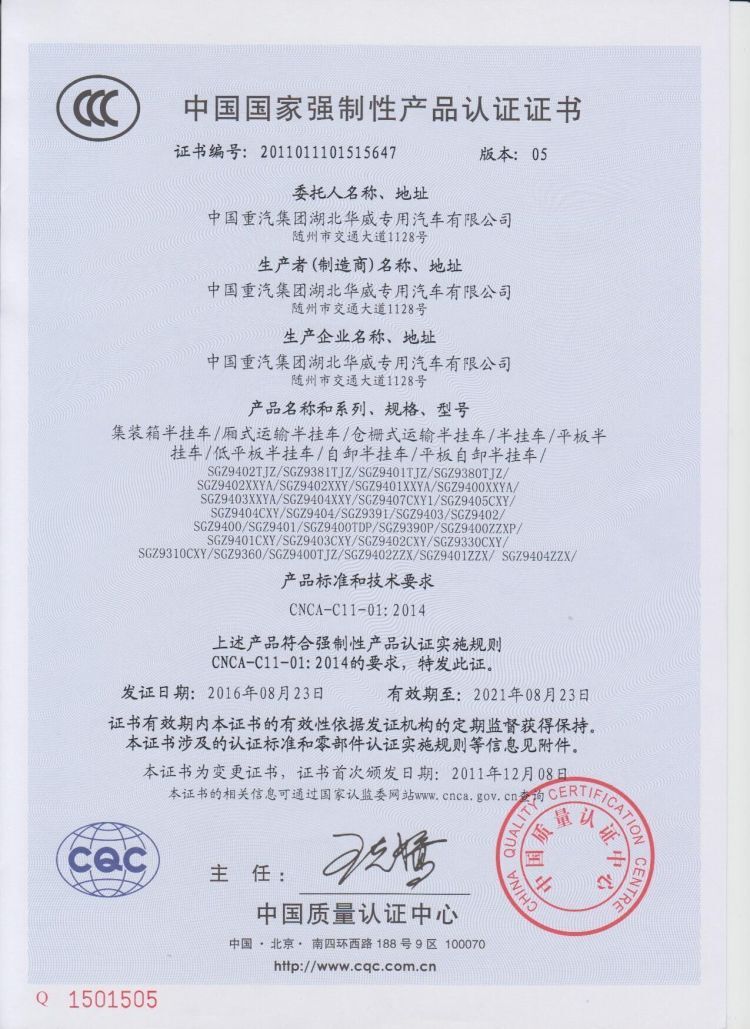

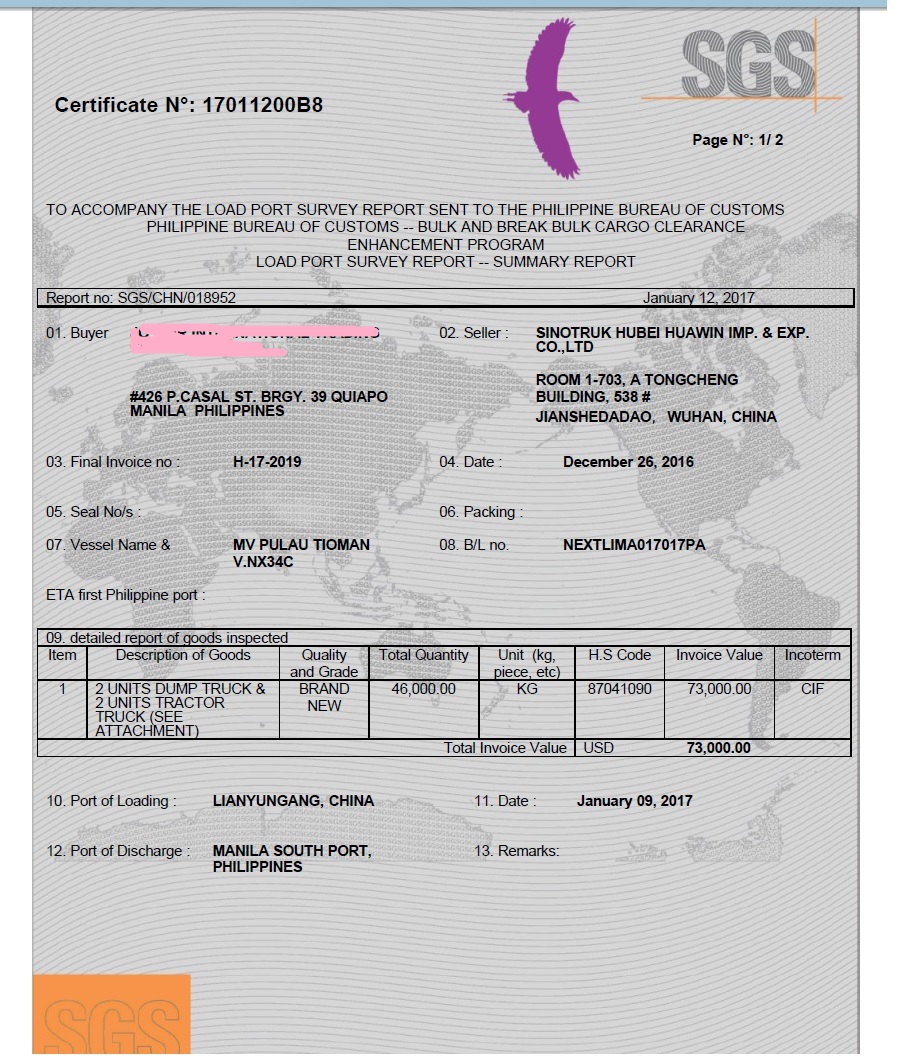

(1) 5-20 CBM with lift tank (2) Chassis: Sinotruk/Dongfeng/Dongfeng/JAC/Isuzu are available. (3) 2/3/4 axis optional. 4*2/6*4/8*4 optional. (4) Euro II/III/IV emissions are available. (5) Certification: ISO9001 CCC, SGS

Main dimensions of the vehicle	Dimensions (L x W x H) mm	8000x2470x3000
Main dimensions of the vehicle		Wheelbase (mm)	4500
KGS weight	tare	7000
		Front axle load capacity	1x5000
		Rear axle load capacity	1x10000
engine	Card	Yuchai
		Model	YC4E160
		type	4-stroke direct injection, 4-cylinder in-line liquid-cooled, turbocharged and intercooled
		Horsepower (HP)	160HP
		Emission Standards	Euro 2
gearbox	DC 6-Forwards & 1-reverse Manual Transmission
steering	Hydraulic steering with power assist
fetal	8.25R20 all-steel radial tires, 7 pcs, including 1 spare tire.
Total volume (m3)	8 cubic meters
Tanker Body Materials	5mm steel/Q345 high tensile strength steel
Pump	Chinese brand double pump

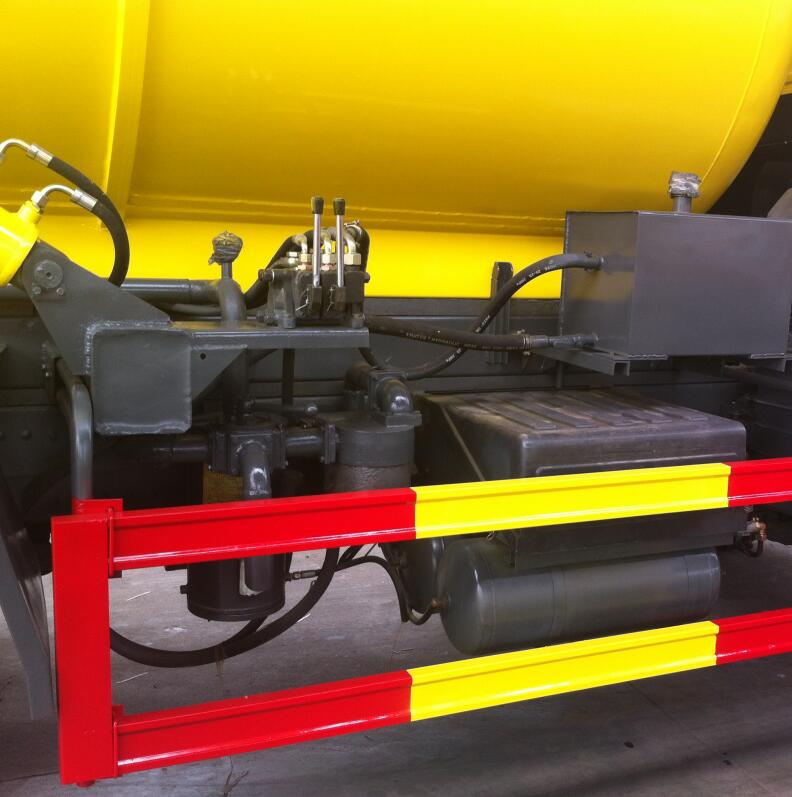

Hydraulic system	Equipped with lifting tank and opening tank end caps
full suction time	< 5 minutes

Product configuration

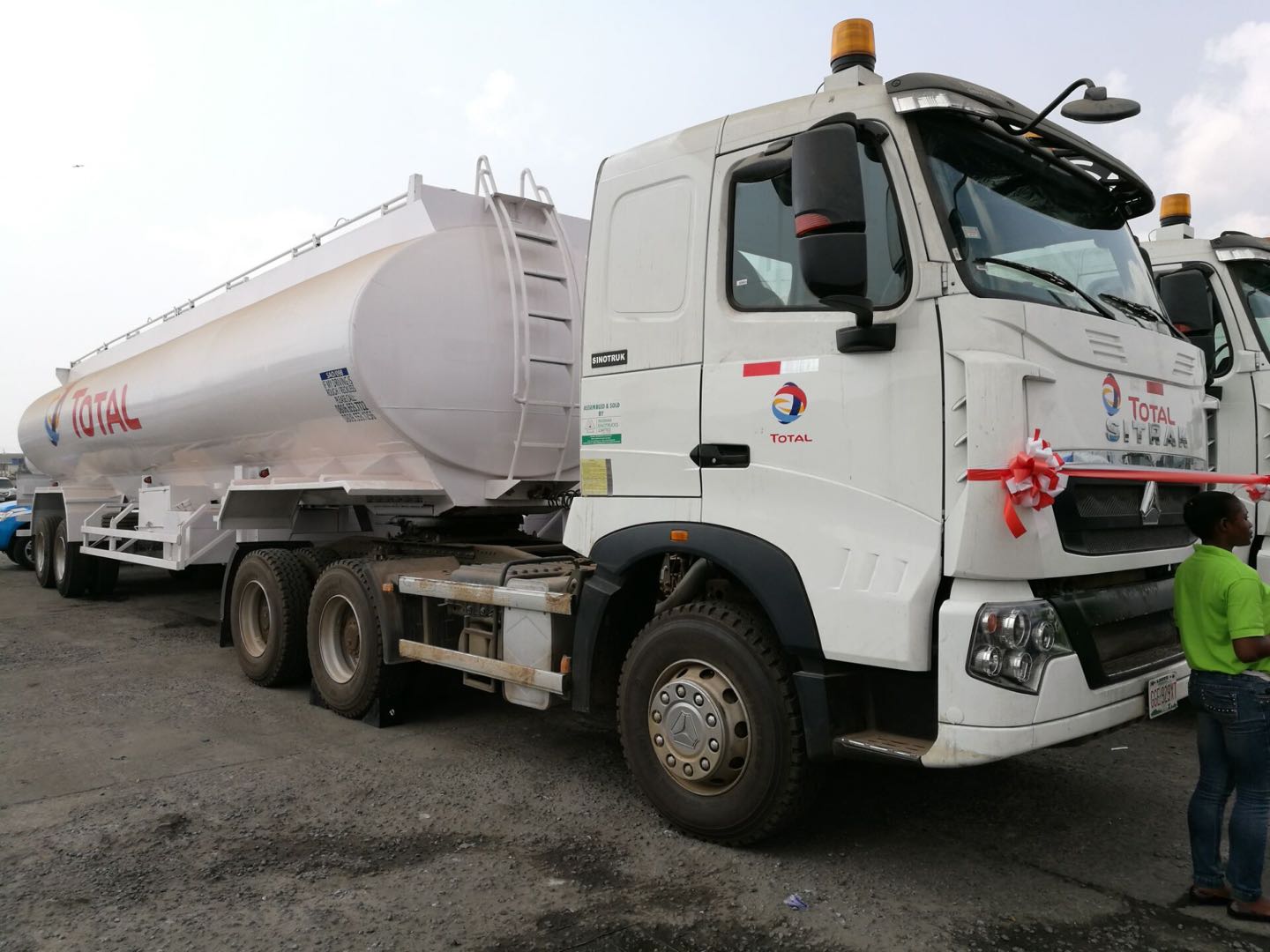

successful project

truck to cameron

truck to tanzania

truck to zambia

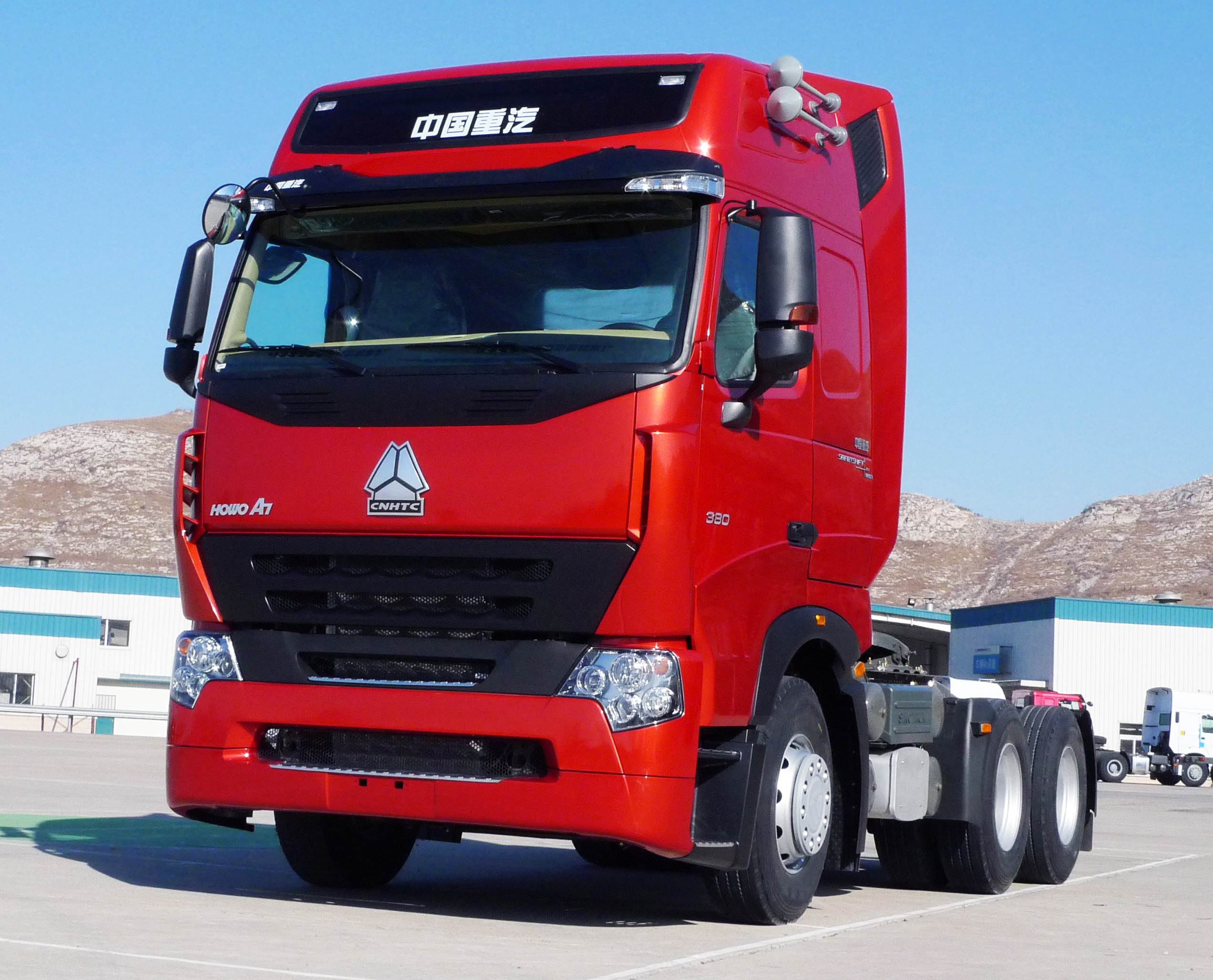

similar product

Canton Fair

Why choose us

Free delivery of spare parts
1. Sinotruk is the oldest, NO. 1 factory in the field of heavy trucks in China. We work with Steyr and MAN.
2. As a branch of China National Heavy Duty Truck Group, we provide you with factory direct sales prices.
3. Mature technology, advanced production equipment, strict quality control.
4. Sinotruk has branches in more than 40 countries, more than 160 dealers, more than 330 service centers, and more than 310 spare parts exhibition halls for overseas markets.

Our advantage

1) Reliable quality: many years of manufacturing experience after cooperating with top companies in the truck industry such as Steyr, MAN, Volvo
Experience and the comprehensive inspection system of China National Heavy Duty Truck Group, do a series of inspections before exporting to ensure reliable quality.
2) Preferential price: ex-factory price, very competitive in the market. We, Sinotruk Hubei Huawei, are a branch of Sinotruk.
3) Timely warranty: 1 year or 100,000 kilometers for road vehicles such as tractors, and 6 months or 60,000 kilometers for off-road vehicles such as dump trucks, the engine, gearbox and axle are first guaranteed. We have offices in Tanzania, Zambia and the Philippines
Warranty service is provided and we have dealers around the world to assist.
4) Timely after-sales: We have set up more than 240 spare parts centers and service outlets in more than 80 countries. The professional after-sales team can solve your after-sales problems within 3 working days or 5 working days, and spare parts are readily available for you.
5) Experienced sales team and logistics team: The experienced sales team is at your service at any time, providing high-quality services,
A professional logistics team works with international shipping companies such as MSK & Hyundai to deliver your trucks safely and economically.

transportation

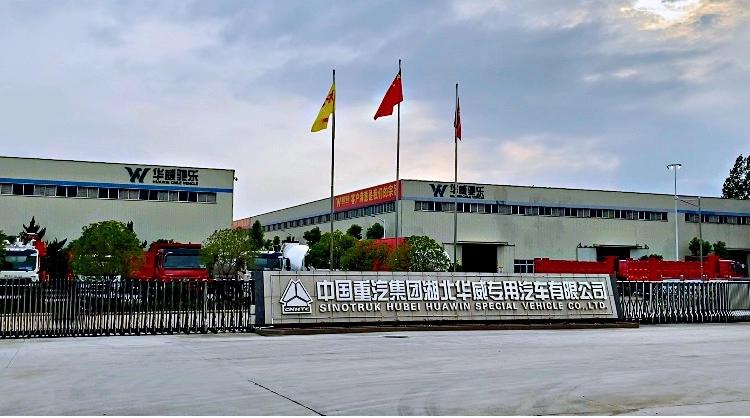

Company Profile

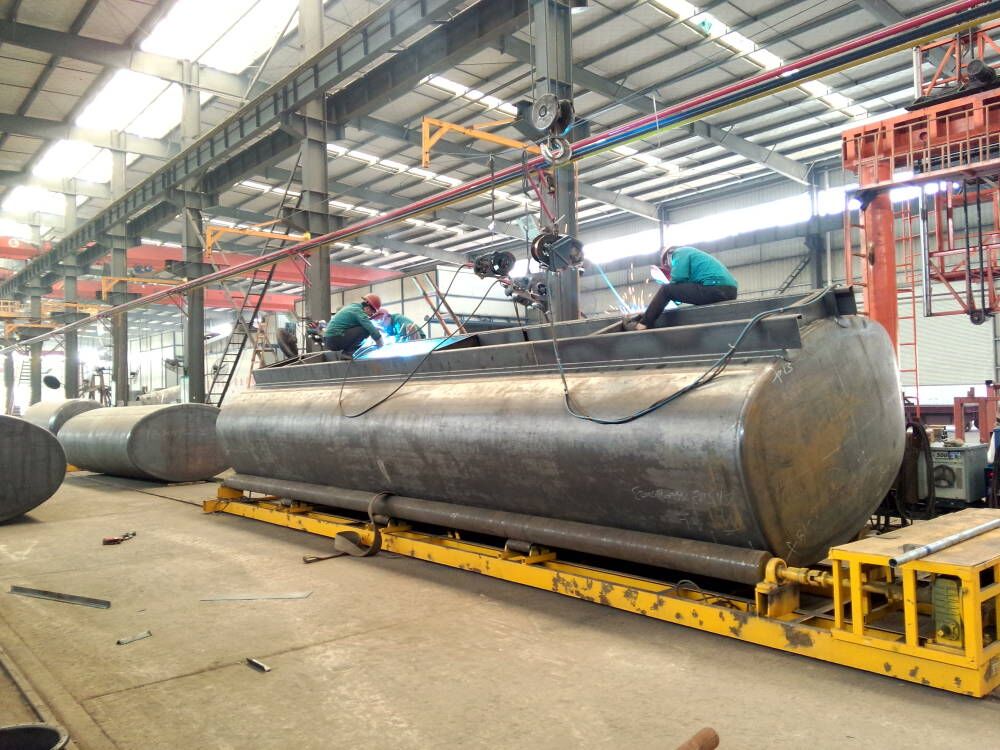

Sinotruk is one of the largest manufacturers of heavy-duty trucks in China and the number one exporter, specializing in the R&D and manufacturing of heavy-duty trucks and related key components. Now Sinotruk has 6 truck production plants, 2 engine plants, 2 gearbox plants, 1 axle plant, and cooperates with other international companies (STEYR, Germany MAN). MAN introduced its full range of products and core technologies through Sinotruk.WE, SINOTRUK HUAWIN, is a branch of Sinotruk, located in Hubei Province, specializing in the production of various special vehicles, with an annual production capacity of more than 20,000 various special vehicles. Sinotruk includes: trucks, tractors, dump trucks, concrete mixers, oil tankers, special vehicles, garbage trucks, oil tankers, cranes, flatbed semi-trailers, etc.
