Teneth A3 size auto paper feeding digital sheet cutter for label cutting / A3 die sheet cutter

Supplier: Shenzhen Teneth Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Shanghua Yang
Price: $950.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

After-sales Service Provided:	Video technical support,Online support;	Voltage:	AC 220V/110V ,50Hz;
repeatable precision:	0.025 mm;	interface:	U disk , USB ,serial port;
Packaging Detail:	we have wooden package and paper carton .it depends on customer needs .;	Function:	label cutting;
Warranty:	1 Year;	media way:	auto paper feeding;
Payment Terms:	T/T,Western Union,MoneyGram,paypal;	After-sales Service Provided:	No overseas service provided;
Place of Origin:	Guangdong China (Mainland);	Dimension(LWH):	810540340 mm;
cutting force:	1000g;	Speed:	500mm/s;
Supply Ability:	1500 Piece/Pieces per Month;	Condition:	New;
cutting area:	483*329 mm;	Weight:	32Kg;
mechanical precision:	0.025mm;	Type:	Die-cutting Machine;
Brand Name:	TENETH;	Port:	shenzhen;
Certification:	CE Certificate;	Computerized:	No;
driver:	stepper motor;

Product Description

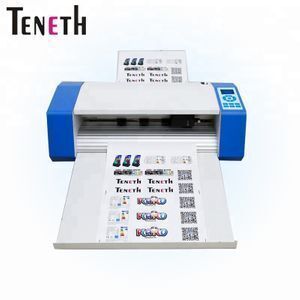

Teneth New Model A3 digital die sheet cutter with auto paper feeding system

Media way	auto paper feeding (with 2 trays for sheet material in and out )
Mainboard	32-bit ARM7 CPU ,128Mb, high-speed cache memory
Control panel	10 membrane buttons +3.0 inch high definition LCD screen
Driver	High speed ,big power step motor ,micro-step driver
Maximum cutting area	483*329 mm
Maximum cutting speed	500 mm/s
Cutting force	10-1000g (digital adjustment)
Mechanical precision	0.025 mm
Repeatable precision	<0.025 mm
Interface	U disk / USB / Serial port
Gross weight	32kg
Package size	810540340 mm

Detailed Images

Teneth A3 Die sheet cutter for label cutting

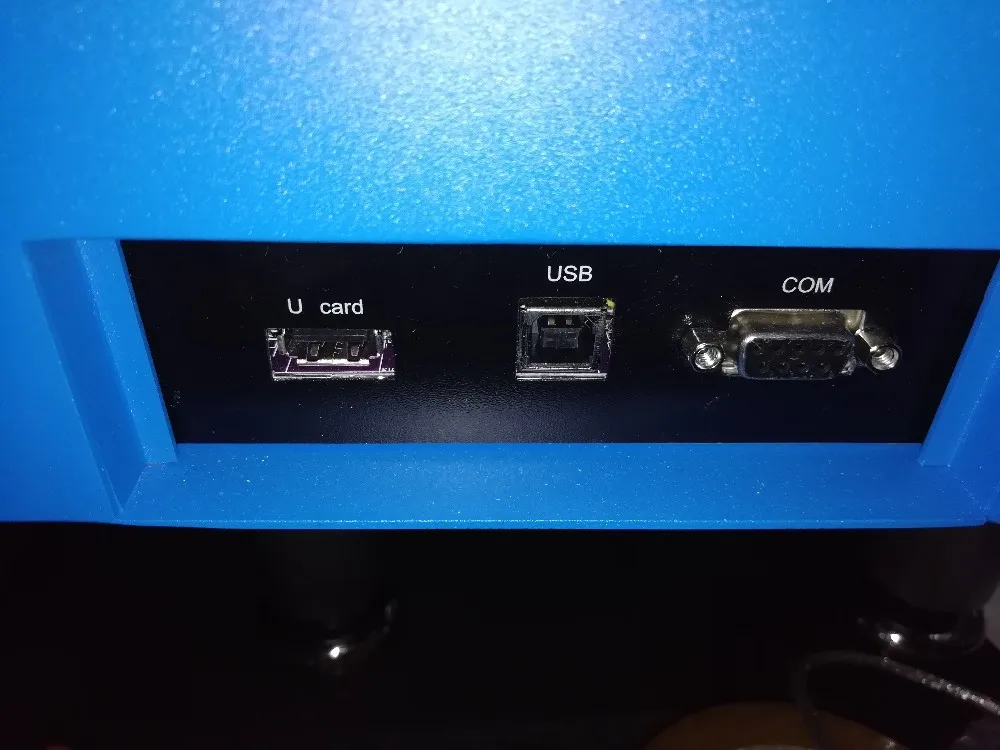

The A3 A4 die sheet cutter has three interfaces : USB, Serial port and U disk.

1. The U disk interface can make offline working and reach the repeat function more convenient 500 times in one operation.The machine can detect the files in U disk and start cutting. It's much more convenient when there is no computer right side.

2. The USB and serial port are connecting with the computer, and send the file made directly. It applied widely in office and home.

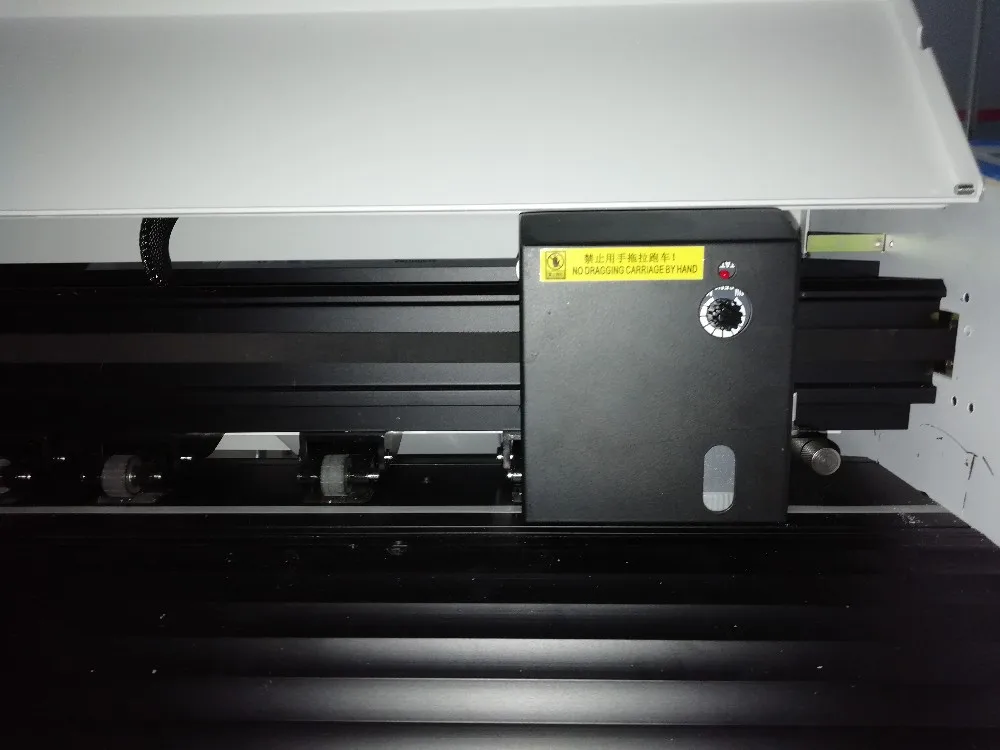

A3 A4 die sheet cuter carriage

1. The carriage has a camera to detect the four marks in material to realize the automatic scan and then cutting automatically.

2. When the camera cannot scan the marks, it's much easier to adjust the sensor in carriage, and then the camera can scan correctly.

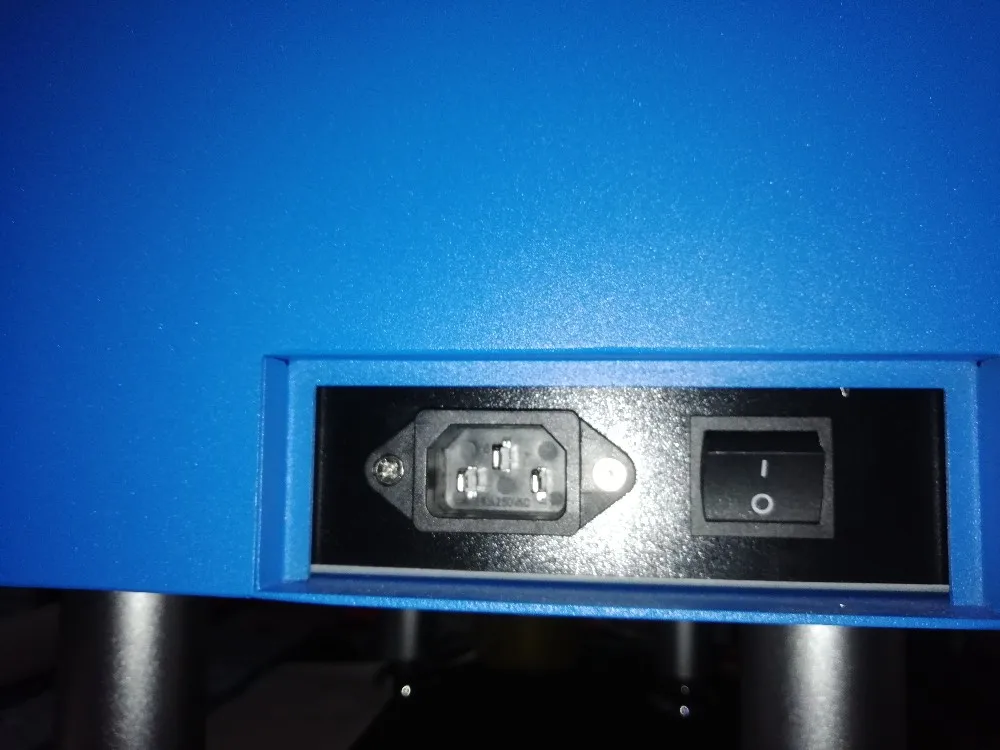

Power supply cable: AC220V / 110V, 50Hz

Notice: It would be better when you unplug the power supply cable to protect the machine main- board

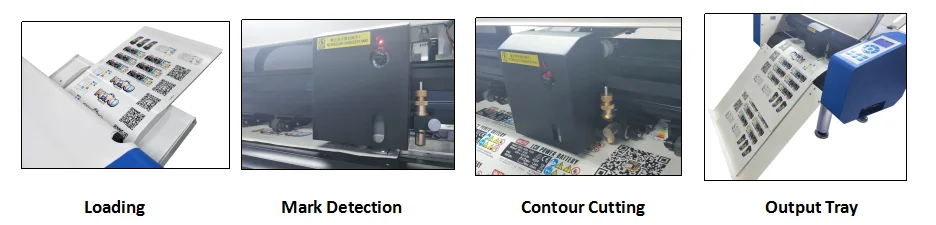

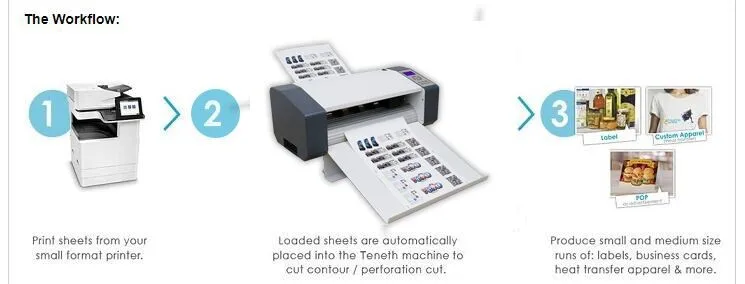

Cutting process:

1.We can put the sheet material in feeding tray

2.The material can be feeding automatically by our steel axes, and then the carriage with camera will start makr detection process.

3.After four marks detection process finished, the machine will start to cutting automatically.

4.When the first sheet cutting job finished, it will send to the front tray. And then second sheet material will feeding continuously, and start the cutting job.

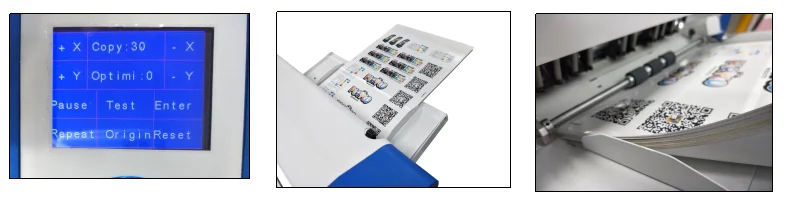

1.Continuous , hands-free sheet media loading in 30 pcs in one time.

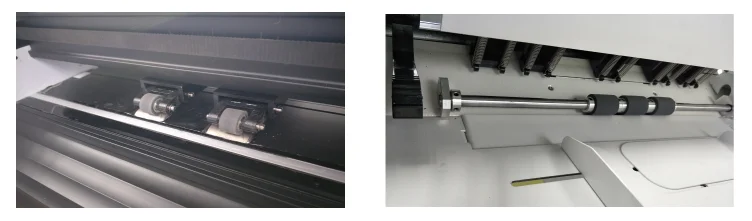

High precision steel axis to ensure smooth feeding

Durable roller wheel: move faster and smoothly

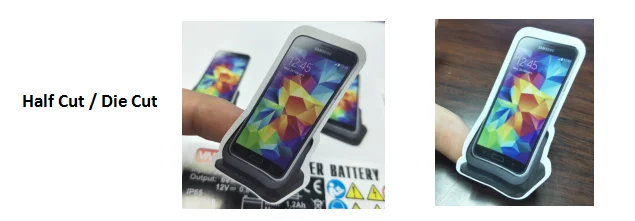

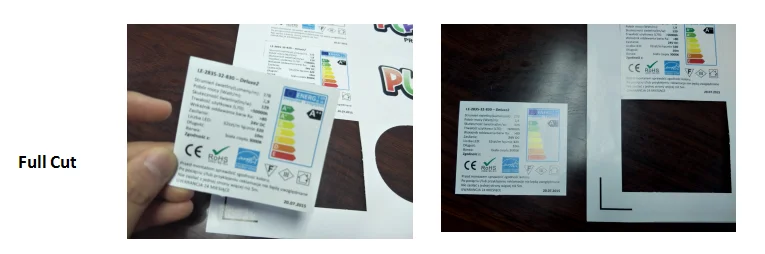

Machine cutting force: 10-1000g (digital adjustment) -- Performs half cutting and perforation cutting .

Before you send cutting job, you can press "test" button to make sure the cutting is good for your work.

Advantages:

1. Light weight, space saving design, full metal machine body, solid and practical workmanship.

2.Auto paper feeding system to ensure continuous multi-sheet cutting, maximum continuous cutting 30pcs

3. AAS automatic contour cutting, Various materials can be scanned , economic photo paper, T-shirt transfer paper, photo quality inject card, stickers, glossy paper

4. Automatic positioning and cutting, with U DISK interface, repeat function reach to 500 times in one operation.

5. Big power motor, faster speed, working noise lower than 60 db.

6.The newest ARM processor, smooth surface and accurate cutting .

Packing & Delivery

About the payment:

1. For small quantity, the shipment will be arranged after we received your full payment.

2.For large quantity, customers can pay 30% deposit in advance, and pay the balance before shipping or send the BL.

Normally, when the factory has stock, the shipment can be arranged within 2 days.

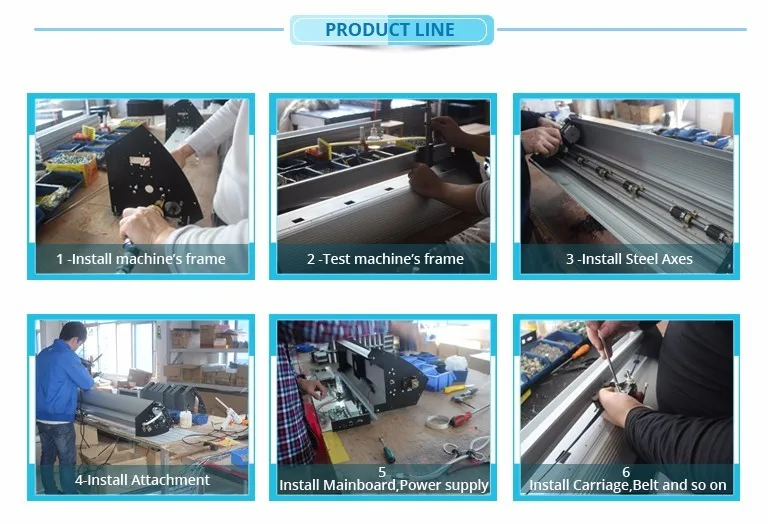

Production Process:

Before we assemble the left and rigth side cover of the machine, the carriage will be tested 24 hours continuously to ensure the good working condition. ---- No worry about the dead machine !

Every machine will be tested in two parts: normal cutting and contour cutting.

Our technician will adjust the machine parameters and setting to reach to the best. After All these steps finished, the machine will be sent to package. ---- No worry about cutting probelm !

Packing process

When the machine is in packing area. Workman will use special water to clean the machine. --- No worry about the dirty machine !

The machine body will be packed by plastic film, and then covered by foam in left and right side. This will reduce the collion of the handling and shipment. -- No worry about the broken machine!

About the accessory box: The standard box include: three blades, one blade holder, one pen holder, USB cable, serial port cable , power supply cable, Guide CD, warranty card. These things will be colleced by special man to ensure everything is prepared. -- No worry about the part lost !

The whole machine will be packed by wooden box.

Paper carton package

1. The machine with foam inside to reduce the shipment and handling collision.

2. Plastic outside the package will keep machine dry and clean

When the machine is out of stock, the production procedure will be on progress.

For small quantity order, such as 1 unit or several units, the shipment can be arranged in 2- 8 days.

For large quantity, more than 30 units, the shipment can be arranged within 15 days.

Normally, our factory has high efficiency to finish the orders. The company has regulated production arrangement, so when facing large quantity orders all together, production needs some time.

Main application

Label cutting / Sheet cutting

The A3 A4 size die sheet cutter can wok well with small size printer and applied to Heat transfer machine. It applied widely in garment industry, T-shirt , Mug, mobile skins, car stickers, label stickers.

Our Company

Address: No.161. Pinghu street ,longgang district , shenzhen city

Teneth group is always full with love, passion and happiness. We enjoy our life and at the same time, we devote ourselves to our work.

We warmly welcome all of our customers to visit our factory, for learning the machine operation, to visit our company, factory, or discuss more about our machine.

We offer all our help from the machine introduction, shipment, and after sales services. If any question about the machine, please feel free to contact us. We will offer all to help you fixed up the problem ASAP.

Machine quality and customer are all top one in our company.

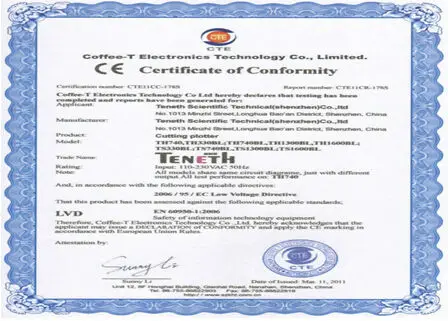

Certifications

All of our machines have CE certificate to make sure the standard quality.
The A3 die sheet cutter sells good in European, Canada, Mexico, and earned high reputation in Shanghai APPP EXPO, Berlin Fespa exhibition in March and May.

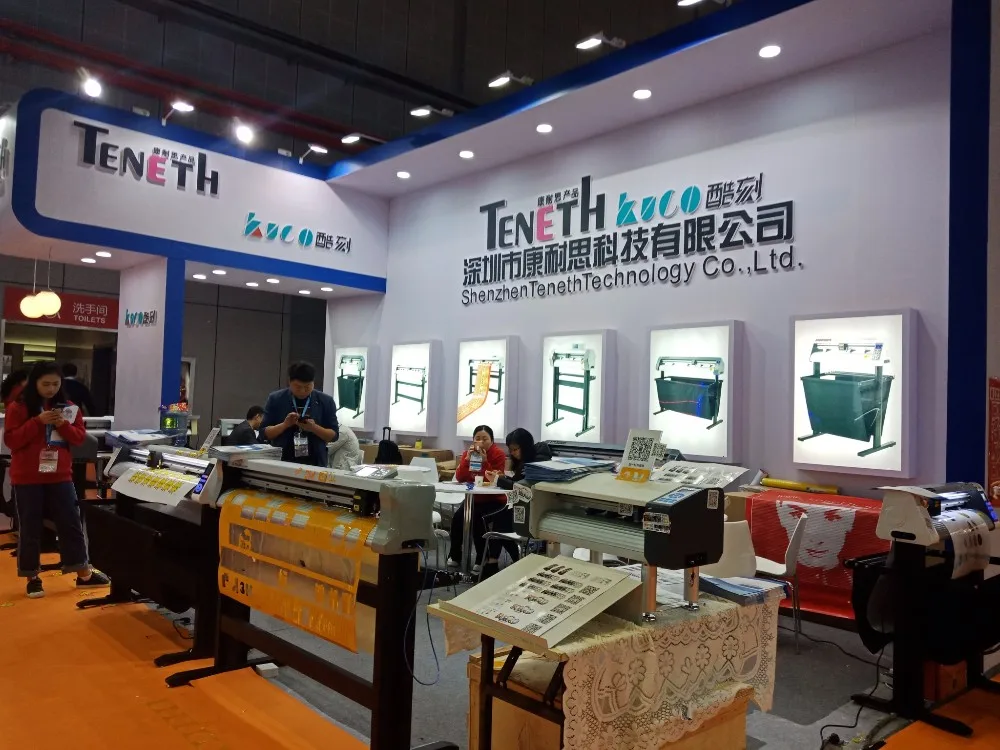

Exhibition photos
