ZYH-1100 Automatic Feeding Die Cutting Machine

Supplier: Ruian Hochint Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Tom Miao
Price: $25000.00 /set
Min. Order: 1 set

Click here to contact

Product details

payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Health status:	new
After-sales service provided:	Engineers available to service machinery overseas	Applicable paper:	200-1000g/㎡
Main selling points:	easy to operate	Core component warranty:	1 year
Dimensions (LWH):	500020002100mm	Maximum sheet size:	1040*750mm
Video shipment inspection:	if	Applicable industries:	Food and beverage factory, printing factory, others, advertising company, post-press industry
Certification:	International Organization for Standardization	maximum. Mechanical speed:	30 times/min
Core components:	motor	maximum. Working width:	1050mm
type:	paper cutter	Warranty:	one year, one year
Production capacity:	1200 sheets/hour	Mechanical test report:	if
Computerized:	Yes	weight:	5500 kg
Showroom location:	not any	Marketing Type:	Hot Products of 2022
port:	Ningbo	Voltage:	380V/220V
brand:	Yonghong	brand:	Hochint
Packaging Details:	In a standard seaworthy wooden box.	place of origin; place of origin:	Zhejiang, China
Supply capacity:	30 sets per month

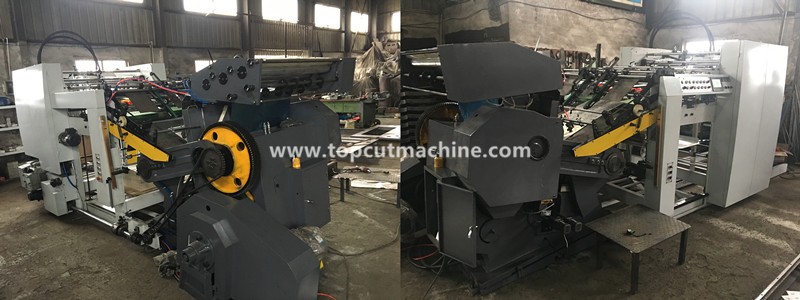

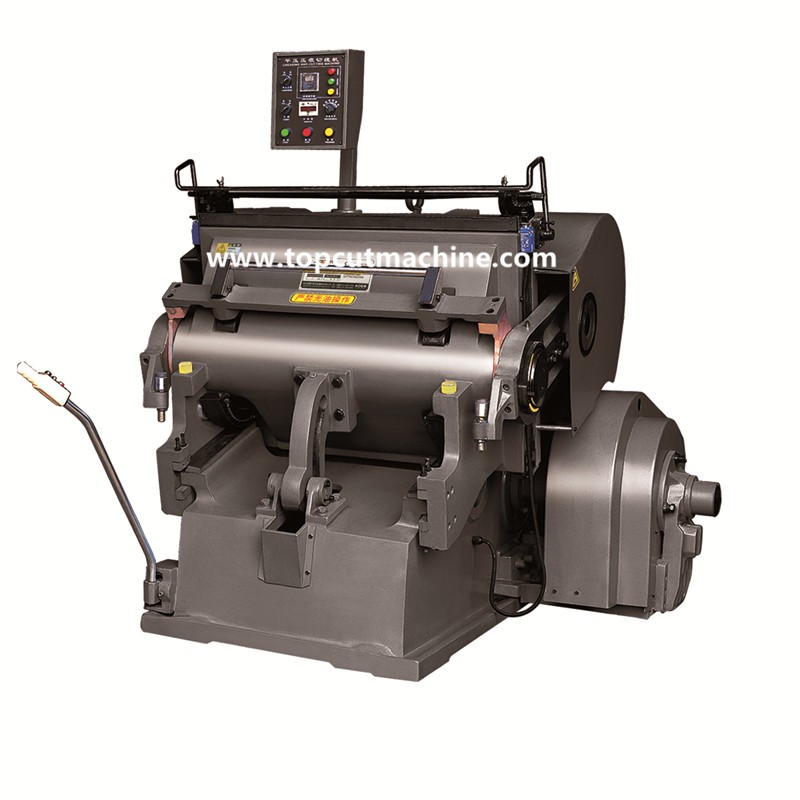

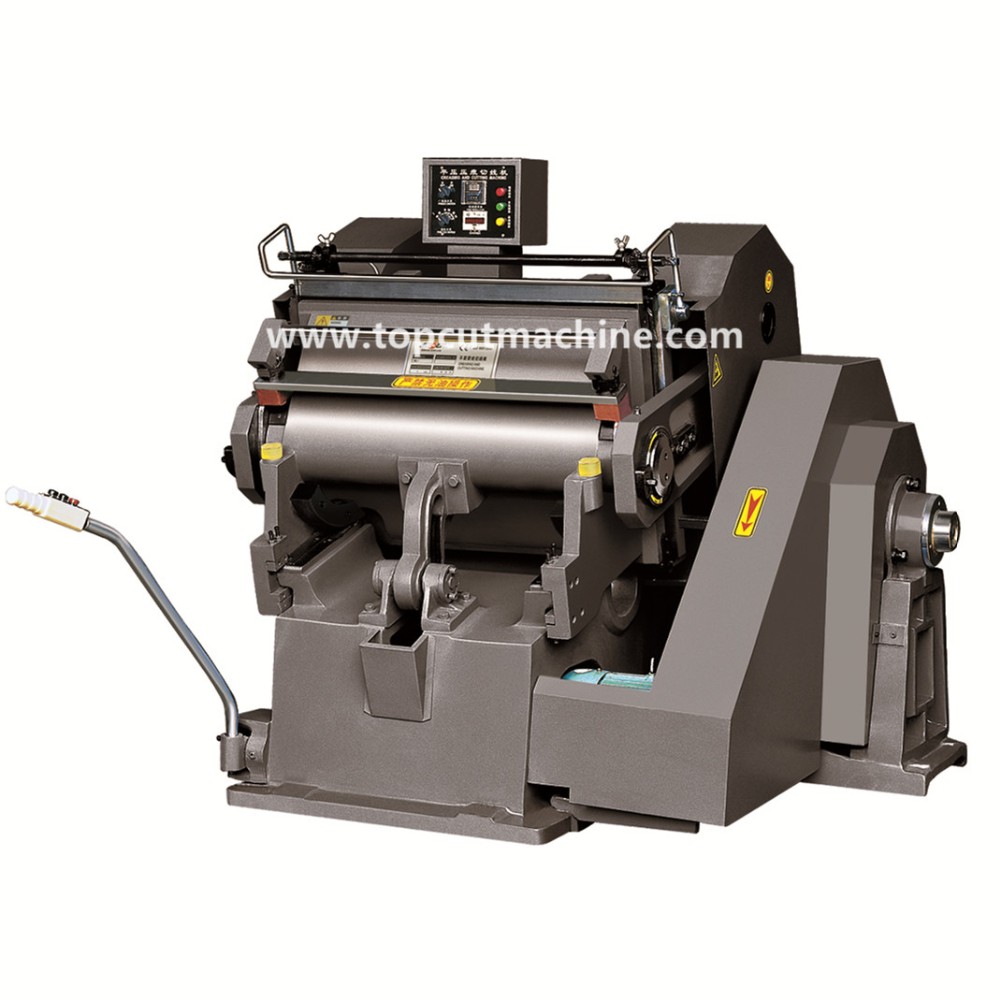

machine appearance

Product Description

application

ZTJ-1040 is based on manual hot stamping die-cutting machine TYMK-1040, and it is specially designed for automatic hot stamping and cutting of various paper, plastic sheets and leather by manipulator. The operator is safer and more efficient by replacing manual feeding with manipulator feeding.

Specification

Model	ZTJ-1040
maximum. Sheet size(mm)	1040*720
Min sheet size (mm)	400*400
Applicable paper (g/㎡)	200-1000
maximum. Mechanical speed (times/min)	30
Feed pile height(mm)	1200mm
Stack height(mm)	700mm
Weight (kg)	55000
Dimensions (mm)	500020002100

feature

1. PLC and touch screen control
2. Pre-palletizing device and non-stop paper feeding device reduce palletizing time, improve machine efficiency and increase income
3. High power feeder is suitable for cardboard and corrugated cardboard.
4. The servo motor positions the paper in the correct position
5. Double-sheet out of paper detection

detailed image

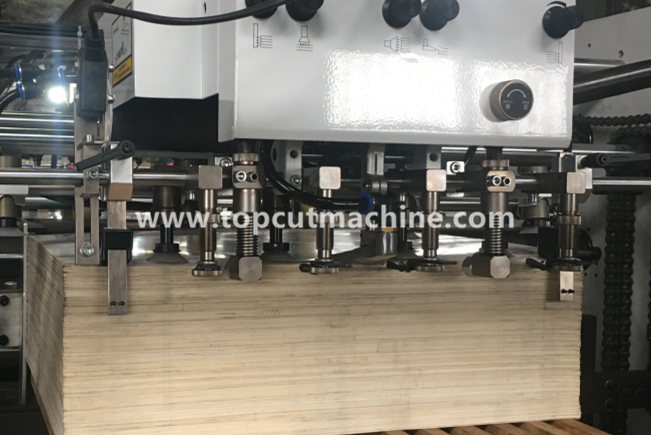

Feeding head: high-power feeder, 4 suction and 4 feeding nozzles, suitable for both cardboard and corrugated cardboard

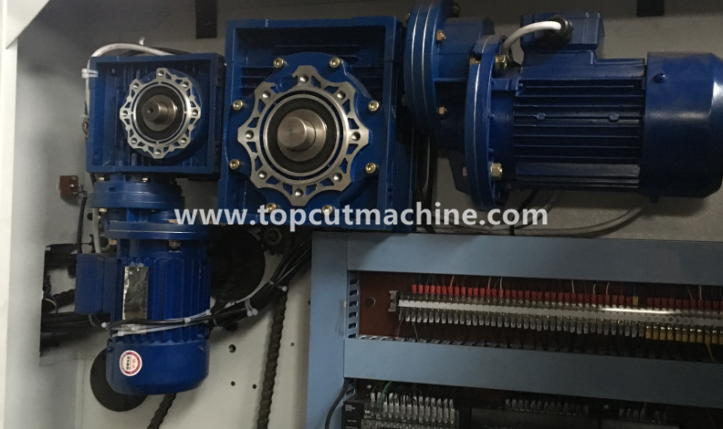

Non-stop feeding (double geared motors) and pre-palletizing mechanism can shorten auxiliary time and improve efficiency.

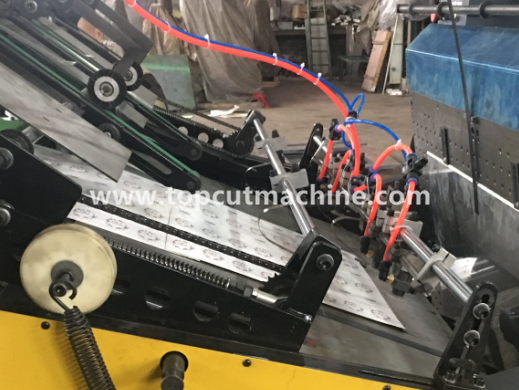

Paper feeding position: Use the suction nozzle to accurately position the paper feeding.

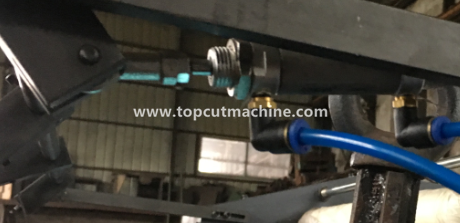

Pneumatic paper separation device to avoid paper sticking to the hot stamping plate

Paper out of photoelectric sensor, paper out of automatic shutdown

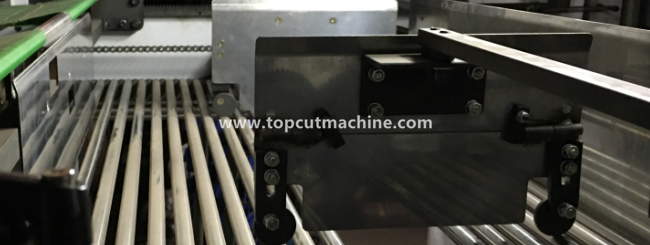

Paper finishing device makes paper collection in the correct position

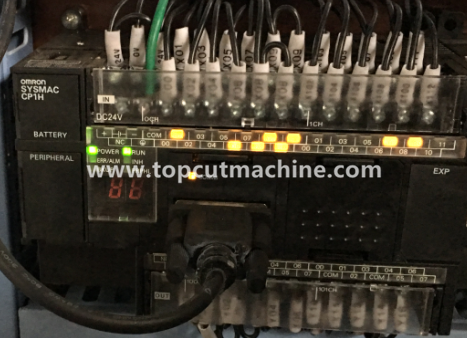

PLC (Omron)

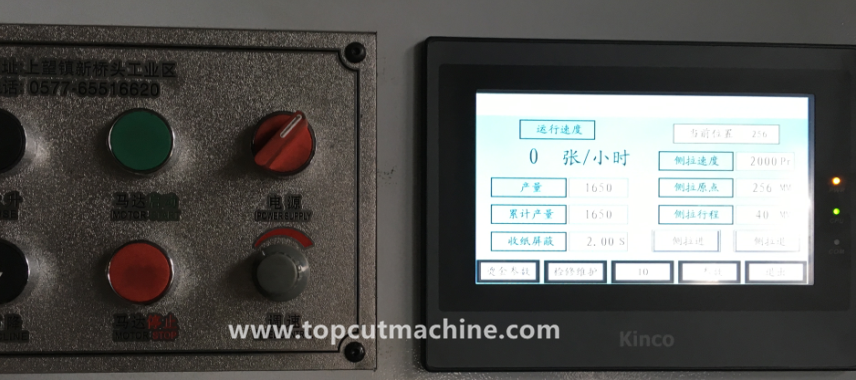

touch screen

our service

pre-sale service

* Inquiry and consultation support.
* Sample testing support.
* Check out our factory.

After-sales service

* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
