Dell NAS server network storage nas NX3240 dual hot plug 1100 power supply

Supplier: Beijing Xinghe Daguan Science & Technology Co., Ltd.
Region: Beijing, China
Contact: Ms Lilian xu
Price: $3000.00 / 2 - 9 pieces
$1000.00 / >=10 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Power Supply Support:	2U / 2U Redundant Power;	Product name:	Network DELL STORAGE;
Port:	Beijing, Guangzhou, Hongkang;	Payment Terms:	Western Union,T/T;
Supply Ability:	200 Pieces per Month;	Private Mold:	NO;
Controllers:	Dual Enclosure Management Modules;	Model:	NX3240;
Certification:	ce;	Drive Bays:	3.5 " (hot-swap) X12pcs;
Memory:	32GB;	Brand Name:	DELL;
Packaging Detail:	Original package;	Interface Type:	usb;
Products Status:	Stock;	Condition:	Retail;
Model Number:	{-3-NX3240};	Form factor:	2U Rack Enclosure;
Place of Origin:	Beijing, China;	Warranty:	3 Years;
CPU:	4208;

Product Description

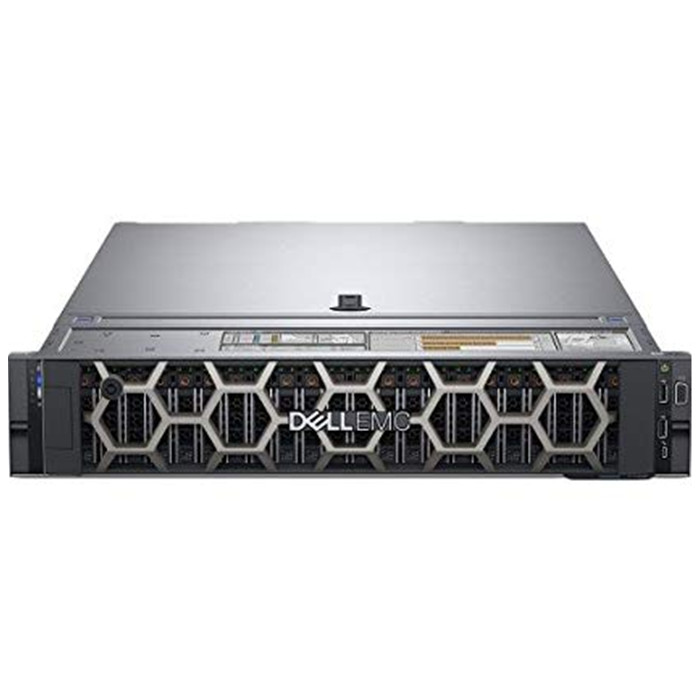

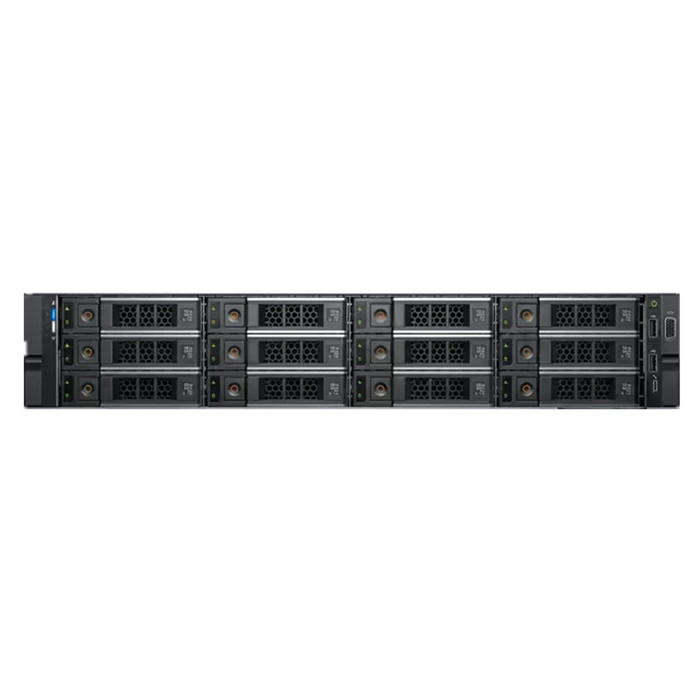

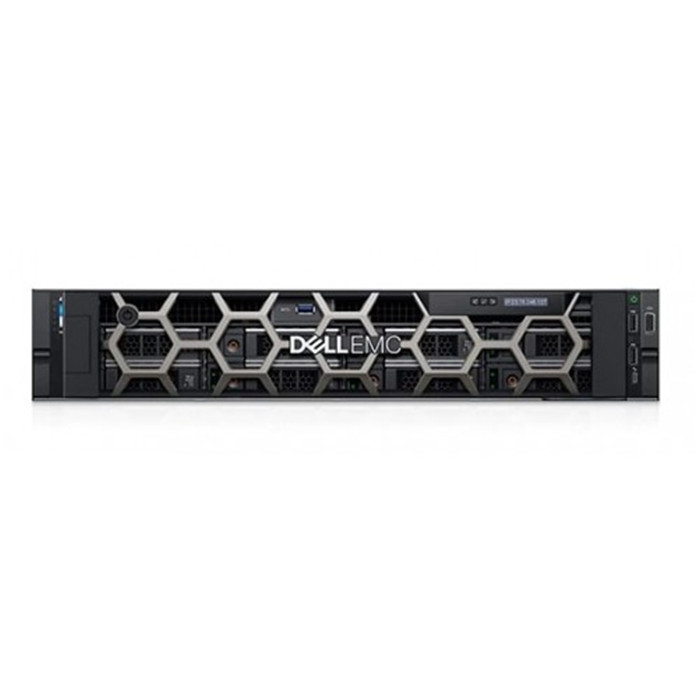

DELL Storage NX3240 Dual Xeon Silver 4208 2.1G 32GB ram storage server

Dell Storage NX3240
Product Configurations
Storage	Up to 12x3.5" HDDs in front bay, 4x3.5" HDDs in mid bay and 2x3.5" HDDs in rear bay (2.5" OS HDDs in carrier)
Max Internal Capacity	192TB raw capacity (with 12TB NL-SAS)
Types of Data	File and Block (Microsoft iSCSI target)
Drive Capacities	SATA (7.2K): 2TB, 4TB NL-SAS (7.2K): 4TB, 8TB, 8TB FIPS, 10TB, 12TB SAS (10K): 600GB, 1.2TB, 1.2TB FIPs, 1.8TB SAS (15K): 600GB
External Expansion	Not preconfigured for external expansion. To enable expansion add supported SAS HBA or PERC H840 card and attach MD1400/MD1420 expansion modules
Technical Highlights
Form Factor	2U rack-mount system
	Single and Dual
Processor	Intel Xeon Bronze 3104, 1.7G, 6C/6T, 8M Cache or Intel Xeon3106 1,7G, 8C/8T, 11M Cache or Intel Xeon Silver 4114, 2.2G, 10C/20T, 14M Cache
File Access Protocols	CIFS, NFS, FTP, SMB3.0, SMB Direct (RDMA)
Block Access Protocols	Microsoft iSCSI target
OS supported	Microsoft Windows Storage Server 2016 Standard Edition
Internal RAID options	Standard options: OS HDDs (on rear 2.5" HDDs) is always RAID1. Data HDDs can be configured from factory in RAID5 or RAID6 (minimum 4 HDDs) PERC H730 (internal drives)
External RAID	PERC H830 (optional)
Power
AC Power/Max Current	Redundant and non-redundant hot-plug 750W and Redundant 1100W PSU
Chassis
Bezel	LCD Bezel with Quick Sync 2 (at-the-box management)
Dimensions	Height: 86.8mm (3.42") Width: 482.0mm (18.98", with rack ears) Maximum Depth: 715.5mm Maximum weight: 28.1 kg (61.95 lbs)
Availability	Hot-plug hard drives, hot-plug redundant power, hot-plug redundant cooling, ECC memory
Cluster Support	Not recommended
Slots	Four PCIe 3.0 slots (four with x8 bandwidth)
Systems/Data Management
Management	Dell OpenManage Essentials, iDRAC9 Enterprise
Data protection feature	Replication (DFS-R), Snapshots (VSS) Optional TPM 1.2/2.0
