Product details
Marketing Type:Ordinary Product;Packaging Detail:in carton & wooden case, standard export packaging, or depend on client's requirement;
Molecular Weight Cut Off:67000 Dalton;Supply Ability:1000 Pieces per Month;
Link calibre:50;Warranty of core components:3 years;
Brand Name:JHM;Productivity:3000L/Hour;
Operation Pressure:< 0.3Mpa;Outline design:225*1708 mm;
Showroom Location:None;Size:225*1708 mm;
Core Components:hollow fiber uf membrane;Shape:tubular;
Material:PES,Export package;max operating temprerature:40 ℃;
Video outgoing-inspection:Provided;Weight:50kgs;
Design Flux:12.1-29.5gpm (2.7-6.7M3/H);Applicable Industries:Manufacturing Plant,Food & Beverage Factory,Construction works ,Energy & Mining,Other,Water treatment,environment protect company,environment engineering company;
Place of Origin:Shandong, China;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,paypal;
Weight (KG):50 kg;Warranty:2 years;
operating mode:inside to outside filtration;Available membrane area:46 M2;
Port:qingdao;Machinery Test Report:Provided;
Condition:New;

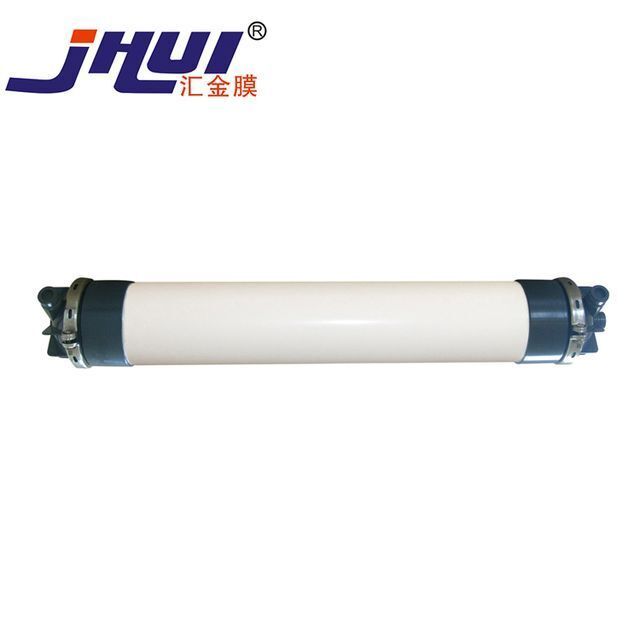

UF Filter Ultrafiltration Hollow Fiber Membrane Price

Product Introduction

1.UF Introduction

Ultrafiltration (UF) is a separation principle for screening, with pressure as the driving force to realize mechanical separation

membrane separation process, namely under certain pressure, when the mixed solution of large molecules or a small molecule

solute through the membrane surface, solvent (e.g., inorganic salt) and small molecule solutes through the membrane, and the

solute molecules due to mechanical filtration membrane as concentrate intercept, So as to achieve the purpose of purification,

separation and concentration.

Material Property OD ID Pore Size MWCO
PES / PS hydrophilic 1.4mm 0.7mm 0.01~0.04µm 67,000 dalton
PAN hydrophilic 2.3mm 1.4mm 0.02~0.1µm 80,000 -100,000dalton
PVDF hydrophilic 1.4mm 0.7mm 0.05~0.1µm 100,000-150,000 dalton
PTEF hydrophobic 1.6-3.2mm 0.8-2.1mm 0.8-2.2um ~~~

2.PES Membrane Module

1)Property
Polyethersulfone hollow fiber ultrafiltration membrane has the advantages of acid and alkali resistance, high temperature

resistance, high mechanical strength and cleaning resistance;It is widely used in food industry, electroplating industry,

pharmaceutical industry, fermentation liquid separation and concentration, and cathodic electrophoretic paint recycling.

Molecular Weight Cut Off ( MWCO) : 67,000 Dal

Spec. Outer Size (mm) Distance from Side to Center(mm) Materials Run Mode Link Calibre
UFaIB90 90*1100 910 PES/PS In-Outside 32
UFaIA160 160*1330 990   In-Outside 32/40
UFaOA160 160*1330 990   Outside-In 32/40
UFaIB200 200*1410 1000   In-Outside 50
UFaIA225 225*1730/1760 1600/1630   In-Outside 50
UFaIA225H 225*1730 1600   In-Outside 50
UFaOA225 225*1730/1760 1600/1630   Outside-In 50
UFaIA219 219*1902 1742   In-Outside 63


Remark :

A.Operating Temperature : 5-45℃
B.Operation Pressure: ≤0.3MPa
C.Max Tolerance Pressure: 0.5MPa
D.PH: 2-12
E.Membrane Module Encapsulation Materials: Food Grade Epoxy Resin

CONTACT US

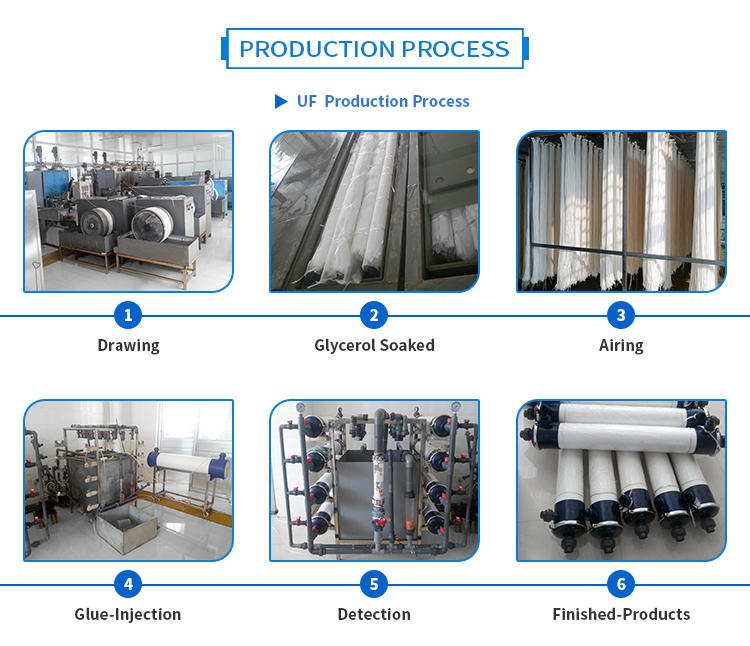

Production Process

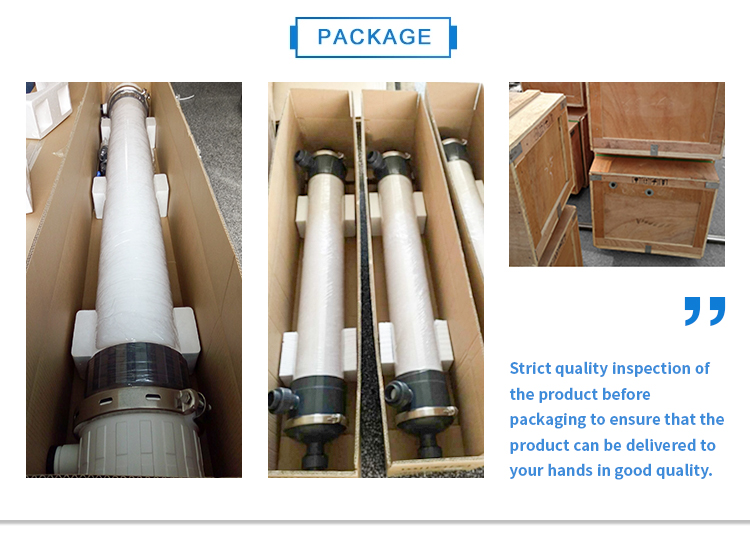

Package

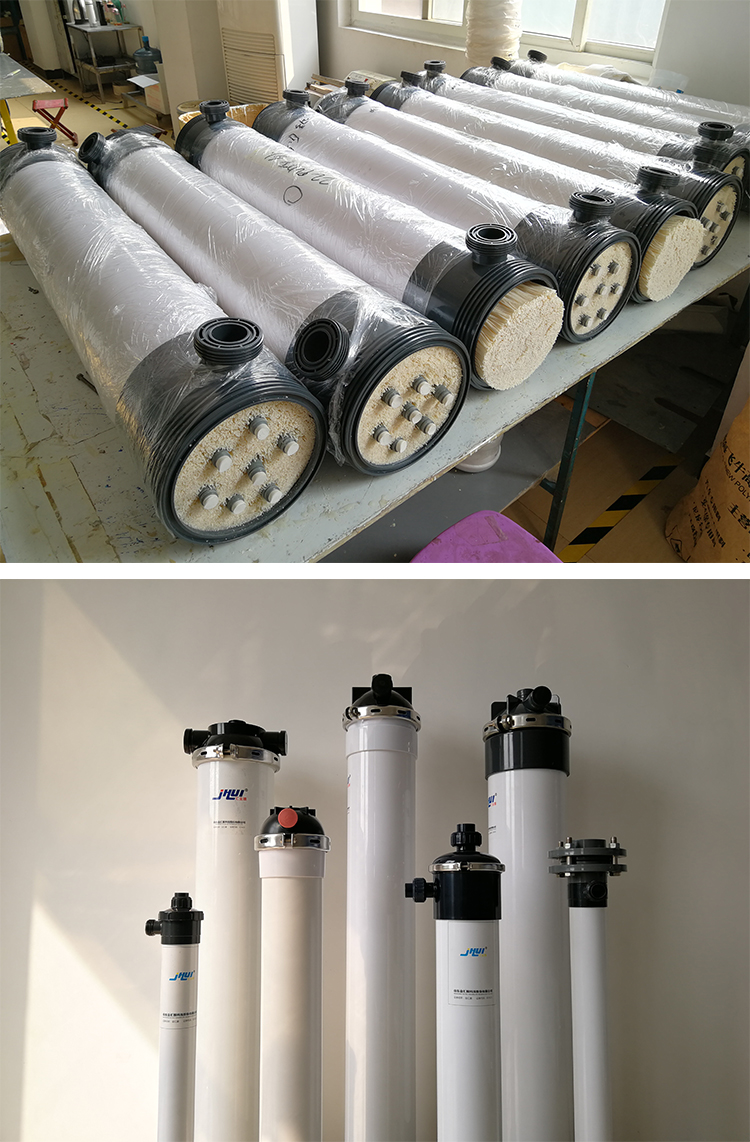

Our Products
