Product details
Port:GUANGZHOU;Max. rotational speed:4300r.p.m;
Payment Terms:T/T;Car Model:Universal;
Max.transmissible torque:500N.m;Rotors inertia:1.23kg.m2;
Brand Name:KA;Model Number:KAS05;
Warranty:1 year;Place of Origin:Guangdong, China;
OE NO.:N/A;Total weight:98kg;
Supply Ability:500 Units per Month;Packaging Detail:wooden box per unit, 0.07CBM/UNIT, 70~450kg/unit;
Total current:7.1A;Rated voltage:DC 192V;
Rated power:85KW;Type:Brake Assembly;
Product Description

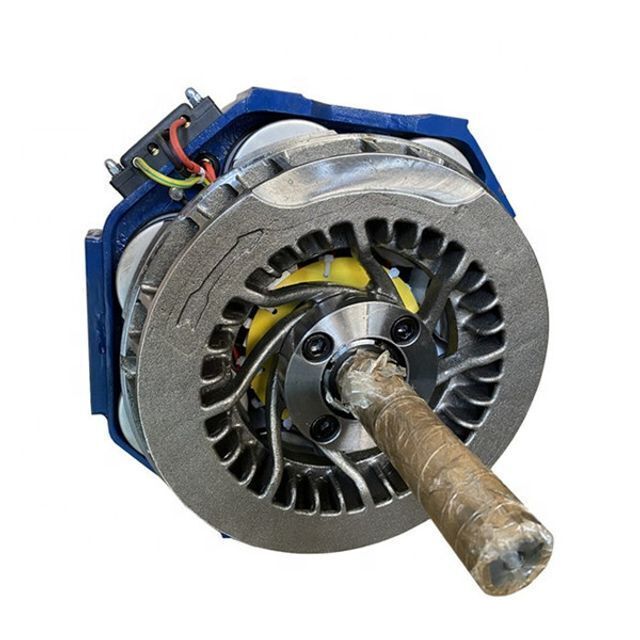

Eddy current brake retarder for dynamometer testing machine


KD series is designed for dyno testing system which is a type of air cooled eddy current retarder, widely used for automobile testing equipment. Our retarder brake torque ranges from 500N.m ~ 3800N.m.


Welcome to contact us for more information about our dynamometer retarder list and prices.


Detailed Images
Model
Max Torque
(N.m)
Power
(KW)
Rotational Speed
(rpm)
Dimension
(mm)
KD500
500
85
4300
406×390×236
KD700
700
120
4300
406×390×236
KD900
900
140
4300
469×490×285
KD1200
1200
170
4300
469×490×285

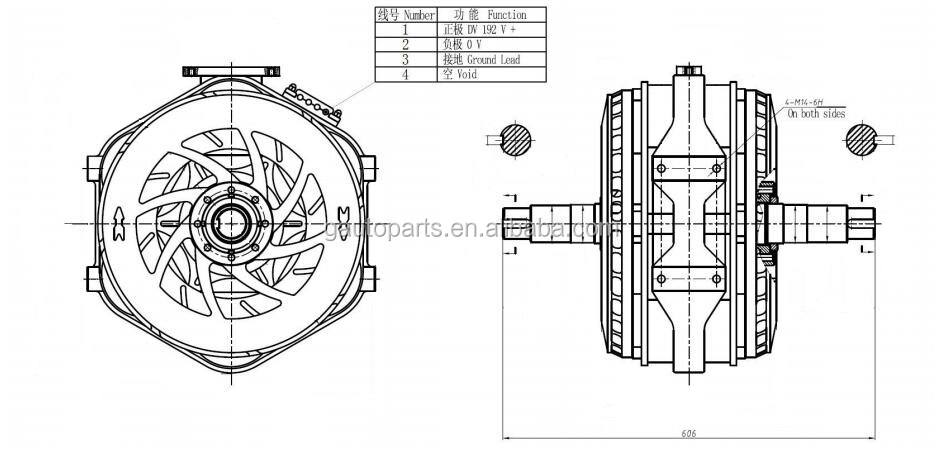

Picture & Drawing
This drawing is for display purpose, if you want to know the specific dimension, please contact us.

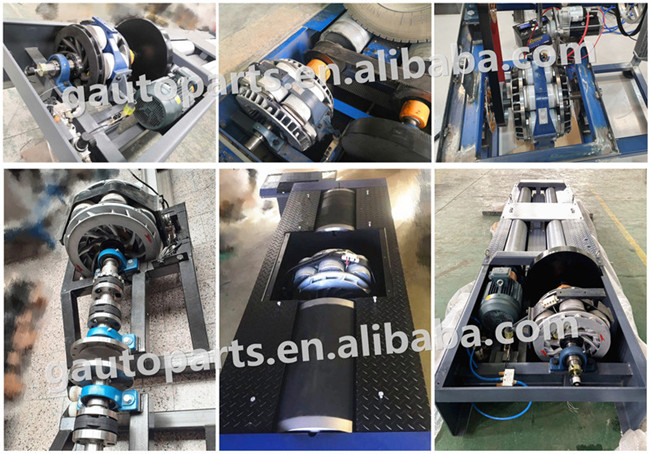

Main Application

Our dynamometer retarder is mainly applicable in:


●Hub dyno;

●Brake tester;
●Test bench equipment;
●Roller chassis dyno;
●Auto chassis dynamometer;
●Motorcycle chassis dynamometer;
●Emission loading equipment;
●Vehicle chassis dynamometer;
●Motor vehicles, as well as teaching test demonstration instrument used as a load and torque measurement.

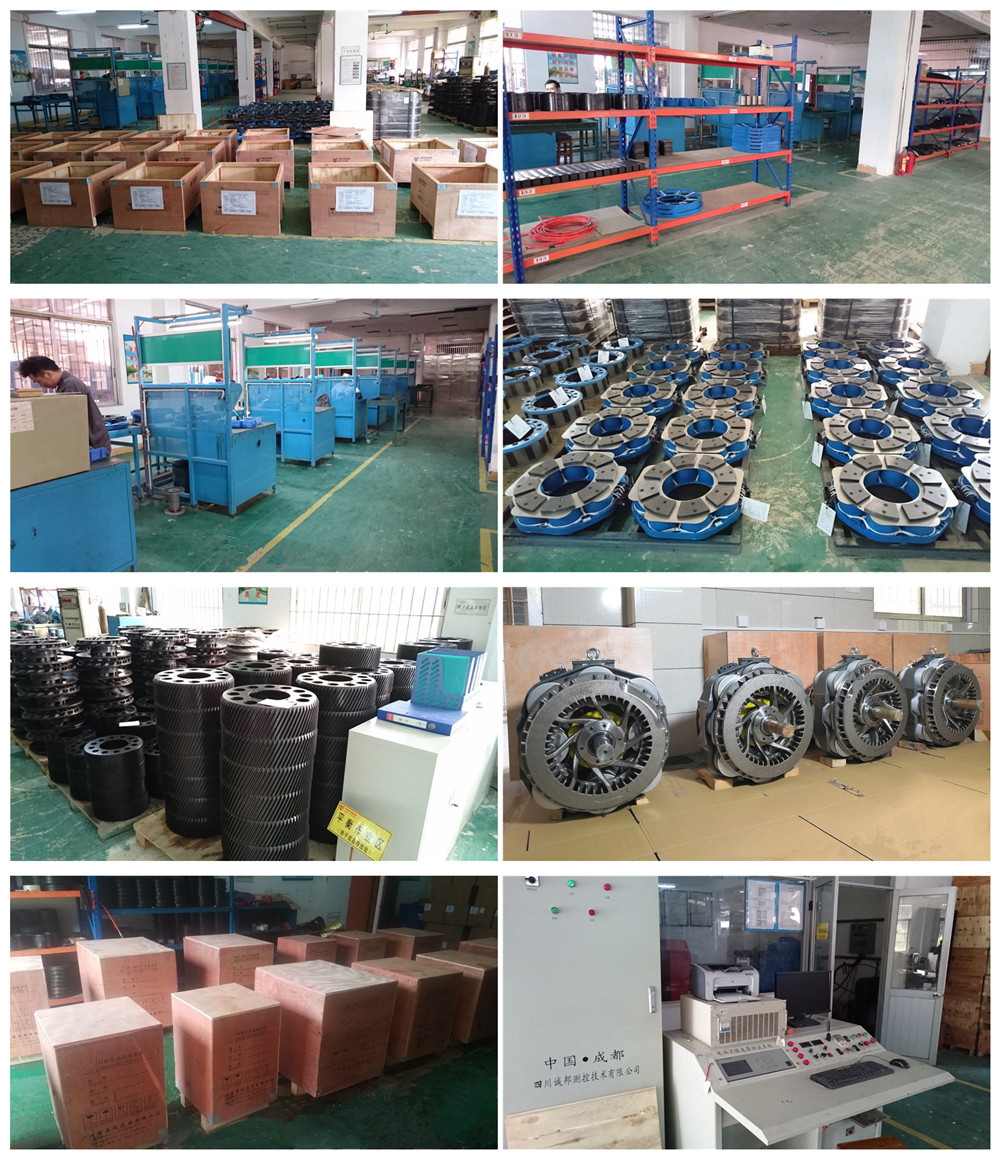

Company Overview
