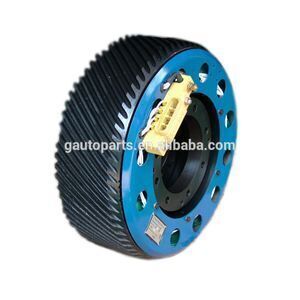

Mini 400Nm torque brake electromagnetic retarder

Supplier: Guangzhou Kingan Auto Parts Co., Limited
Region: Guangdong, China
Contact: Ms V Qin
Price: $1000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Working Voltage:	12V/24V;	Weight:	32kg;
Material:	copper;	Specification:	352352131;
OEM No.:	small bus;	Supply Ability:	500 Unit/Units per Month;
Max Braking Torque:	400N.m;	Payment Terms:	T/T;
Port:	Guangzhou;	Specified Vehicle Weight:	5-6T;
Max Current:	40A;	Model:	KAR04;
Packaging Detail:	1 unit/ wooden box, 100kg/box, 0.07CBM/BOX;	Size:	Diameter 390 mm *T 130 mm;

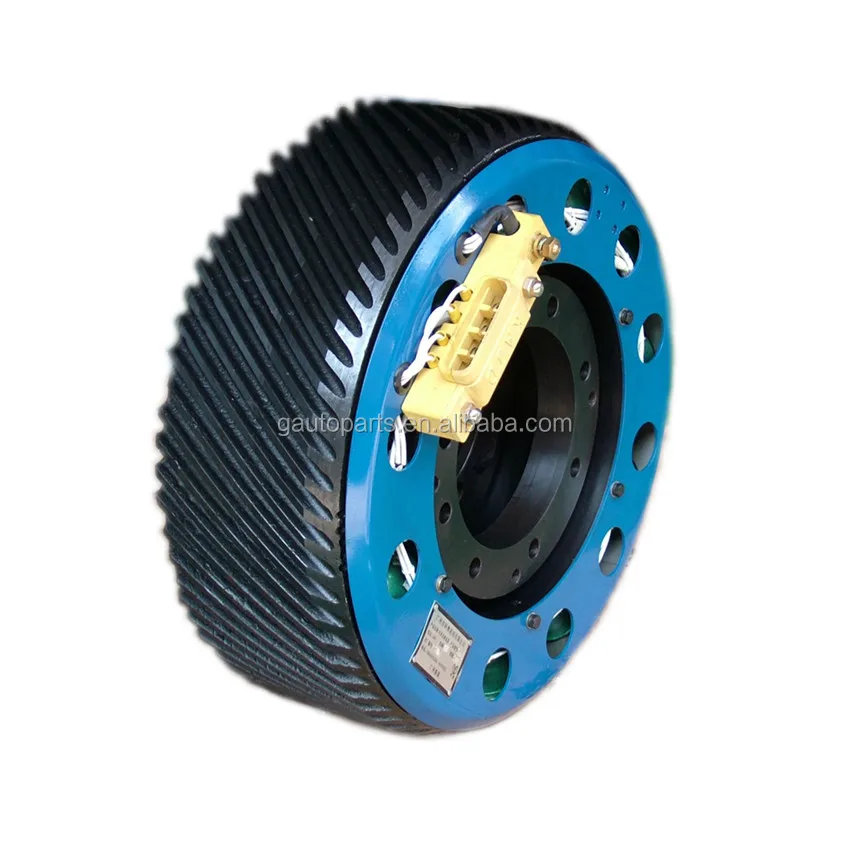

Mini 400Nm torque brake electromagnetic retarder

KAR series Electromagnetic retarder is available in different sizes and instalation method' s depending the size (GVW), HP application and design of your vehicle.

Product Description

Model	Torque (N/M)	Size(mm) φX Thickness	Voltage (V)	Max Current (A)	Weight (Kg)	Applied Bus (Meters)
KAR06	600	φ358×138	12/24	46	34	6-7
KAR08	800	φ358×138	12/24	52	36	7-8
KAR10	1000	φ466×161	24	65	75	7-11
KAR12	1200	φ466×161	24	75	82	9-14

Picture & Drawing

Our Services

1. Cost saving:
An electromagnetic brake keeps service brakes at cooler temperatures by reducing their use.

This decreased use of the service brakes can increase the brakes systems parts up to 7 times which results in a cost savings to your company. For example, if a truck’s brakes are changed once every three months, the KAR series electromagnetic can reduce this to once every six to 21 months if used properly - A savings of at least 50% plus the additional
cost savings on labor involved with your mechanic

2. Safety concern:
the Electromagnetic retarder Brake is an active safety device that can help a vehicle stop more efficiently and within less distance; this becomes extremely important for Heavy Duty vehicles such as dump trucks or armored cars. The Electromagnetic retarder can afford 85% of braking demand, reducing the risk of fade of service brakes keeping them ready for an emergency situation.

3. Environmental Concern, no friction, less dust.

4. Comfortable trip taking from a more smooth bus driving.

Packaging & Shipping
