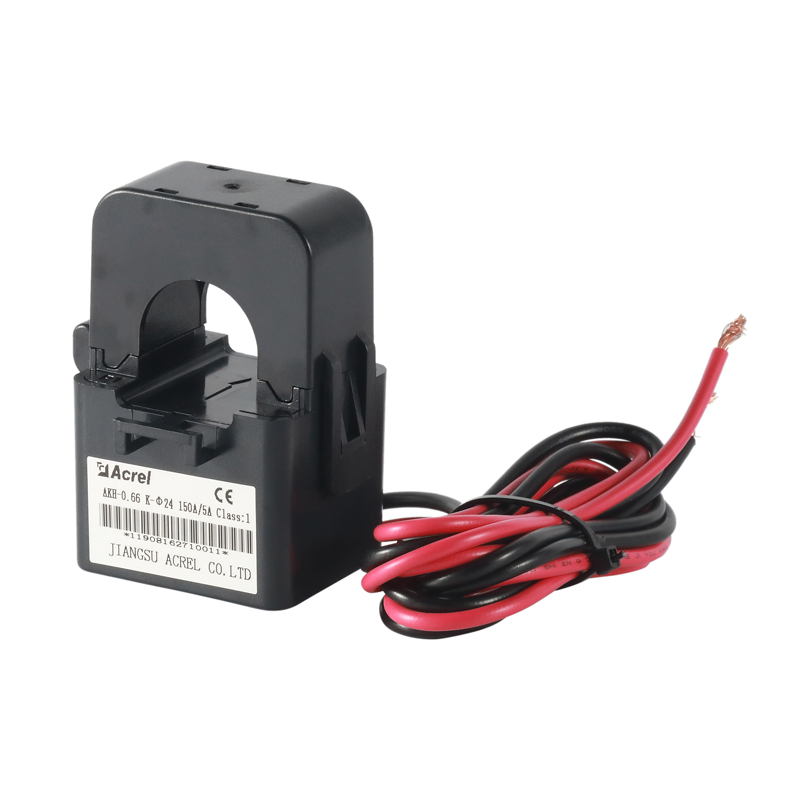

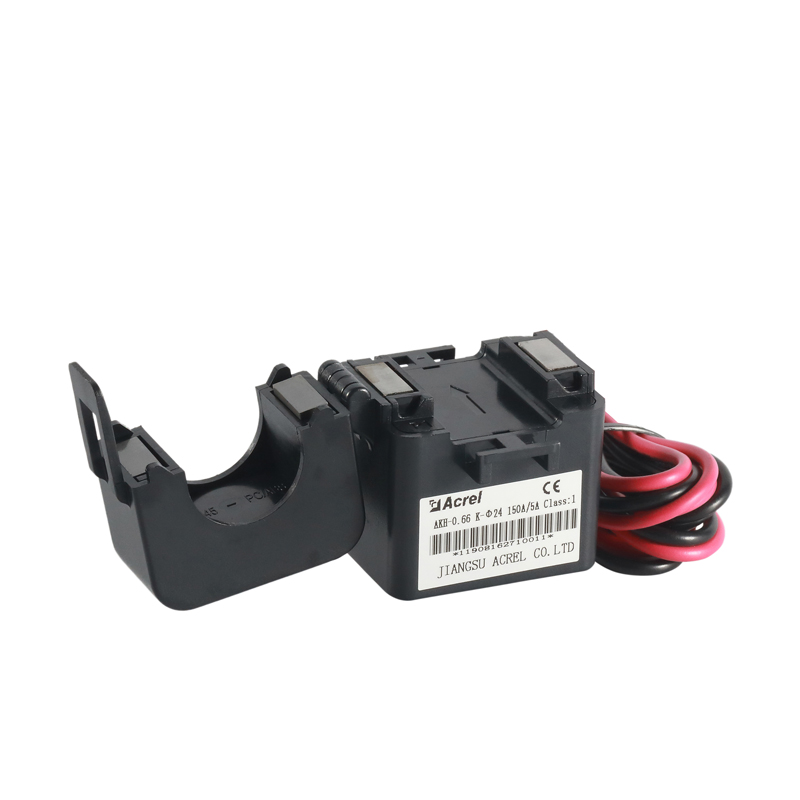

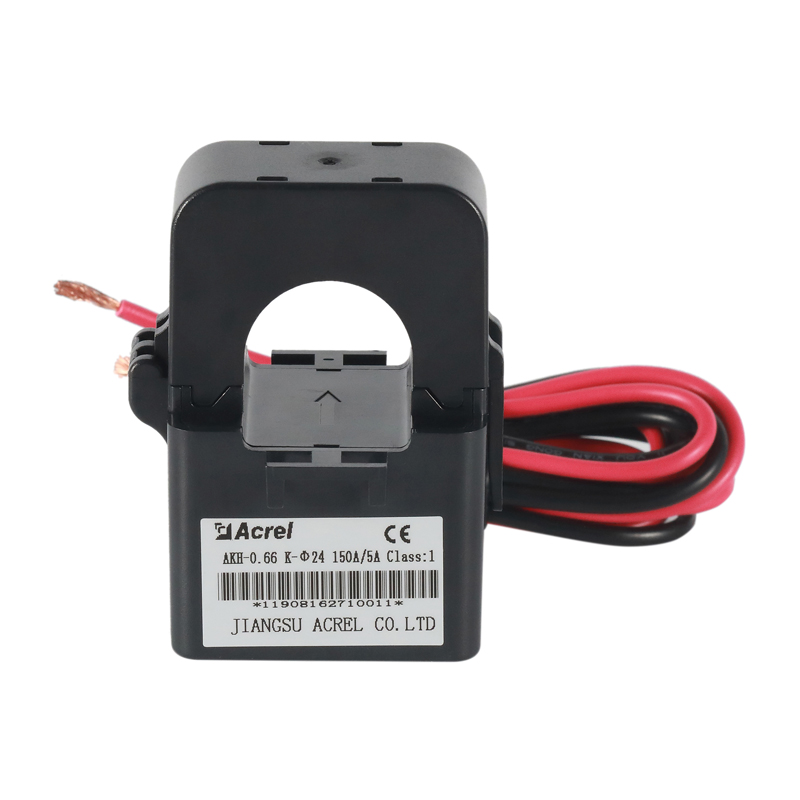

Acrel Multi Function 600/5a Low Voltage Ct Split Core Current Transformer for Automatic System Products from Acrel Electric Co., Ltd.

Product Details

Place of Origin:	Shanghai, China;	Single gross weight:	1.000 KG;
Coil Structure:	TOROIDAL;	Package Preview:	;
Coil Number:	AUTOTRANSFORMER;	Model Number:	AKH-0.66/K K-10 5A/1.25mA;
Packaging Detail:	Acrel Multi Function 600/5a Low Voltage Ct Split Core Current Transformer for Automatic System packed by carton;	Brand Name:	Acrel;
Usage:	Current;	Selling Units:	Single item;
Single package size:	20X20X20 cm;	Product name:	Open Type Single Phrase Residual Current Sensor Transformer;
Phase:	Single;

Opening Type Current Sensor Ratio Akh-0.66k Diameter 24mm Acrel Low Voltage Split Core Ac Current Meter Transformer

Product Paramenters

Gerneral

Current Transformer (CT) is used to transform the high AC current to small easily manageable values. They are connected with the
panel meter or relay and they can help to measure the current or protect the equipment.

Technical Parameter

Item			Value
Place of Origin			China
Brand Name			Acrel
Model Number			AKH-0.66K
Usage			Current
Phase			Three
Coil Structure			TOROIDAL
Coil Number			AUTOTRANSFORMER
Product name			AKH-0.66K Series Open Type Current Transformer
Certification			CE,ISO9001
Rated frequency			50/60Hz
Measuring range			60-400A
Environment Operating temperature			-25℃-+50℃
Rated voltage			AC 0.66kV
Accuracy Class			0.5
Rated load			10VA/Ω

Working Environment

Environment	Temperature	Operating Temperature: -25~+50℃ Storing Temperature: -40~+80℃
		Humidity	≤90%(No condensation)
		Altitude	≤2500m

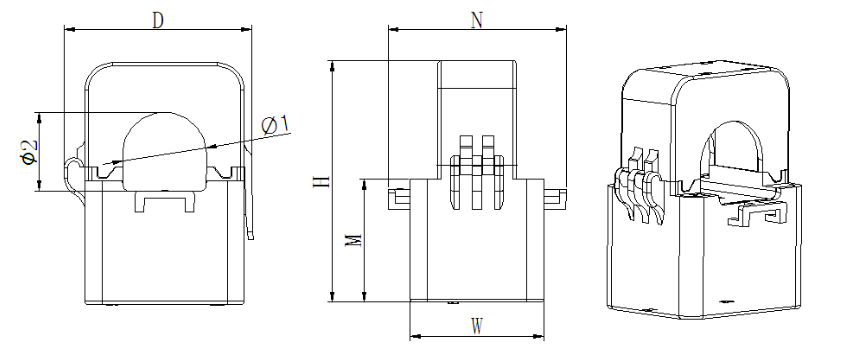

Dimension drawing

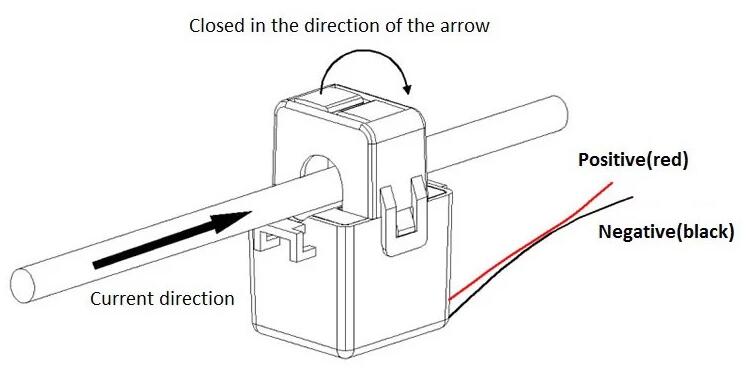

Installation

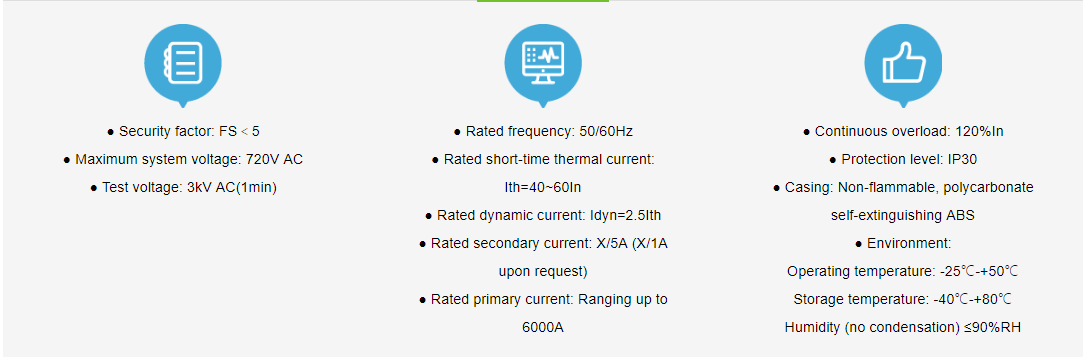

Characteristic
