Factory price Corrosion Resistant Titanium Evaporator Condenser Heat Exchanger tube and shell

Click here to contact
Product details
Payment Terms:L/C,Western Union,T/T;Packing:Wooden Case;
Refrigerant:R22,R407C,R410A;Machinery Test Report:Provided;
Core Components:tube;Tube material:Titanium, Stainless Steel,Copper;
Marketing Type:Ordinary Product;Brand Name:WH;
Packaging Detail:1 set/wooden case;Condition:New;
Medium:Fresh water, drink water, seawater, saltwater;Key Selling Points:Low Maintenance Cost;
Showroom Location:None;Warranty of core components:1 Year;
Applicable Industries:Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Other,Advertising Company;Application:Heat Transfer;
Maximum Working Pressure:Tube side 1.61 Mpa;Voltage:optional;
Liquid Flow Rate:Min.2.0 m3/h;Place of Origin:Jiangsu, China;
Dimension(L*W*H):optional;Port:Shanghai;
After Warranty Service:Online support/Video technical support;Product Name:Heat Exchanger;
Certification:ce/ISO 9001:2008;Supply Ability:20000 Sets per Month;
Heat exchanger type:Tube Heater Exchanger;Weight:29 KG;
Warranty:12 Months;Package Preview:;
Feature:Corrosion resistant;Structure:Tube Heat Exchanger;
Video outgoing-inspection:Provided;
Products Description

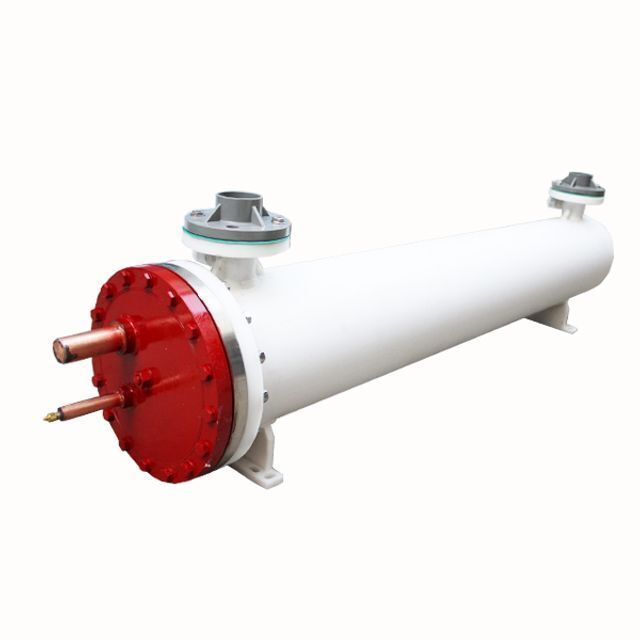

Corrosion Resistant U Shaped Shell And Tube Evapopator
Work Condition: 1)Refrigerant side: R22,R134a,R407c,R410a etc. 2)Water side: fresh water, nature water, drink water, seawater, saltwater, ground water etc . Material: 1)Heat transfer Tube: 316L / SUS304 / Copper / Titanium 2)Shell: 316L / SUS304 / Carbon steel / PP / PVC
Model
Capacity
Water Flow

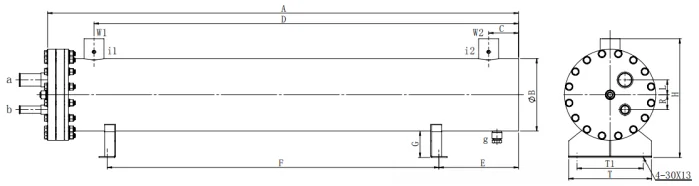

Extemal and Installation Dimensions
Freon Out
Freon In
Water In/Out
N.W
KW
m³/h
  A      B     C     D       E       F    G     H     R     L
a1
a2
a3
Kg
WHC-5.0DKG
11.6
2.0
660  170  90  500  130  400  60  200  35  35
22
19
50
29
WHC-8.0DKG
18.6
3.2
950  170  90  790  190  600  60  200  35  35
28
19
50
36
WHC-10DKG
23.2
4.0
1180 170  90 1020 350  600 60  200  35 35
28
19
50
40
WHC-12DKG
27.9
4.8
900  200  90  740  160  600  60  200  40  40
28
22
50
48
WHC-15DKG
35.0
6.0
1110 200 100 940 150 800  60  200  40  40
28
22
63
54
WHC-20DKG
46.5
8.0
1420 200 100 1250 370 800 60 200  43  43
38
22
63
64
WHC-25DKG
58.1
10.0
1460 225 100 1290 250 1000 60 260 200 43 43
38
28
63
78
WHC-30DKG
69.7
12.0
1360 250 100 1190 200 1000 60 260 53 53
38
28
63
95
WHC-40DKG
93.0
16.0
1720 250 110 1540 300 1200 60 260 5353
54
28
75
115
WHC-50DKG
116.3
20.0
2120 250 110 1940 500 1200 60 260 53 53
54
28
75
136
WHC-60DKG
139.5
24.0
2030 280 110 1850 500 1200 60 260 65 60
76
38
75
168
WHC-70DKG
162.8
28.0
2340 280 120 2150 500 1500 60 260 65 60
76
38
90
188
WHC-80DKG
186.0
32.0
2100 315 120 1910 350 1500 60 300 70 70
76
38
90
222
WHC-90DKG
209.3
36.0
2300 315 120 2110 500 1500 60 300 70 70
89
38
90
242
WHC-100DKG
232.6
40.0
2530 315 120 2340 650 1500 60 300 70 70
89
38
90
262
Product Feature

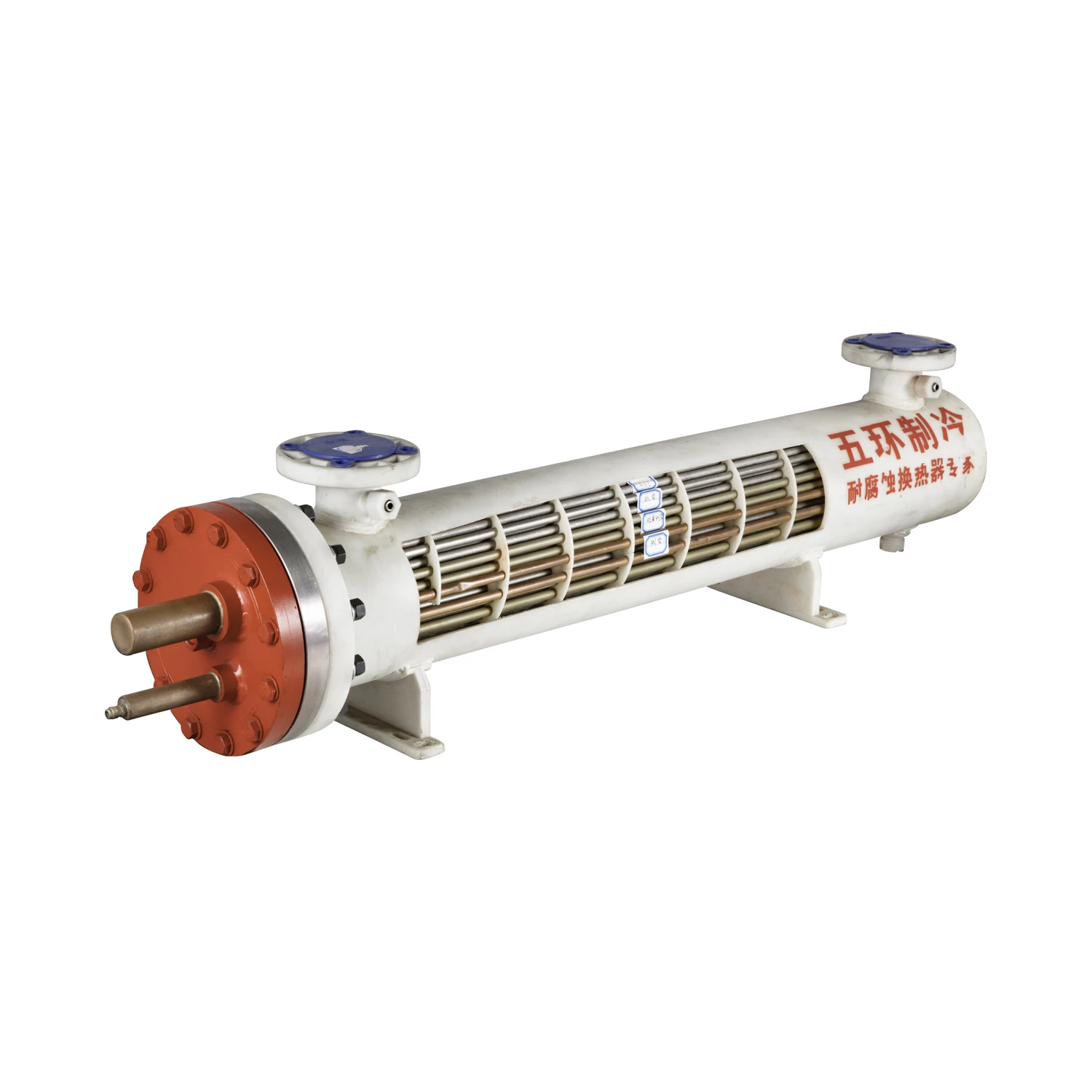

Titanium U tube
1. Internal enhanced groove, ensure high heat transfer efficiency; 2. TA1titanium tubes are available for seawater application;
3. Cooling capacity from 2.5TR to 1,000TR;
4. One to eight refrigerating circuits available;
5. CE ,ASME and BR1 certificate are optional; 6. Specification and performance can be customized as per requirements.

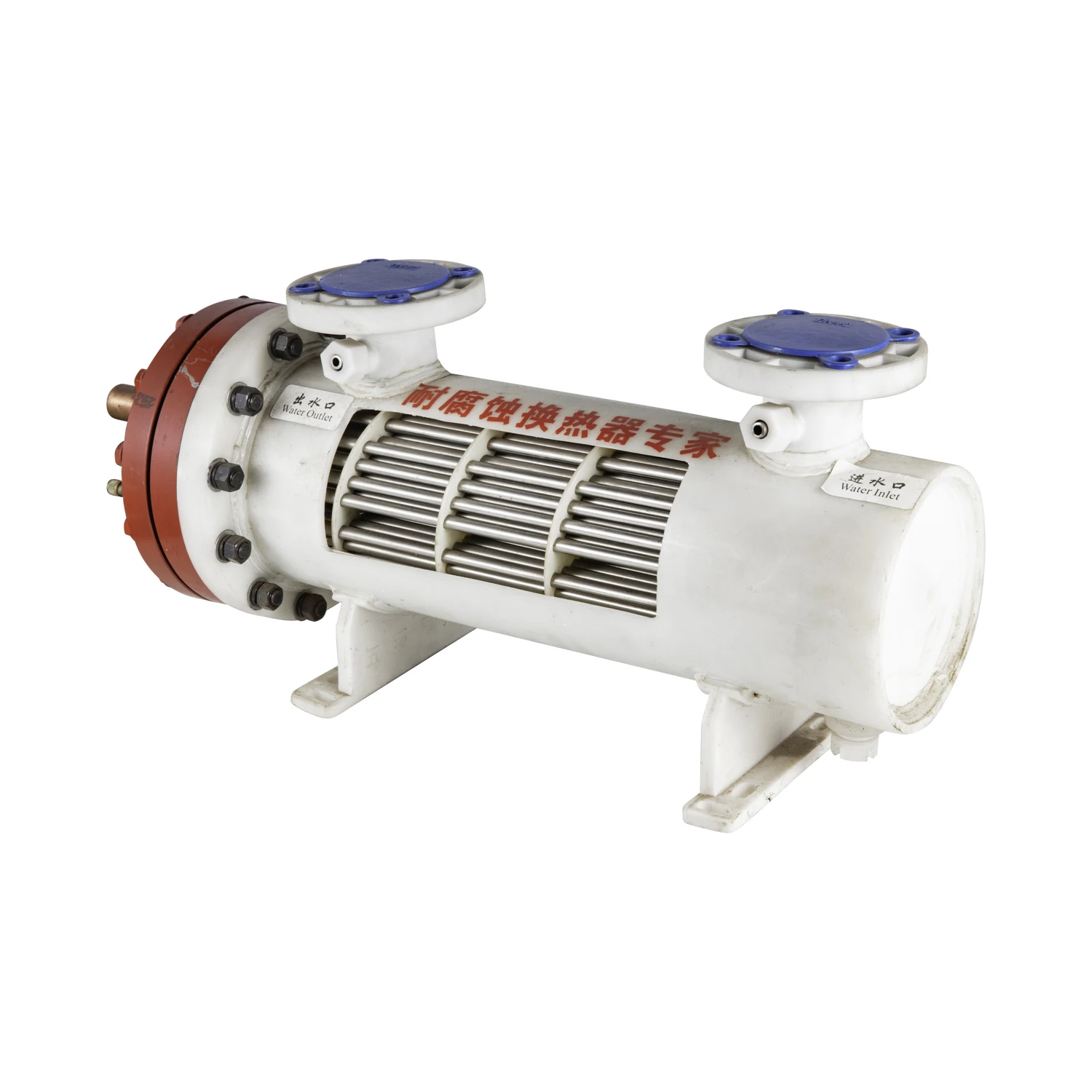

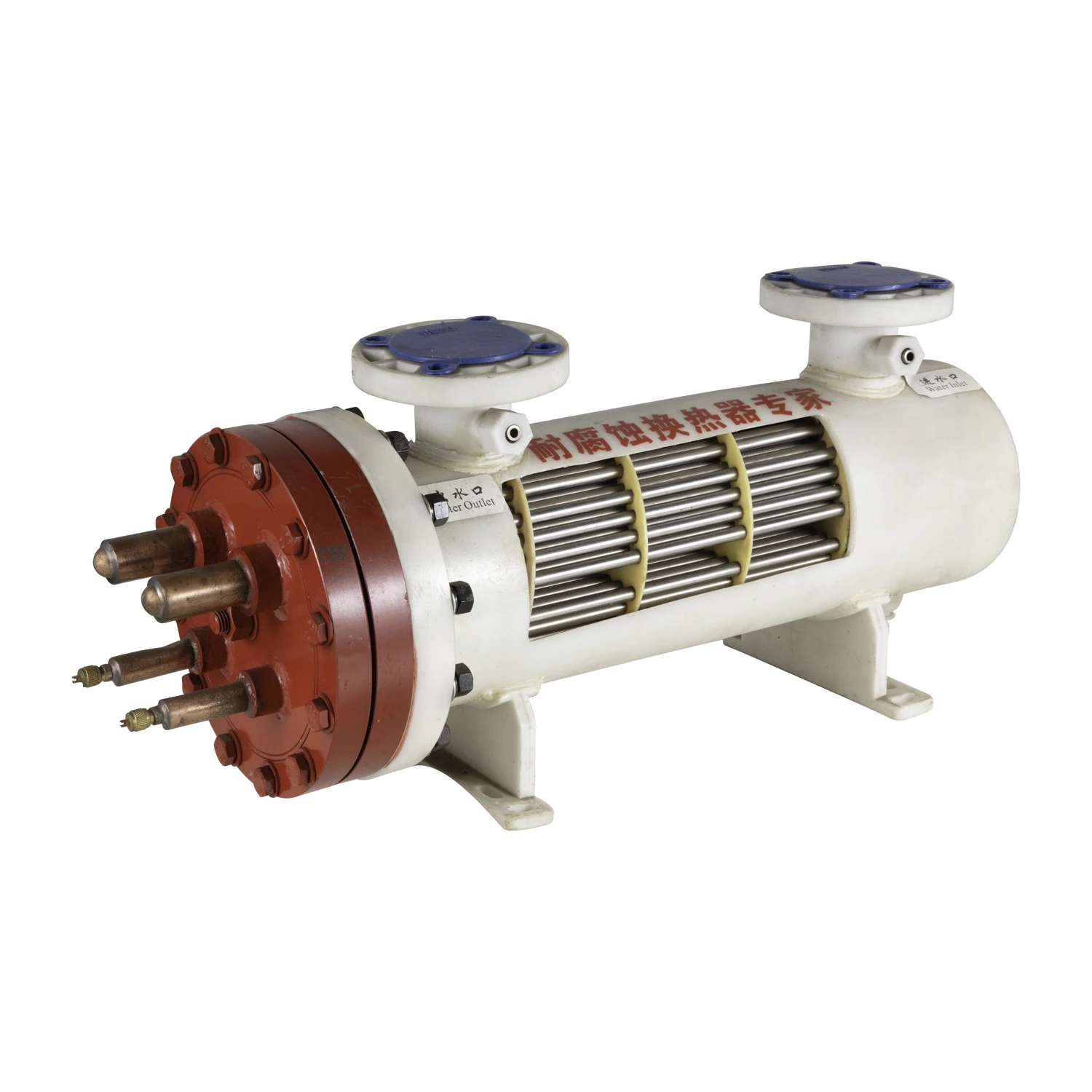

Removable Easy To Clean
You can take tube bundle out of shell, it can be easily claned.
The spiral baffle makes the shell side fluid flow in a continuous spiral shape.
About Us
Wuxi New Wuhuan Engery Saving Technology Co.,Ltd.designs and manufactures a wide range of heat exchangers for refrigeration, industrial and special applications .Our evaporators and condensers can be manufactured with different materials and can work with all types of fluids and with duty up to 6000 kW. We are prepared for the solution of different heat exchange problems, thanks to the widest experience of technical departments able to suggest technical solutions best suited to each customer's need.
Our Service
Hot Products
FAQ
1.Are you factory? Yes,we are one of the largest corrosion resistant heat exchanger manufactory in China. 2.Are there any discount for the heat exchangers? Yes. Bigger quantity will enjoy lower discount! 3.What information needed if I want a quotation? Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out ,Refrigrant Freon Type, Quantity, or any requirements in size. 4.What is the MOQ? We accept loose quantity order,mixed order,any trial orders. 5.When can I get the price? We usually quote within 8 hours after we get your inquiry.
