2 t/h 20 t/h diesel boiler Automatic Industrial Gas Fired Oil Steam Boiler Price

Supplier: Henan Swet Boiler Co., Ltd.
Region: Henan, China
Contact: Mr Swet Lee
Price: $6800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Thermal efficiency:	95.81%;	Keywords:	steam boiler price;
Steam temperature:	194 ℃;	Usage:	hospital chemical industry school;
Product name:	2 t/h Automatic Industrial Gas Fired Oil Steam Boiler Price;	Style:	Horizontal;
Working pressure:	1.25 MPa;	Type:	Natural Circulation;
Condition:	New;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Cash;
Design fuel:	gas fuel;	Port:	Tianjin or Qingdao Shanghai;
Color:	Customer's Requirement;	Structure:	Water Tube;
Brand Name:	swet(desheng);	Rated capacity:	2t/h;
usage:	Industrial;	Packaging Detail:	The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements.;
Delivery Detail:	within 35 days after get deposit;	Pressure:	Low Pressure(1.25MPa);
Model Number:	WNS2-31;	Dimension(LWH):	403020102210 (mm);
Warranty:	12 Months;	Fuel:	gas oil natural gas;
Supply Ability:	1500 Set/Sets per Year steam boiler price;	Weight:	1-20 Ton;
Certification:	ISO9001;	After-sales Service Provided:	Engineers available to service machinery overseas;
Place of Origin:	Henan China (Mainland);	Output:	Steam;

Product Description

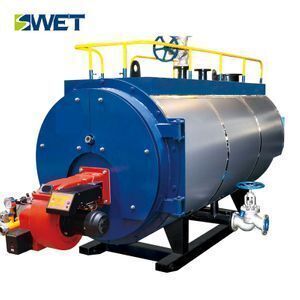

2 t/h Automatic Industrial Gas Fired Oil Steam Boiler Price

This oil &gas steam boiler is five-return fire tube steam boiler. The burning control, water feed, programs run, etc, is full automatic.It equipped with a bias furnace tube structure, and high temperature gas into the atmosphere through five-return smoke tube, smoke chamber. It equipped with good performance burner and advanced techniques. This fantasy boiler is safe and reliable, and also has the advantage of compact structure, simple operation, easy installation, high efficiency, less pollution and noise, etc

steam boiler,steam boiler,steam boiler,steam boiler,steam boiler,steam boiler,steam boiler,steam boiler,

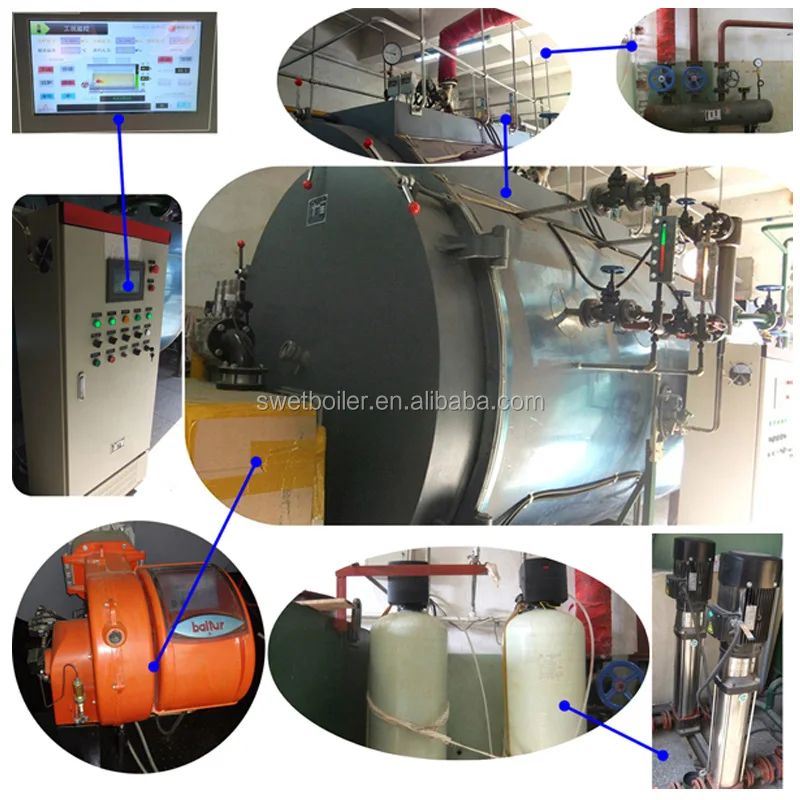

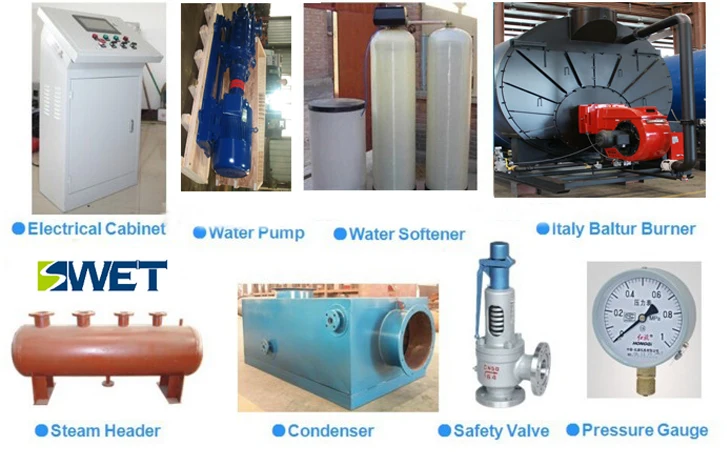

Boiler Parts

steam boiler,steam boiler,steam boiler,steam boiler,steam boiler,steam boiler,steam boiler,steam boiler,

Technical Parameters

WNS series automatic gas (oil) steam energy saving boiler product selection formWNS series automatic gas (oil) steam energy saving boiler product selection form
Model	Rated capacity	Working pressure	Steam temperature	Feed temperature	Testing efficiency	Gas consumption	Outline dimension
Unit	t/h	Mpa	℃	℃	%	Nm³/h	mm(LWH)
WNS20-2.5-Q(Y)	20	2.5	226	105	97.62	1407.5	866035204831
WNS20-1.25(1.6)-Q(Y)	20	1.25/1.6	194/204	105	97.51	1459	887035503750
WNS15-1.0(1.25)(1.6)-Q(Y)	15	1.0/1.25/1.6	184/197/204	105	97.2	1126	745035204090
WNS10-1.25(1.6)-Q(Y)	10	1.25/1.6	194/204	105	96.75	837.25	637028123514
WNS8-1.25(1.6)-Q(Y)	8	1.25/1.6	194/204	105	96.7	659.25	600029203403
WNS6-1.25(1.6)-Q(Y)	6	1.25/1.6	194/204	105	96.58	433.51	547027703195
WNS5-1.25(1.6)-Q(Y)	5	1.25/1.6	194/204	20	96.48	409.33	516024103015
WNS4-1.0(1.25)(1.6)-Q(Y)	4	1.0/1.25/1.6	184/197/204	20	96.3	334.23	488027102600
WNS3-1.0(1.25)(1.6)-Q(Y)	3	1.0/1.25/1.6	184/197/204	20	95.99	245.12	476224472469
WNS2-1.0(1.25)-Q(Y)	2	1.0/1.25	184/197/204	20	95.81	163.72	403020102210
Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output

Advantages

1. Boiler with light oil and gas for fuel, can also be used for city gas or liquefied petroleum gas, wide fuel adaptability, high efficiency and energy saving, low operation cost.

2. The boiler adopts full butt welding wet back structure, low layout of whole corrugated furnace boiler structure, elastic and thermal expansion good, safe and reliable.

3. Using 80mm thick aluminum silicate fiber insulation layer, light weight, good heat insulation effect, small heat loss.

4. The boiler computer control, high degree of automation, all kinds of safety protection device is complete, easy to operate, safe and reliable operation.

5. The boiler automation instrument and auxiliary reasonable, advanced and reliable.

company infomation

Henan Swet(original name DeSheng) Boiler Co.Ltd (former Kaifeng Boiler Plant ) was established in 1954 , located in the historic city of seven dynasties . It is a key enterprise in China engaged in A-class Boiler and D1 ,D2 pressure vessel .

It holds level 1 boiler installation permit ,three 4generations of hard work ,strive to built one hundred enterprises.Our main products including circular flow bed (CFB)boiler ,gas boiler,coal boiler,biomass boiler,oil boiler,power plant boiler , energy-saving boiler,solider waste boiler, high-efficiency boiler, electric hot water boiler,high-pressure boiler,fully automatic control boiler,wood chip biomass steam boiler,chain grate boiler,condensing boiler ,natural gas steam boiler ,water tube boiler,fire tube boiler ,full artificial intelligence boiler and another industrial boiler.

Automatic Industrial Boilers,Automatic Industrial Boilers,Automatic Industrial Boilers,Automatic Industrial Boilers,Automatic Industrial Boilers,Automatic Industrial Boilers,Automatic Industrial Boilers,Automatic Industrial Boilers,

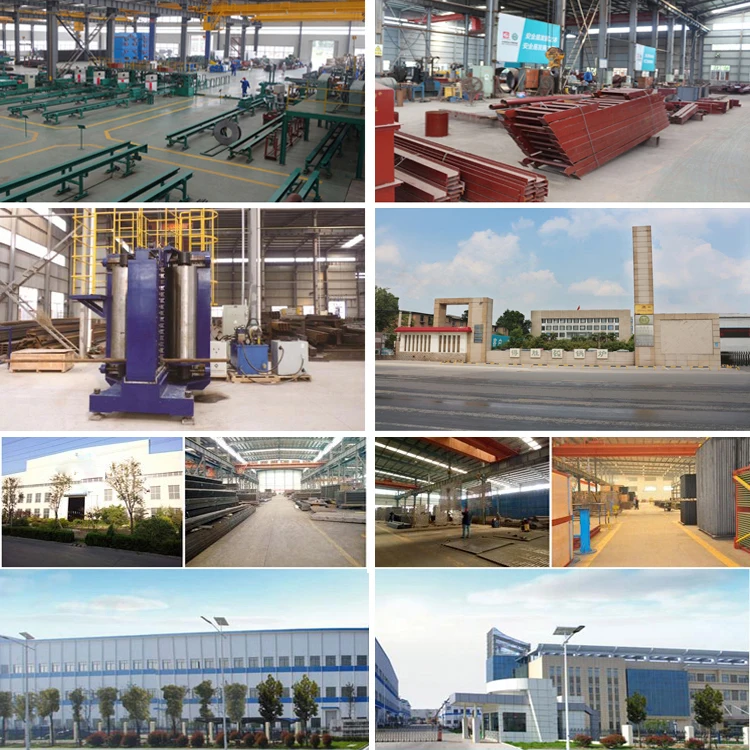

Enterprise Scale :Factory covers an area of 130000 square meters , the building area of 60000 square meters. Company technical force is abundant ,existing staff of more than 1100 people , engineering and technical personnel 217 people ,senior engineer 12 people .

Company Equipment : Company established a complete set of quality guarantee system ,and have obtained the ISO9001 certificate.Sophisticated equipment, advanced technology, the existing 343 sets of various devices, including large equipment are:1200 tons of hydraulic press, cutting plate machine, forging machine, 9m chamfering machine, 30 x300 and 50x2500 crimping machine,two lines of membrane wall, lines of serpentine tube , CNC plane drilling ,CNC drum drilling ,CNC cutting machine , D159 big pipe bender.

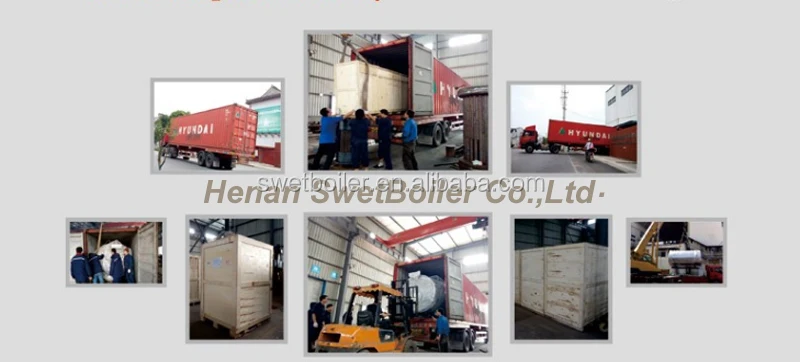

Packaging & Shipping
