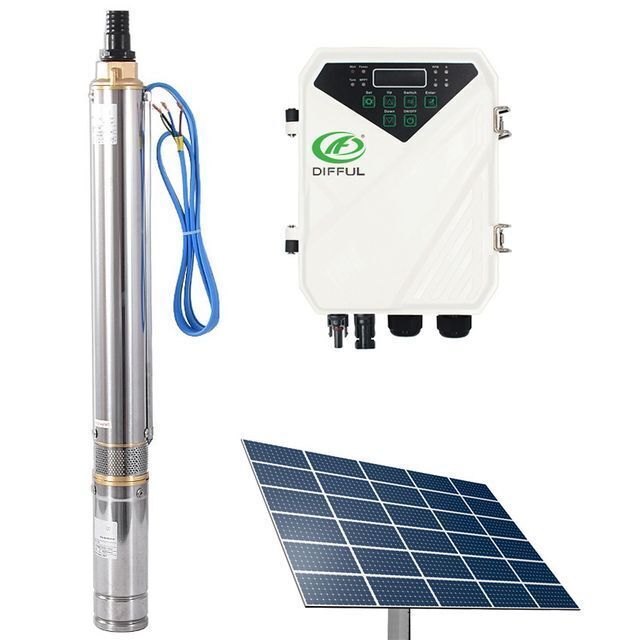

3inch dc submersible well water pump solar water pump for agriculture

Click here to contact
Product details
Model Number:3DPC3.5-80-48-600;Voltage:DC48V;
Water Proof Grade:IP68;Brand:DIFFUL;
Payment Terms:L/C,T/T,PayPal;Packaging Detail:Outer Packaging: high-quality strong export wooden box Inner Packaging: bubble bag to protect the controller and water pump from damage during transportation;
Controller:MPPT Function Controller;OEM:OEM Services Provided;
Material:stainless steel;Place of Origin:Zhejiang, China;
Application:Irrigation agriculture;Motor:Permanent magnet DC brushless synchronous;
Horsepower:0.75HP;Type:Solar Submersible Bore Well Water Pump;
Pump Power:DC Solar Energy;Package Preview:;
Port:NINGBO;Brand Name:DIFFUL;
MOQ:1 Piece;Warranty:2 Years;
Speed:4000RPM;Price include:Pump+Motor+Controller+accessories;
Supply Ability:500 Pieces per Day;
Products Description
Pump Model
3DPC3.5-80-48-600
Pump Body Diameter
3 inch
Outlet Diameter
1.25 inch or 1.5 inch
Max.Flow
3500 liter per hour
Max. Head
80 meter
Voltage
dc 48 v
Power
600  w
Solar Panel
2 pcs 330w in series
Tips:
In addition to this solar water pump model, we have hundreds of models to provide, please contact the sales for specific information.
Pump Advantage
How to Connect the Solar Pumps:
Pump connects U V W ,float switch connects TH COM
Very simple connection .
Tips 1: Do not reverse the positive and negative of power, otherwise it will not work.
Tips 2: Before you start wiring the controller box, switch must be in the off position
MPPT Controller Featurers:
Automatically run when power enough or tank is not full. Automatically off when tank is full.
Double seal effect in waterproof and leak-proof .
Soft start technology: No impulse current, longer life for the pump motor.
High voltage/Low voltage/Over-current/High temperature protection
DIFFUL SOLAR PUMP ADVANTAGES:
1,Permanent magnet DC brushless synchronous motor: the efficiency is improved by 15- 20%; Save energy; Reduce the consumption of solar pump
2,304 Stainless Steel pump shaft
3,NSK Double bearing,motor base work better under more axial pressure
4,Alloy mechanical seal ,longer working life and high reliability
5,Intelligent water shortage protection
6,MPPT controller
How to Choose Pump
How to Choose Solar Pump Model?
HEAD CALCULATE:
The horizontal water pumping distance and vertical water pumping distance, especially the vertical distance.

FLOW CALCULATE:
How many cubic meter water per hour/per day is needed for irrigation use?
Please refer to the technical data diagram below to select the solar pump model
Packaging
Packing Details:
Outer Packaging: high-quality strong export wooden box
Inner Packaging: bubble bag to protect the controller and water pump from damage during transportation
What We Get For You (Package Include): - 1 x DC brushless solar Pump with 2m cable - 1 x Pump controller with MPPT function - 1 x Stainless steel float switch (sensor for the tank) - 1 x Pump outlet joint connector - 1 x Splice kit for cable join
Customer Reviews
①Application of deep well solar pump to irrigation
②Village and town water supply
③Clean drinking water
④Garden watering
⑤Environment friendly
⑥Pumping and drip irrigation
Related products
About us

Zhejinag Dingfeng Electrical Appliance Co., Ltd is a professional manufactory for submersible solar pumps, surface solar pumps and deep well pumps. Our head office is located in Wenling, Zhejiang, which is established in 1989. And we found our branch office specially for solar pumps in 2016 in Ningbo, Zhejiang. We have kinds of advanced automatic winding machines and processing machines, 7 assembling lines and testing machines to control the quality. And we already got CE certificate, ISO9001, technical patents etc. Every month, we export at least 180200 pcs of solar pumps all over the world, and got countless buyer praise. We never stop the steps to improve and innovate our solar pumps to reach the different market requirements.


WHY CHOOSE US:
① We are among the top three in all solar pump factories in China, both in terms of professionalism and market share.
② According to last year’s annual report, the unqualified rate of our products was three out of one thousand.
③ Our factory will continue to develop new solar water pump products to meet customer needs for various types of solar water pumps.
④The controller, pump body, and motor are all produced in our own factory. The quality inspection of the whole set of solar water pump products is more comprehensive than that of other factories, and customers can get better prices.
⑤ We use good production materials to manufacture our solar water pumps, which greatly extend the service life and use efficiency of the pumps.
1. Q:What's your MOQ?
A:Trial sample order is OK.
2. What's your payment terms?
A: T/T,L/C,Credit Card(Visa card, Mastercard),PayPal etc.
3. Q: What is the delivery time?
A: Depending on purchase quantity.
4. Q:Can you we do OEM brand?
A:Yes,welcome your OEM.
5. Q: How to buy our pumps ?
A: Firstly we should know from you:
What is the fluid?
Clean water(temperature), dirty water(temperature), particles,or slurry?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electricity?
Other conditions from customer if possible: pump type,motor?
With complete information, then we select the pump and feedback to you
