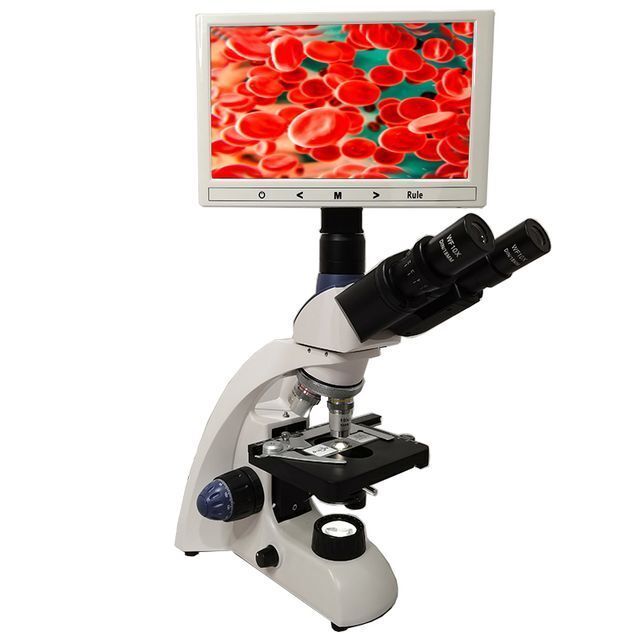

7 inch China LED light video biological lcd microscope/microscope with lcd screen

Supplier: Qingdao Dovoll Technology Co., Ltd.
Region: Shandong, China
Contact: Mr Wang fei
Price: $298.00 / 1 - 19 pieces
$256.00 / 20 - 49 pieces
$226.00 / >=50 pieces
Min. Order: 1 piece

Click here to contact

Product details

Magnification:	40X-1000X;	Working Stage:	Double Layer Mechnical;
Color:	White;	Customized support:	OEM,ODM,OBM;
Selling Units:	Single item;	Eyepiece:	Wide Field Eyepiece WF10X;
Theory:	Biological Microscope;	Model Number:	DV-50;
Place of Origin:	Shandong, China;	Illumination:	LED Illumination;
Package Preview:	;	Objective:	4X/10X/40X/100X;
Power Supply:	100~240V;	Drawtube:	Trinocular;
Single gross weight:	8.000 KG;	Warranty:	3 years;
Focusing:	Coaxial Coarse & Fine;	Brand Name:	Dovoll;
Packaging Detail:	Polyfoam protection and strong carton;	Light source:	Adjustable LED Lights;
Single package size:	24X26X32 cm;	Nosepiece:	4Holes;

Product Display

Parameter

Specification	Trinocular Biological Microscope DV50
Optical System	Finite Optical System
magnification	40x-1000x.(40x-1600x optional)
Head	30° Inclined, 360° Rotatable
Nosepiece	Backward quadruple nosepiece
Stage	Double Layers Mechanical Stage 126×115mm, Moving Range 76×50mm, Fine Division0.1mm
Focusing System	Coaxial Coarse And Fine Adjustment, Fine Division0.002mm, Coarse Stroke 37.7mm/Rotation, Moving Range 28mm,With Safty Stop
Illumination	5W LED lighting, predetermined center, continuous brightness adjustable.
Condenser	Abbe Condenser NA1.25 with Aperture Diaphragm
Power Supply	External Power Adaptor, Wide Voltage AC 100~240V, DC 5V/2A
Filter	Blue filter Φ 38
Package Size	Packing Box240214365mm
gross weight	5.5 KG

Eyepiece	large field of viewBinocular,Interpupillary Distance 50-75mm
Eyepiece		Field	WF10X/18mm
objective lens	Finite Achromatic Objective
		Magnification	4X	10X	40X	100X(oil)
		Condenser NA	0.1	0.25	0.65	1.25
		Distance(mm)	18.3	11	3.8	1.35

1. LCD screen: 7 inch 2. CCD camera: 2.0 MP (60FPS@1920X720P) 3. Interface: AV 4. It can only be seen.(Optional take photos, videos and measurements, etc.)

1. LCD screen: 9 inch 2. CCD camera: 2.0 MP (60FPS@1920X1080P) 3. Interface: USB 4. It can take photos, videos and measurements, etc.

1. LCD screen: 11.6 inch 2. CCD camera: 2.0 MP (60FPS@1920X1080P) 3. Interface: HDMI&USB 4. It can take photos, videos and measurements, etc.

Product Details

Packaging & Shipping

NO.	Name	Number	Note
1	Microscope	1
2	10X eyepiece	2
3	16X eyepiece	2
4	HD LCD screen (7 inch )	1	Optional 9inch / 11.6 inch
5	Filter	1
6	Objectives	4	4X/10X/40X/100(oil) each one
7	Dust cover	1
8	Power line	1
9	Packaging	1	Polyfoam protection and strong carton
10	Shipping time		5-15 days after receive the deposit

Product Application

Biological microscope is widely used in medical and health institutions, laboratories, NongKeSuo units, research institutes and institutions of higher learning for biology, bacteriology and pathology observation, teaching and professional study, clinical experiment and routine medical inspection, the product modelling is novel, structure and uses a variety of advanced technology, make the instrument easy to use, safe and reliable.

Our advantages

1. Manufacturer direct price

2. Nice quality and nice price

3. Small order welcome

4. Support OEM

5. Support 7 day refund money

6. Provide technical support
