Stock 1D Laser Bar code Scanner Wired Barcode Scanner With Stand Auto Barcode Reader QR
- 9.99 piece
| Packaging Detail: | * Single Package Size: 167*80*100mm * Single Gross Weight: 0.4KG * 50pcs/CTN Carton Size: 535*420*350mm * 50pcs/CTN Carton G.W.:14Kg, N.W:12Kg; | Optical Resolution: | 4mil,4mil; |
| Private Mold: | Yes; | Selling Units: | Single item; |
| Product name: | 1d laser barcode scanner; | Interface Type: | PS/2,usb,RS232; |
| Brand Name: | YHDAA; | Scan Speed: | 300 Scans/sec; |
| Color: | Black/White; | Warranty(Year): | 2-Year; |
| Product Type: | Barcode scanner with display; | Interface: | TTL,RS232,KBW,USB; |
| After-sales Service: | Return and Replacement,Others,Repair,Free spare parts,Onsite Training and Inspection,Call Center and on-line Technical Support; | Light source: | 650 nm visual laser diode; |
| Scan Element Type: | CIS; | Button life: | 8000,000 times; |
| Place of Origin: | Guangdong, China; | Package Preview: | ; |
| Bit error rate: | 1/5millon,1/20million; | Certificate: | CE,FCC,RoHS,IP54; |
| Single gross weight: | 0.450 KG; | Laser life: | 12000 hours; |
| Single package size: | 18X10X13 cm; | Type: | Barcode Scanner; |
| Colour Depth: | 32 Bit; | Max Paper Size: | 30CM; |
| Products Status: | Stock; |
Stock 1D Laser Bar code Scanner Wired Barcode Scanner With Stand Auto
| Which One To Choose? | |||||||
 |
|||||||
| Model | YHD-1100L | YHD-1100LW | YHD-1100LB | YHD-1100C | YHD-1100D | YHD-1100DW | YHD-1100L+ |
| Barcode Types |
1D | 1D | 1D | 1D | 1D&2D | 1D&2D | 1D |
| Scanning Technology |
Laser | Laser | Laser | CCD | CMOS | CMOS | Laser |
|
Battery capacity |
--- | 1800 mAh | 1800 mAh | --- | --- | 1800 mAh | --- |
| Screen Scan | --- | --- | --- | √ | √ | √ | --- |
| Connections | Wired |
Wireless Wired |
Wireless Wired Blue tooth |
Wired | Wired | Wireless Wired |
Wired |
| More product parameters and prices please contact us! | |||||||

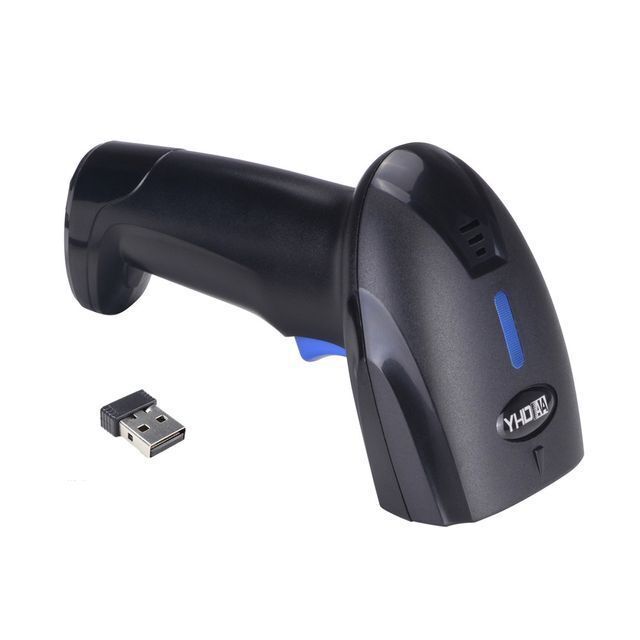

Model: YHD-1100LW 1D Wireless Barcode Scanner
* Factory direct sale, Low price high performance.
* With mini USB receiver, plug and play.
* Large capacity battery,1800MAH Li-ion battery.
* Service life of button reaches up to 5 million times.
* 32-Bit ARM processor and scan speed 300scans/sec.
* 2.4GHz wireless and USB wired connection,2modes for option.
* Supports instant upload mode and storage mode.
* 2.4G Wireless communication distance outdoor 100m,indoor 80m.
* Support connection with computer, laptop. Compatible Operating System for Linux, Windows XP,7,8,10.
* Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
* Can be customized according to customer demand.
|
Product Specification: YHD-1100LW 1D Laser Wireless Barcode Scanner |
||
|
Scanner parameters: |
||
|
Transmission mode:2.4G Wireless/Wired |
Scanning type: Bi-directional |
|
|
Distance:100m/1.5m |
CPU:ARM 32-bit Cortex |
|
|
Storage:100,000 barcodes |
Battery: 1800mAh |
|
|
Trigger Mode:Handheld,Continuous |
Light source:650nm LD |
|
|
Printing Contract :≥25% |
Indication:Buzzer & LED |
|
|
Resolution :4mil |
Scanning width :5-30cm |
|
|
Decoding speed:300scans/sec |
Bit error rate :1/5million |
|
|
Button life :5000,000 times |
Laser life:12000 hours |
|
|
Depth Of Field |
4mil |
2mm-85mm |
|
10mil |
2mm-320mm |
|
|
15.6mil |
5mm-580mm |
|
|
35mil |
10mm-900mm |
|
|
Decoding Capability: 1D:UPC/EAN,with complementary UPC/EAN,Code128,Code39,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,etc |
||
|
Scanning angle:rotor angel±30°,inclination± 55°,declination ± 60° |
||
|
Anti inference:industrial lighting or sun will not make any difference |
||
|
Temperature : Working : -20℃-50℃ Storage: -40℃-60℃ |
||
|
Working current:38mA--185mA(max peak) |
Standby current :30mA |
|
|
Working time :3 to 7days |
Charging power:5V |
|
|
Material : ABS+PC |
Drop test :1.8m |
|
|
Certificate :CE,FCC,RoHS,IP54 |
||
A: There are DHL,Fedex,TNT, UPS.
We also can ship the goods by your shipping account or other express agent you provided.
Q2. What's the payment way ?
A: We accept Alibaba online orders, PayPal, T /T, LC, Western Union, MoneyGram.
Q3. How about your product warranty ?
A: Our officially promised warranty time is two years after delivery.
Q4. How can I get the goods ?
A: We will choost the fast , safe , and cost saving way to send goods to you.
With well packed carton by foam and plastic film to advoid goods damage.
Q5. If I come across any problem during product using ,
where I can get the support ?
A: We support you technically 24h/7.please send all your questions to us.
and we will give the professional,patient,expliantion by email or call in time.
