1D 2D QR Barcode Scanner Module Engine Embedded CCD Fixed Bar Code Reader Module for Kiosk RS232 USB Interface OEM ODM

Supplier: Shenzhen Yuhengda Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Speshow YHDAA
Price: $22.99 /piece
Min. Order: 1 piece

Click here to contact

Product details

Scan Speed:	500 Scans/sec;	Type:	Barcode Scanner;
Decode Capabilities:	1D QR 2D;	After-sales Service:	Return and Replacement,Others,Repair,Onsite Training and Inspection,Call Center and on-line Technical Support;
Interface Type:	COM,usb,RS232/TTL;	Brand Name:	YHDAA;
Max Paper Size:	A4 Size;	Indication:	Buzzer & LED;
Single gross weight:	0.2 KG;	Light source:	620nm Visible red light diode/CMOS;
Optical Resolution:	4mil;	Color:	Black;
Trigger Mode:	Continuous,Auto-Induction;	Scan Element Type:	CMOS;
Warranty(Year):	2-Year;	Warranty:	2 Years;
Place of Origin:	Guangdong China;	Size:	5037 22mm;
Packaging Detail:	* Standard list: Scanner1, Cable 1, Manual 1, Box 1. * Single package size: 1239042mm (USB/TTL/Micro USB) ; 12060120mm(RS232) * Single gross weight: 0.15kg(USB/TTL/Micro USB) ; 0.2kg(RS232) * 120pcs/CTN( USB/TTL/Micro USB); 60pcs/CTN((RS232) * Carton: 120pcs/21KG( USB/TTL/Micro USB) ; 60pcs/14KG((RS232) * Carton Size: 438380380mm;	Colour Depth:	32 Bit;
Certificate:	CE FCC ROHS IP54;	Product name:	YHD-M300(2D) Mini scanner module;
Products Status:	Stock;	Drop test:	1.5m fall to concrete;
Single package size:	12X6X12 cm;	Selling Units:	Single item;
Certification:	FCC,ce,RoHS;	Package Preview:	;

1D 2D Barcode Scanner Module Engine Embedded CCD Fixed Bar Code Reader Module for Kiosk RS232 USB Interface OEM ODM

Product Description

* 1D /2D Optional.

* No driver, plug and play.

* Supporting the RS232,USB,TTL,Micro USB interface.

* Continuous scan/auto-sense(for choice),very comfortable operating.

* Super scanning and decoding ability, can read incomplete and fuzzy codes.

* Scanner reads 2D & 1D barcodes printed on labels or displayed on device screens.

* Mini size and lightweight easy to be integrated into various solutions such as kiosks, flow line,medical equipment,ticketing machines,vending machines, and many more.

* Can be customized according to customer demand.

Product Specification	YHD-M300(2D) Wired CMOS Barcode Scanner Module
Imaging Sensor	CMOS
Optical Source	620nm Visible red light diode
Trigger Mode	Continuous,Auto-Induction
Indication	Buzzer & LED
Resolution Ratio	30 million pixels

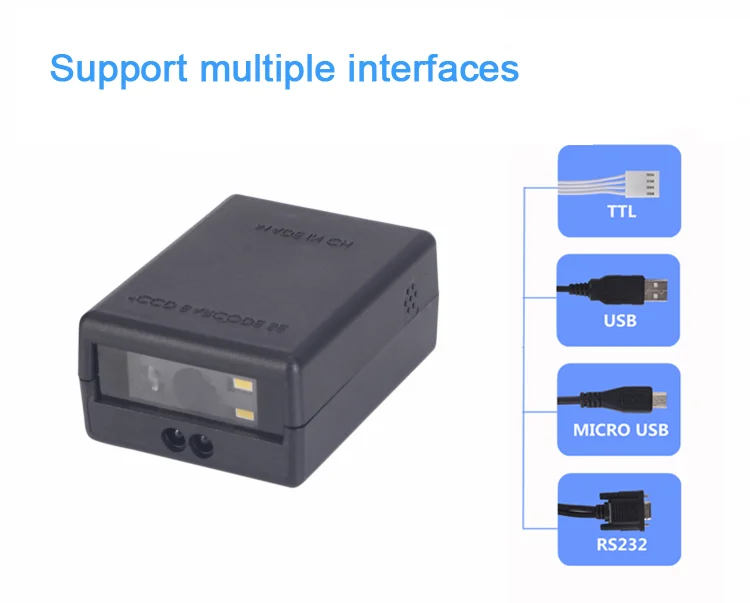

Interface	RS232,USB,TTL,Micro USB
Resolution	4mil
Weight (without cable)	22g

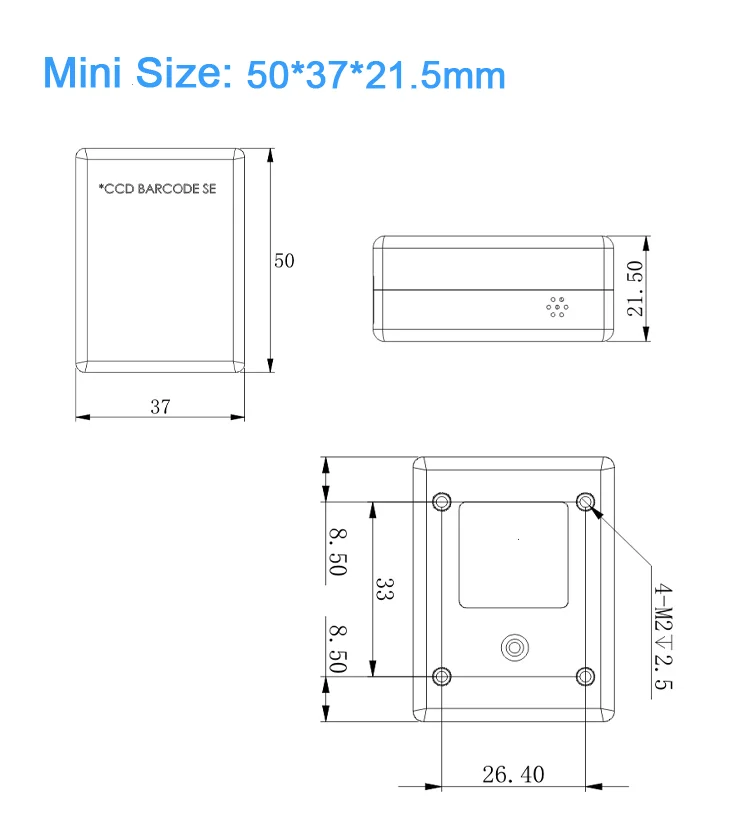

Dimensions(scanner)	50×37×22 mm (Length x Width x Height)
Minimum Contrast	≥ 30%
Decoding Capability	1D: CODE128 EAN-8 EAN-13 UPC-E UPC-A Interleaved 2 of 5 ITF14 MATRIX 25 Code39 Codabar Code93 UCC/EAN-128 Code11 ISBN INDUSTRIAL25 STANDARD25 Plessey MSI_Plessey 2D: PDF417 QR Aztec DataMatrix Maxicode MicroPDF417 etc
Max.Power	700mw
Working Voltage	5V
Current	Max. : 212mA Working : 156mA~212mA Stand-by : 156mA
Temperature	Storage: -40°C ~ 60°C Working: -20°C ~ 60°C
Relative Humidity	5%-95%Relative humidity, no condensation state
Drop test	1.5m fall to concrete
Certificate	CE,FCC,RoHS,IP54

OEM Service

Company Information

Q1. What's the shipping way ?
A: There are DHL,Fedex,TNT, UPS.
We also can ship the goods by your shipping account or other express agent you provided.
Q2. What's the payment way ?
A: We accept Alibaba online orders, PayPal, T /T, LC, Western Union, MoneyGram.
Q3. How about your product warranty ?
A: Our officially promised warranty time is two years after delivery.
Q4. How can I get the goods ?
A: We will choost the fast , safe , and cost saving way to send goods to you.
With well packed carton by foam and plastic film to advoid goods damage.
Q5. If I come across any problem during product using ,
where I can get the support ?
A: We support you technically 24h/7.please send all your questions to us.
and we will give the professional,patient,expliantion by email or call in time.
