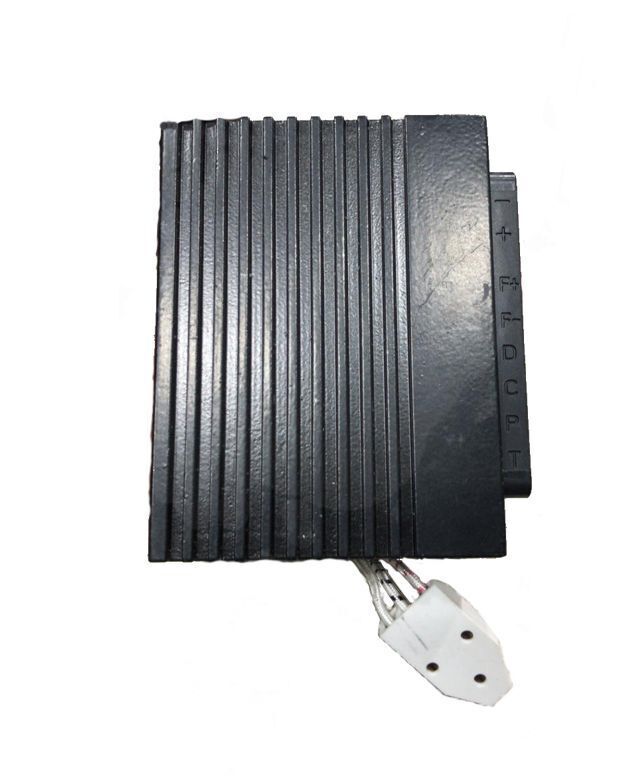

12V/24V DC refrigerator compressor controller

Product details
Place of Origin:Zhejiang, China;Port:Shanghai/Shenzhen/Guangzhou/Yiwu/Ningbo;
Applicable Industries:Hotels,Garment Shops,Restaurant,Home Use,Retail,Food Shop;Condition:New;
Model Number:ZY-CC100DC12-24V-B3;Weight (KG):0.3;
Supply Ability:1000 Pieces per Month;Power:130W;
Video outgoing-inspection:Not Available;S/N:20160804917;
Marketing Type:Ordinary Product;After-sales Service Provided:Video technical support;
Brand Name:OEM;Machinery Test Report:Not Available;
Payment Terms:L/C,Western Union,T/T,MoneyGram;Application:Refrigeration Parts;
Compressor rotating range:2000~3500rpm;Temperature protection:85℃;
Type:Compressor;Showroom Location:None;
Certification:ce;Voltage:12V/24V;
Product name:12V/24V DC refrigerator compressor controller;Warranty:1 Year;
Product Description
ZY-CC100DC12/24V-B type
Features:
● Suitable for brushless DC compressor motors with a design voltage of DC12V and below; ● Suitable for QD25~QD35 DC compressor control with DC 12V or 24V power supply; ● Suitable for 30~150L DC refrigerators, solar DC refrigerators and freezers; ● Small-volume all-aluminum shell design, easy installation and good heat dissipation; ● Maximum power limit to ensure battery life and compressor reliability; ● Automatically identify and switch between DC12V and DC24V power supply systems. Product parameters: ● The input voltage range is DC9.6V~DC31.5V (low voltage LV type DC8.5V); ● The compressor speed range is 2000~3500 rpm; ● Input power limit is 130W; ● The temperature protection value of the controller is 85 degrees;

Specification
Model No.:
ZY-CC100DC12/24V-B3
Voltage
12V/24V
Power
130W
Rotate speed
2000~3500rpm
Related Products
Application
Packing & Delivery
Company Information
Nanning Nan Yuanfang Equipment Co., Ltd. was in range of developing, producing and selling refrigeration equipment and accessories for more than 20year.
Our factory was located in Changsha Hunan Province. Our products including: copper tube, compressor, vacuum pump, recovery unit,air curtain, refrigerant, manifold gauge, single gauge, pressure gauge, digital manifold gauge, refrigerant tube, quick couplers,leak detector, scale, flaring tool, Bending tool, tube expander, tube cutter, capillary tube plier, deburring tool and pipe tools,digital multimeters, sound level meter and other refrigerant equipment accessories. Small order and OEM are welcome.
