High quality R600a 1/4 hp Refrigeration Refrigerator Compressor

Supplier: Nanning Nan Yuanfang Refrigeration Equipment Co., Ltd.
Region: Guangxi, China
Contact: Mr Boqing Yang
Price: $23.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Cylinder capacity:	10.1 Cubic Centimetre;	Certification:	CCC/VDE;
Refrigerant:	R600a;	Weight:	7.8±0.4kg;
Brand Name:	Donper/OEM;	Package Preview:	;
Place of Origin:	Hubei China;	Type:	Refrigeration Compressor;
Product name:	High quality R600a 1/4 hp Refrigeration Refrigerator Compressor;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Cooling capacity:	170W;	Horse Power:	1/4-;
Supply Ability:	10000 Piece/Pieces per Month;	Input power:	120W;
Warranty:	1 year;	Working current:	0.6A;
After-sales Service Provided:	Online support;	Voltage:	220V~240V/50HZ;
Application:	Refrigeration Parts;	Motor Type:	RSCR;
Port:	Shanghai/Shenzhen/Guangzhou/Yiwu/Ningbo;	Packaging Detail:	In cartons,1pc/ctn;

Product Description

Compared

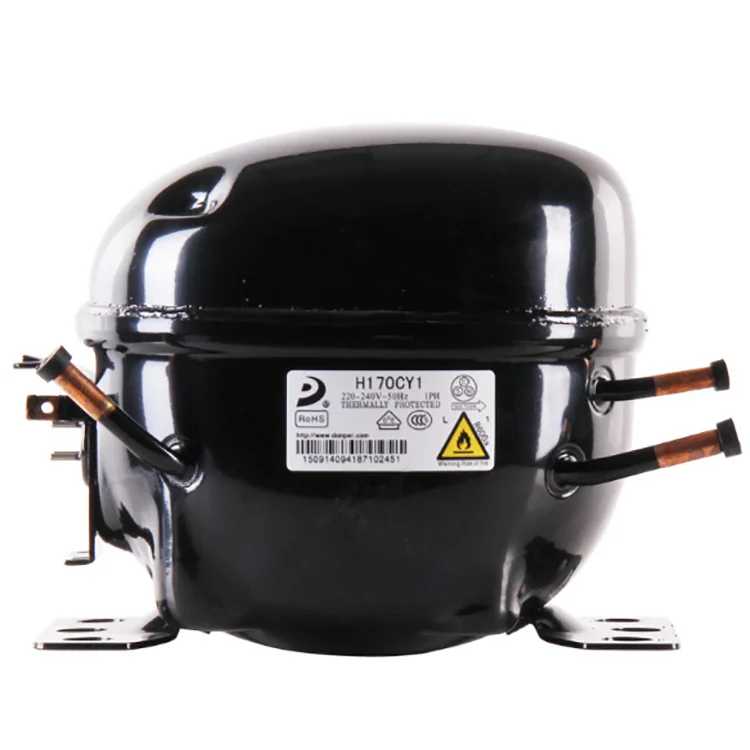

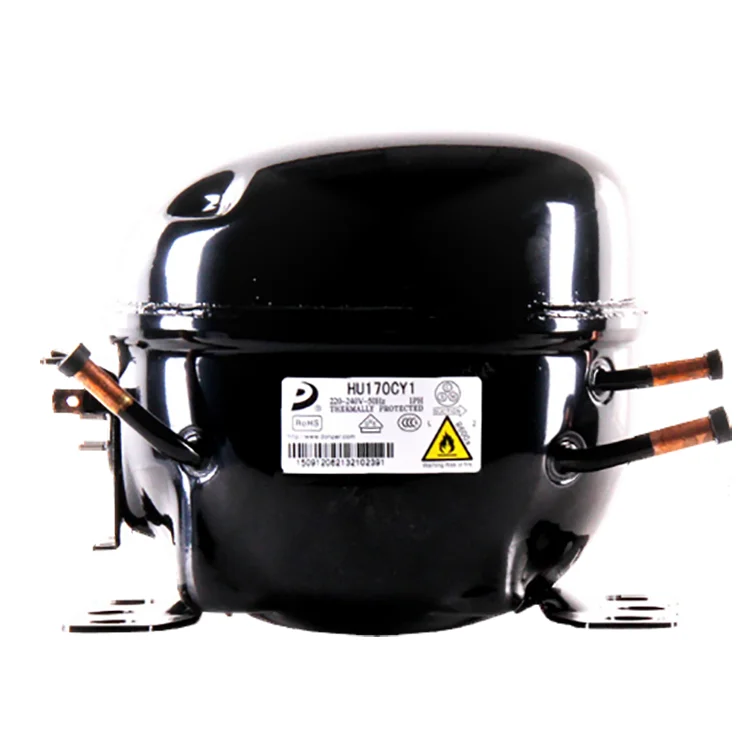

Model no	H170CY1	HU170CY1
Refrigerant	R600a	R600a
Cooling capicity	170w	170W
Input power	120w	108W
Hose Power	1/4- HP	1/4- HP
Temperature application	LBP	LBP
Displacement	10.1cm³	10.1cm³
Working Current	1.1A	0.6A
Voltage	220V~240V/50Hz	220V~240V/50Hz
COP	1.42W/W	1.6W/W
Motor type	RSIR	RSCR
Cylinder capacity	10.1cm³	10.1cm³
Cooling type	Not Need a fan motor	Not Need a fan motor
Weight	7.5±0.4kg	7.8±0.4kg

Note

Do not remove the rubber plug before installing the compressor to prevent dirt and moisture from entering.
The compressor must not be tilted or inverted when stored, transported or installed, while avoiding impact.
When the compressor is working, it is inclined by no more than 5° from the horizontal state.
The compressor is filled with the best amount of special refrigeration oil approved by Dongbei, and should not be poured or added at will.
In order to ensure the system pressure balance, the compressor running time must not be less than 4 minutes.
The compressor cannot withstand high pressure or start and run under vacuum conditions. The system cannot be vacuumed with a compressor.
The design of the refrigeration system should fully consider the oil return of the system.
The operating temperature of the compressor should not be higher than 43 °C. At maximum room temperature (43 ° C), continuous operation, condensing pressure and maximum peak pressure should not exceed the following values.
The compressor should be stored in a dry place.
