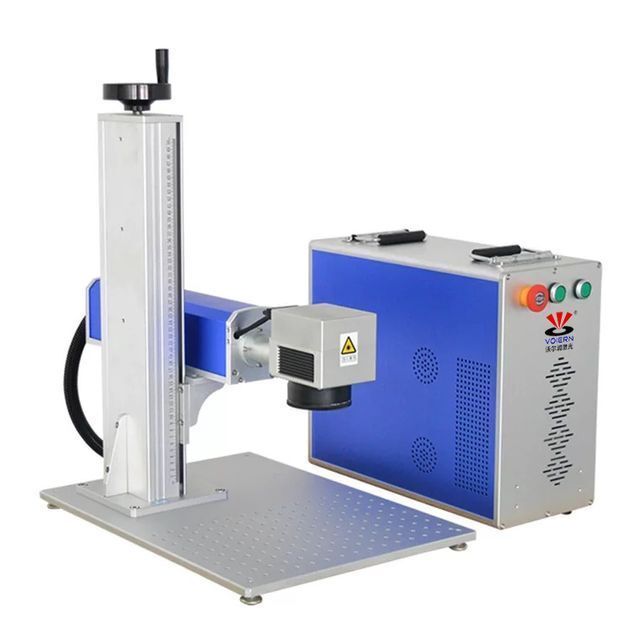

VOIERN Split Desk Portable Type 20w 30w 50w 100W Fiber CO2 Laser Marking Machine

Supplier: Liaocheng Voiern Laser Technology Co., Ltd.
Region: Shandong, China
Contact: Mr Ronny W
Price: $1330.00 /set
Min. Order: 1 set

Click here to contact

Product details

CNC or Not:	Yes;	Certification:	ce;
Laser Source Brand:	RAYCUS;	Working Accuracy:	0.01mm;
Warranty of core components:	5 years;	Video outgoing-inspection:	Provided;
Key Selling Points:	Sustainable;	Weight (KG):	66 KG;
Control System Brand:	JCZ;	Warranty:	2years;
Core Components:	Laser Device,Galvonameter,Main board;	Marking Head Brand:	SINO;
After-sales Service Provided:	Engineers available to service machinery overseas;	Laser Type:	Fiber Laser;
Graphic Format Supported:	AI,BMP,Dst,Dwg,DXF,DXP,LAS,PLT;	Control Software:	JCZ Software;
Place of Origin:	China;	Application:	Laser Marking;
Brand Name:	voiern;	Selling Units:	Single item;
Configuration:	stand-alone;	Single gross weight:	65.000 KG;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Condition:	New;
Machinery Test Report:	Provided;	Single package size:	70X47X80 cm;
After Warranty Service:	Online support;	Marking Area:	300*300MM;
Mode of Operation:	Pulsed;	Feature:	Deep marking;
Cooling Mode:	Air Cooling;	Packaging Detail:	Plywood Packing;

Product Description

Portable Type Fiber Laser Marking Machine with JPT/MAX/RAYCUS Source

1. Model: Fiber Laser Marking Machine
2. Applicable materials:
Applicable various metal, such as silver, alloy, aluminum, stainless steel, copper etc, and some non-metal materials, such as
PVC,PC, black acrylic.
3. Applicable industry:
They are widely applying for electronic, jewelry, automobiles, communication products, plastic buttons, IC etc.

Parameter

NO.	ITEM	DATE
1	Laser power	20W 30W 50W 100W
2	Laser wavelength	1064nm
3	Beam quality	M2<2
4	Control software	Ezcad (provided)
5	Marking depth	≤0.3mm
6	Cutting depth	≤1mm(30W 50W 100W mark 1-3mins repeatedly then can cut)
7	Marking speed	≤7000mm/s
8	Minimum line width	0.01mm
9	Minimum character	0.5mm
10	Marking Size	110 * 110mm ( 75mm 200mm 300mm optional )
11	Electric power	<500W
12	Working voltage	110/220V ± 10%, 50/60HZ
13	Cooling way	Air cooling
14	Ambient operating temperature	15 ° C - 35 ° C
15	Graphic file format	PLT, DXF, AI, BMP, JPG
16	Machine weight	39
17	Machine size	56L * 55W * 72H (cm)
18	Packing	Plywood box

Machine detail

Sino-Galvonameters

High speed scanning， galvanometer with SINO technology,

fast marking speed,
high precision.

Optical double red light

Configure with double light

easy to find the right focus

length,but needs to add some

cost

IMPORTED LENS

75MM*75MM ,100*100MM,150*150MM ,200*200MM ,300*300MM

Above working area optical

Same power for example 20W if working area smaller,the marking depth by one time is bigger

JCZ Main board

Meanwell power supply

configured with high precision

Laser device/Source

JPT can be chosen

MAX laser device brand can be chosen

Raycus brand can be chosen

Ruler

High precision ruler

accurate view of fixed size

more precise and detailed.

Working table

Aluminum working table. Flat and smooth, compact
structure, flexible processing direction adjustable control.

Lifting handle

High quality and stable

Adjust the up and down for different height material marking

Control button
Humanized control system, easy to operate, safe and convenient, dust proof design

Standard Accessories

Optical

Complex rotary for irregular shape,but can only hold 60mm,need to buy

Ring rotary for ring ,need to buy

Ezcad- software

Different types

Desk version

Small desk version

Split version

Company Profile

EXHIBITION

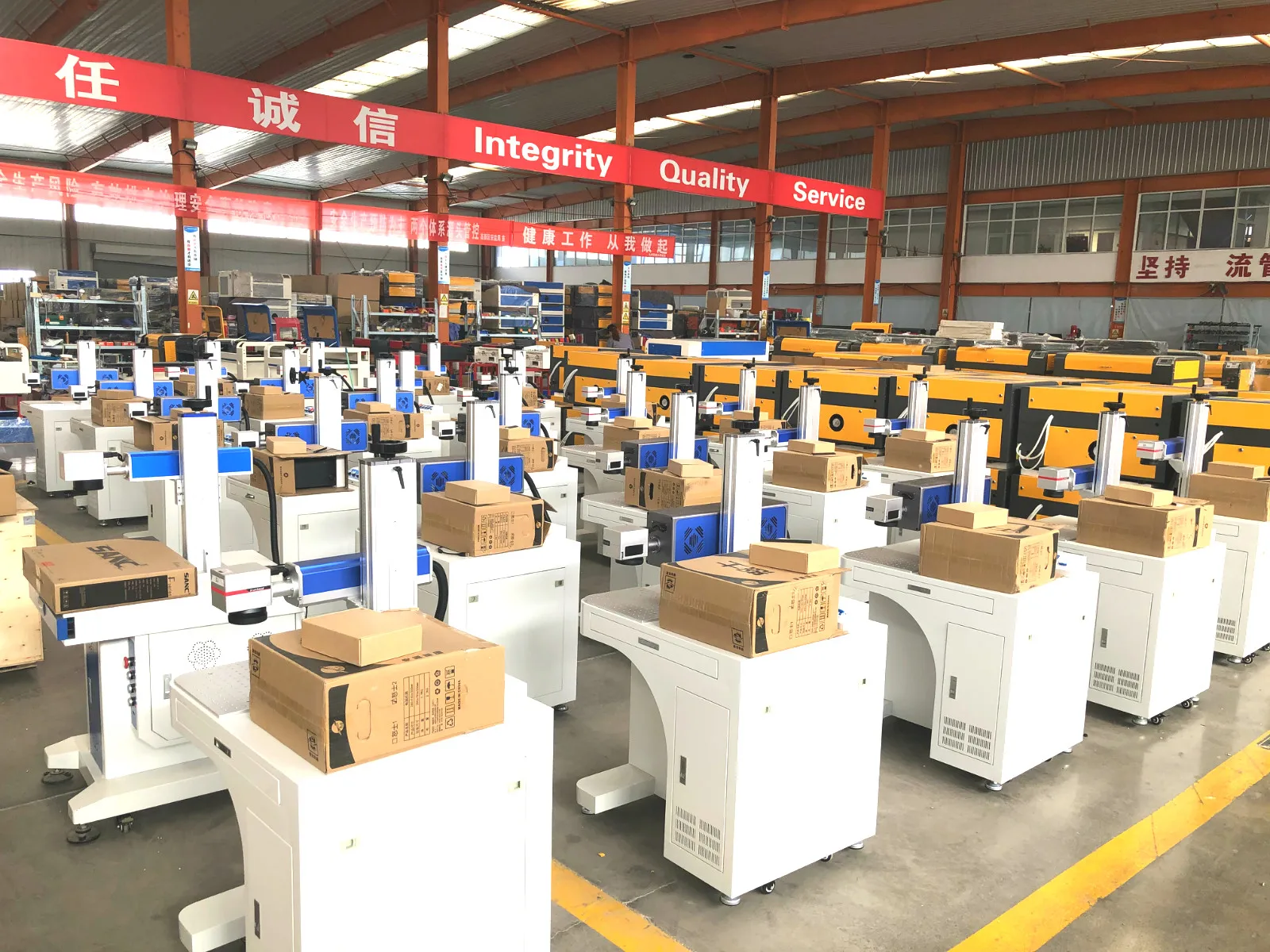

FACTORY CORNER

FACTORY

EXHIBITION

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
