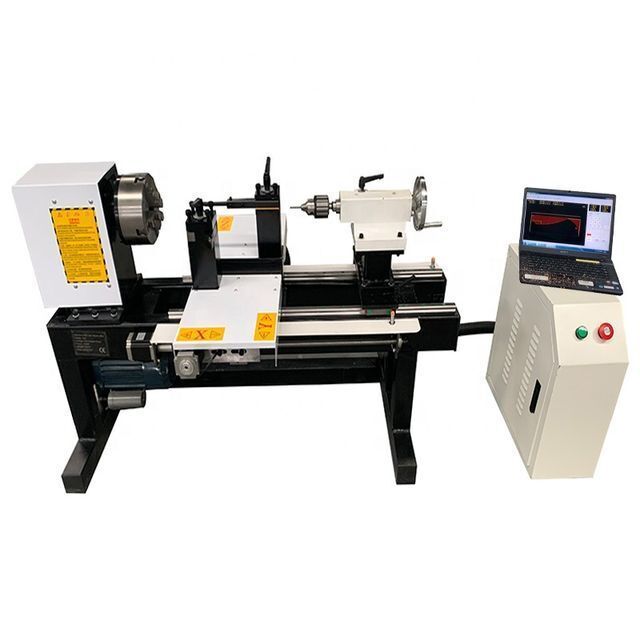

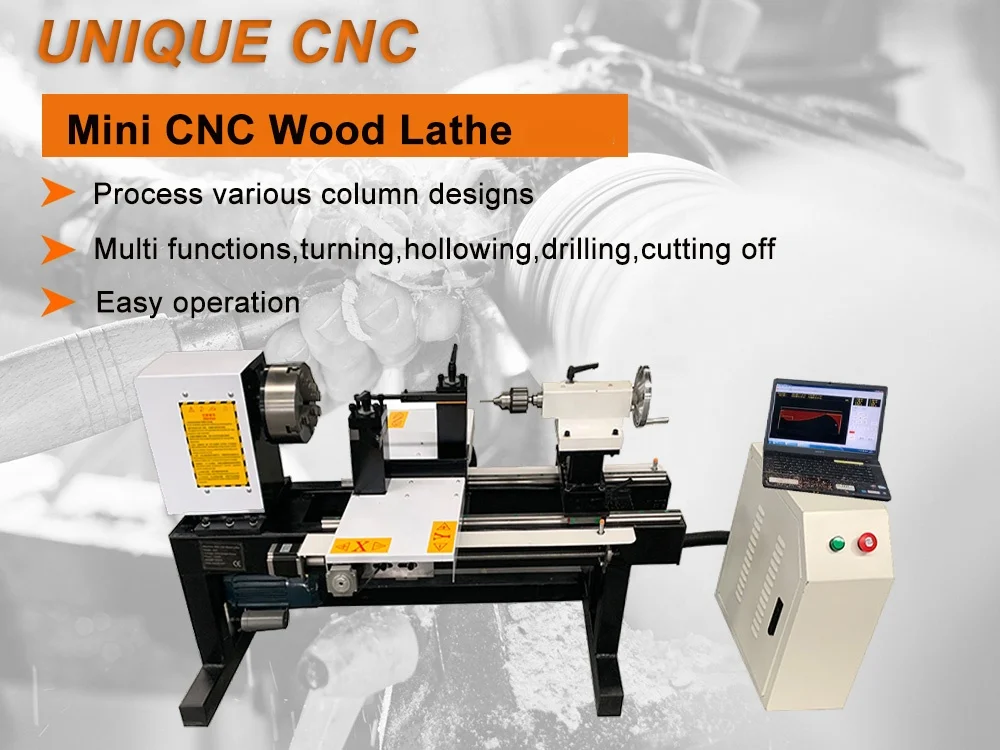

4 axis Multi-functional small mini CNC wood lathe beads making holes drilling machine lathe
-
Supplier: Jinan Unique Cnc Equipment Co., Ltd. -
Region: Shandong, China -
Contact: Ms Karen Liu -
Price: $1880.00 / 1 - 9 sets
$1560.00 / >=10 sets -
Min. Order: 1 set
Product details
| Marketing Type: | 2021 popular product; | Package Preview: | ; |
| Machinery Test Report: | Provided; | Warranty: | 2 years; |
| Max. Swing Diameter (mm): | 260 mm; | Place of Origin: | Shandong, China; |
| Condition: | New; | After Warranty Service: | Video technical support; |
| Functions: | turning,hollowing,drilling; | Voltage: | 220/110; |
| Max. Turned Length (mm): | 500 mm; | Dimension(L*W*H): | 1400x800x800mm; |
| Brand Name: | Unique CNC; | Core Components: | Engine,Bearing; |
| Applicable Industries: | Machinery Repair Shops,Manufacturing Plant,Home Use,Retail,Construction works ,Advertising Company; | Key Selling Points: | Multifunctional; |
| Selling Units: | Single item; | Single gross weight: | 50.000 KG; |
| Max. Length of Workpiece (mm): | 500 mm; | Warranty of core components: | 2 years; |
| Rails: | Square; | Video outgoing-inspection: | Provided; |
| Packaging Detail: | the mini cnc wood lathe will be packed by plywood case.; | Weight (KG): | 270; |
| Showroom Location: | Canada,United States,Italy,India,Mexico,South Korea,Romania,Malaysia,Australia; | Single package size: | 140X88X97 cm; |
| Power (kW): | 1 - 2.2; | Weight: | 270kg; |
Product Description
Model | U-UA26 | U-UA16 | U-UA13 | ||
Working length | 500mm | 500mm | 200mm | ||
Turning diameter | 3-260mm | 3-160mm | 3-130mm | ||
Chuck diameter | 160mm | 160mm | 130mm | ||
Machine dimension | 1300x900x750mm | 1300x900x750mm | 1000x660x700mm | ||
N.W/G.W | 230/270kg | 230/270kg | 150/190kg | ||
Control system | 4 axis mini lathe software | 2 axis mini lathe software | 2 axis mini lathe software | ||
Tailstock | Motorized | Manual | None | ||
Taildrill | Yes | No | No | ||
Functions | Turning, hollowing, drilling, cut off | ||||
Spindle motor power | 1.5KW | 1.5KW | 1.1KW | ||
Spindle rotate speed | 2800rpm | 2800rpm | 2800rpm | ||
Driving way | Stepper motors and drivers | ||||
Transmit way | High precision ballscrews, linear square guide rails | ||||
Interface | LAN cable | ||||
Compatible PC system | Windows | ||||
Drawing software | autoCAD | ||||
Compatible file | DXF | ||||
Voltage | 220V or 110V | ||||
